Product Overview

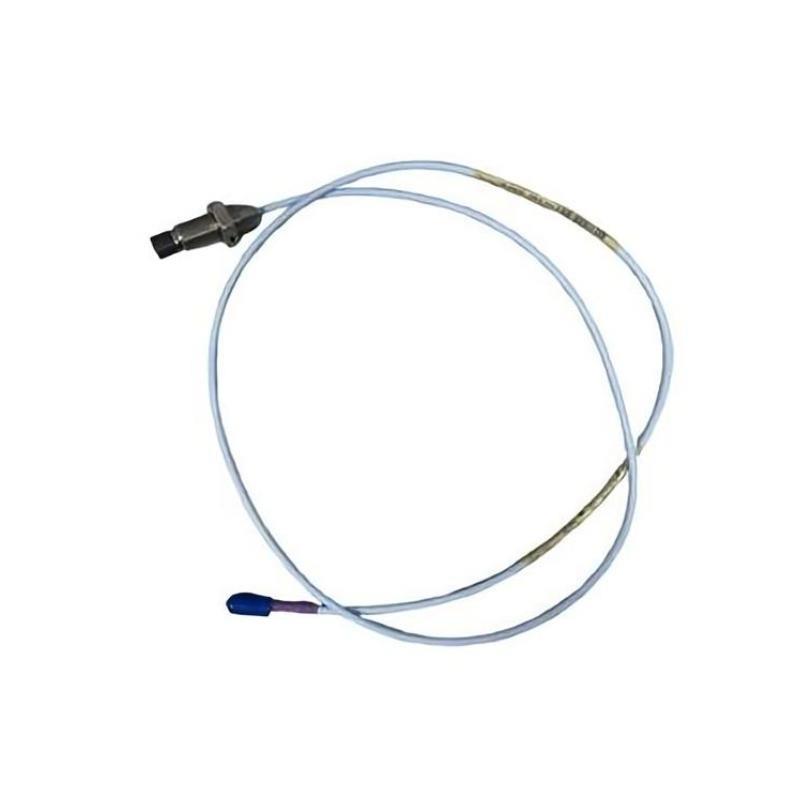

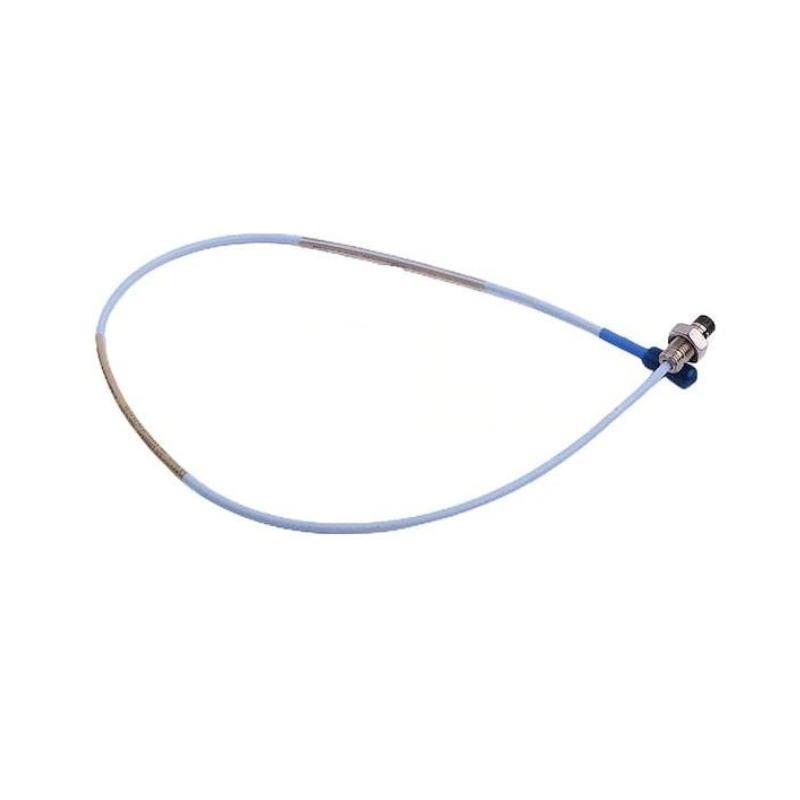

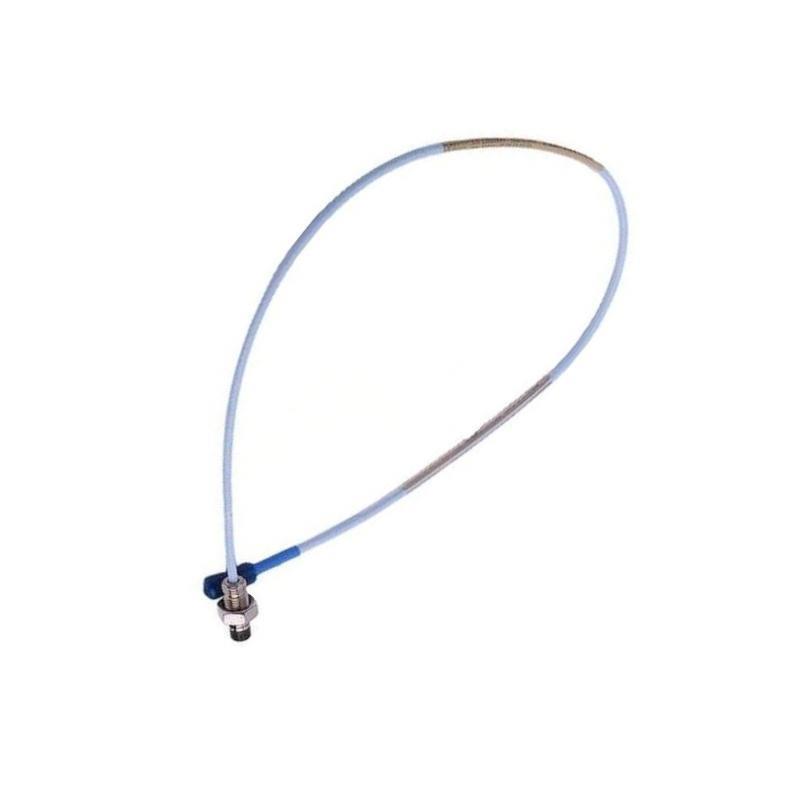

The Bently Nevada 330703-000-040-10-12-00 is a high-performance proximity probe from the 3300 XL 11 mm series, specifically engineered for machinery condition monitoring and protection. It provides accurate, non-contact measurements / shaft vibration, displacement, and position in large-scale rotating equipment.
Key Features
-
11 mm probe tip for extended linear measurement capability
-
40 m integral cable for long-distance applications
-
Compatible with Bently Nevada 3300 XL Proximitor® Sensors
-
优秀 linearity and high measurement accuracy
-
Wide operating temperature range for harsh environments
-
Trusted solution for critical machinery monitoring in oil & gas, power, and process industries
Technical Specifications
| Item | Specification |
|---|---|
| 制造商 | Bently Nevada |
| 零件号 | 330703-000-040-10-12-00 |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Probe Tip Diameter | 11 mm |
| Dimensions | Total Length : 1.0 meter |
| 重量 | 0.07 kg |
| Probe Type | Non-contact eddy-current displacement probe |
| Linear Range | 0.5 – 4.0 mm (20 – 160 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Frequency Response | DC to 5 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Humidity | 0–95% RH, non-condensing |
| Compatibility | Bently Nevada 3300 XL Proximitor® Sensors |
| Applications | Shaft vibration, displacement, and position monitoring |
Industry Applications
-
Steam and gas turbines
-
Large compressors and expanders
-
Generators and motors
-
Industrial pumps and blowers
-
Gearboxes and heavy-duty rotating assets
-
Oil & gas, petrochemical, and power generation industries
常见问题 (FAQ)
Q1: What is the cable length / the 330703-000-040-10-12-00 probe?
It comes with a 40-meter integral cable.
Q2: What is the probe tip size?
This probe has an 11 mm diameter tip.
Q3: Which proximitor sensors is it compatible with?
It is designed to work with Bently Nevada 3300 XL Proximitor® Sensors.
Q4: What is the linear measurement range?
0.5 – 4.0 mm (20 – 160 mils).
Q5: What is the sensitivity?
7.87 V/mm (200 mV/mil).
Q6: What is the frequency response?
DC to 5 kHz.
Q7: Can it be used in high-temperature environments?
Yes, it operates reliably from –35 °C to +177 °C.
Q8: What industries commonly use this probe?
Oil & gas, power generation, and heavy industry applications.
Q9: Is it suitable for long-distance installations?
Yes, the 40 m cable ensures signal integrity over long runs.
Q10: What is the typical application / this probe?
Monitoring shaft vibration, displacement, and position in critical rotating machinery.
Related Bently Nevada Modules
| 型号 | 描述 |
|---|---|
| 330703-000-015-10-01-05 | 3300 XL 11 mm Proximity Probe |
| 330703-000-020-10-01-05 | 3300 XL 11 mm Proximity Probe |
| 330703-000-026-10-01-05 | 3300 XL 11 mm Proximity Probe |
| 330703-000-030-10-01-05 | 3300 XL 11 mm Proximity Probe |
| 330703-000-035-10-01-05 | 3300 XL 11 mm Proximity Probe |
| 330703-000-040-10-12-00 | 3300 XL 11 mm Proximity Probe |
