Product Overview

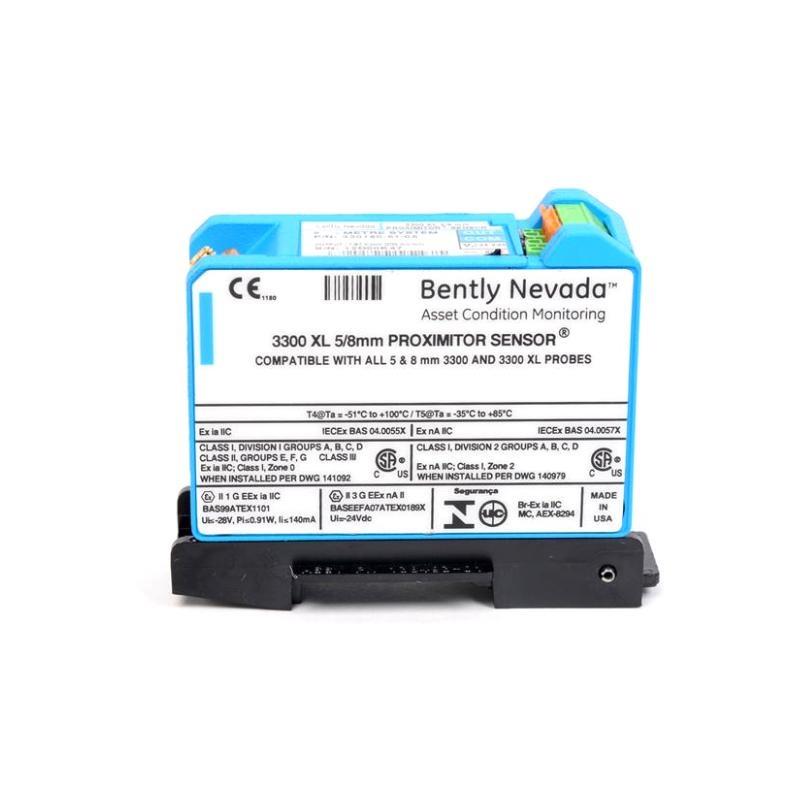

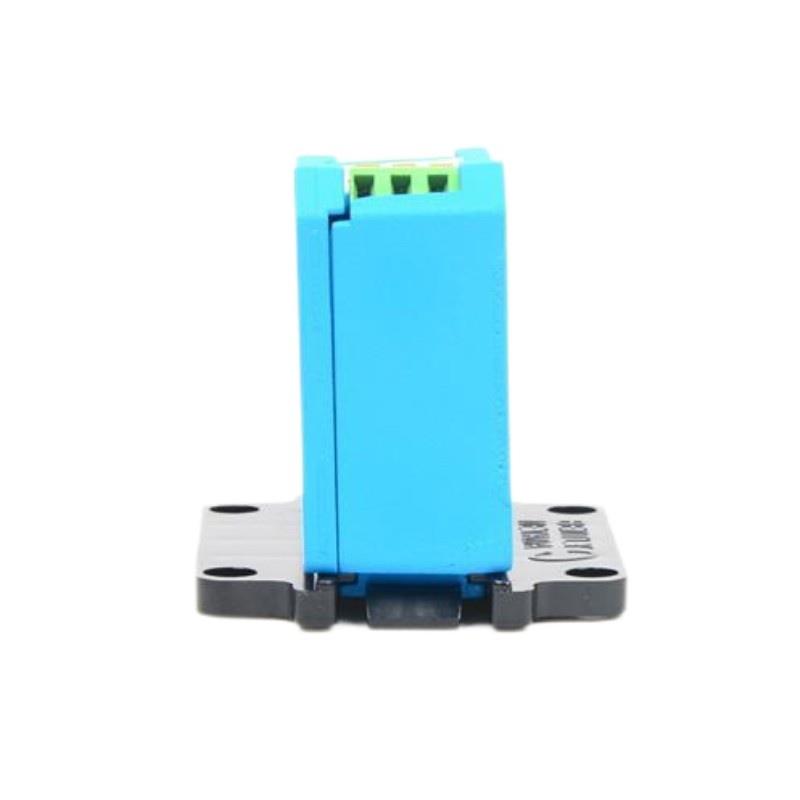

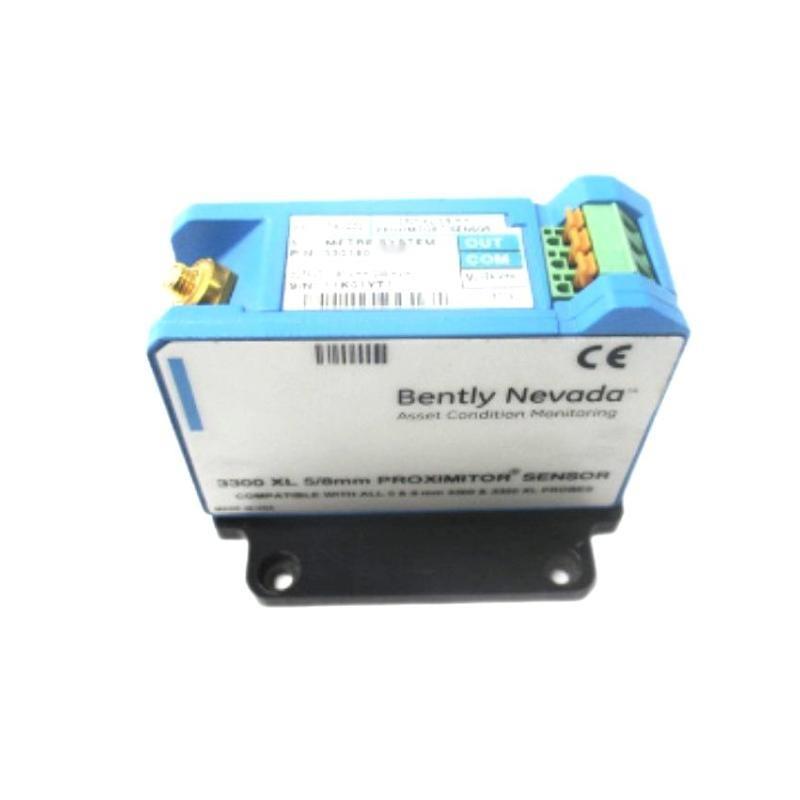

The Bently Nevada 330180-X1-05 145347-39 is part / the 3300 XL 8 mm Proximity Transducer System, designed for precise measurement / vibration and shaft position in fluid-film bearing machines. It outputs a voltage directly proportional to the distance between the probe tip and the conductive surface, supporting both static (position) and dynamic (vibration) measurements. The system is fully compliant with API 670 standards and /fers complete interchangeability between probes, extension cables, and Proximitor Sensors.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 | 330180-X1-05 145347-39 |
| System Components | 8 mm proximity probe, extension cable, Proximitor Sensor |
| Compliance | API 670, CE Mark, RoHS |
| Power Supply | -17.5 VDC to -26 VDC, 12 mA max |
| Output Resistance | 50 Ω |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | -9 VDC (~1.27 mm) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0–10 kHz, +0 / -3 dB |
| Temperature Range (Sensor) | -52°C to +100°C |
| Temperature Range (Probe) | -52°C to +177°C (Standard) |
| Material (Sensor) | A308 Aluminum |
| Material (Probe Case) | Stainless Steel |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| 重量 | 0.246 kg |
Applications
-
Vibration monitoring / turbines, compressors, and pumps
-
Shaft position measurement in rotating equipment
-
Keyphasor reference and overspeed detection
-
High-reliability monitoring in hazardous environments
-
状态 monitoring in marine and /fshore machinery
Advantages
-
Full Interchangeability – No need for component matching or bench calibration
-
Enhanced RFI/EMI Imm件y – Meets CE standards without special conduit requirements
-
Durable Build – Patented TipLoc and CableLoc designs ensure mechanical strength
-
Flexible Mounting – Compatible with DIN-rail or panel mounting
-
Extended Temperature Options – 支持s applications up to 260°C with ETR cables
-
Reduced Installation Time – SpringLoc terminals allow fast, tool-free wiring
FAQ
Q1: What is the main function / the 330180-X1-05 Proximitor Sensor?
A1: It converts the displacement between a proximity probe and a conductive target into a proportional voltage output for machinery monitoring.
Q2: Is it compliant with API 670 standards?
A2: Yes, the 3300 XL 8 mm system is fully compliant with API 670 requirements.
Q3: Can it measure both static and dynamic parameters?
A3: Yes, it measures both shaft position (static) and vibration (dynamic) signals.
Q4: Is the sensor compatible with older 3300 series components?
A4: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm system components.
Q5: What is the recommended gap setting?
A5: Approximately -9 VDC, equal to a 1.27 mm (50 mils) gap.
Q6: What is the maximum operating temperature for the standard probe?
A6: +177°C for the probe tip.
Q7: Does it require special tools for connector installation?
A7: No, ClickLoc connectors require only finger-tight installation.
Q8: What is the typical linear range?
A8: 2 mm (80 mils) from 0.25 mm to 2.3 mm.
Q9: Can it be mounted on a DIN rail?
A9: Yes, DIN-rail mounting is available as an option.
Q10: Is it suitable for hazardous areas?
A10: Yes, it has CSA, ATEX, and IECEx approvals for hazardous locations.
Related 型号s (Same Series)
| 型号 | 描述 | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| 330180-50 | Proximitor Sensor, 5 m system, panel mount | 81.3 x 35.1 x 63.5 | 0.246 |
| 330180-51 | Proximitor Sensor, 5 m system, DIN mount | 81.3 x 35.1 x 63.5 | 0.246 |
| 330180-90 | Proximitor Sensor, 9 m system, panel mount | 81.3 x 35.1 x 63.5 | 0.246 |
| 330180-91 | Proximitor Sensor, 9 m system, DIN mount | 81.3 x 35.1 x 63.5 | 0.246 |
| 330180-10 | Proximitor Sensor, 1 m system, panel mount | 81.3 x 35.1 x 63.5 | 0.246 |
| 330180-11 | Proximitor Sensor, 1 m system, DIN mount | 81.3 x 35.1 x 63.5 | 0.246 |
Popular Bently Nevada 型号s
| 型号 | 描述 | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| 3500/42M | Proximitor Seismic Monitor | 241 x 24 x 187 | 0.91 |
| 3500/22M | Transient Data Interface Module | 241 x 24 x 187 | 0.91 |
| 3500/94M | VGA Display Module | 241 x 72 x 187 | 1.2 |
| 3500/15 | Power Supply Module | 241 x 24 x 187 | 0.95 |
| 330104-00-08-10-02-00 | 3300 XL 8 mm Proximity Probe | Length varies | 0.12 |
| 330130-040-00-00 | 3300 XL 8 mm Extension Cable | Length varies | 0.08 |
