Product Overview

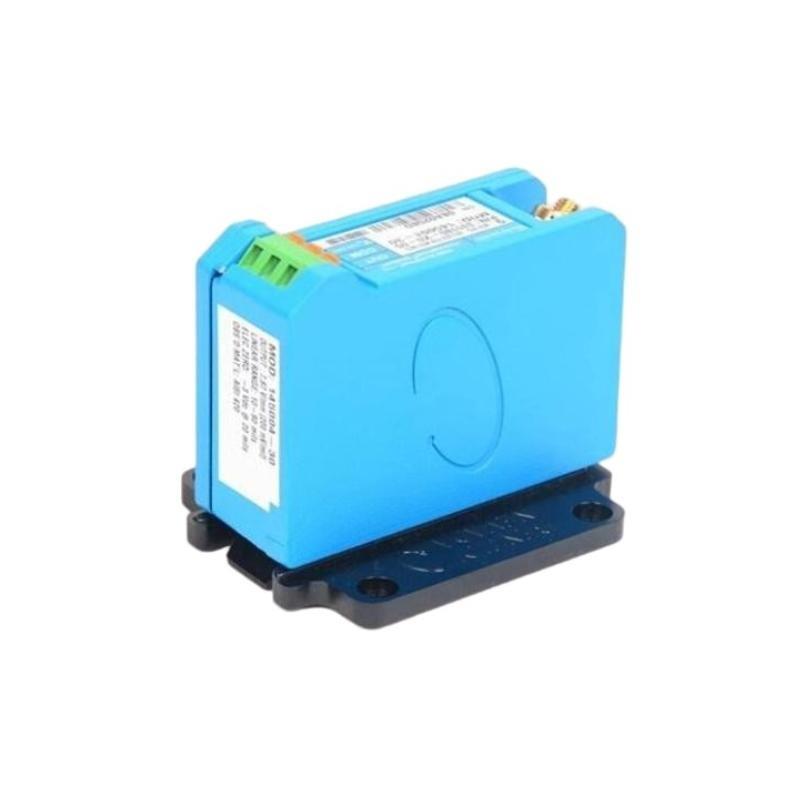

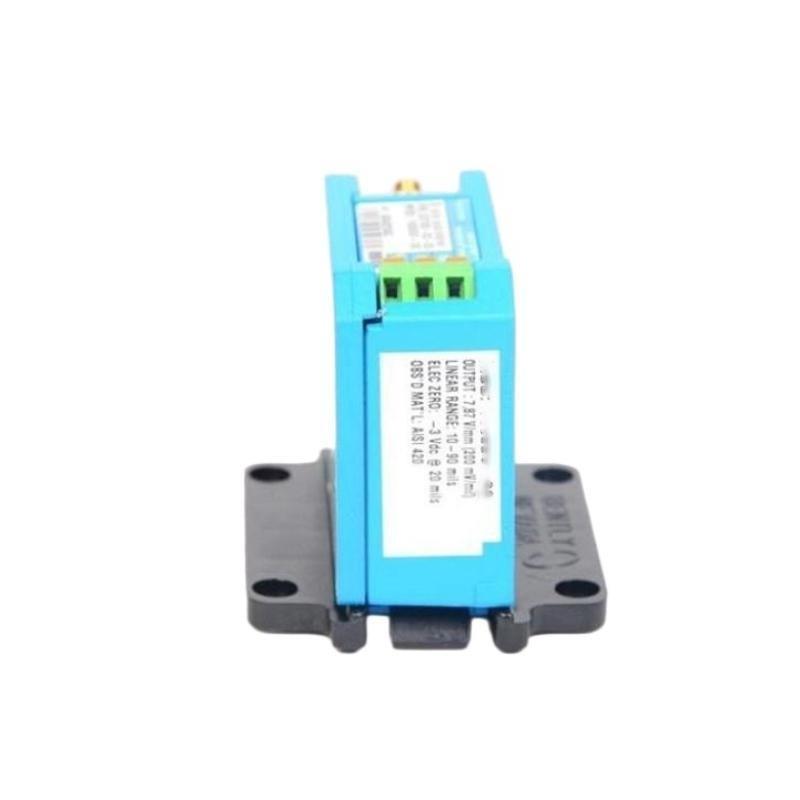

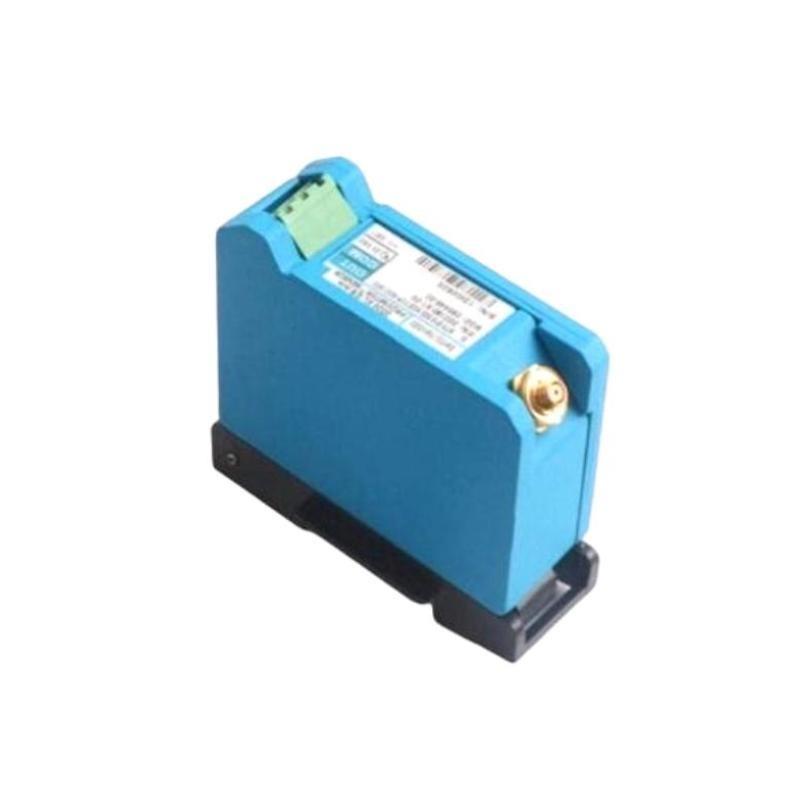

The Bently Nevada 330180-X1-00 145004-89 is a highly reliable 8 mm Proximitor Sensor from the 3300 XL series, engineered to deliver superior performance in vibration and position monitoring / rotating machinery. Designed for use with Bently Nevada proximity probes and extension cables, this sensor is a core component / condition monitoring and protection systems in critical industrial equipment. Its rugged design ensures dependable operation in the harshest environments, while its factory calibration supports plug-and-play compatibility with 3300 XL systems.
Key Features
-
8 mm proximity sensor for precise shaft vibration and position monitoring
-
Designed to work with 3300 XL proximity probes and extension cables
-
Factory-calibrated to ensure accuracy and consistency
-
High resistance to shock and vibration
-
Suitable for continuous, non-contact measurement
-
Compliant with API 670 standards for machinery protection
-
Robust construction for long-term field reliability
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Proximitor Sensor (Proximity Transducer) |
| 型号 Number | 330180-X1-00 |
| 零件号 | 145004-89 |
| Series | 3300 XL |
| 制造商 | Bently Nevada (Baker Hughes) |
| Probe Compatibility | 8 mm 3300 XL Proximity Probes |
| Measurement Range | 0 to 2 mm (0 to 80 mils) |
| Output Signal | DC voltage (proportional to shaft position) |
| System Compatibility | 3300 XL Monitoring Systems |
| Operating Temperature | -40°C to +100°C |
| Storage Temperature | -55°C to +125°C |
| Vibration Tolerance | 10–2000 Hz @ 30 g |
| Shock Resistance | 100 g, 11 ms duration |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| 重量 | 0.246 kg |
Industry Applications
-
Oil and Gas (Turbomachinery Monitoring)
-
Power Generation (Turbines, Generators)
-
Chemical and Petrochemical Plants
-
Pulp and Paper Mills
-
Marine Propulsion Systems
-
Mining Equipment
-
Water Treatment Facilities
Product Advantages
-
High-accuracy displacement and vibration measurement
-
Stable performance over long cable runs and extreme conditions
-
Meets API 670 compliance for critical rotating equipment
-
Low maintenance and long operational lifespan
-
Seamless integration into 3300 XL monitoring architecture
-
Enhanced diagnostics for early fault detection
常见问题 (FAQ)
1. What is the function / the 330180-X1-00 145004-89 sensor?
It provides accurate, non-contact measurement / shaft vibration and position.
2. Is it compatible with other Bently Nevada systems?
Yes, it is designed for use with the 3300 XL system components.
3. What type / probes does it support?
It works with 8 mm 3300 XL proximity probes.
4. What kind / output signal does it generate?
It generates a DC voltage signal proportional to shaft displacement.
5. Can it operate in high-vibration environments?
Yes, it is rated for up to 30 g from 10–2000 Hz.
6. What standards does it comply with?
It meets API 670 requirements for machinery protection systems.
7. Is the sensor pre-calibrated?
Yes, it is factory-calibrated for easy installation and consistent results.
8. How is the sensor mounted?
It is typically mounted using brackets or housings specific to the application.
9. What industries typically use this sensor?
Common in oil & gas, power generation, and heavy manufacturing sectors.
10. What makes this sensor durable in harsh environments?
Its sealed construction and high shock/vibration resistance ensure field reliability.
Related 型号s
| 型号 Number | 描述 |
|---|---|
| 330180-X0-00 145004-99 | 3300 XL 8mm Proximitor Sensor |
| 330180-X0-05 145004-05 | 3300 XL 8mm Proximitor Sensor |
| 330180-X1-00 143416-27 | 3300 XL 8mm Proximitor Sensor |
| 330104-00-12-10-02-05 | 3300 XL 8mm Proximity Probe |
| 330130-080-00-00 | 3300 XL Standard Extension Cable |
Popular Bently Nevada 型号s
| 型号 Number | 描述 |
|---|---|
| 3300/20-12-01-01-00 | 3300 XL Monitor |
| 330103-00-05-10-02-00 | Extension Cable for 3300 XL Sensors |
| 330104-01-05-50-02-00 | 3300 XL 8mm Proximity Probe |
| 330101-00-14-10-02-05 | 3300 XL 8mm Proximity Probe |
| 3300 XL Accessories | Mounting brackets, housing, and adapters |
