产品介绍

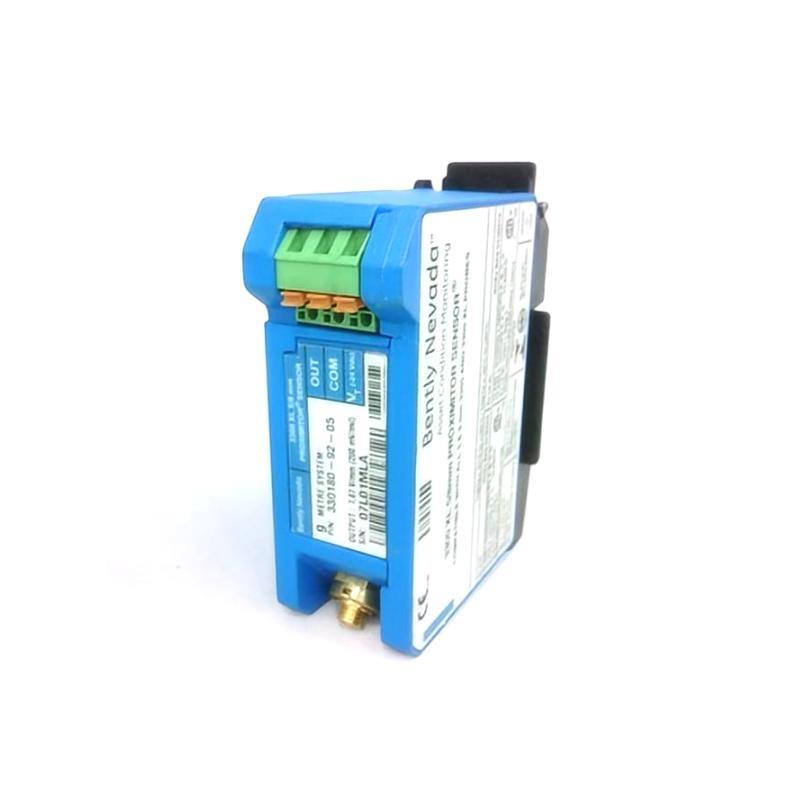

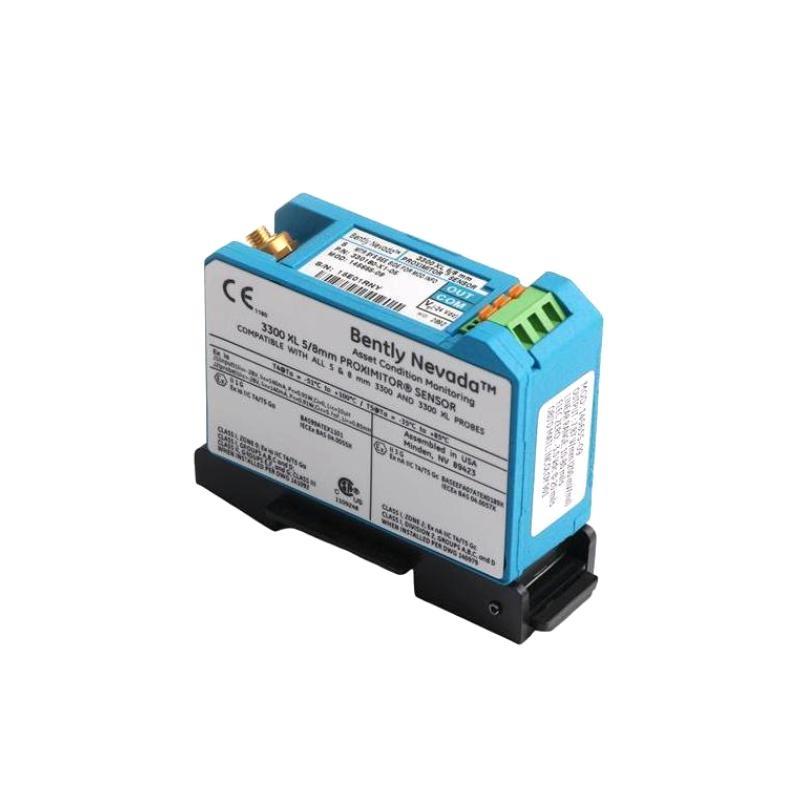

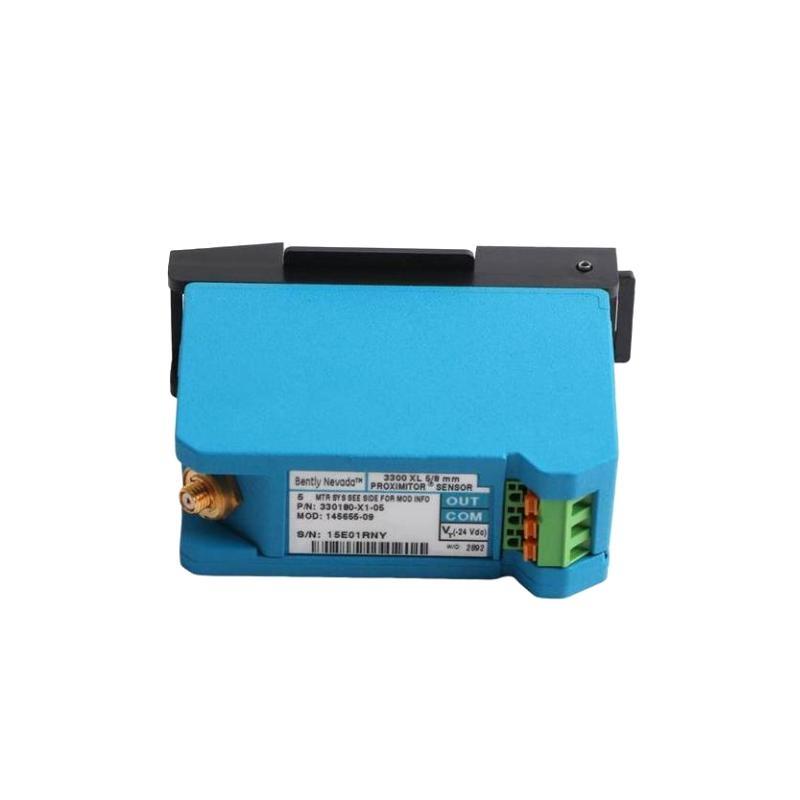

The Bently Nevada 330180-92-05 is a component / the 3300 XL 8mm Proximity Transducer System, designed for precise non-contact vibration and position measurements in rotating machinery. This system comprises a proximity probe, an extension cable, and a Proximitor sensor, collectively providing accurate displacement measurements essential for machinery protection and condition monitoring. The “-92” denotes a 9.0-meter system length with no mounting hardware, while the “-05” indicates compliance with CSA, ATEX, and IECEx hazardous area certifications.
Technical Specifications
| Parameter | Specification |
| 型号 Number | 330180-92-05 |
| System | 3300 XL 8mm Proximity Transducer System |
| Measurement Type | Non-contact displacement measurement via eddy current |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Linear Range | 2 mm (80 mils) |
| Output Sensitivity | 200 mV/mil (7.87 mV/μm) |
| Frequency Response | Up to 10 kHz |
| Power Supply | -17.5 Vdc to -26 Vdc |
| Operating Temperature | -35°C to +100°C (-31°F to +212°F) |
| Storage Temperature | -51°C to +177°C (-60°F to +350°F) |
| Humidity | 95% non-condensing |
| RFI/EMI Imm件y | Compliant with European CE mark approvals |
| Mounting Options | No mounting hardware provided |
| Electrical Isolation | Provided by mounting base |
| 重量 | 0.246 kg |
| Total Length | 9 m |
| Compliance | API 670, ATEX/IECEx, CSA, CE, RoHS |
Applications
The 330180-92-05 Proximitor Sensor is utilized in various industrial applications, including:
-
Monitoring shaft vibration and position in turbines, compressors, pumps, and motors.
-
Detecting radial and axial displacement in rotating machinery.
-
Providing input for machinery protection systems to prevent catastrophic failures.
-
支持ing condition monitoring programs for predictive maintenance strategies.
Key Advantages
-
High Accuracy: Delivers precise measurements essential for machinery protection.
-
Robust Design: Suitable for harsh industrial environments with high temperatures and humidity.
-
Enhanced RFI/EMI Imm件y: Ensures reliable operation near electrical noise sources.
-
Flexible Mounting: Compatible with various installation scenarios.
-
Compliance with Standards: Meets API 670 requirements and holds ATEX/IECEx, CSA certifications for hazardous areas.
Recent News Headlines
-
“Bently Nevada Enhances 3300 XL Series for Improved Machinery Monitoring”
-
“Advancements in Non-联系我们 Vibration Sensors: The 3300 XL 8mm Series”
-
“Bently Nevada’s 3300 XL Sensors Now Compliant with Latest API Standards”
常见问题 (FAQ)
-
What does the “-92-05” suffix mean in the model 330180-92-05?
The “-92” indicates a 9.0-meter system length with no mounting hardware, and “-05” signifies compliance with CSA, ATEX, and IECEx hazardous area certifications. -
Can this sensor be used with high-speed turbines or compressors?
Yes, it’s specifically designed for high-speed rotating machinery such as steam turbines, compressors, and centrifugal pumps, /fering fast and accurate displacement readings. -
Is the sensor sensitive to electrical noise or interference?
The 3300 XL 8mm series is engineered with enhanced imm件y to EMI and RFI, making it reliable even in electrically noisy environments like motor housings or generator enclosures. -
What kind / shaft materials can this sensor measure displacement on?
It is optimized for measurements on AISI 4140 steel (or similar magnetic materials), as required by industry vibration monitoring standards like API 670. -
Is this product field-replaceable or must it be sent back for service?
All components—probe, extension cable, and Proximitor sensor—are fully field-replaceable and interchangeable, simplifying maintenance and minimizing downtime. -
How should the probe be mounted for best performance?
For accurate readings, the probe should be installed perpendicular to the shaft surface with proper target clearance, using mounting brackets compliant with Bently’s specifications. -
What type / signal does the sensor output?
It delivers a linear voltage output (200 mV/mil) proportional to shaft displacement, suitable for direct integration with monitoring systems like the 3500 series. -
Does it require a specific power supply?
Yes, it typically requires a -24 VDC power supply within a range / -17.5 VDC to -26 VDC, commonly provided by machinery monitoring systems. -
Can the sensor be used in hazardous areas?
Absolutely. The “-05” version is certified for use in hazardous areas under CSA, ATEX, and IECEx guidelines. -
Can the sensor operate in environments with high moisture or condensation?
Yes. The housing and sealing meet industrial environmental protection standards. However, proper cable sealing and terminal box use are critical to prevent long-term corrosion.
Related 型号s – 3300 XL 8mm Series
| 型号 Number | 描述 | Cable Length | Certification |
| 330180-90-00 | Standard Proximitor Sensor | 5 m | CE |
| 330180-91-00 | Long range system sensor | 7 m | CE/ATEX |
| 330180-92-00 | Extended length sensor without certifications | 9 m | None |
| 330180-91-CN | 7 m proximity sensor, China region certified version | 7 m | CCC/ATEX |
| 330180-90-CN | 5 m China-certified proximity sensor | 5 m | CCC |
| 330130-040-00-00 | 8mm proximity probe with cable | 5 m | ATEX/IECEx |
| 330104-00-05-10-02-CN | 8mm probe + cable, China version | 5 m | CCC/CSA |
| 330130-045-00-00 | Proximity probe with armor cable | 5 m | ATEX, ruggedized |
Popular Bently Nevada 型号s (Same 品牌)
| 型号 Number | Product Name | Function | Remarks |
| 3500/22M | Transient Data Interface Module | Vibration Monitoring | Common in 3500 systems |
| 3500/42M | Proximitor/Seismic Monitor | Vibration & Displacement | High-density channel support |
| 330104-00-10-10-02 | 8mm Probe + Cable | Proximity Sensing | Standard configuration |
| 330930-065-02-05 | Cable Assembly | Sensor Extension | Heavy-duty use |
| 3701/44T | TMR Machinery Protection Monitor | Safety Systems | Triple Modular Redundancy |
| 3500/15 | Power Supply Module | Chassis Power | Universal input range |
| 330850-50-05 | Speed Sensor (Keyphasor) | Rotational Speed Monitoring | For rotor phase triggering |
| 330106-05-30-10-02 | Armored Proximity Probe | For harsh environments | Oil & gas industry proven |
