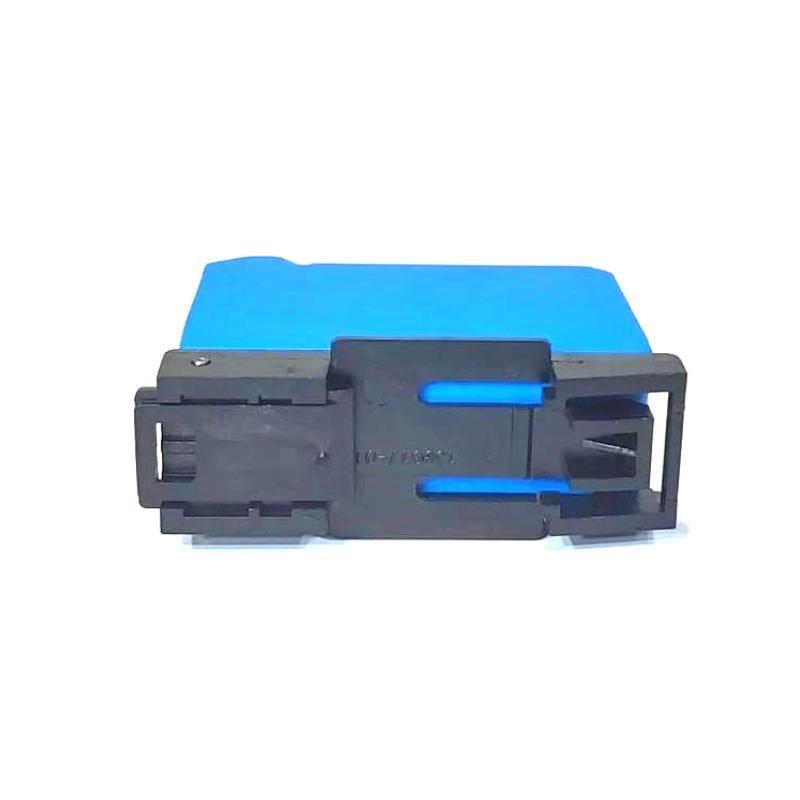

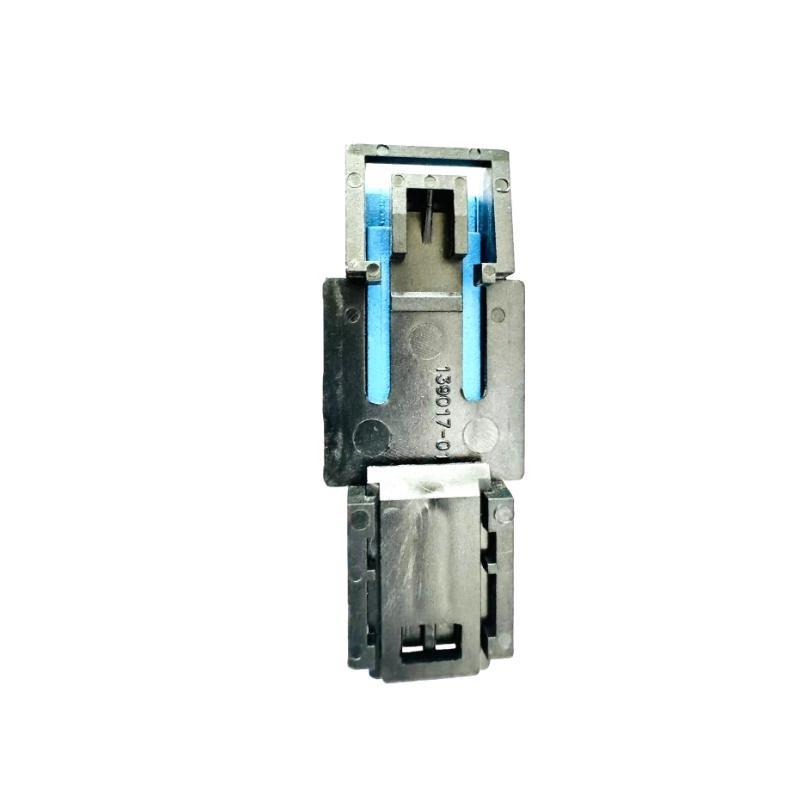

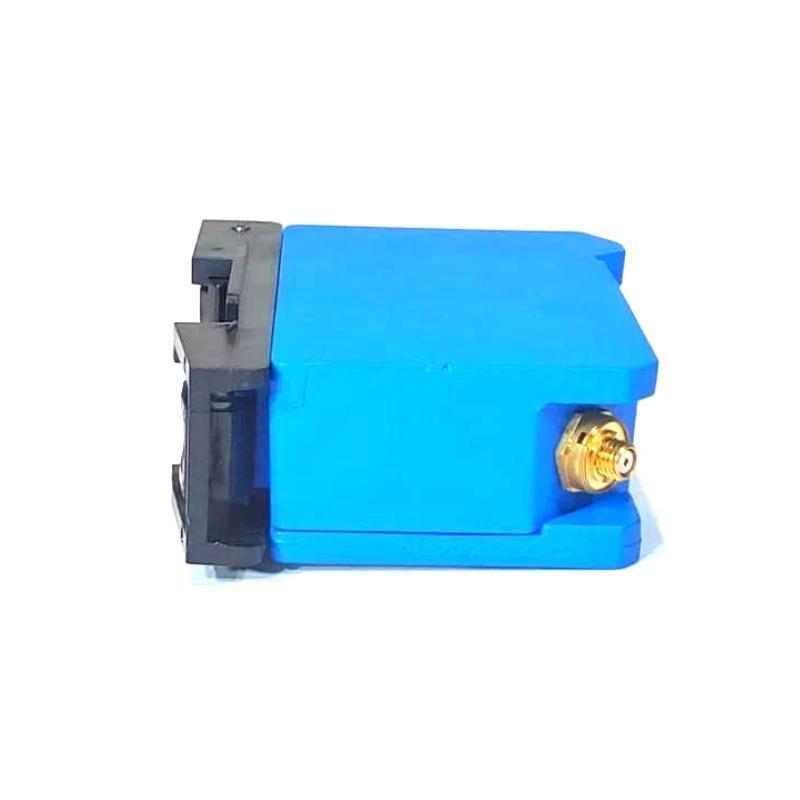

The Bently Nevada 330180-91-00 is part / the 3300 XL 8 mm Proximity Transducer System, designed for precise vibration and position monitoring on rotating machinery with fluid-film bearings. It includes a proximity probe, extension cable, and the 3300 XL Proximitor Sensor, delivering reliable performance per API 670 standards. The system outputs a voltage proportional to the gap between the probe tip and a conductive target surface.
Applications
-
Radial vibration and axial position measurements
-
Shaft speed and Keyphasor® reference measurements
-
Turbine, compressor, and motor condition monitoring
-
Environments requiring extended temperature or hazardous area certifications
Advantages
-
Interchangeable components with no field calibration required
-
SpringLoc terminals for tool-free, secure wiring
-
High RFI/EMI imm件y for use in industrial environments
-
支持s extended temperature and hazardous area conditions
-
Meets API 670 standards for accuracy and mechanical design
Technical Specifications
| Parameter | Value |
|---|---|
| System Length | 9.0 meters |
| 重量 (Total) | 0.246 kg |
| Linear Range | 0.25 to 2.3 mm (10 to 90 mils) |
| ISF Accuracy (9 m system) | 7.87 V/mm ±6.5% (200 mV/mil ±6.5%) |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Operating Temperature (Probe) | -52°C to +177°C (Standard), up to +218°C (ETR) |
| Frequency Response | 0–10 kHz, +0, -3 dB |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Output Resistance | 50 Ω |
| Input Voltage | -17.5 Vdc to -26 Vdc |
| Minimum Target Diameter | 15.2 mm (0.6 in) |
| Minimum Shaft Diameter | 50.8 mm (2.0 in), recommended 76.2 mm (3.0 in) |
常见问题 (FAQ)
Q1: What is the primary function / the 330180-91-00 Proximitor Sensor?
A1: It converts signals from the proximity probe into voltage proportional to shaft vibration or position.
Q2: Can it be used in hazardous environments?
A2: Yes, it meets ATEX, CSA, and IECEx certifications for hazardous areas.
Q3: Is the system compliant with API 670?
A3: Yes, it fully meets API 670 mechanical and performance standards.
Q4: Are the components interchangeable with older 3300 series?
A4: Yes, they are backward compatible with non-XL 3300 5 mm and 8 mm systems.
Q5: Does it require special tools for installation?
A5: No, SpringLoc terminals and ClickLoc connectors allow tool-free installation.
Q6: What is the benefit / the FluidLoc cable option?
A6: It prevents fluid migration through the cable in oily or wet environments.
Q7: Can it be used for overspeed protection applications?
A7: Yes, but follow Bently Nevada guidelines for such use.
Q8: What is the minimum probe separation to avoid signal interference?
A8: At least 38–40 mm between probe tips.
Q9: What target material is it calibrated for by default?
A9: AISI 4140 steel, with other materials available upon request.
Q10: Is a 9-meter system as accurate as shorter lengths?
A10: It maintains excellent performance, with slightly higher ISF tolerance (±6.5%).
Related 型号s (Same Series)
| 型号 Number | 描述 | Cable Length | Mount Type | 重量 |
|---|---|---|---|---|
| 330180-90-00 | 3300 XL Proximitor Sensor (Panel Mount) | 9.0 m | Panel | 0.246 kg |
| 330130-090-00-00 | 3300 XL Extension Cable | 9.0 m | – | 0.306 kg |
| 330101-00-12-90-02-05 | 3300 XL 8 mm Probe (3/8-24 UNF, armored) | 9.0 m | Threaded | 0.887 kg |
| 330191-00-12-90-02-05 | 3300 XL ETR Probe (extended temp) | 9.0 m | Threaded | 0.887 kg |
| 330105-02-12-90-02-00 | 3300 XL 8 mm Reverse Mount Probe | 9.0 m | Threaded | 0.820 kg |
| 330141-00-12-90-02-00 | 3300 XL Probe (Smooth Case, armored) | 9.0 m | Smooth | 0.887 kg |
Popular Bently Nevada 型号s
| 型号 Number | 描述 | Function | 重量 |
|---|---|---|---|
| 3500/22M | Transient Data Interface Module | Data collection | ~0.5 kg |
| 3500/42M | Proximitor Seismic Monitor | Vibration monitoring | ~0.7 kg |
| 3500/20 | Rack Interface Module | Power and interface | ~0.6 kg |
| 3500/15E | Power Supply Module | Redundant power | ~0.9 kg |
| 3500/25 | Keyphasor Module | Shaft speed and phase | ~0.5 kg |
| 3500/32M | 4-Channel Relay Module | Alarm relay output | ~0.6 kg |
