描述

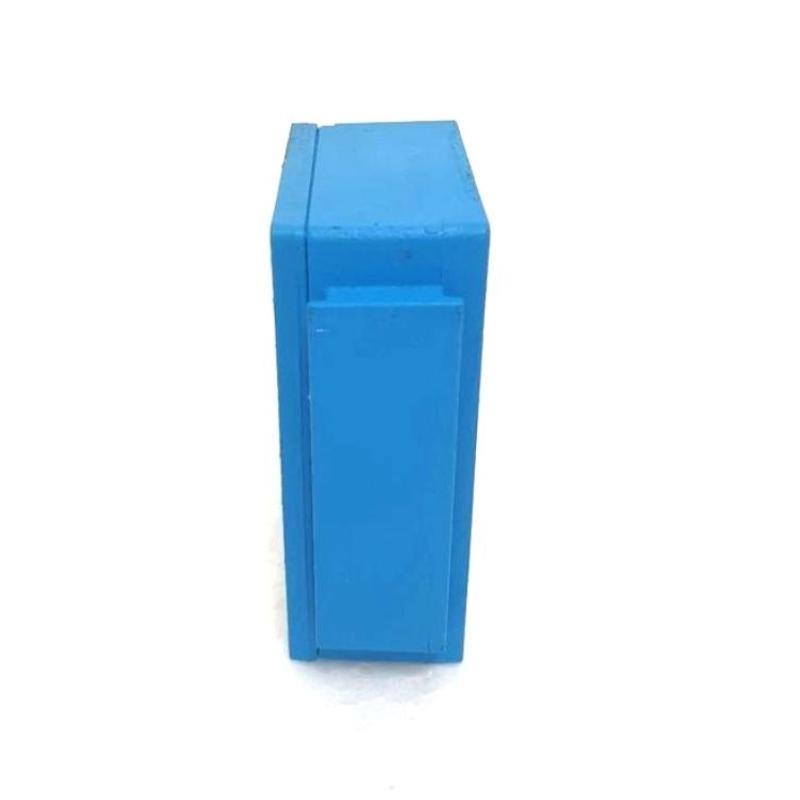

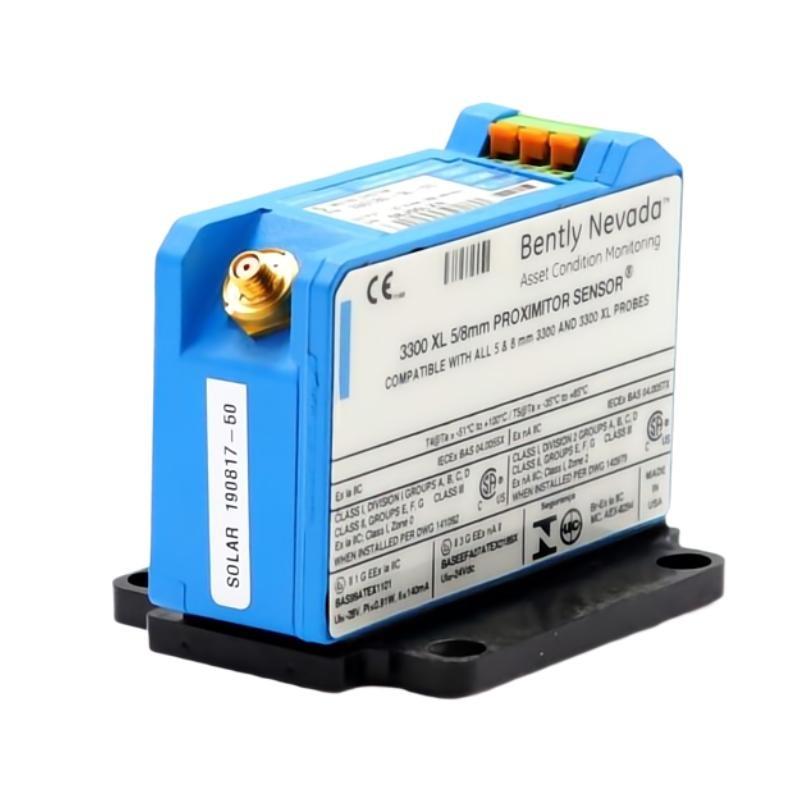

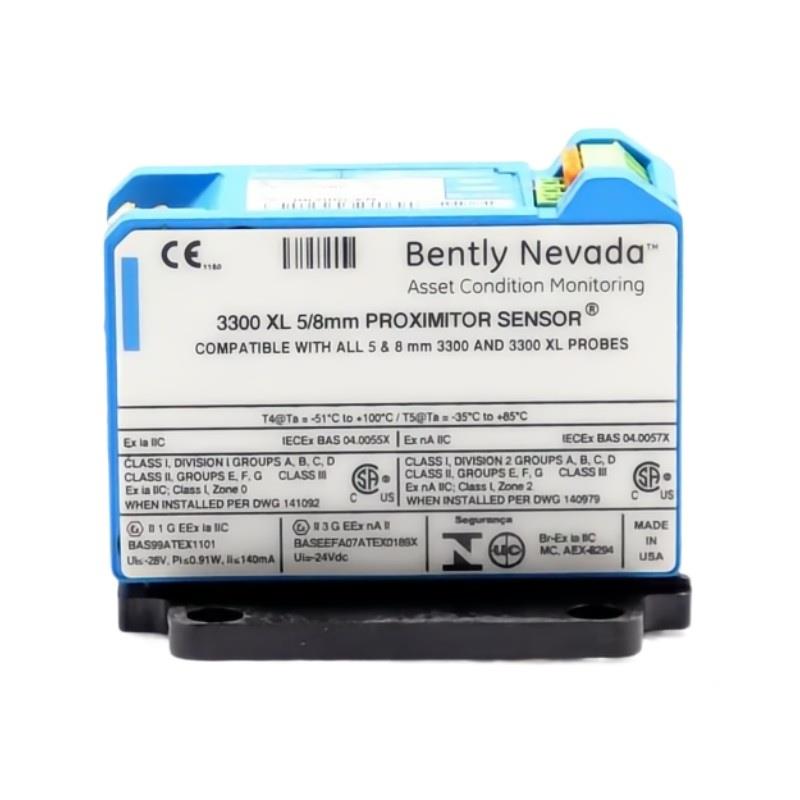

The 330180-50-CN is part / the Bently Nevada 3300 XL 8 mm Proximity Transducer System, /fering precise non-contact vibration and position measurements. It consists / a proximity probe, extension cable, and Proximitor sensor. Designed for fluid-film bearing machines, it complies with API 670 and ensures full component interchangeability without the need for recalibration.
Applications
-
Shaft vibration monitoring
-
Axial thrust position measurement
-
Speed and Keyphasor reference sensing
-
Steam/gas turbine protection
-
Critical rotating machinery diagnostics
Advantages
-
Fully API 670 compliant
-
Backward compatibility with non-XL 3300 components
-
Resistant to RFI/EMI for improved performance
-
Durable ClickLoc connectors with no tools required
-
Extended temperature range versions available
-
Fast SpringLoc terminal strip wiring
Technical Specifications
| Parameter | Value |
|---|---|
| 型号 | 330180-50-CN |
| System Length | 5.0 meters |
| 重量 (Total System) | 0.246 kg (sensor) |
| Output Voltage | -1 to -17 Vdc over 2 mm linear range |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (5m system) |
| Frequency Response | 0 to 10 kHz (±3 dB) |
| Operating Temp (Sensor) | -52°C to +100°C |
| Storage Temp (Sensor) | -52°C to +105°C |
| Probe Material | PPS tip, AISI 303/304 SST case |
| Pressure Seal | Viton O-ring |
| Environmental Rating | IEC, CE compliant, SIL2/SIL3 certified |
| Certifications | CSA, ATEX, IECEx, FCC, Marine |
| Installation Mount | Panel mount (option 50) |
FAQs
Q1: What is the function / the 330180-50-CN sensor?
A1: It measures shaft position and vibration using eddy current technology.
Q2: What system length does the -50-CN model support?
A2: 5.0 meters, including the probe and extension cable.
Q3: Is the sensor compliant with API 670?
A3: Yes, it meets mechanical, accuracy, and linearity requirements / API 670.
Q4: Can components be mixed between XL and non-XL systems?
A4: Yes, but the system’s performance will default to the lower (non-XL) specs.
Q5: What is the output signal range?
A5: Output voltage ranges from -1 Vdc to -17 Vdc over the 2 mm linear range.
Q6: Does it require calibration with specific materials?
A6: Standard calibration is for AISI 4140 steel; other materials available upon request.
Q7: What is the recommended gap setting?
A7: -9 Vdc, corresponding to ~1.27 mm (50 mils) gap from the target.
Q8: Is it suitable for high-temperature environments?
A8: Yes, ETR versions handle up to 260°C for cables and 218°C for probe tips.
Q9: What is the minimum shaft diameter for effective use?
A9: Minimum recommended is 76.2 mm (3 in) for accurate radial measurement.
Q10: Is the sensor suitable for hazardous environments?
A10: Yes, it’s certified for ATEX, CSA, IECEx with Zone 0/Zone 2 approvals.
Related 型号s (Same Series)
| 型号 | 描述 | System Length | 重量 |
|---|---|---|---|
| 330180-10-CN | 1.0 m Proximitor Sensor (Panel mount) | 1.0 m | 0.246 kg |
| 330180-11-CN | 1.0 m Proximitor Sensor (DIN mount) | 1.0 m | 0.246 kg |
| 330180-50-CN | 5.0 m Proximitor Sensor (Panel mount) | 5.0 m | 0.246 kg |
| 330180-51-CN | 5.0 m Proximitor Sensor (DIN mount) | 5.0 m | 0.246 kg |
| 330180-90-CN | 9.0 m Proximitor Sensor (Panel mount) | 9.0 m | 0.246 kg |
| 330180-91-CN | 9.0 m Proximitor Sensor (DIN mount) | 9.0 m | 0.246 kg |
