产品介绍

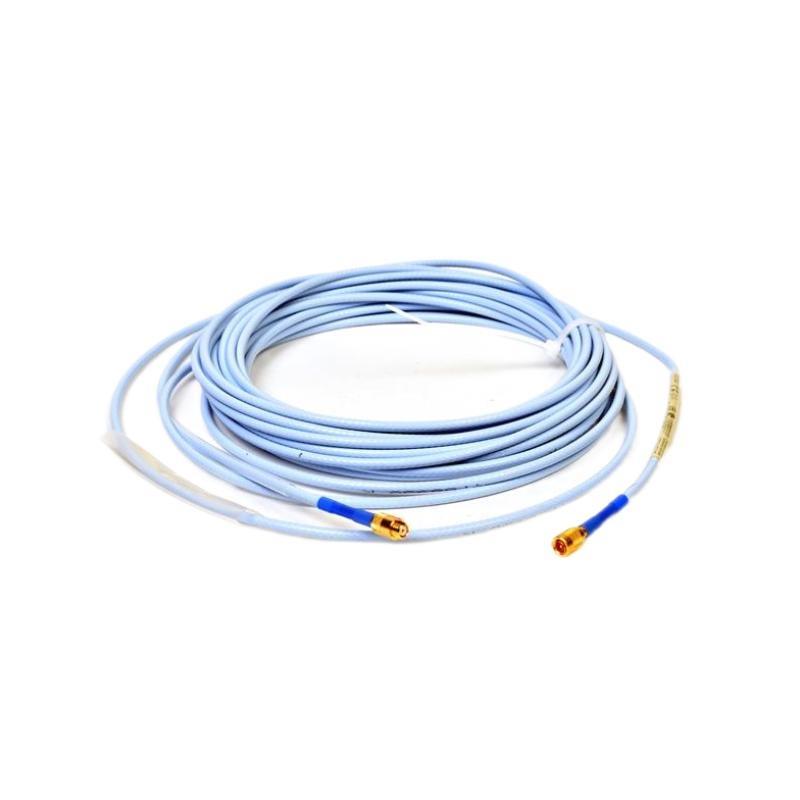

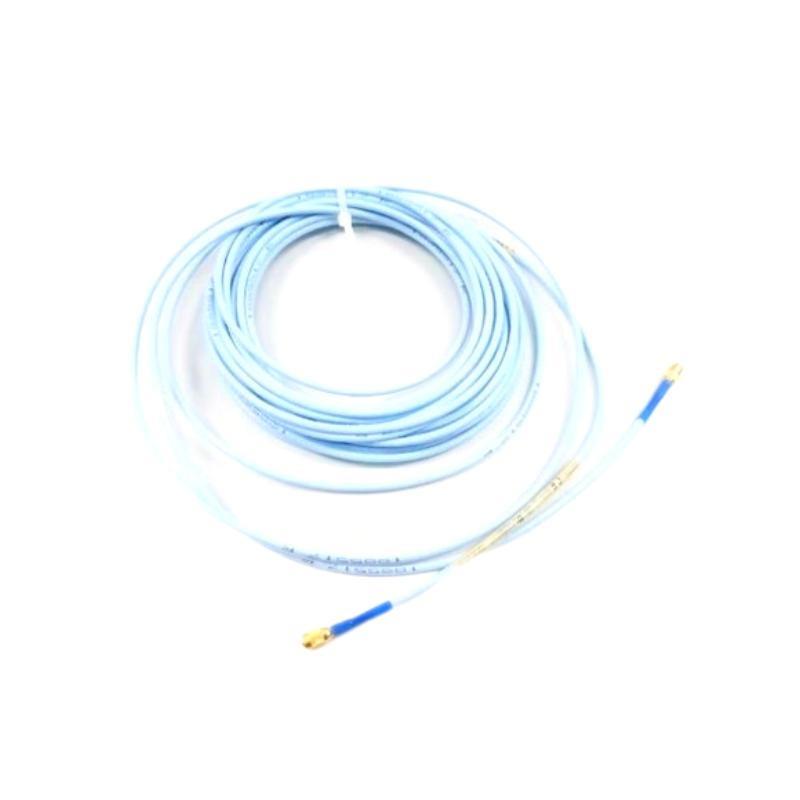

The Bently Nevada 330130-085-00-05 is a standard extension cord specifically designed for use with the 3300 XL series proximity probes and related monitoring equipment. This extension cord provides a reliable and robust connection between proximity probes and the monitoring system, ensuring high fidelity signal transmission over extended distances.
Engineered with high-quality, shielded cable and durable connectors, the 3300 XL Standard Extension Cord is built to operate efficiently in harsh industrial environments where signal integrity is crucial. Its design minimizes electrical noise and interference, preserving the accuracy / vibration and shaft displacement data critical for predictive maintenance and machinery protection.
The extension cord is an essential accessory for installations requiring longer cable runs or where probe placement needs to be flexible. Compatible with a wide range / 3300 XL probes and system components, it enables seamless integration and system expansion with minimal signal degradation.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 Number | 330130-085-00-05 |
| Product Type | Standard Extension Cord for 3300 XL Proximity Probes |
| Compatible Series | Bently Nevada 3300 XL |
| Cable Length | 8.5 meters |
| Connector Type | MIL-C-26482 Style Connectors |
| Cable Type | Shielded, low-noise, multi-conductor cable |
| Operating Temperature | -40°C to +90°C |
| 重量 | 0.289 kg |
| Shielding | Overall foil and braid shielding for EMI/RFI protection |
| Compliance | Meets IEC and ISO standards for vibration monitoring systems |
| Typical Applications | Extension for probe signals in rotating machinery condition monitoring |
Applications
The 3300 XL Standard Extension Cord is designed for use in critical industrial environments including:
-
Power Plants: Extending probe signals in turbine and generator vibration monitoring systems.
-
Oil and Gas: Reliable cable extension for pumps, compressors, and rotating equipment monitoring.
-
Mining: Used in harsh environments for conveyor and crusher machinery monitoring.
-
Pulp and Paper: Facilitates flexible sensor placement on rotating equipment.
-
Manufacturing: Allows installation flexibility for heavy-duty motor and gearbox monitoring.
-
Aerospace & Defense: Extends signal wiring for rotating machinery monitoring in engine test stands.
Advantages
-
Superior Signal Integrity: Shielded cable design minimizes electrical noise, ensuring accurate signal transmission.
-
Robust Construction: Designed to withstand harsh industrial environments including exposure to chemicals and mechanical stress.
-
Flexibility: Provides installation adaptability by extending probe cable length without performance loss.
-
Standardized Connectors: MIL-C-26482 connectors ensure secure and reliable connections.
-
Wide Temperature Range: Suitable for extreme temperature conditions found in industrial applications.
-
Compatibility: Fully compatible with Bently Nevada 3300 XL proximity probes and monitoring systems.
-
Ease / Installation: Plug-and-play design for quick connection and minimal downtime.
-
EMI/RFI Protection: Shielding protects against electromagnetic and radio frequency interference.
-
Reduced Maintenance: Durable materials and construction reduce the need for frequent replacements.
常见问题 (FAQs)
1. What is the standard length / the Bently Nevada 330130-085-00-05 extension cord?
The standard cable length is 8.5 meters.
2. What type / connectors does this extension cord use?
It uses MIL-C-26482 style military-grade connectors for reliable connections.
3. Is the cable shielded to prevent interference?
Yes, it has overall foil and braid shielding to protect against EMI and RFI.
4. What is the operating temperature range for this extension cord?
It operates reliably between -40°C and +90°C.
5. Can this extension cord be used outdoors?
While designed for industrial environments, additional protection may be needed for prolonged outdoor exposure.
6. Is the extension cord compatible with all Bently Nevada 3300 XL proximity probes?
Yes, it is compatible with the entire 3300 XL series / proximity probes.
7. How durable is the cable jacket?
The jacket is made / robust materials designed to resist abrasion, chemicals, and mechanical damage.
8. Can I order custom lengths for the extension cord?
Custom lengths may be available upon request.
9. Does the extension cord affect signal quality over long distances?
No, the cable is designed to preserve signal integrity over the specified length.
10. How do I connect the extension cord to the probe and monitor?
Simply plug the MIL-C-26482 connectors into the corresponding ports on the probe and monitoring system.
Related 型号s from the Same Series
| 型号 Number | 描述 | Cable Length | Connector Type | 重量 |
|---|---|---|---|---|
| 330130-085-00-10 | 3300 XL Extension Cord, 10 meters | 10 meters | MIL-C-26482 connectors | 0.45 kg |
| 330130-085-00-15 | 3300 XL Extension Cord, 15 meters | 15 meters | MIL-C-26482 connectors | 0.65 kg |
| 330130-085-00-20 | 3300 XL Extension Cord, 20 meters | 20 meters | MIL-C-26482 connectors | 0.85 kg |
| 330130-085-00-05-H | High-Temperature Extension Cord | 5 meters | MIL-C-26482 connectors | 0.30 kg |
| 330130-085-00-05-F | Flanged Connector Extension Cord | 5 meters | Flanged connectors | 0.28 kg |
| 330130-085-00-10-H | High-Temperature Extension Cord | 10 meters | MIL-C-26482 connectors | 0.50 kg |
Popular Bently Nevada 型号s
| 型号 Number | 描述 | Application | 重量 |
|---|---|---|---|
| 330101-33-66-10-02-05 | 3300 XL 8mm Proximity Probe | Shaft displacement monitoring | 0.15 kg |
| 330190-01-02-02 | 3300 XL Monitor Module | Vibration data processing | 0.50 kg |
| 330202-01-00-05 | 3300 XL Keyphasor Probe | Speed and phase reference | 0.15 kg |
| 330401-01-00-02 | 3300 XL Monitor Interface Module | Signal conditioning | 0.45 kg |
| 330200-01-02-10 | 3300 XL Vibration Monitor with Display | On-site vibration analysis | 2.0 kg |
| 330206-01-01-01 | 3300 XL Proximity Probe Cable | Shielded cable assembly | Varies |
