Product Overview

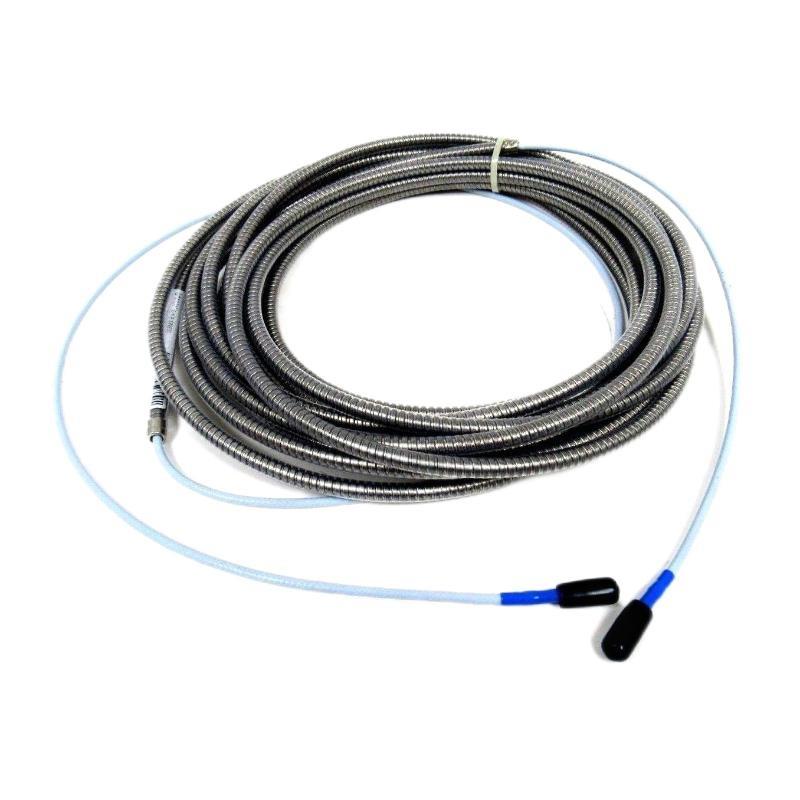

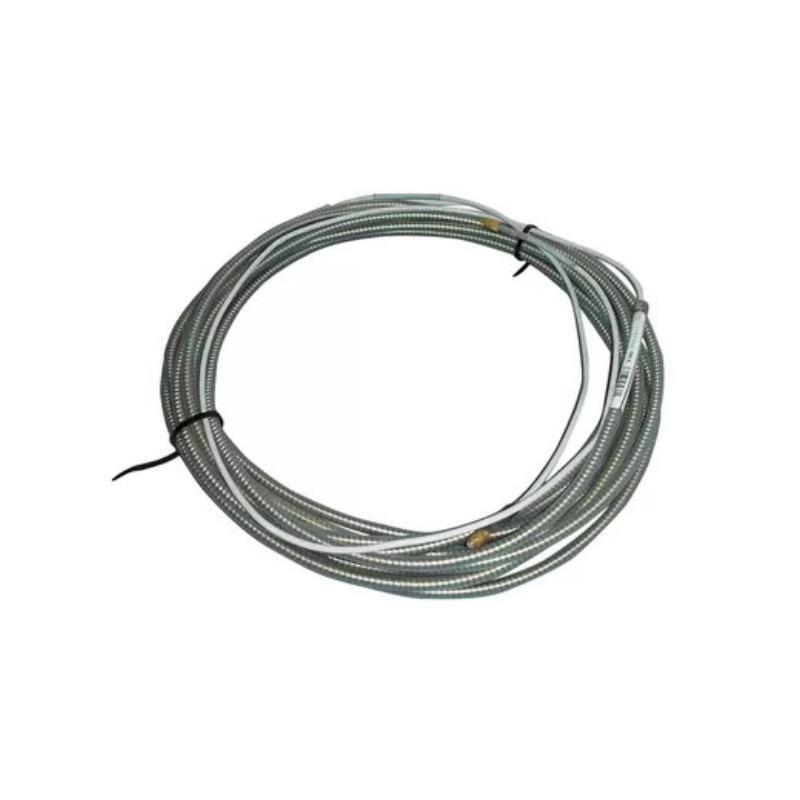

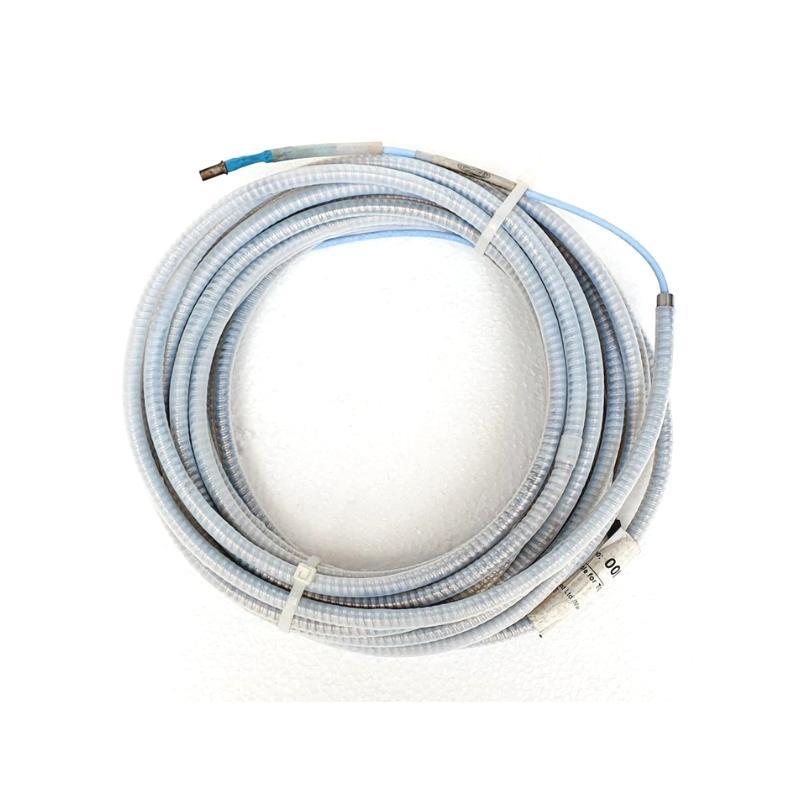

The Bently Nevada 330130-080-01-00 is an 8.0-meter standard extension cable designed for use with the 3300 XL 8 mm Proximity Transducer System. It provides robust and reliable electrical connectivity between the proximity probe and the Proximitor sensor, supporting critical vibration and position measurements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product 型号 | 330130-080-01-00 |
| Cable Type | Standard 75Ω triaxial FEP insulated |
| Cable Length | 8.0 meters (26.2 feet) |
| Capacitance | 69.9 pF/m typical |
| RCORE (Center to Center) | 1.76 ± 0.26 Ω |
| RJACKET (Outer to Outer) | 0.53 ± 0.11 Ω |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Connector Type | ClickLoc gold-plated connectors |
| Environmental Protection | Optional connector protectors or silicone tape |
| Operating Temperature Range | -52°C to +177°C (-62°F to +350°F) |
| Cable 重量 | 0.824 kg (for 8.0 m cable) |
| Cable Diameter | 3.68 mm max (without armor) |
Applications
-
Vibration monitoring on turbines, compressors, and pumps
-
Shaft position measurements in fluid-film bearing machines
-
Speed and phase reference measurements in rotating machinery
-
Integration with 3300 XL Proximitor sensors and 8 mm proximity probes
Product Advantages
-
Reliable ClickLoc Connectors: Gold-plated, corrosion-resistant, and finger-tight with anti-loosening mechanism.
-
High Durability: CableLoc bonding and robust construction ensures 75 lbf (330 N) pull strength.
-
Optional FluidLoc Feature: Prevents oil ingress through cable interior (optional).
-
Fully Interchangeable: Compatible with both XL and non-XL 3300-series 8 mm systems.
-
Extended Temperature Range 支持: Compatible with ETR probes for up to 260°C applications.
常见问题 (FAQ)
Q1: What is the function / the 330130-080-01-00 cable?
A1: It connects the proximity probe to the Proximitor sensor for accurate signal transmission.
Q2: What is the standard length / this model?
A2: 8.0 meters.
Q3: Can this cable be used with ETR probes?
A3: Yes, it is compatible with extended temperature range probes.
Q4: Is it compatible with older 3300-series components?
A4: Yes, it is backward-compatible with non-XL 3300 8 mm systems.
Q5: Does it include connector protectors?
A5: It depends on the option selected; protectors can be factory-installed or ordered separately.
Q6: What’s the operating temperature range?
A6: From -52°C to +177°C for standard cables.
Q7: What is the pull strength / the cable connection?
A7: 330 N (75 lbf), ensuring a secure connection.
Q8: Is calibration required for each cable?
A8: No, components are interchangeable without the need for bench calibration.
Q9: What materials are used in the cable?
A9: Fluoroethylene propylene (FEP) insulation with gold-plated brass connectors.
Q10: Can it be used in hazardous areas?
A10: Yes, with the appropriate agency-approved configuration and installation.
Related Bently Nevada 型号s (Same Series)
| 型号 Number | 描述 | Length | 重量 |
|---|---|---|---|
| 330130-060-00-00 | Standard Extension Cable | 6.0 m | ~0.62 kg |
| 330130-070-00-00 | Standard Extension Cable | 7.0 m | ~0.72 kg |
| 330130-075-00-00 | Standard Extension Cable | 7.5 m | ~0.77 kg |
| 330130-085-00-00 | Standard Extension Cable | 8.5 m | ~0.88 kg |
| 330190-080-00-00 | ETR Extension Cable | 8.0 m | ~0.89 kg |
| 330130-080-03-00 | Armored Standard Extension Cable | 8.0 m | ~1.16 kg |
