Product Overview

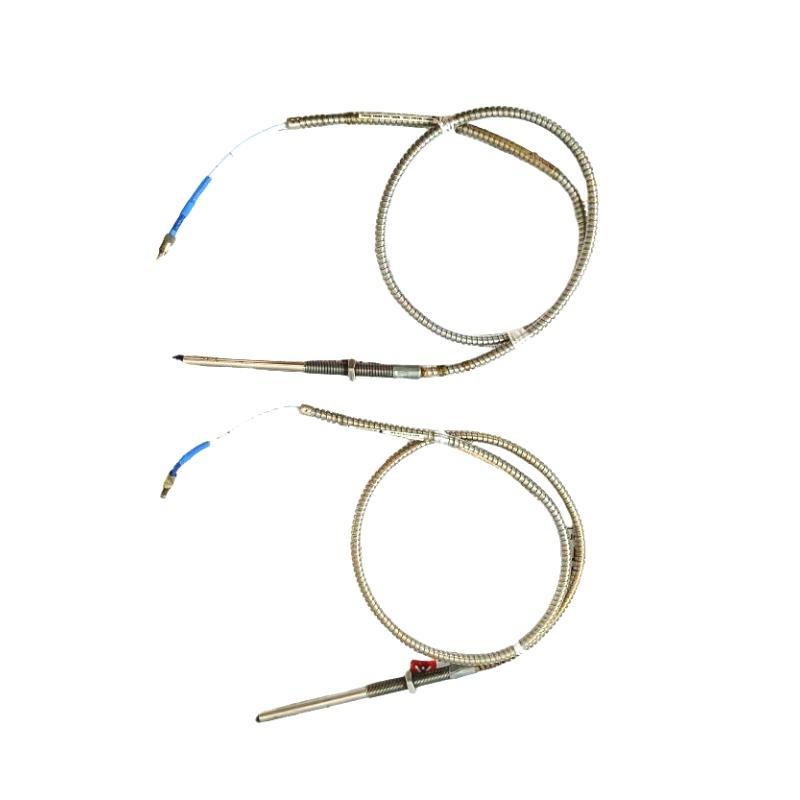

The Bently Nevada 330104-06-14-10-02-00 is a high-performance 3300 XL 8 mm proximity probe designed to deliver accurate and stable non-contact vibration and position measurements. It is optimized for industrial machinery condition monitoring and is compatible with Bently Nevada monitoring systems.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 Number | 330104-06-14-10-02-00 |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Sensing Technology | Eddy Current |
| Tip Diameter | 8 mm |
| Body Style | Cylindrical, unthreaded |
| Connector Type | Miniature coaxial connector |
| Cable Length | 1.0 meter |
| Total Length | 1.0 meter |
| 重量 | 0.323 kg |
| Material | Stainless steel housing, PEEK tip |
| Operating Temperature | -35°C to +177°C (-31°F to +350°F) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Linear Range | 2 mm (80 mils) |
| System Compatibility | Works with 3300 XL extension cables and proximitor |
Applications
-
Steam and gas turbine vibration monitoring
-
Compressors and gearboxes condition tracking
-
Rotor shaft position and displacement measurements
-
Critical machinery vibration protection
-
OEM and retr/it applications in oil & gas, power, and chemical sectors
Key Advantages
-
High accuracy and linearity across the entire range
-
Industry-standard 8 mm tip for broad compatibility
-
Enhanced EMI/RFI resistance for reliable signal transmission
-
Rugged stainless-steel construction for harsh environments
-
Backward compatibility with older 3300 series systems
常见问题 (FAQ)
Q1: What is the sensing range / the 330104-06-14-10-02-00 probe?
A1: It /fers a linear sensing range / 2 mm (80 mils).
Q2: Is the probe compatible with older Bently Nevada systems?
A2: Yes, it is backward compatible with legacy 3300 systems.
Q3: What is the typical output sensitivity?
A3: The typical sensitivity is 7.87 mV/μm or 200 mV/mil.
Q4: Can this probe withstand high temperatures?
A4: Yes, it operates in temperatures from -35°C to +177°C.
Q5: What is the standard cable length for this model?
A5: This model has a 1.0 meter integrated cable.
Q6: Is the tip diameter fixed for this model?
A6: Yes, it comes with a standard 8 mm tip.
Q7: What type / connector does it use?
A7: It features a miniature coaxial connector.
Q8: What materials are used in its construction?
A8: Stainless steel for the body and PEEK for the sensing tip.
Q9: Does it require calibration?
A9: It is factory calibrated; user calibration is not required under normal conditions.
Q10: Is it resistant to electrical interference?
A10: Yes, it is designed for high resistance to EMI and RFI.
Related 型号s in the Same Series
| 型号 Number | Tip Diameter | Cable Length | Total Length | 重量 |
|---|---|---|---|---|
| 330104-00-05-10-02-00 | 8 mm | 5.0 m | 5.0 m | 0.465 kg |
| 330104-00-10-10-02-00 | 8 mm | 10.0 m | 10.0 m | 0.635 kg |
| 330104-00-15-10-02-00 | 8 mm | 15.0 m | 15.0 m | 0.795 kg |
| 330104-00-20-10-02-00 | 8 mm | 20.0 m | 20.0 m | 0.960 kg |
| 330104-00-25-10-02-00 | 8 mm | 25.0 m | 25.0 m | 1.125 kg |
| 330104-00-30-10-02-00 | 8 mm | 30.0 m | 30.0 m | 1.295 kg |
Popular 型号s from Bently Nevada
| 型号 Number | 描述 | Application | 重量 |
|---|---|---|---|
| 3500/22M | Transient Data Interface Module | Data capture and communication | 0.420 kg |
| 3500/42M | Proximitor Seismic Monitor | Vibration monitoring | 0.465 kg |
| 3500/32M | 4-Channel Relay Module | Alarm and relay control | 0.355 kg |
| 3500/15 | Power Supply Module | System power distribution | 0.390 kg |
| 330130-045-00-00 | Extension Cable (45 ft) | Probe-cable connectivity | 0.625 kg |
| 330180-91-05 | 3300 XL Proximitor Sensor | Signal conditioning for proximity | 0.365 kg |
