Product Overview

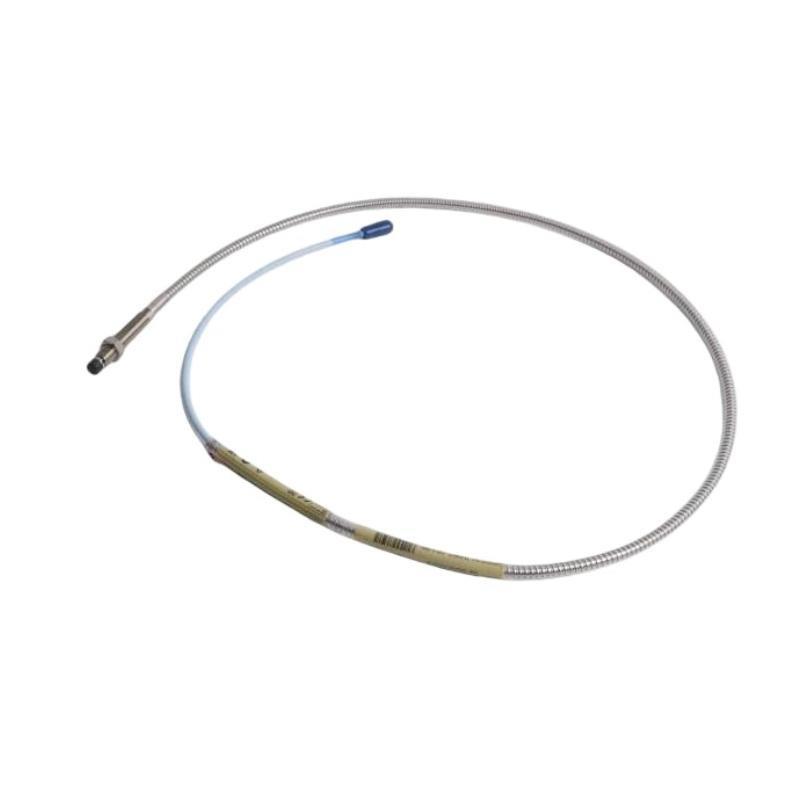

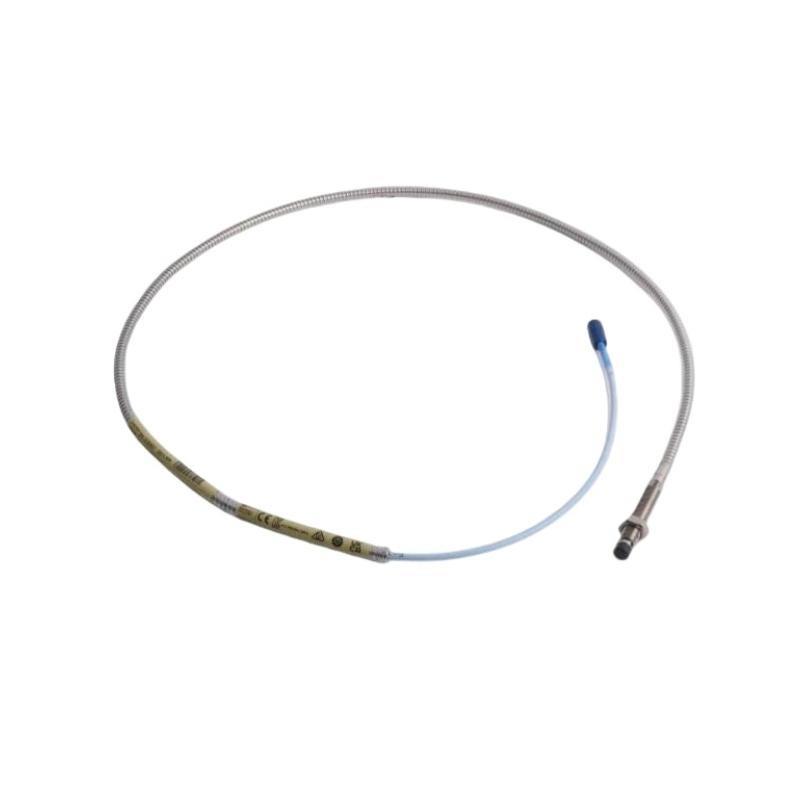

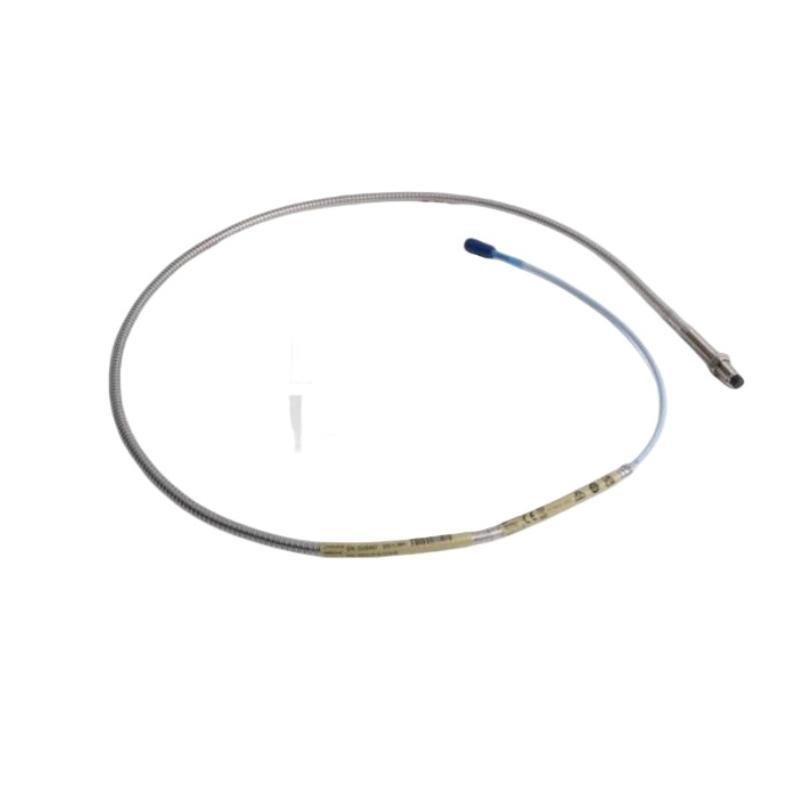

The Bently Nevada 330104-04-10-10-02-00 is part / the trusted 3300 XL 8 mm Proximity Transducer System, specifically engineered to deliver accurate, non-contact displacement measurements / rotating machinery. This model is commonly used in industrial equipment like turbines, compressors, motors, and pumps to monitor shaft vibration and position, ensuring machine protection and predictive maintenance.
The 330104-04-10-10-02-00 features an 8 mm tip, a rugged construction, and a system length / 10 meters. As part / a complete system with an extension cable and Proximitor sensor, it /fers high precision and full compliance with API 670 standards. This ensures compatibility with industry-standard monitoring systems and makes it a reliable solution for critical rotating equipment.
Key Features
-
Precision eddy-current proximity sensing for non-contact shaft monitoring
-
8 mm diameter probe tip optimized for steel targets (e.g., AISI 4140)
-
API 670 compliant system for critical rotating machinery protection
-
Shielded stainless-steel body for robust industrial use
-
支持s 10-meter system length (probe + extension cable)
-
优秀 thermal performance up to 177°C
-
Factory-calibrated and matched components for plug-and-play setup
-
Compatible with 3300 XL Proximitor sensors and extension cables
Technical Specifications
| Item | Specification |
|---|---|
| 型号 Number | 330104-04-10-10-02-00 |
| Series | 3300 XL 8 mm Proximity Probe |
| Sensing Principle | Eddy current |
| Probe Tip Diameter | 8 mm (0.315 in) |
| Tip Material | PPS (Polyphenylene sulfide) |
| Body Material | AISI 304 Stainless Steel |
| Thread Type | 3/8-24 UNF-2A |
| Target Material | AISI 4140 steel or equivalent |
| Sensitivity | 7.87 mV/μm (200 mV/mil) ±5% |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | 0 to 10 kHz |
| Temperature Range | -35°C to +177°C (-31°F to +351°F) |
| Vibration Limit (Probe) | 50 g pk-pk @ 5–2000 Hz |
| 重量 | 0.323 kg |
| Dimensions | Total Length : 1.0 meter |
| Connector Type | Miniature coaxial |
| Compliance | API 670, CE, RoHS |
Industry Applications
The 330104-04-10-10-02-00 proximity probe is widely implemented across industries requiring precision monitoring / rotating assets. Key applications include:
-
Gas and steam turbines
-
Large compressors and blowers
-
Centrifugal and reciprocating pumps
-
Electric motors and generators
-
Gearboxes and transmission shafts
-
High-speed machine trains
-
Thrust position detection
-
Shaft radial vibration and runout monitoring
Product Advantages
-
High reliability in demanding environments: Designed for rugged industrial use with resistance to heat, oil, and vibration
-
Accurate, real-time monitoring: Enables continuous vibration and position feedback to support machine protection systems
-
Ease / integration: Fully compatible with 3300 XL extension cables and Proximitor sensors
-
API 670 compliant design: Ensures compatibility with standard protection systems in refineries, power plants, and petrochemical industries
-
Reduced downtime: 支持s predictive maintenance strategies by detecting faults before failure
-
Factory matched components: Simplifies installation and reduces the need for field calibration
-
Long lifecycle: Built for long-term performance in harsh operating conditions
-
Enhanced EMI protection: Designed to operate reliably in electrically noisy environments
常见问题 (FAQ)
-
What does the 330104-04-10-10-02-00 probe measure?
It measures the non-contact displacement / a metallic target, such as a rotating shaft, used for vibration and position monitoring. -
Is the 10-meter system length fixed or configurable?
The system length is fixed at 10 meters, including both the probe and the extension cable. The system must use matched components. -
Is this probe suitable for high-temperature environments?
Yes, it supports operating temperatures up to 177°C (351°F), making it ideal for turbines and compressors. -
Does this model comply with API 670?
Yes, the 3300 XL series, including this model, is fully API 670 compliant. -
Is calibration required in the field?
No, when used as a matched set with its designated cable and Proximitor sensor, no field calibration is required. -
What is the sensing accuracy / this probe?
It /fers a sensitivity / 7.87 mV/μm (±5%) across its linear range, ensuring high measurement accuracy. -
What materials is it compatible with?
It is factory-calibrated for AISI 4140 steel but can be adapted for other conductive metals. -
What torque is recommended for installation?
Mounting torque should be between 28 to 34 in·lb (3.2 to 3.8 N·m). -
What kind / connector is used?
The probe uses a miniature coaxial connector, compatible with standard 3300 XL extension cables. -
Can this probe be used in hazardous areas?
The probe itself is not intrinsically safe, but it can be used in hazardous locations if installed with appropriate protective barriers or certified systems.
Related 型号s
| 型号 Number | 描述 |
|---|---|
| 330104-00-12-10-02-05 | 8 mm probe, 1.2 in thread, 5 m system, armored |
| 330104-00-07-10-02-00 | 8 mm probe, 0.7 in thread, 5 m system |
| 330104-00-18-10-02-05 | 8 mm probe, 1.8 in thread, 5 m system, armored |
| 330104-01-08-50-01-CN | 8 mm probe, 8 m system, 50 Ω connector, China version |
| 330104-09-19-10-02-00 | 8 mm probe, 1.9 in thread, 9 m system |
| 330104-04-10-05-01-05 | 8 mm probe, 10 in length, 5 m system, armored |
Popular 型号s
| 型号 Number | 描述 |
|---|---|
| 330101-00-14-10-02-05 | 3300 XL 8 mm Proximity Probe, 14 ft, standard version |
| 330130-045-00-00 | 3300 XL Extension Cable, 45 ft |
| 330180-91-05 | 3300 XL Proximitor Sensor, 5 m system |
| 3500/22M-01-01-00 | 3500/22M Transient Data Interface Module |
| 3500/42M-01-00 | 3500/42M Proximitor Monitor |
| 144181-01 | Velocity Transducer, used for casing vibration measurement |
