产品介绍

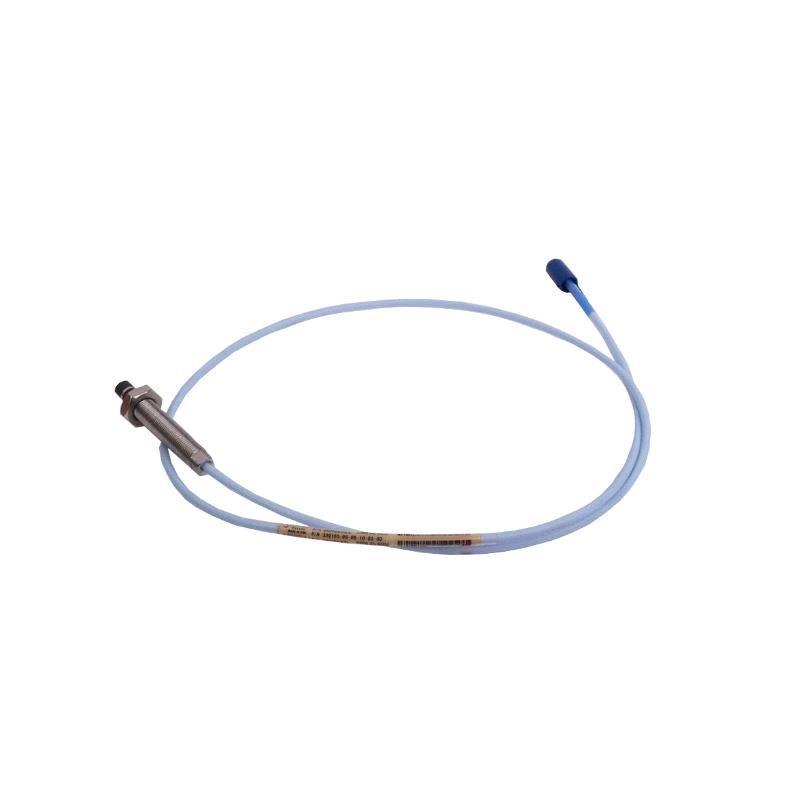

The Bently Nevada 330104-01-09-50-01-05 3300 XL 8 mm Proximity Probe is a precision, non-contact eddy current sensor designed for monitoring critical rotating machinery. Part / the 3300 XL series, this probe delivers accurate measurements / shaft displacement and vibration, providing essential input for machine protection, condition monitoring, and predictive maintenance.
Equipped with an 8 mm probe diameter and a total cable length / 5 meters, this model is ideal for installations on large industrial machinery or in complex plant layouts. Its stainless steel housing and mineral-insulated cable ensure reliable performance in high-vibration, high-temperature, and electromagnetically noisy environments. Fully compatible with Bently Nevada 3300 XL monitoring systems, this probe provides continuous, high-fidelity signals critical for early fault detection and machinery protection.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | 330104-01-09-50-01-05 |
| Product Type | 8 mm Eddy Current Proximity Probe |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Total Length | 5 meters |
| Measurement Range | Up to 1.27 mm (dependent on system configuration) |
| Linear Range | ±10% / calibrated gap |
| Frequency Response | DC to 10 kHz |
| Sensitivity | 20 mV/µm (typical with 3300 XL monitoring system) |
| Resolution | <0.5 µm |
| Operating Temperature | -40°C to +120°C (probe head) |
| Storage Temperature | -50°C to +150°C |
| Probe Material | Stainless steel housing with mineral-insulated cable |
| Humidity | 0–95% non-condensing |
| Certifications | CE, UL, CSA |
| 重量 | 1.615 kg |
| Mounting | Threaded sleeve or custom machinery mounting |
| Compatibility | Bently Nevada 3300 XL Series Monitoring Systems |
Applications
The 330104-01-09-50-01-05 probe is suitable for precise monitoring / machinery where shaft displacement and vibration are critical:
-
Steam and Gas Turbines – Monitors shaft displacement to detect rotor imbalance, misalignment, and instability.
-
Compressors – Measures rotor vibration and shaft position for safe operation.
-
Pumps – Detects cavitation, bearing wear, and shaft deflection.
-
Generators and Motors – Ensures smooth operation and early detection / anomalies.
-
Petrochemical and Refinery Plants – Performs reliably in high-vibration, harsh environments.
-
Machine Protection Systems – 支持s API 670-compliant condition monitoring and protection.
Advantages
The Bently Nevada 330104-01-09-50-01-05 8 mm Probe /fers multiple benefits for industrial applications:
-
High Accuracy – Provides precise measurement / displacement and vibration with excellent linearity.
-
Rugged Design – Stainless steel housing and mineral-insulated cable resist harsh industrial conditions.
-
Wide Frequency Response – Detects both low-speed and high-speed shaft vibrations.
-
Seamless Integration – Fully compatible with 3300 XL monitoring systems for real-time protection.
-
Maintenance-Free Operation – Non-contact design minimizes wear and maintenance needs.
-
Temperature and Vibration Resistant – Reliable under extreme operational conditions.
-
Predictive Maintenance 支持 – Early detection / anomalies prevents unplanned downtime.
-
Flexible Installation – Long 5-meter cable supports installation on large machinery or complex plant layouts.
常见问题 (FAQ)
-
Which monitoring systems is this probe compatible with?
It integrates fully with Bently Nevada 3300 XL monitoring systems, providing linearized displacement and vibration signals for machine protection. -
What is the nominal sensitivity / this probe?
Nominal sensitivity is approximately 20 mV/µm when used with a 3300 XL monitoring system. -
What frequency range can the probe measure?
The probe operates from DC to 10 kHz, covering both low-speed and high-speed machinery vibrations. -
What is the operating temperature range for the probe head?
Reliable operation is maintained between -40°C and +120°C while ensuring accurate measurement. -
Can this probe be used in high-humidity industrial environments?
Yes, it is rated for 0–95% non-condensing humidity and is designed for harsh industrial environments. -
What is the linear measurement range?
±10% / the calibrated gap ensures proportional and accurate output. -
Does the probe require external power?
No, power and signal conditioning are provided by the 3300 XL monitoring system. -
Is the probe suitable for API 670-compliant protection systems?
Yes, it integrates seamlessly into API 670-compliant condition monitoring platforms. -
Does cable length affect measurement accuracy?
The probe is calibrated for its 5-meter cable; proper cable length ensures signal fidelity and accurate readings. -
What mounting options are recommended?
Threaded sleeve or custom machinery mounting is recommended to maintain proper alignment and calibration.
Related 型号s (Same Series)
| 型号 Number | Probe Type | 描述 |
|---|---|---|
| 330104-01-09-50-01-01 | 8 mm Proximity Probe | Standard 3300 XL probe with 3-meter cable |
| 330104-01-09-50-01-02 | 8 mm Proximity Probe | High-temperature variant |
| 330104-01-09-50-01-03 | 8 mm Proximity Probe | Extra-flexible cable version |
| 330105-01-09-50-01-05 | 8 mm Proximity Probe | High-sensitivity configuration |
| 330106-01-09-50-01-05 | 8 mm Proximity Probe | API 670-compliant variant |
| 330104-01-09-50-01-06 | 8 mm Proximity Probe | Extended linear range version |
Popular 型号s from the Same 品牌 (Bently Nevada)
| 型号 Number | Product Type | 描述 |
|---|---|---|
| 330104-01-09-50-01 | 8 mm Proximity Probe | Standard 3300 XL probe for turbines and compressors |
| 330104-01-09-50-03 | 8 mm Proximity Probe | High-accuracy probe for critical machinery |
| 330105-01-09-50-01 | 8 mm Proximity Probe | High-sensitivity version for vibration monitoring |
| 330130-01-09 | 3300 XL Proximity Probe | Compact probe for smaller machinery |
| 330140-01-09 | 3300 XL Proximity Probe | Extended range probe for large turbines |
| 330150-01-09 | 3300 XL Proximity Probe | API 670-compliant probe for generators |
