Product Overview

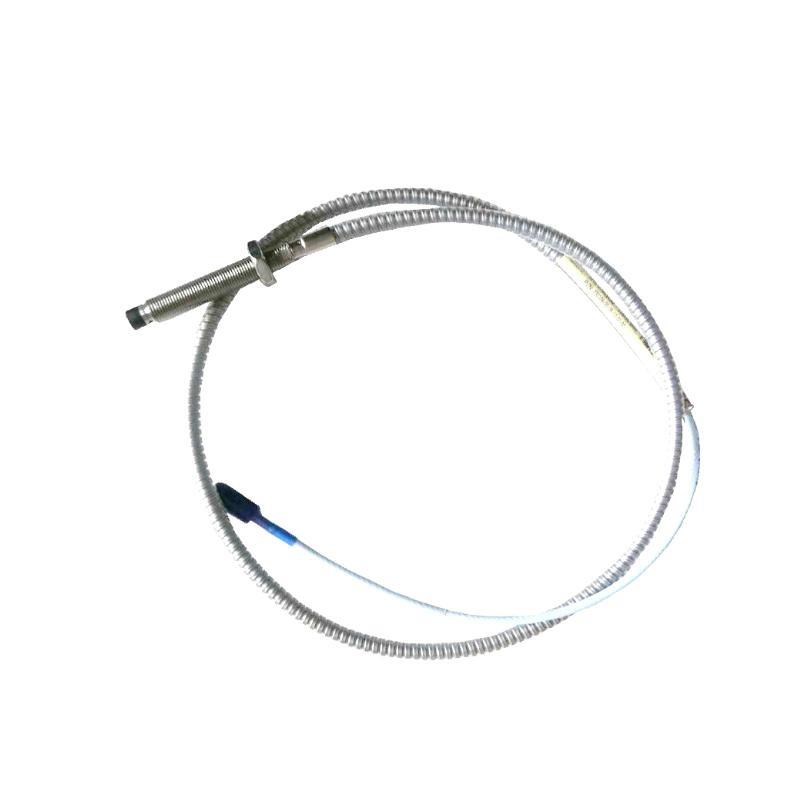

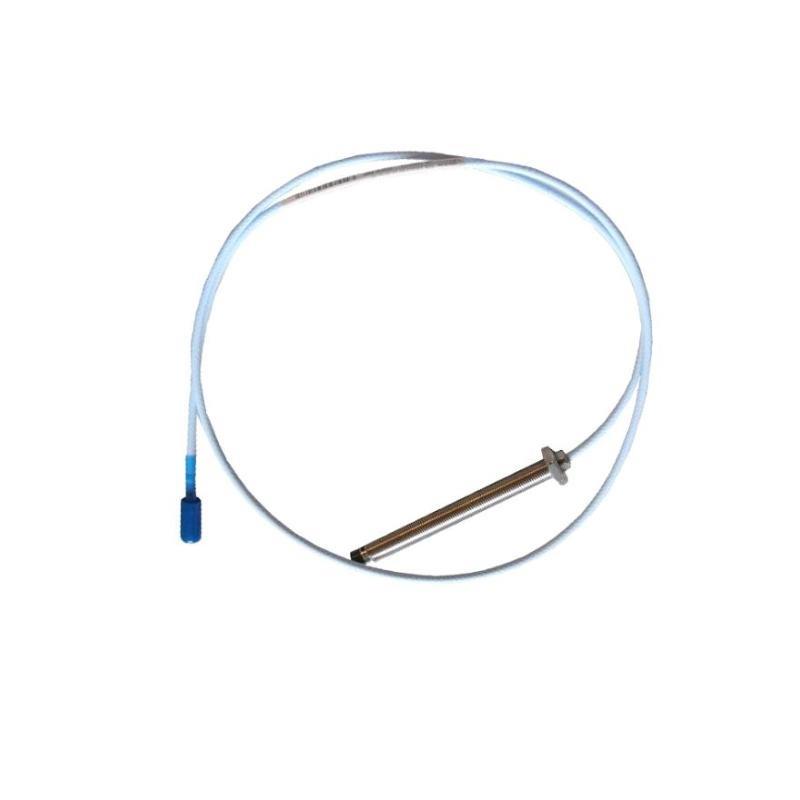

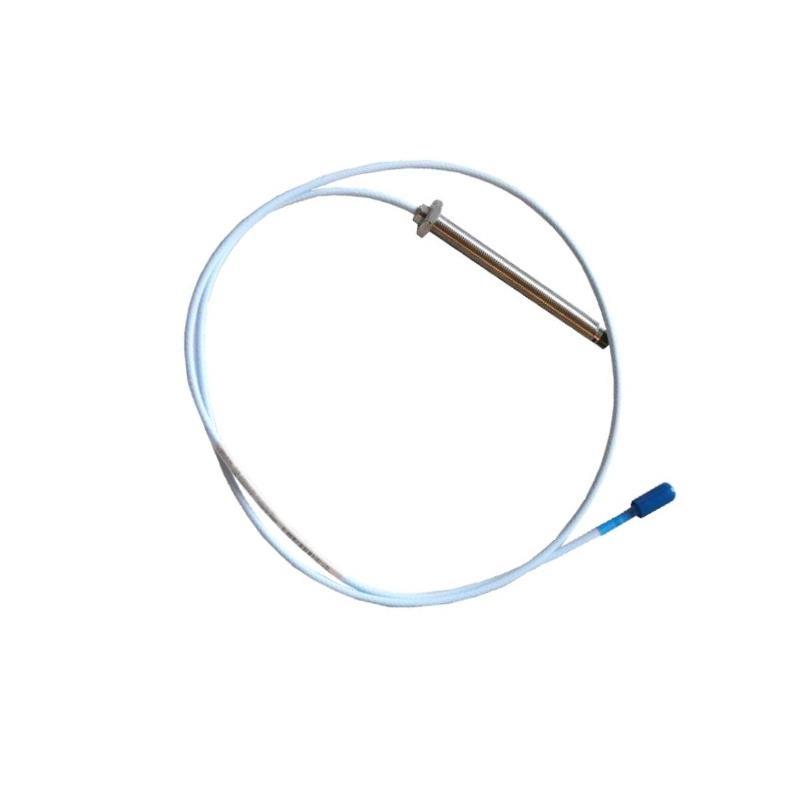

The Bently Nevada 330104-00-16-05-02-00 is part / the 3300 XL 8 mm Proximity Transducer System, designed to deliver accurate, non-contact measurements / shaft vibration and position in rotating machinery. This model features a straight probe body, 1/4-28 UNF mounting thread, and a 16-meter integral cable for long-distance connectivity, making it ideal for installations where extended cable reach is necessary.
It is engineered to meet API 670 standards and is commonly deployed in critical machinery monitoring applications across power generation, oil and gas, and petrochemical industries.
Key Features
-
Non-contact eddy current sensing technology
-
8 mm tip diameter with straight-body design
-
Long 16-meter integral cable
-
1/4-28 UNF-2A threaded mounting
-
Compatible with 3300 XL Extension Cables and Proximitor Sensors
-
Designed for reliable operation in high-vibration and high-temperature environments
-
Compliant with API 670 specifications
Technical Specifications
| Item | Specification |
|---|---|
| 型号 Number | 330104-00-16-05-02-00 |
| Series | 3300 XL |
| Probe Type | 8 mm Proximity Probe |
| Body Style | Straight |
| Thread Size | 1/4-28 UNF-2A |
| Cable Length | 16.0 meters |
| Connector Type | Standard 3300 XL Connector |
| Linear Range | 2 mm (80 mils) |
| Sensitivity | 7.87 mV/μm (200 mV/mil), nominal |
| Frequency Response | 0 to 10 kHz |
| Target Material | Ferromagnetic (e.g., steel shafts) |
| Operating Temperature | –51°C to +177°C (–60°F to +350°F) |
| System Compatibility | 3300 XL Extension Cable and Proximitor Sensor |
| Dimensions | Total Length : 0.5 meter |
| 重量 | 0.161 kg |
Industry Applications
-
Steam and Gas Turbines
-
Compressors and Blowers
-
Motors and Generators
-
Pumps and Gearboxes
-
Critical Process Machinery
Product Advantages
-
Extended Reach: 16-meter cable simplifies installation in large systems
-
Robust Performance: Reliable under harsh industrial conditions
-
High Accuracy: Consistent measurements across wide operating ranges
-
Secure Mounting: Standard threading ensures easy and stable installation
-
Seamless Integration: Works with other 3300 XL system components
常见问题 (FAQ)
-
What is the cable length / this model?
This probe has a 16-meter integral cable. -
What kind / connector does it use?
It uses the standard 3300 XL system connector. -
Is this probe API 670 compliant?
Yes, it fully complies with API 670 standards. -
Can this be used in high-temperature conditions?
Yes, it operates from –51°C to +177°C. -
What is the typical sensitivity / this probe?
It has a nominal sensitivity / 7.87 mV/μm. -
What mounting thread does it support?
1/4-28 UNF-2A straight threads. -
Is it compatible with all 3300 XL systems?
Yes, including Extension Cables and Proximitor Sensors. -
What type / measurements does it support?
Shaft vibration and axial position. -
What materials can it monitor?
It is designed for ferromagnetic materials like steel. -
Is it suited for long cable runs?
Yes, with its 16-meter cable, it’s ideal for distant sensing points.
Related 型号s
| 型号 Number | 描述 |
|---|---|
| 330104-00-14-10-02-05 | 14 m cable, ClickLoc™ connector |
| 330104-00-12-10-02-CN | 12 m cable, Chinese market version |
| 330104-00-08-10-02-05 | 8 m cable, ClickLoc™ connector |
| 330104-00-05-10-12-05 | 5 m cable, ClickLoc™ connector |
| 330104-00-06-10-01-00 | 6 m cable, standard connector |
