Product Overview

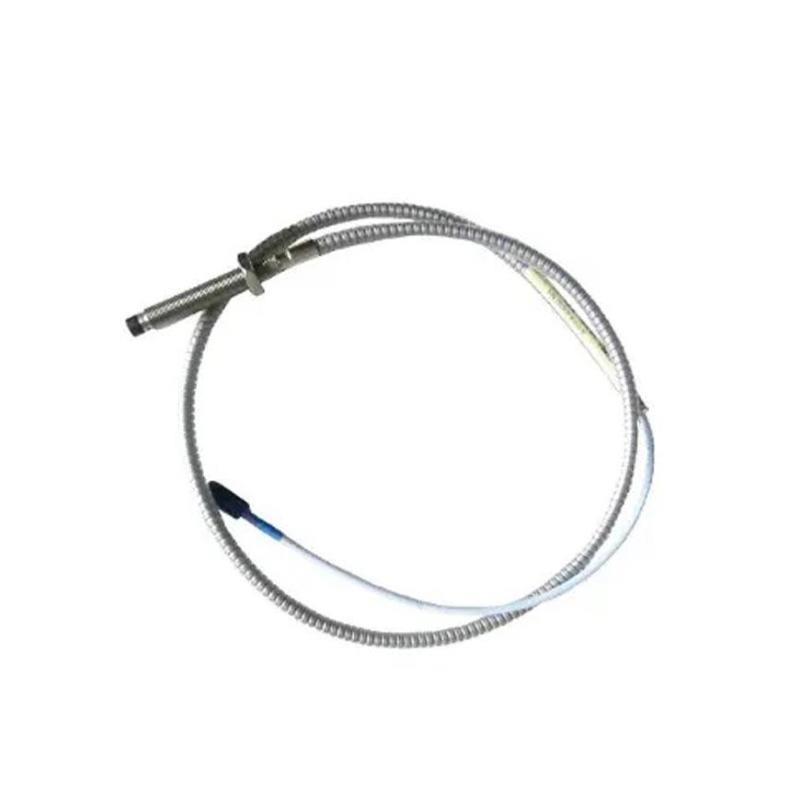

The Bently Nevada 330104-00-06-10-01-CN belongs to the 3300 XL 8 mm Proximity Transducer System, widely recognized for its durability, precision, and high performance in rotating machinery monitoring. It utilizes advanced eddy current sensing technology to perform non-contact vibration and displacement measurements in high-speed industrial equipment.
Engineered to withstand harsh environments and challenging conditions, this probe is integral in predictive maintenance systems across industries such as power generation, oil & gas, and heavy manufacturing. Its compatibility with 3300 XL extension cables and Proximitor sensors ensures seamless integration with existing setups.
Key Features
-
Non-contact eddy current measurement technology
-
Compatible with 3300 XL extension cables and Proximitor sensors
-
Hermetically sealed, corrosion-resistant probe tip
-
EMI/RFI imm件y for accurate signal transmission
-
Built for high-temperature and high-vibration environments
-
Threaded body for secure installation
-
Trusted Bently Nevada reliability for critical applications
Technical Specifications
| Item | Specification |
|---|---|
| 型号 Number | 330104-00-06-10-01-CN |
| Series | 3300 XL 8 mm |
| Sensing Principle | Eddy current (non-contact) |
| Target Material | Conductive (e.g., 4140 steel) |
| Linear Range | 2 mm (80 mils) |
| System Accuracy | ±0.07 mm (±2.8 mils) within linear range |
| Output Voltage | -200 mV/mil (nominal) |
| Power Supply | Via 3300 XL Proximitor Sensor |
| Connector Type | Microdot coaxial male |
| Cable Type | Integral coaxial cable |
| Cable Length | 1.0 meter |
| Thread Size | 3/8-24 UNF-2A |
| Mounting Method | Threaded body |
| Sealing | Hermetically sealed at probe tip |
| Operating Temperature | -35°C to +177°C (-31°F to +351°F) |
| Shock Resistance | Up to 5000 g peak |
| Vibration Resistance | 20 g, 10–2000 Hz sinusoidal |
| EMC Compliance | IEC 61000-6-2, IEC 61000-6-4 |
| Ingress Protection | IP67 |
| Dimensions | Total Length : 1.0 meter |
| 重量 | 0.323 kg |
Industry Applications
The 330104-00-06-10-01-CN proximity probe is suited for critical machinery and rotating equipment across the following industries:
-
Power Generation – Turbines, generators, and auxiliary motors
-
Oil & Gas – Compressors, pumps, and drilling equipment
-
Petrochemical – Refinery machinery and high-speed assets
-
Steel & Mining – Mill motors, crushers, and rotating equipment
-
Marine & Offshore – Shipboard propulsion and generator systems
-
Pulp & Paper – Paper rollers and rotary vacuum filters
-
Pharmaceutical & Food Processing – Motor-driven process machinery requiring real-time monitoring
Product Advantages
-
Highly Accurate Measurement – Ensures consistent vibration and position data
-
Long-Term Reliability – Built for rugged environments, reducing failures
-
Ease / Integration – Compatible with standard Bently Nevada 3300 XL system components
-
Superior EMI Protection – Shielded against electromagnetic interference
-
Minimal Maintenance – Requires little servicing post-installation
-
Compact Form Factor – Ideal for tight-space installations
-
Extended Service Life – Designed for long-term, continuous operation
-
Field-Proven Stability – Thousands / successful deployments worldwide
-
Temperature Resilience – Operates in extreme ambient and machinery conditions
-
Cost-Efficient Monitoring – Prevents unexpected downtimes and maintenance expenses
常见问题 (FAQ)
-
What does this proximity probe measure?
It measures the distance between the probe tip and a conductive surface to monitor vibration and shaft position. -
Is the 330104-00-06-10-01-CN compatible with all 3300 XL systems?
Yes, it is designed to work seamlessly with 3300 XL extension cables and Proximitor sensors. -
What does the ‘-CN’ suffix stand for?
It typically indicates Chinese regional documentation or packaging. -
How long is the integral cable on this probe?
The built-in cable is 0.6 meters (60 cm) long. -
Can this probe operate at high temperatures?
Yes, it supports continuous operation up to 177°C (351°F). -
Does it come with an extension cable or Proximitor sensor?
No, this part number includes only the probe. Additional components are sold separately. -
Is it suitable for use in hazardous environments?
The probe itself is ruggedized, but overall system certification depends on configuration. -
What’s the recommended target material for measurement?
The probe is calibrated for conductive metals, typically 4140 steel. -
What kind / installation does it require?
It is threaded for secure mechanical installation into compatible mounting holes. -
Does the probe need periodic recalibration?
Generally, recalibration is not necessary unless environmental conditions significantly change.
Related Modules
| 型号 Number | 描述 |
|---|---|
| 330104-00-05-10-02-00 | 8 mm Proximity Probe, 5 m cable |
| 330104-00-12-10-02-05 | 8 mm Proximity Probe, 12 m cable |
| 330104-00-18-10-02-05 | 8 mm Proximity Probe, 18 m cable |
| 330104-01-05-50-02-00 | Armored 8 mm Proximity Probe, 5 m cable |
| 330104-01-08-50-01-CN | 8 mm Probe, armored, 8 m cable, Chinese version |
| 330101-00-14-10-02-05 | 8 mm Probe with smaller thread (alternative) |
Popular 型号s
| 型号 Number | 描述 |
|---|---|
| 3500/22M | Transient Data Interface Module for 3500 Series |
| 330130-080-00-00 | 3300 XL Extension Cable (8 m) |
| 330180-91-05 | 3300 XL Extension Cable with connectors |
| 330500-02-00 | Velocity Transducer for vibration measurement |
| 3500/42M | Proximitor/Seismic Monitor Module |
| 3300 XL 25 mm | Large gap proximity probe system for axial thrust position |
