Product Overview

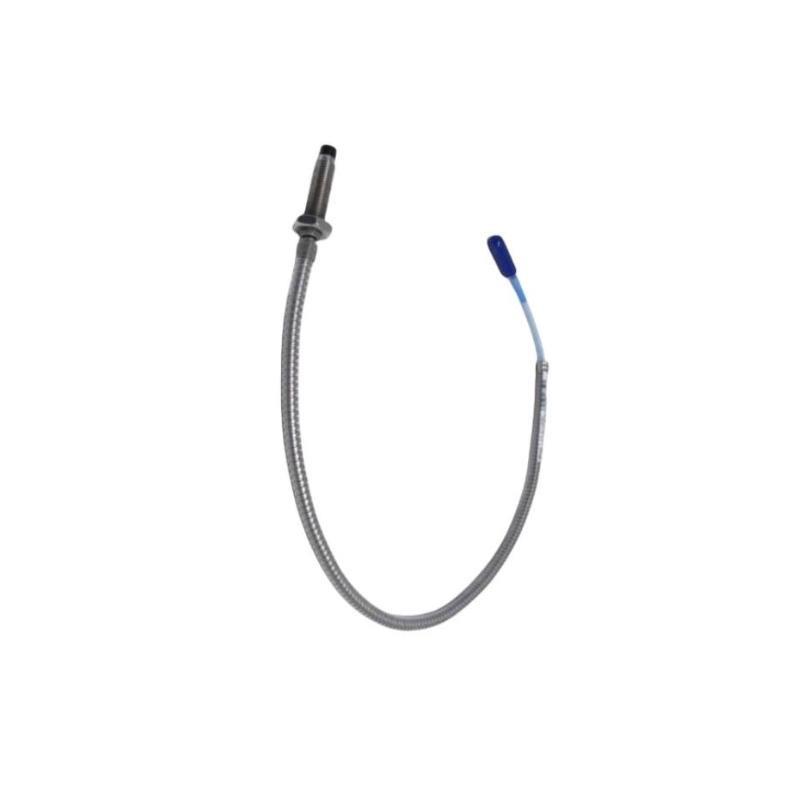

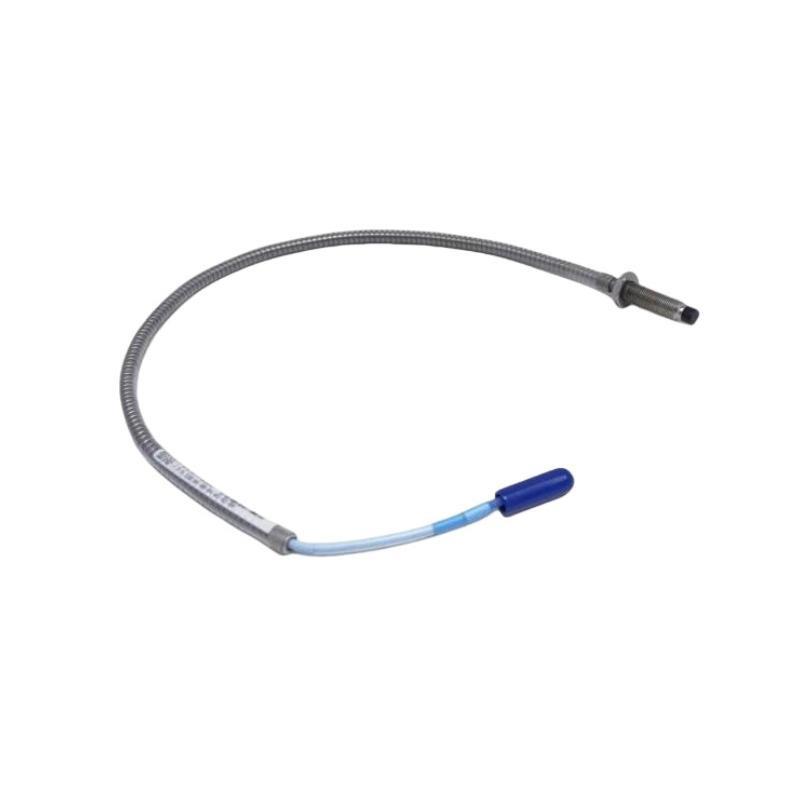

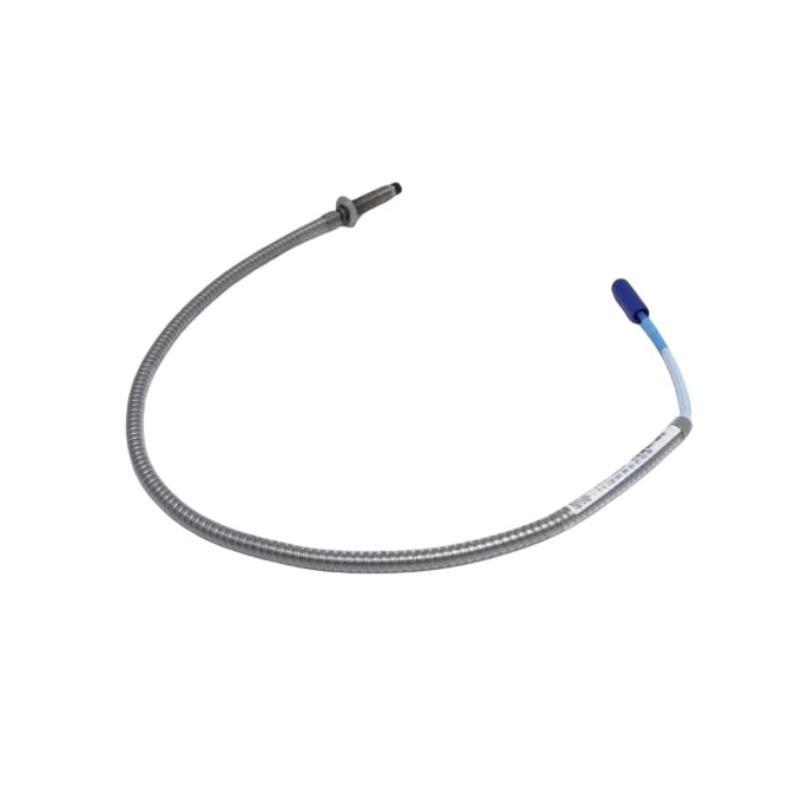

The Bently Nevada 330104-00-05-05-11-05 3300 XL 8 mm Proximity Probe is a high-performance sensor designed to monitor vibration and shaft displacement in rotating machinery. Engineered as part / the trusted 3300 XL series, this proximity probe ensures accurate and stable readings in a wide variety / industrial environments.
With an 8 mm tip, this probe provides reliable measurements for machinery health monitoring, enabling early detection / potential issues and helping reduce unplanned downtime. Its rugged stainless-steel construction and hermetically sealed design make it ideal for demanding conditions such as oil & gas, power generation, and heavy manufacturing sectors.
Technical Specifications
| Specification | 描述 |
|---|---|
| 型号 Number | 330104-00-05-05-11-05 |
| Product Series | 3300 XL |
| Probe Tip Diameter | 8 mm |
| Measurement Type | Non-contact displacement (eddy current) |
| Sensing Range | Up to 2 mm |
| Linear Range | 0.25 mm to 2.0 mm |
| Output Voltage | -200 mV to -22 V (typical) |
| Operating Temperature | -40°C to +100°C |
| Storage Temperature | -51°C to +177°C |
| Environmental Rating | IP68 (hermetically sealed) |
| Housing Material | AISI 304 Stainless Steel |
| Target Material | Typically 4140 Steel |
| Connector Type | Standard 3-slot male |
| Dimensions | Total Length : 0.5 meter |
| 重量 | 0.161 kg |
| Compliance | CE, RoHS, ATEX options available |
Industry Applications
-
Oil & Gas: For compressor, pump, and turbine vibration monitoring
-
Power Generation: Critical for steam and gas turbine protection
-
Petrochemical Plants: Rotating machinery diagnostics
-
Steel & Metals: Gearbox and motor condition monitoring
-
Pulp & Paper: Preventive maintenance / rotating assets
-
Water & Wastewater: Pump and fan vibration detection
-
Mining: Monitoring crushers and high-speed rotating equipment
Key Advantages
-
Exceptional Accuracy: Designed for precision in critical machinery applications
-
Rugged Build: IP68-rated stainless steel housing resists corrosion and contamination
-
Broad Temperature Range: Operates from -40°C to +100°C
-
Flexible Installation: 支持s a variety / mounting options and cable configurations
-
Compatibility: Fully compatible with 3300 XL and other Bently Nevada monitoring systems
-
Hermetically Sealed: Reliable in high humidity, submerged, or dust-laden environments
-
Fast Response: Ideal for high-speed machinery requiring quick vibration detection
-
Certified Compliance: CE, RoHS, and available ATEX options for hazardous locations
常见问题 (FAQ)
-
What is the sensing range / the 330104-00-05-05-11-05 probe?
The sensing range is typically up to 2 mm for standard applications. -
Is the probe compatible with all 3300 XL systems?
Yes, it is fully compatible with 3300 XL monitors and extension cables. -
What kind / environments is this probe suitable for?
It is suitable for IP68-rated conditions including high moisture, dust, and vibration. -
Can this probe be submerged?
Yes, its hermetically sealed IP68 construction allows for submersion in fluid environments. -
What materials are used for the housing?
The housing is made / AISI 304 stainless steel for corrosion resistance. -
Is ATEX certification available for this model?
ATEX-certified variants are available upon request. -
How long is the cable assembly?
This model includes 5 m probe cable, 5 m extension cable, and 1 m connector cable. -
What type / connector does it use?
It uses a standard 3-slot male connector. -
What voltage output does this probe generate?
It typically outputs a linear voltage ranging from -200 mV to -22 V. -
What is the primary use case for this probe?
It is primarily used for vibration and displacement monitoring in critical rotating machinery.
Recommended Related 型号s
| 型号 Number | 描述 |
|---|---|
| 330104-00-05-05-02-05 | Standard 3300 XL 8 mm Probe with 2 m cable |
| 330104-00-10-10-02-00 | 10 m Probe for long-distance applications |
| 330104-00-05-10-02-05 | 8 mm Probe with longer extension cable |
| 330104-00-12-10-02-CN | China version with 12 m probe cable |
| 330130-080-00-00 | Matching 3300 XL Extension Cable |
| 330101-00-14-10-02-05 | 3300 XL Proximity Sensor with higher sensitivity |
Popular Bently Nevada 型号s
| 型号 Number | Product Name |
|---|---|
| 330101-00-14-10-02-05 | 3300 XL 8 mm Proximity Probe |
| 330104-01-08-50-01-CN | 3300 XL 8 mm Probe with extended cable |
| 330130-045-01-05 | 3300 XL Extension Cable |
| 330104-00-10-05-01-CN | Long Range 10 mm Probe |
| 330104-04-10-05-02-05 | High-Temperature 8 mm Proximity Probe |
| 3300 XL Monitor | Bently Nevada 3300 XL Monitoring System |
