产品介绍

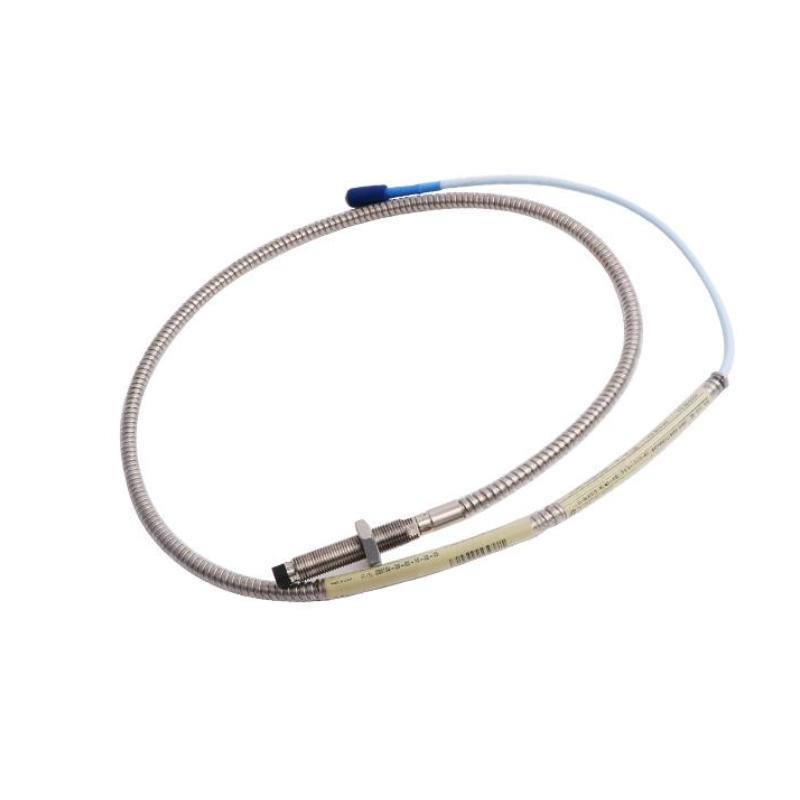

The Bently Nevada 330104-00-04-05-02-CN 3300 XL 8 mm Proximity Probe is part / the widely adopted 3300 XL proximity transducer system designed for precise shaft vibration and position measurement. This probe is engineered for industrial environments where reliability, accuracy, and long-term stability are essential. With its 8 mm tip and robust construction, it delivers accurate data acquisition for rotating machinery monitoring systems, particularly in critical turbomachinery and other high-value assets.
Product Parameters
| Parameter | 描述 |
|---|---|
| 型号 Number | 330104-00-04-05-02-CN |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Total Length | 0.5 m |
| Connector Type | Standard coaxial connector |
| Material | Stainless steel body with polymer-insulated cable |
| 重量 | 0.162 kg |
| Mounting Thread | M10 × 1 or 3/8″-24 (depending on configuration) |
| Operating Temperature | -35 °C to +177 °C |
| Compatible Drivers | Works with 3300 XL Proximitor sensors and extension cables |
| System Compliance | Fully compliant with API 670 requirements |
Product Applications
-
Steam turbines and gas turbines for shaft vibration monitoring
-
Compressors, pumps, and motors in petrochemical and power generation sectors
-
Gearboxes and fans where shaft position and vibration monitoring is vital
-
Integration with Bently Nevada 3300 XL Proximitor sensors for complete transducer systems
-
API 670 compliant machinery protection and diagnostics
Product Advantages
-
High Accuracy – Ensures precise vibration and displacement measurement.
-
Reliability in Harsh Environments – Rugged stainless steel design for industrial use.
-
Compatibility – Fully integrates with the 3300 XL system and API 670 standards.
-
Noise Imm件y – 优秀 signal stability even in electrically noisy environments.
-
Ease / Installation – Flexible mounting options with threaded design.
-
Global Standardization – Proven reliability with widespread use in rotating machinery protection.
FAQ
Q1: What type / signal does the 330104-00-04-05-02-CN probe generate?
A1: It generates an eddy-current based signal proportional to the distance between the probe tip and the shaft surface.
Q2: Is this probe compatible with older Bently Nevada proximitor drivers?
A2: Yes, but it is optimized for use with 3300 XL Proximitor sensors to ensure full compliance with specifications.
Q3: How does the probe maintain accuracy under temperature fluctuations?
A3: It uses stable materials and advanced design to minimize thermal drift across its rated operating temperature range.
Q4: Can the probe be used for thrust position measurements?
A4: Yes, it can be applied for both radial vibration and axial (thrust) position monitoring when properly configured.
Q5: What is the linear measurement range / this 8 mm probe?
A5: Typically ±2 mm from the calibrated gap setting, depending on shaft material and driver configuration.
Q6: How does the probe connect to the proximitor sensor?
A6: The probe connects via a coaxial cable, ensuring shielded signal transmission to the proximitor.
Q7: Does shaft material affect probe calibration?
A7: Yes, the system must be calibrated for the specific shaft material to ensure correct displacement readings.
Q8: What protection does the probe /fer against electromagnetic interference?
A8: The cable and probe are designed with shielding to minimize EMI and maintain signal integrity.
Q9: Can multiple probes be used on the same shaft?
A9: Yes, multiple probes can be mounted around a shaft to measure vibration in different axes.
Q10: What happens if the probe gap setting is not correct?
A10: An incorrect gap setting can cause non-linear readings or measurement errors, so proper installation and calibration are essential.
Related 型号s
| 型号 Number | 描述 |
|---|---|
| 330104-00-03-05-02-05 | 3300 XL 8 mm Probe with 3 m length |
| 330104-00-02-10-01-00 | 3300 XL 8 mm Probe with 2 m cable |
| 330104-00-04-10-01-05 | 3300 XL 8 mm Probe with 4 m length option |
| 330104-00-02-50-02-00 | 3300 XL 8 mm Probe with extended cable length |
| 330104-00-03-10-01-00 | Standard 8 mm probe for turbine applications |
| 330104-00-05-05-02-05 | Long-cable version for large machinery monitoring |
Popular 型号s from the Same 品牌
| 型号 Number | 描述 |
|---|---|
| 330103-00-05-10-02-00 | 3300 XL 5 mm Proximity Probe |
| 330105-02-12-10-02-05 | 3300 XL 11 mm Proximity Probe |
| 330106-05-30-10-02-00 | 3300 XL 25 mm Proximity Probe |
| 330130-045-00-00 | Extension Cable for 3300 XL Probes |
| 330180-90-00 | 3300 XL Proximitor Sensor, standard |
| 3500/40M | Vibration Monitor Module for rotating machinery |
| 3500/42M | Proximitor/Seismic Monitor Module |
| 3500/22M | Transient Data Interface for advanced diagnostics |
