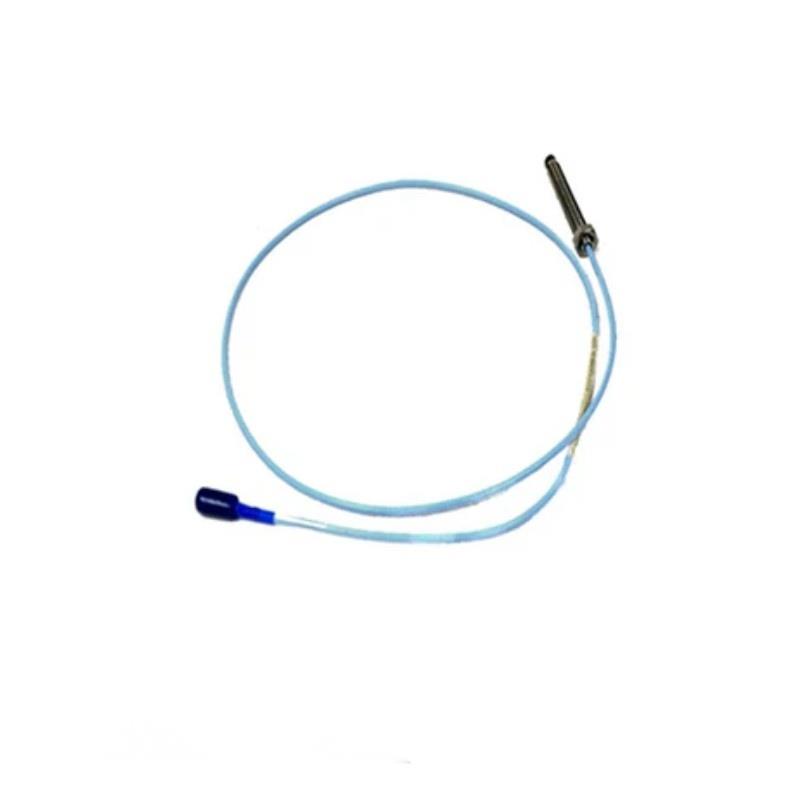

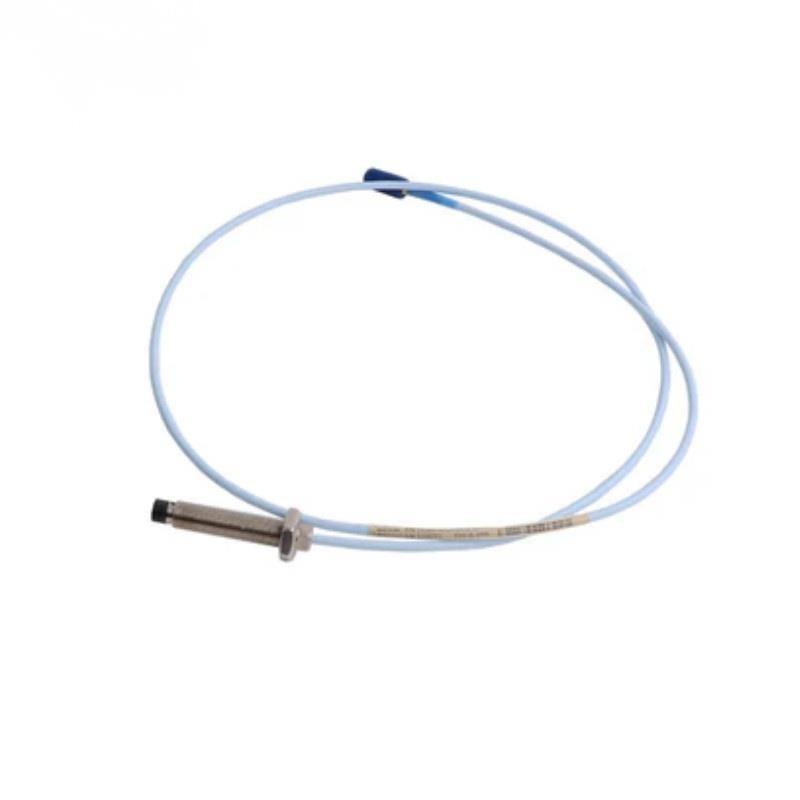

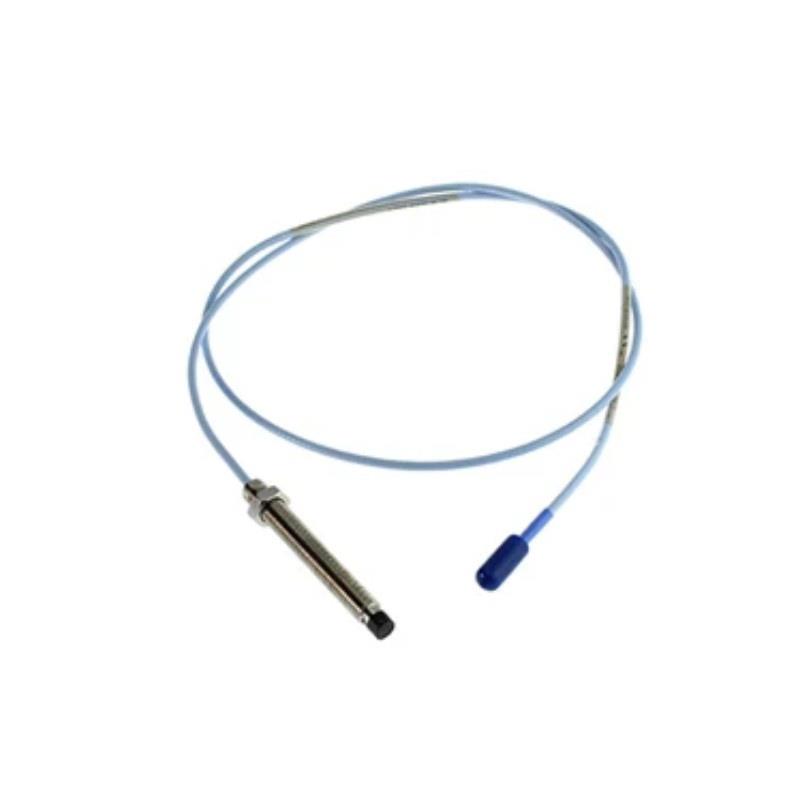

The Bently Nevada 330104-00-03-05-11-00 3300 XL 8 mm Proximity Probe is a high-performance sensor designed for continuous monitoring / shaft vibration, position, and keyphasor signals in rotating machinery. It belongs to the 3300 XL series, which is widely recognized for reliability in critical industrial applications such as turbines, compressors, pumps, and gearboxes.
Product Parameters
| Parameter | Specification |
|---|---|
| 型号 Number | 330104-00-03-05-11-00 |
| Series | 3300 XL 8 mm Proximity Probe |
| 重量 | 0.162 kg |
| Total Length | 0.5 m |
| Thread Type | M10 x 1.0 (metric thread) |
| Linear Range | 2.0 mm (80 mils) typical |
| Frequency Response | DC to 10 kHz |
| Output Signal | -200 mV/μm (nominal) |
| Power Supply (via proximitor) | -24 VDC regulated |
| Operating Temperature Range | -35 °C to +177 °C |
| Humidity | 95% non-condensing |
| Compliance | API 670 standard for machinery protection systems |
Product Applications
-
Turbomachinery: Monitoring shaft vibration and displacement in steam turbines, gas turbines, and hydro turbines.
-
Compressors & Pumps: Detecting unbalance, misalignment, and bearing wear.
-
Gearboxes: Tracking shaft dynamics and gear mesh conditions.
-
Motors & Generators: Continuous monitoring to prevent downtime and equipment damage.
-
Industrial Fans & Blowers: Ensuring stable operation by monitoring shaft stability.
Product Advantages
-
High Reliability: Rugged design for long-term use in demanding environments.
-
Precision Measurement: High linearity and sensitivity for accurate displacement monitoring.
-
Standard Compliance: Meets API 670 requirements, ensuring compatibility in protection systems.
-
Wide Temperature Range: Suitable for harsh industrial environments.
-
Ease / Integration: Works seamlessly with Bently Nevada proximitor sensors and monitoring systems.
-
Proven Performance: Part / the 3300 XL series, trusted in industries worldwide.
FAQ
Q1: What is the nominal sensitivity / the 330104-00-03-05-11-00 probe?
A1: The nominal sensitivity is -200 mV/μm, which provides accurate displacement measurement.
Q2: Can this probe be used with any proximitor module?
A2: No, it is specifically designed to work with 3300 XL Proximitor Sensors for best accuracy and calibration.
Q3: What is the linear measurement range / this probe?
A3: The probe provides a 2.0 mm (80 mils) linear measurement range.
Q4: Does the probe support reverse polarity protection?
A4: Yes, the system design includes polarity protection through the proximitor.
Q5: How is electrical interference minimized in this probe?
A5: The probe features coaxial cable shielding and hermetic sealing to minimize EMI and RFI.
Q6: What type / shaft material is required for accurate measurement?
A6: The probe is calibrated for AISI 4140 steel but works with other conductive metals with minor scale factors.
Q7: Can the probe withstand high-vibration environments?
A7: Yes, the stainless-steel body and rugged cable design ensure stable operation under high vibration.
Q8: How does temperature affect probe accuracy?
A8: The probe is compensated to operate from -35 °C to +177 °C with minimal drift.
Q9: What is the maximum cable length supported?
A9: Probe + extension cable combinations can reach up to 9 m (30 ft) without signal degradation.
Q10: Is this probe backward compatible with older Bently Nevada systems?
A10: Yes, it is backward compatible with most legacy 3300 series monitoring systems.
Recommended Same-Series or Related 型号s
| 型号 Number | 描述 |
|---|---|
| 330104-00-03-05-02-05 | 3300 XL 8 mm Probe, different cable length/thread type |
| 330104-00-02-10-01-00 | 3300 XL 8 mm Probe, short cable version |
| 330104-00-04-10-01-05 | 3300 XL 8 mm Probe, extended length version |
| 330104-00-02-50-02-00 | 3300 XL 8 mm Probe with metric thread and long cable |
| 330103-07-12-10-02-00 | 3300 XL 5 mm Proximity Probe |
| 330105-02-12-10-02-05 | 3300 XL 11 mm Proximity Probe |
Popular Same-品牌 型号s
| 型号 Number | 描述 |
|---|---|
| 330103-00-07-10-02-00 | 3300 XL 5 mm Proximity Probe |
| 330106-05-30-10-02-00 | 3300 XL 25 mm Proximity Probe |

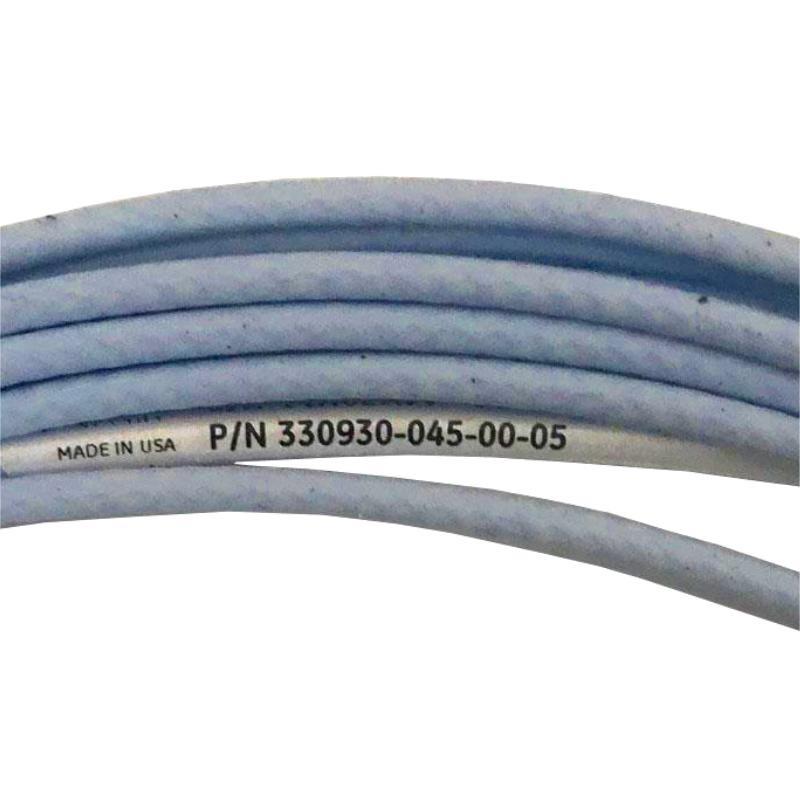

| 330130-045-00-00 | Extension Cable for 3300 XL Probes |

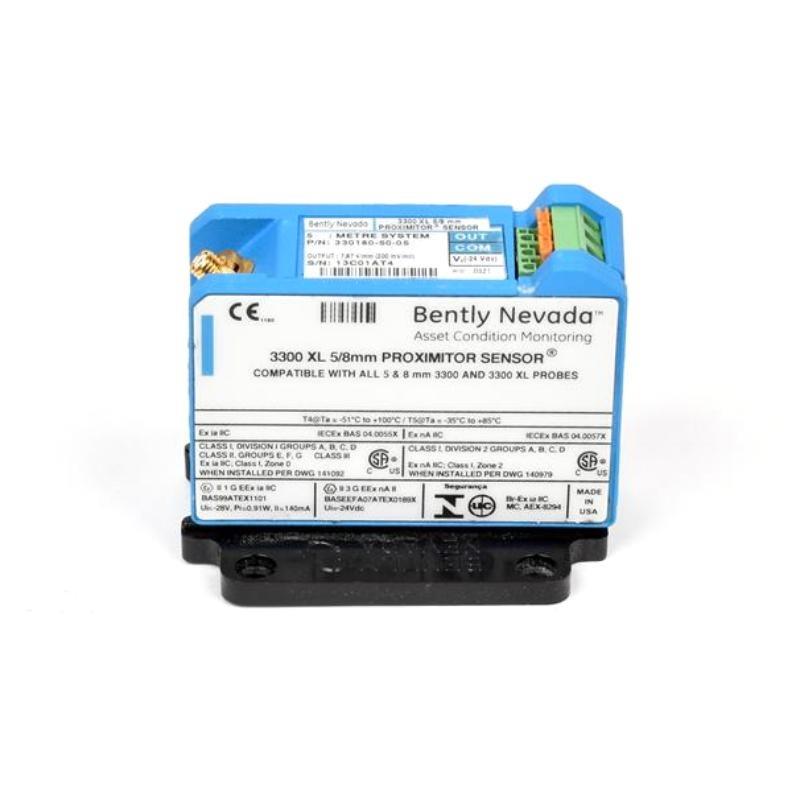

| 330180-50-00 | 3300 XL Proximitor Sensor |
| 3500/22M | Transient Data Interface Module |
| 3500/40M | Proximitor Monitor |
| 3500/42M | Proximitor/Seismic Monitor |
| 3500/60 | Temperature Monitor |
