Product Overview

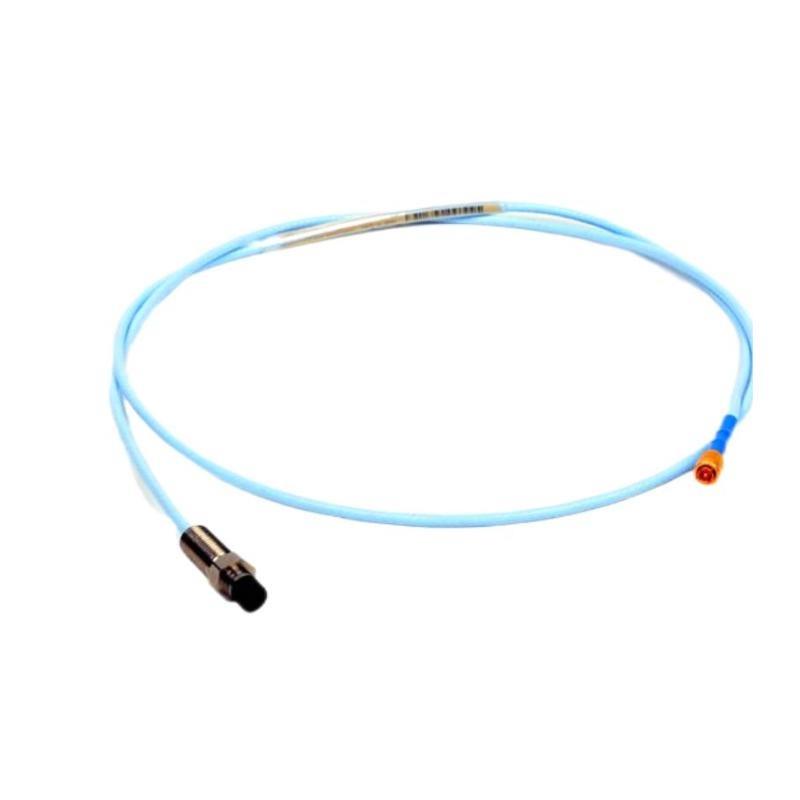

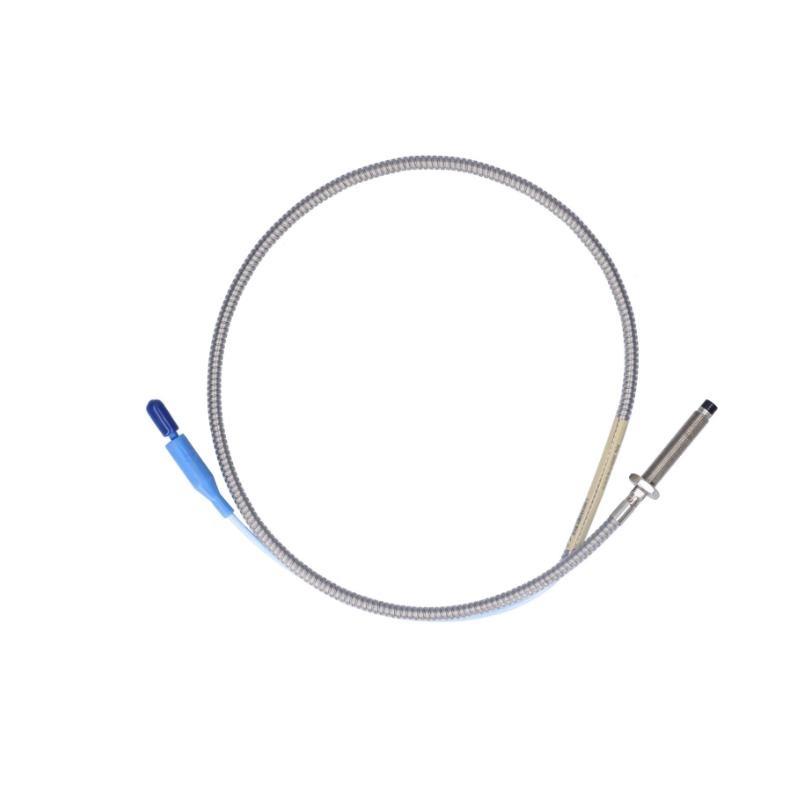

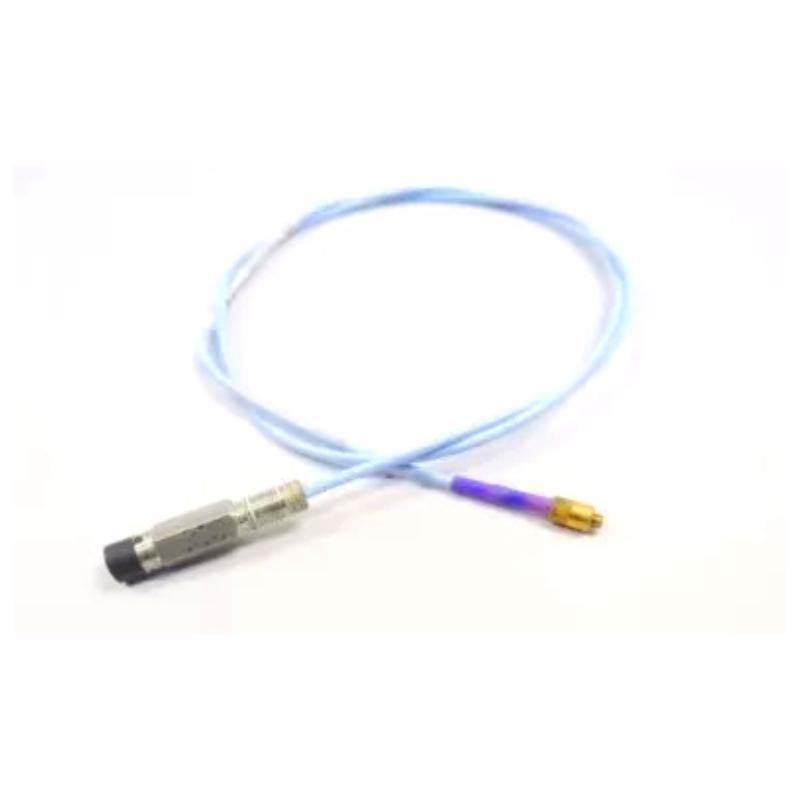

The Bently Nevada 330104-00-03-05-02-CN is a robust 8 mm proximity probe designed for use within the 3300 XL monitoring system. Engineered to provide precise non-contact measurements / shaft position and vibration, this probe features a durable stainless steel housing and a side-exit miniature coaxial connector optimized for installation flexibility. This model includes China-specific certifications indicated by the “-CN” suffix, ensuring compliance with local industrial standards.
Designed to perform reliably in demanding industrial environments, it supports early detection / machinery faults, helping reduce downtime and improve safety in applications such as turbines, compressors, and pumps.
Key Features
-
8 mm probe tip diameter for high resolution shaft displacement measurement
-
Side-exit miniature coaxial connector for ease / installation
-
Factory-calibrated for precision and repeatability
-
Robust stainless steel construction resistant to corrosion and wear
-
IP66 ingress protection rating ensures durability against dust and water
-
Compatible with 3300 XL Proximitor sensors and extension cables
-
Enhanced EMI shielding for signal integrity in noisy environments
-
Wide operating temperature range to suit harsh industrial conditions
-
Certified for use in China’s industrial environments (“-CN” certified)
-
Compliance with API 670 machinery protection standards
Technical Specifications
| Item | Specification |
|---|---|
| 零件号 | 330104-00-03-05-02-CN |
| Series | 3300 XL |
| Probe Tip Diameter | 8 mm |
| Mounting Thread | 3/8-24 UNF |
| Connector Type | Miniature coaxial, side exit |
| Cable Length | 3 feet (0.91 meters) |
| Calibration Range | 0 to 2 mm (80 mils) |
| Operating Temperature | -35°C to +177°C (-31°F to +351°F) |
| Storage Temperature | -51°C to +177°C (-60°F to +351°F) |
| Frequency Response | Up to 10 kHz |
| Insulation Resistance | >10 MΩ |
| Ingress Protection | IP66 |
| Material | Stainless steel housing with polymer-encapsulated tip |
| Electrical Isolation | Electrically isolated from housing |
| Dimensions | Total Length : 0.5 meter |
| 重量 | 0.161 kg |
Industry Applications
-
Power Generation: Steam and gas turbines vibration and shaft position monitoring
-
Oil & Gas: Compressor, pump, and rotating equipment condition monitoring
-
Petrochemical: Continuous machinery health surveillance
-
Mining: Crushers, conveyor systems, and motors
-
Manufacturing: Industrial rotating machinery protection
-
Pulp & Paper: Bearings and shaft vibration monitoring
Product Advantages
-
Provides highly accurate non-contact measurement / shaft position
-
Rugged construction suitable for harsh industrial environments
-
Pre-calibrated for hassle-free installation and integration
-
EMI resistant design maintains signal quality in noisy settings
-
IP66 rated protection ensures operation in dusty or wet conditions
-
China certification (“-CN”) guarantees compliance with regional standards
-
Compatible with the wide range / 3300 XL system components
-
支持s predictive maintenance and reduces unplanned downtime
-
Offers reliable performance in high-temperature and vibration conditions
-
Trusted by OEMs and plant operators worldwide
常见问题 (FAQ)
-
Q: What distinguishes the “-CN” model from others?
A: The “-CN” suffix indicates certifications and compliance specific to China’s industrial regulations. -
Q: Is this probe compatible with all 3300 XL system components?
A: Yes, it is fully compatible with standard 3300 XL extension cables and Proximitor sensors. -
Q: What is the cable length / this model?
A: The standard cable length is 3 feet (0.91 meters). -
Q: Can this probe withstand harsh environments with dust and water exposure?
A: Yes, it is IP66 rated, protecting against dust ingress and powerful water jets. -
Q: Does this probe require calibration after installation?
A: No, it is factory calibrated and ready to use out / the box. -
Q: What is the recommended installation orientation?
A: Typically mounted perpendicular to the shaft surface for optimal measurement accuracy. -
Q: Can it operate in high-temperature settings?
A: Yes, it operates reliably in temperatures from -35°C to +177°C (-31°F to +351°F). -
Q: Is the probe resistant to electromagnetic interference?
A: Yes, the design includes EMI shielding for signal stability. -
Q: What is the expected service life / this probe?
A: Under normal operating conditions, it typically lasts several years without degradation. -
Q: What shaft materials are compatible for accurate measurement?
A: Steel shafts made from AISI 4140 or similar alloys are recommended for best accuracy.
Related 型号s
| 型号 Number | 描述 |
|---|---|
| 330104-00-02-10-02-05 | 2 ft cable, 8 mm probe, side exit |
| 330103-00-16-10-02-00 | 16 ft cable, 8 mm probe, side exit |
| 330103-00-10-10-01-05 | 10 ft cable, 8 mm probe, straight connector |
| 330101-00-16-05-02-05 | 16 ft cable, 8 mm probe, legacy 3300 compatible |
| 330103-00-13-10-12-05 | 13 ft cable, 8 mm probe, side exit |
| 330130-045-01-05 | Standard extension cable, 45 ft |
Popular Bently Nevada 型号s
| 型号 Number | 描述 |
|---|---|
| 330180-91-05 | Proximitor Sensor for 3300 XL system |
| 330106-05-30-10-02-00 | Extension Cable, 5 m, 3300 XL |
| 3500/22M-01-01-00 | Transient Data Interface (TDI) Module |
| 3500/42M-01-00 | Vibration Monitor Module |
| 330130-045-01-05 | Standard Extension Cable, 45 ft |
| 330400-02-18-10-02-00 | Velocity Seismic Transducer, 3300 XL |
