Product Overview

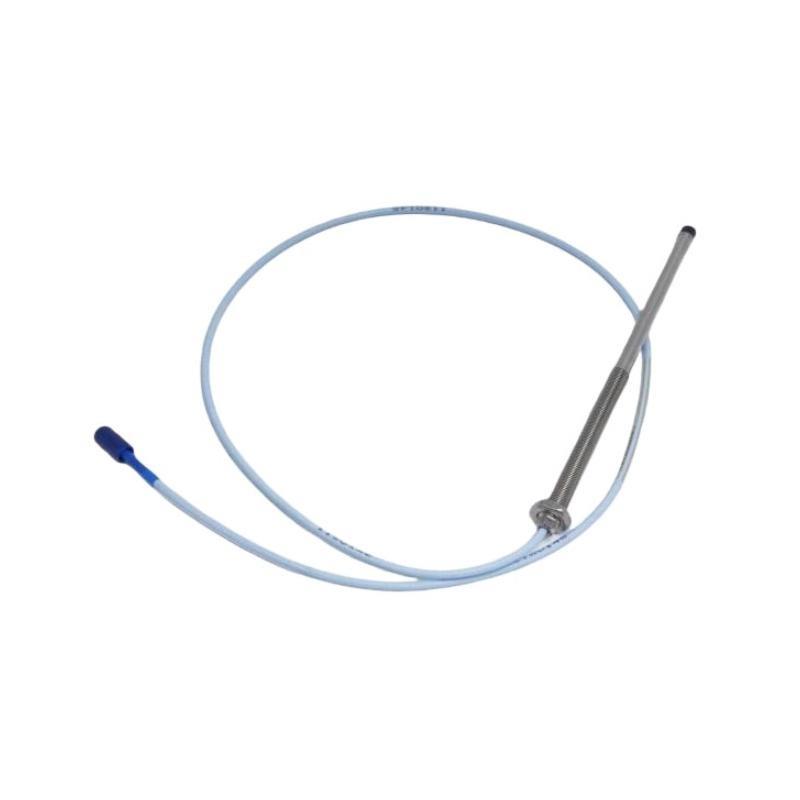

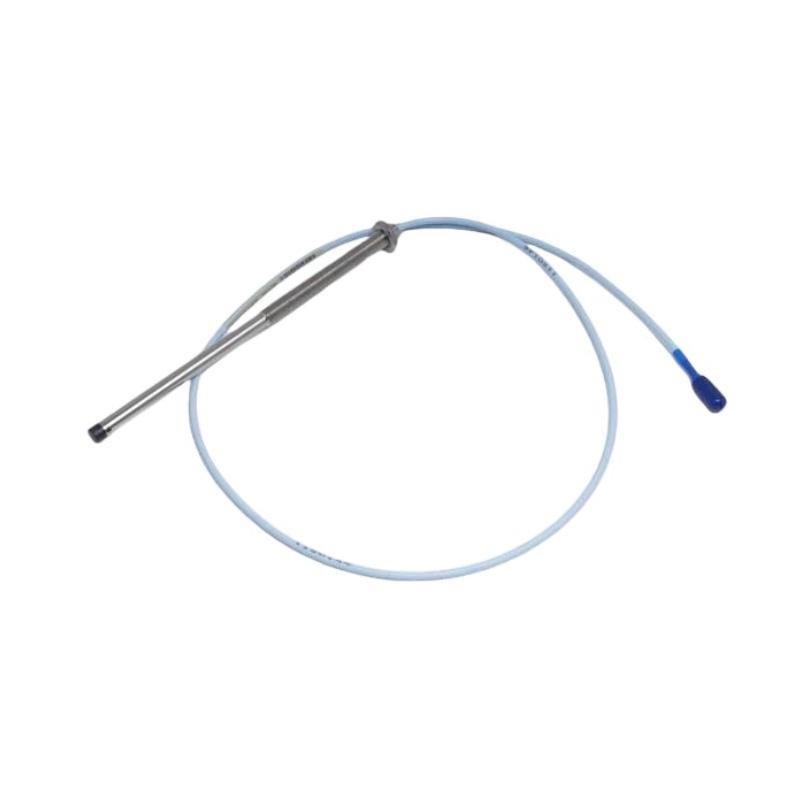

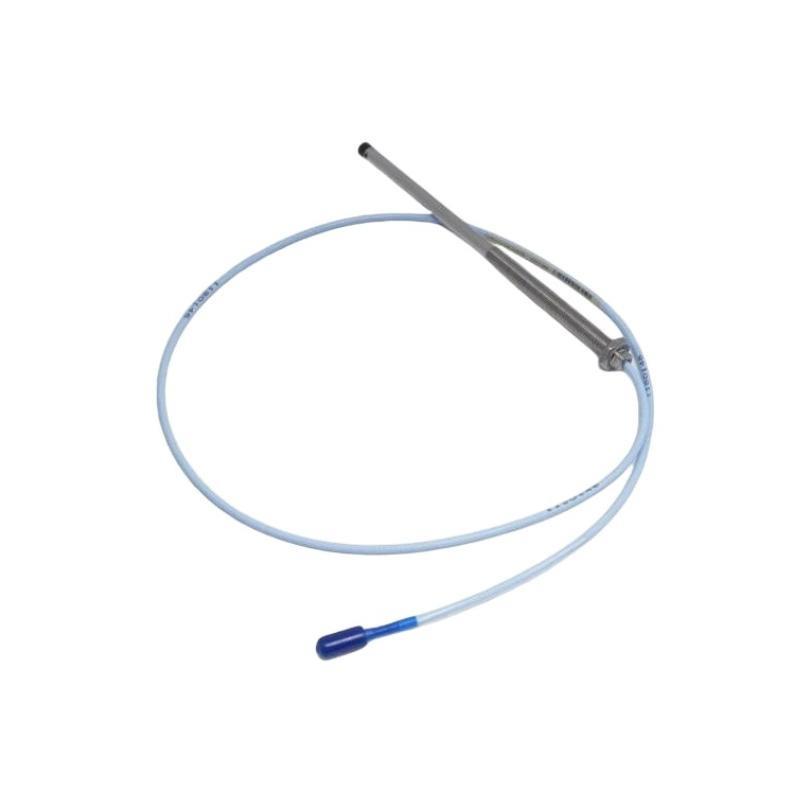

The Bently Nevada 330103-06-20-10-02-00 is part / the industry-leading 3300 XL 8 mm Proximity Probe series, designed for non-contact vibration and position measurements / rotating machinery. This probe ensures reliable and precise monitoring in high-temperature and high-vibration environments.
It is fully compatible with Bently Nevada’s 3300 XL extension cables and Proximitor sensors and delivers superior performance for API 670-compliant machine protection and condition monitoring systems.
Key Features
-
Non-contact eddy current sensing for accurate shaft vibration detection
-
8 mm probe tip with rugged design and corrosion resistance
-
Optimized linear range and sensitivity for critical rotating equipment
-
Wide temperature and vibration tolerance
-
Matched components (probe + extension cable + sensor) to ensure accuracy
-
Fully API 670 compliant
-
Plug-and-play with 3300 XL system components
Technical Specifications
| Item | Specification |
|---|---|
| 型号 Number | 330103-06-20-10-02-00 |
| Series | 3300 XL 8 mm Proximity Probe |
| Sensing Technology | Eddy current (non-contact) |
| Probe Tip Diameter | 8 mm (0.315 in) |
| Tip Material | PPS (Polyphenylene sulfide) |
| Body Material | AISI 304 Stainless Steel |
| Thread Type | 1/4-28 UNF-2A |
| Target Material | AISI 4140 Steel |
| Sensitivity | 7.87 mV/μm (200 mV/mil) ±5% |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | 0 – 10 kHz |
| Temperature Range | -35°C to +177°C (-31°F to +351°F) |
| Vibration Limit (Probe) | 50 g pk-pk @ 5–2000 Hz |
| 重量 | 0.323 kg |
| Dimensions | Total Length : 1.0 meter |
| Connector Type | Miniature coaxial |
| Cable Type | Armored |
| Compliance | API 670, CE, RoHS |
Industry Applications
The 330103-06-20-10-02-00 is widely deployed in industrial environments where reliable, high-resolution shaft monitoring is essential:
-
Steam turbines
-
Gas turbines
-
Centrifugal and reciprocating compressors
-
Industrial pumps and fans
-
Electric motors and alternators
-
Gear-driven machinery
-
Oil & gas, power generation, and petrochemical sectors
Product Advantages
-
Exceptional reliability for continuous condition monitoring
-
Field-proven durability in aggressive mechanical environments
-
High signal integrity due to matched cable/probe/sensor system
-
Temperature and vibration hardened for industrial compliance
-
Compact and easy to install design
-
Certified for international safety and performance standards
-
No manual calibration required
常见问题 (FAQ)
-
Is this probe compatible with other Bently Nevada systems?
Yes, it is fully compatible with all 3300 XL extension cables and Proximitor sensors. -
What is the probe diameter?
The probe has an 8 mm (0.315 in) tip diameter. -
Does it support armored cabling?
Yes, this model includes an armored cable for enhanced durability. -
What is the maximum operating temperature?
It operates up to +177°C (+351°F). -
Is this product API 670 compliant?
Yes, it meets API 670 standards for machinery protection. -
Can this probe measure both vibration and position?
Yes, it supports both dynamic (vibration) and static (position) measurements. -
What kind / materials is the probe calibrated for?
It is calibrated for AISI 4140 steel as the target material. -
Is the probe tip replaceable?
No, the tip is integrated and not user-replaceable. -
How is the sensitivity rated?
It provides a standard sensitivity / 200 mV/mil (7.87 mV/μm) ±5%. -
What kind / connector is used?
It uses a standard miniature coaxial connector.
Related 型号s
| 型号 Number | 描述 |
|---|---|
| 330103-00-05-10-02-00 | 8 mm probe, 5 m, armored, 1/4-28 thread |
| 330103-00-10-10-02-05 | 8 mm probe, 10 m, armored, 1/4-28 thread |
| 330103-01-15-05-01-00 | 8 mm probe, 5 m, unarmored, 15 in thread |
| 330103-02-18-10-02-05 | 8 mm probe, 10 m, armored, 18 in thread |
| 330103-03-12-05-02-00 | 8 mm probe, 5 m, armored, 12 in thread |
Popular 型号s
| 型号 Number | 描述 |
|---|---|
| 330104-00-12-10-02-05 | 3300 XL 8 mm Proximity Probe, 10 m, armored |
| 330130-080-00-00 | 3300 XL Extension Cable, 8 m |
| 330180-50-00 | 3300 XL Proximitor Sensor, 5 m |
| 3500/42M-01-00 | Proximitor Monitor for Vibration/Position |
| 3500/22M-01-01-00 | Transient Data Interface Module |
