Product Overview

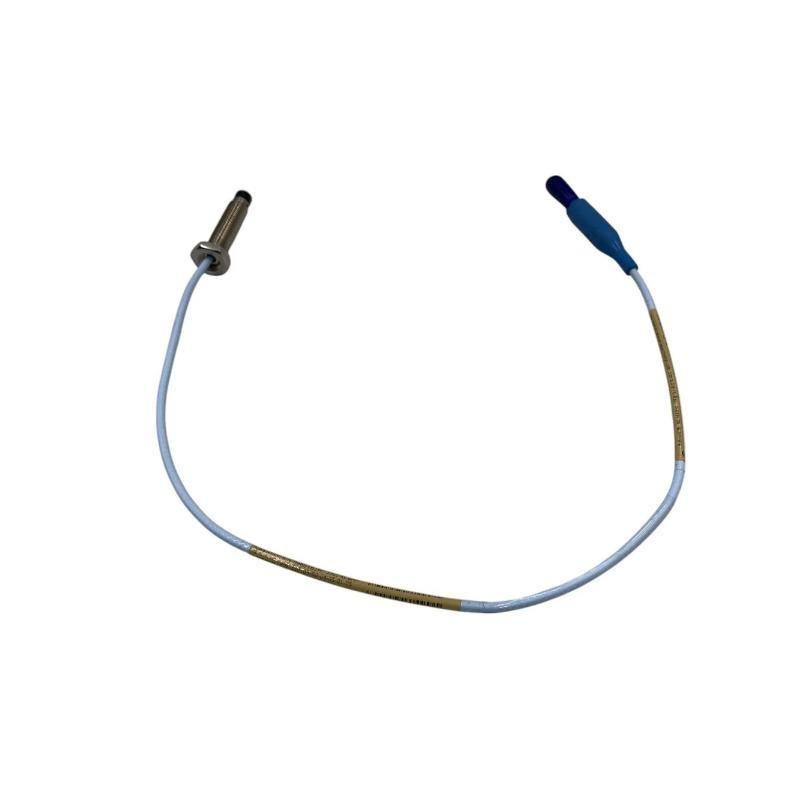

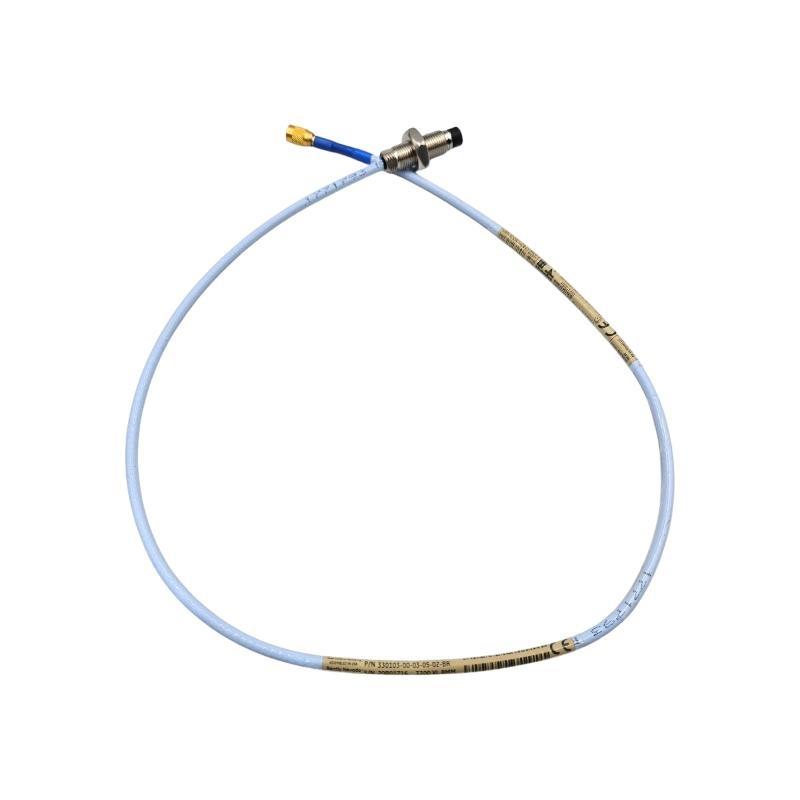

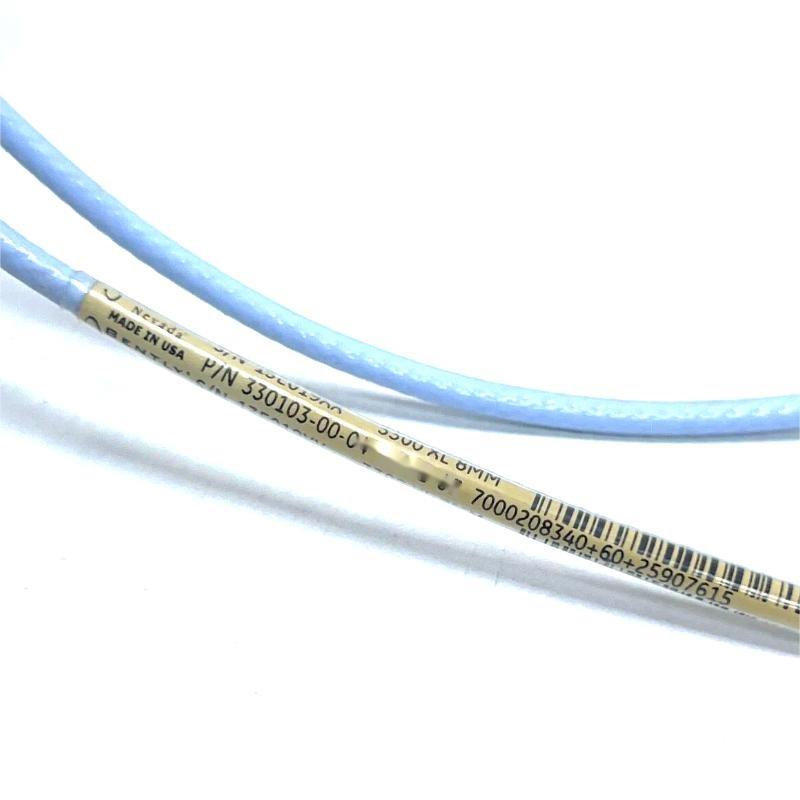

The Bently Nevada 330103-00-22-50-12-RU is a high-precision 8 mm proximity probe designed for advanced vibration and position monitoring in rotating machinery. Part / the 3300 XL series, it delivers reliable measurements for fluid-film bearings and other critical industrial applications. Its robust construction ensures high stability under extreme temperature and mechanical conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Range | 0.25 mm – 2.3 mm (10–90 mils) |
| Output Voltage | -1V to -17V DC linear |
| Optimal Gap | 1.27 mm (50 mils) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Sealing | Viton® O-ring |
| Operating Temperature (Probe) | -35°C to 260°C |
| Operating Temperature (Sensor) | 0°C to 45°C |
| Connector Type | Miniature coaxial ClickLoc |
| Compliance | API 670 Standard |
| Total Length | 5.0 meters |
| 重量 | 1.615 kg |
Applications
-
Vibration monitoring in fluid-film bearing machinery
-
Shaft displacement and position measurements
-
Keyphasor® and speed sensing in rotating equipment
-
Turbines, compressors, pumps, and generators
Advantages
-
High linearity and accuracy over the full measurement range
-
Robust mechanical design suitable for harsh environments
-
Long cable and secure ClickLoc connection for easy installation
-
API 670 compliance ensures standardization and reliability
-
Backward compatible with other 3300 series components
常见问题 (FAQ)
1. What is the maximum operating temperature for this probe?
-
The probe operates between -35°C and 260°C, while the sensor is rated for 0°C to 45°C.
2. What is the measurement range / the probe?
-
The probe measures 0.25 mm to 2.3 mm (10–90 mils) with a linear output.
3. What material is used for the probe tip?
-
Polyphenylene sulfide (PPS) is used for the probe tip.
4. What type / connector does it use?
-
It uses a miniature coaxial ClickLoc connector.
5. Is the probe compatible with other 3300 series components?
-
Yes, it is backward compatible with both 5 mm and 8 mm 3300 series probes.
6. What is the total length and weight / the probe?
-
Total length: 5.0 meters, 重量: 1.615 kg
7. What is the optimal probe-to-shaft gap?
-
The optimal gap is 1.27 mm (50 mils) for accurate vibration measurements.
8. What sealing is used to protect the probe?
-
A Viton® O-ring is used to maintain sealing and prevent contamination.
9. Does this probe comply with industry standards?
-
Yes, it complies with API 670 for mechanical configuration and performance.
10. Can it be used for both position and vibration measurements?
-
Yes, it is suitable for both static (position) and dynamic (vibration) applications.
Related 型号s (Same Series / Compatible)
| 型号 Number | 描述 | Measurement Range | Total Length | 重量 |
|---|---|---|---|---|
| 330103-00-22-50-10-RU | 8 mm XL Probe, standard output | 0.25–2.3 mm | 5.0 m | 1.615 kg |
| 330103-00-11-10-12-05 | 8 mm XL Probe, high-temp | 0.25–2.3 mm | 5.0 m | 1.600 kg |
| 330104-00-06-10-11-00 | 8 mm XL Proximity Probe | 0.25–2.3 mm | 4.5 m | 1.500 kg |
| 330104-00-06-50-01-00 | 8 mm XL Proximity Probe | 0.25–2.3 mm | 5.0 m | 1.620 kg |
| 330103-00-05-10-01-00 | 8 mm XL Probe without armor | 0.25–2.3 mm | 4.8 m | 1.580 kg |
| 330103-00-08-10-02-00 | 8 mm XL Probe, high vibration | 0.25–2.3 mm | 5.0 m | 1.615 kg |
Popular Bently Nevada 型号s
| 型号 Number | 描述 | Measurement Range | Total Length | 重量 |
|---|---|---|---|---|
| 330180-91-CN | 3300 XL Proximitor Sensor | N/A | 0.5 m | 0.450 kg |
| 330104-00-06-10-11-00 | 8 mm XL Proximity Probe | 0.25–2.3 mm | 4.5 m | 1.500 kg |
| 330105-00-22-10-12-00 | 12 mm XL Proximity Probe | 0.25–3.0 mm | 5.0 m | 2.000 kg |
| 330190-00-04-00 | 3300 XL Sensor, standard | N/A | 0.5 m | 0.430 kg |
| 330186-00-03-00 | 3300 XL Monitor Module | N/A | 0.3 m | 0.380 kg |
| 330103-00-05-10-01-00 | 8 mm XL Probe without armor | 0.25–2.3 mm | 4.8 m | 1.580 kg |
