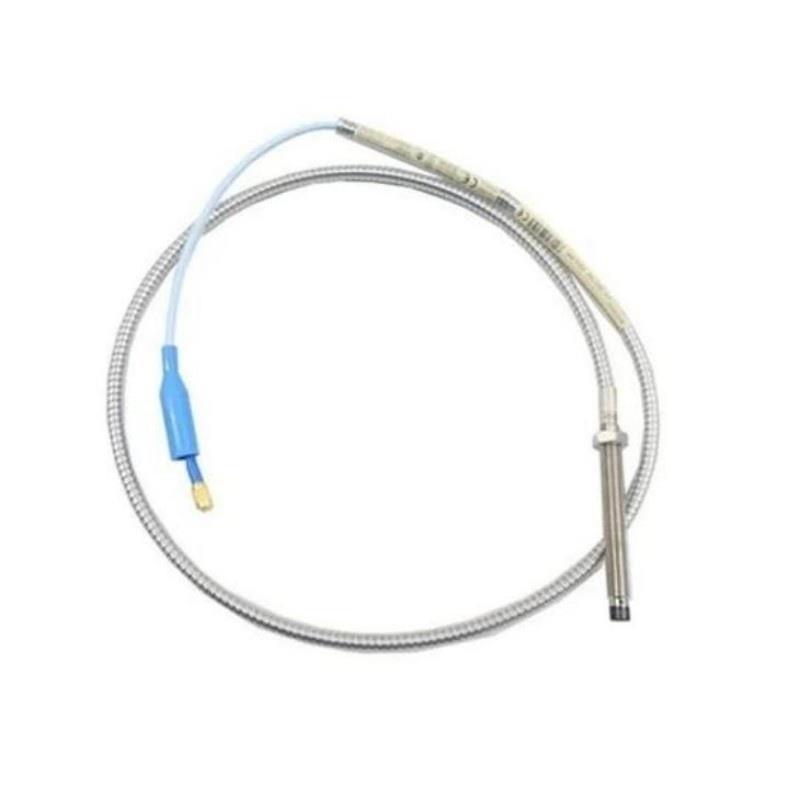

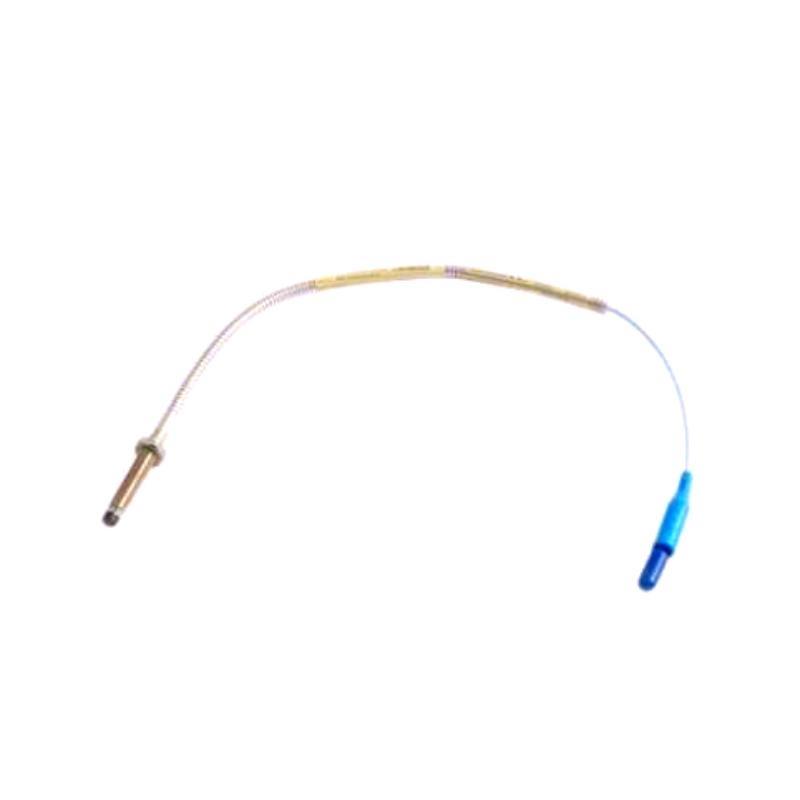

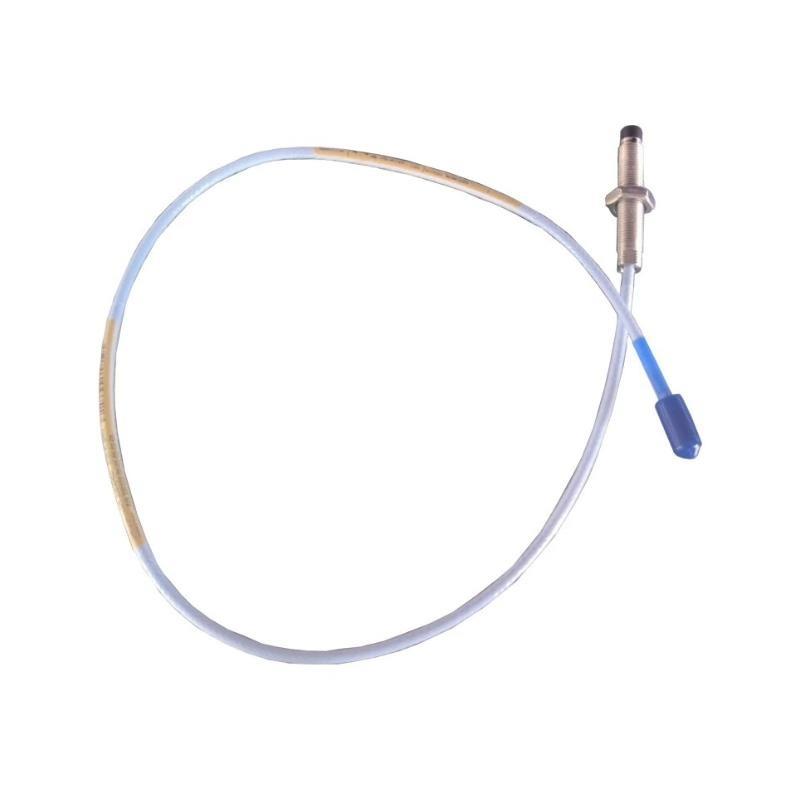

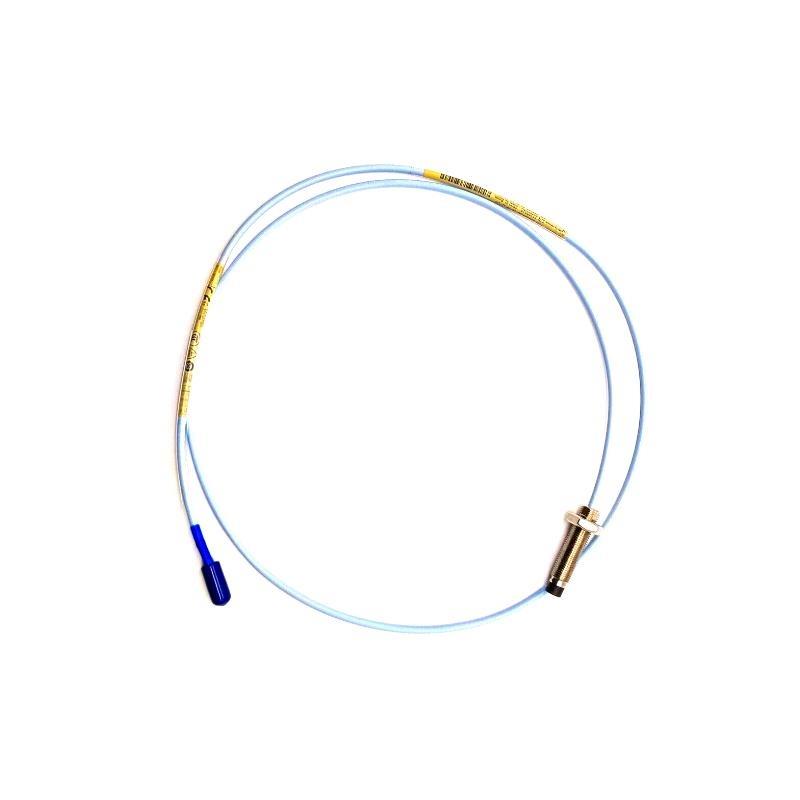

The Bently Nevada 330103-00-19-10-12-05 is part / the 3300 XL 8 mm Proximity Transducer System, engineered for precise vibration and position measurements on rotating machinery. This probe, with a total length / 1.0 meter and M10x1 threaded body, delivers robust performance in harsh industrial environments. It is ideal for radial vibration, axial thrust position, speed, and Keyphasor reference applications.
Features
-
Fully API 670-compliant system performance
-
Interchangeable probe, extension cable, and Proximitor sensor
-
Enhanced RFI/EMI imm件y
-
Gold-plated ClickLoc connectors for secure, tool-free connection
-
Rugged TipLoc and CableLoc design for high durability
Applications
-
Steam, gas, and hydro turbine monitoring
-
Compressors, motors, and pumps
-
Gearboxes and centrifugal equipment
-
Overspeed detection and Keyphasor timing reference
-
Environments requiring compliance with SIL 2/3, ATEX, IECEx
Advantages
-
No bench calibration required for component interchangeability
-
Works in high-density DIN rail or panel mount environments
-
Extended temperature range options up to 260°C
-
FluidLoc cable option prevents oil ingress
-
Backward compatibility with legacy 3300-series systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe 型号 | 330103-00-19-10-12-05 |
| Thread Type | M10 x 1 |
| Total Length | 1.0 meter |
| 重量 | 0.323 kg |
| Tip Diameter | 8.0 mm |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils), -9 Vdc |
| Incremental Scale Factor | 200 mV/mil (±5%) |
| Temperature Range | -52°C to +177°C (standard), up to +218°C (ETR) |
| Frequency Response | 0–10 kHz, +0/-3 dB |
| Shaft Diameter (min) | 50.8 mm (recommended ≥76.2 mm) |
| Output Resistance | 50 Ω |
| Cable Type | 75 Ω triaxial FEP insulated |
| Connector | Miniature coaxial ClickLoc with protector |
| Environmental Ratings | ATEX, IECEx, CSA, SIL2/3, CE, FCC |
FAQ
Q1: What type / connector is used in this probe?
A1: It uses a gold-plated miniature coaxial ClickLoc connector with a built-in locking mechanism.
Q2: Is this probe compatible with older 3300 systems?
A2: Yes, it is backward compatible with non-XL 3300-series 8 mm and 5 mm components.
Q3: Can this probe be used in high-temperature environments?
A3: Yes, with the ETR version, it supports up to 218°C at the probe tip and 260°C at the cable.
Q4: What is the recommended shaft diameter for accurate readings?
A4: A minimum / 50.8 mm, with 76.2 mm or greater preferred for reduced cross-talk.
Q5: Does the probe require calibration?
A5: No, probes, cables, and sensors are pre-calibrated and fully interchangeable.
Q6: What materials are used in the probe construction?
A6: Probe case: stainless steel; Tip: PPS plastic; Connector: gold-plated brass or beryllium copper.
Q7: Can this be used for Keyphasor or speed measurement?
A7: Yes, it supports Keyphasor reference and speed measurement when installed per guidelines.
Q8: Is FluidLoc cable included by default?
A8: No, FluidLoc cable is optional and ordered with the appropriate code.
Q9: What approvals does the product meet?
A9: It complies with ATEX, IECEx, RoHS, FCC, EMC, and is certified for SIL 2 and 3 applications.
Q10: What is the cable bend radius requirement?
A10: The minimum cable bend radius is 25.4 mm (1 inch).
Related 型号s (Same Series or Compatible)
| 型号 Number | 描述 | Length | 重量 |
|---|---|---|---|
| 330101-00-08-10-02-05 | 8 mm probe, UNF thread, 1.0 m, armored | 1.0 m | 0.323 kg |
| 330102-00-20-10-02-00 | 8 mm probe, UNF thread, 2.0 m, with armor | 2.0 m | 0.640 kg |
| 330104-00-06-10-02-00 | 8 mm probe, M10 thread, 0.6 m, armored | 0.6 m | 0.250 kg |
| 330105-02-12-10-02-00 | 8 mm reverse mount, UNF thread, 1.0 m | 1.0 m | 0.323 kg |
| 330140-00-10-02-00 | Smooth case probe, 1.0 m, standard cable | 1.0 m | 0.323 kg |
| 330191-00-10-02-05 | ETR probe, UNF thread, 1.0 m, FluidLoc cable | 1.0 m | 0.340 kg |
Popular Bently Nevada 型号s
| 型号 Number | 描述 | Length | 重量 |
|---|---|---|---|
| 3300/20 | Dual Vibration Monitor | — | — |
| 3500/22M | Transient Data Interface Module | — | 0.55 kg |
| 3500/42M | Proximitor Seismic Monitor | — | 0.50 kg |
| 330130-040-00-00 | 8 mm Extension Cable, 4.0 m | 4.0 m | 0.136 kg |
| 330104-00-05-10-02-00 | 8 mm M10 thread probe, armored, 0.5 m | 0.5 m | 0.230 kg |
| 330180-91-05 | 3300 XL Proximitor Sensor, 9.0 m, DIN mount | 9.0 m | 0.7 kg |
