Product Overview

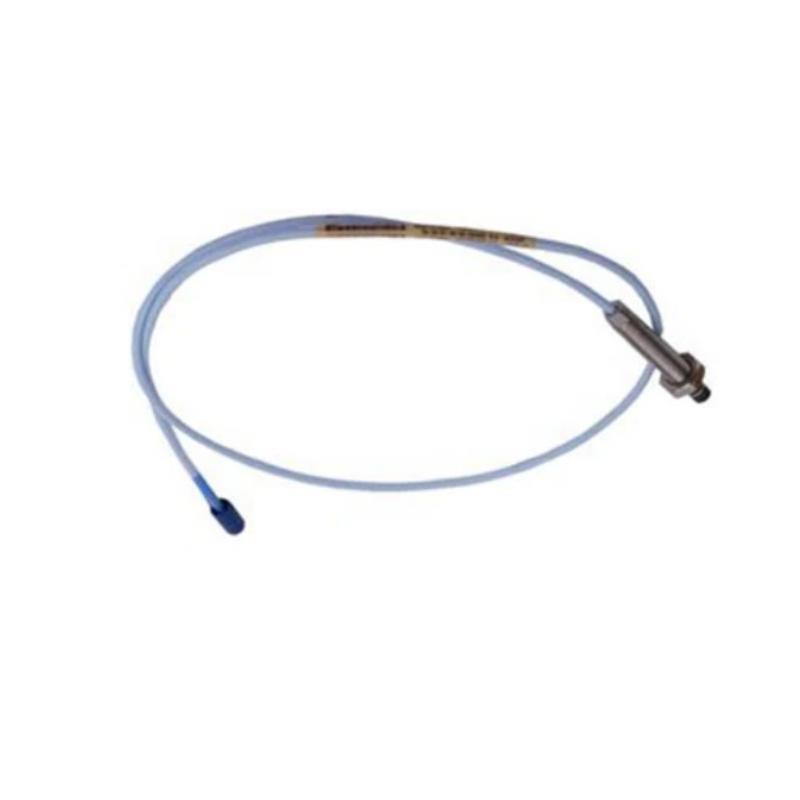

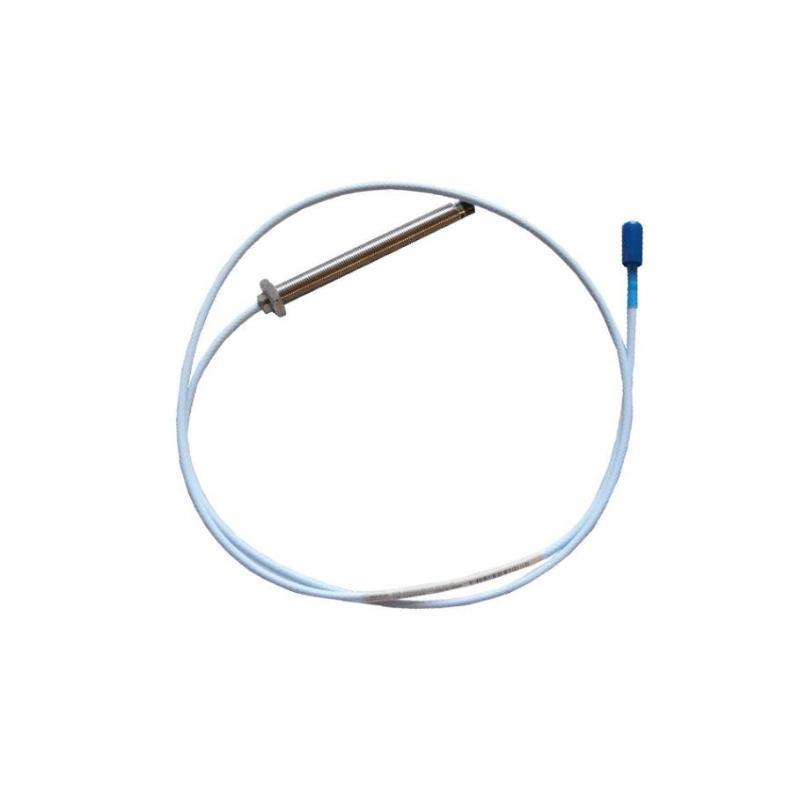

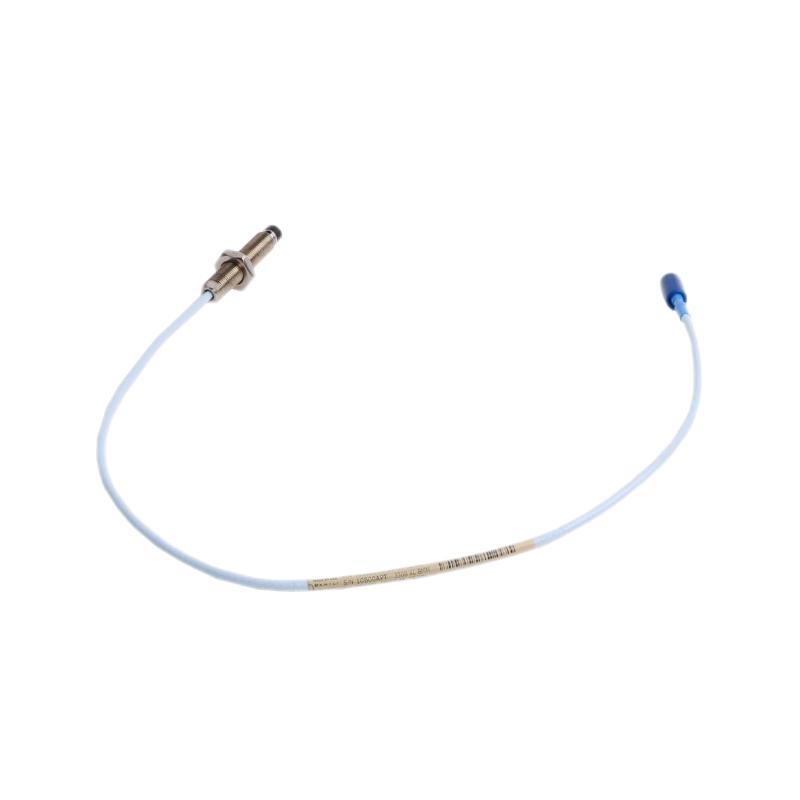

The Bently Nevada 330103-00-13-10-12-00 is a robust 8 mm non-contact proximity probe from the rugged 3300 XL series, featuring a 10 m integral cable and a 90° standard connector. Housed in stainless steel and sealed to IP68, it delivers precision shaft vibration and position monitoring for critical rotating machinery in harsh environments.
Key Features
-
8 mm probe tip ensures precise, repeatable displacement measurements
-
10 m integrated triaxial, low-noise cable
-
90° angled connector simplifies cable routing in tight spaces
-
5/8‑18 UNF threaded body for secure mounting
-
Stainless steel housing provides corrosion and wear resistance
-
IP68-rated protection against dust, water, and oil ingress
-
Designed to withstand high shock (5 000 g) and vibration (50 g)
-
Factory-calibrated for plug‑and‑play integration with 3300 XL systems
-
Operates reliably across extreme temperature ranges
-
Compliant with API 670 and CE standards
Technical Specifications
| Specification | Details |
|---|---|
| 型号 Number | 330103-00-13-10-12-00 |
| Series | 3300 XL 8 mm |
| Probe Diameter | 8 mm |
| Mounting Thread | 5/8‑18 UNF‑2A |
| Sensing Range | 2 mm (80 mils) |
| Linear Range | 0.25–2.0 mm (10–80 mils) |
| Connector Orientation | 90° angled |
| Cable Length | 10 meters (integral) |
| Cable Type | Triaxial coaxial, low noise |
| Probe Material | AISI 304 stainless steel |
| Operating Temp | –35 °C to +177 °C (–31 °F to +351 °F) |
| Storage Temp | –51 °C to +177 °C (–60 °F to +351 °F) |
| Environmental Rating | IP68 (when properly installed) |
| Vibration Rating | 50 g peak, 10–2 000 Hz |
| Shock Rating | 5 000 g, 1 ms half‑sine pulse |
| Insulation Resistance | >10⁹ Ω at 500 VDC |
| Accuracy | ±0.07 mm (±2.8 mils) typical |
| Dimensions | Total Length : 1.0 meter |
| 重量 | 0.323 kg |
| Compliance | API 670, CE |
Industry Applications
Well-suited for applications where a long cable and angled connector are required:
-
Power generation (steam/gas turbine monitoring)
-
Oil & gas compressor and pump systems
-
Petrochemical mixers and agitators
-
Mining conveyor and crusher shaft monitoring
-
Marine propulsion and auxiliary systems
-
HVAC and industrial fan setups
-
Pulp & paper roller monitoring
-
Water treatment pump and motor supervision
Product Advantages
-
Long 10 m cable simplifies installation across larger installations
-
90° connector allows neat cable exits in tight locations
-
Stainless steel body withstands aggressive industrial environments
-
IP68 rating ensures durability in oily, dusty, or submerged conditions
-
Non-contact sensing eliminates wear and reduces maintenance
-
Factory calibration delivers immediate accuracy on installation
-
Robust shock and vibration resistance enhances reliability
-
Compatible with Bently Nevada 3300 XL systems for seamless integration
-
Meets stringent API 670 specifications for critical machinery monitoring
-
Delivers high signal fidelity over extended cable distances
常见问题 (FAQ)
-
What is the cable length / this probe?
It includes an integrated 10 m cable. -
What mounting thread does it use?
5/8‑18 UNF‑2A threaded body. -
Is the connector angled or straight?
It features a 90° angled connector. -
Is it suitable for wet or oily environments?
Yes, it’s IP68 rated when installed correctly. -
What industries use this probe?
Power, petrochemical, mining, marine, HVAC, pulp & paper, water. -
Does it need field calibration?
No—factory calibrated for immediate use. -
What temperature ranges can it handle?
–35 °C to +177 °C (–31 °F to +351 °F). -
How rugged is the probe?
Withstands up to 5 000 g shock and 50 g vibration. -
Can I add extension cables?
It comes with a 10 m cable; extensions are not recommended. -
What accuracy does this probe /fer?
Typically ±0.07 mm (±2.8 mils).
Related 型号s
| 型号 Number | 描述 |
|---|---|
| 330103-00-05-10-12-00 | 5 m cable, 90° angled connector |
| 330103-00-06-10-12-00 | 6 m cable, 90° angled connector |
| 330103-00-08-10-12-00 | 8 m cable, 90° angled connector |
| 330103-00-10-10-01-00 | 10 m cable, straight connector |
| 330104-00-10-10-02 | 10 m XL extension cable |
| 330180-91-05 | 8 mm Proximitor sensor module for 8 mm probes |
