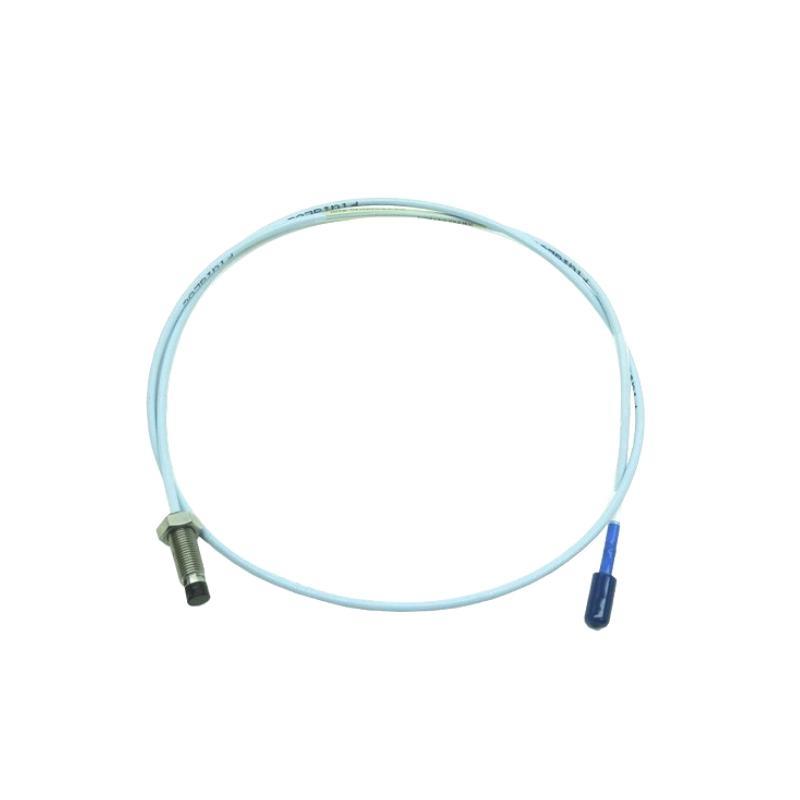

The Bently Nevada 330103-00-12-05-02-05 3300 XL 8mm Proximity Probe is a precision sensor designed for continuous monitoring / shaft vibration and radial displacement in critical rotating machinery. As part / the 3300 XL 8mm Proximity Probe series, it delivers highly accurate real-time measurements essential for predictive maintenance, machinery protection, and reliability monitoring.
Featuring a total cable length / 0.5 meters and a weight / 0.162 kg, this compact probe is ideal for installations requiring proximity to the 3300 XL Proximitor module. It employs eddy-current technology to provide non-contact measurement / conductive surfaces, ensuring rapid response and high fidelity under dynamic operating conditions.
Constructed with stainless steel and a PEEK-insulated coaxial cable, the probe is resistant to harsh industrial environments. Its shielded design minimizes electromagnetic interference, maintaining signal integrity for critical monitoring applications. Fully compatible with Bently Nevada 3300 XL Proximitor modules, it meets API 670 standards for machinery protection systems.
Product Parameters
| Parameter | Specification |
|---|---|
| 型号 Number | 330103-00-12-05-02-05 |
| Series | 3300 XL 8mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Linear Range | ±1 mm |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | DC to 10 kHz |
| Power Supply | -24 V DC via 3300 XL Proximitor module |
| Total Length | 0.5 meter |
| 重量 | 0.162 kg |
| Operating Temperature Range | -35°C to +177°C |
| Storage Temperature Range | -50°C to +200°C |
| Material | Stainless steel probe body, PEEK-insulated coaxial cable |
| Mounting Thread | 3/8”-24 UNF or M10 x 1 depending on installation |
| System Compatibility | Compatible with 3300 XL Proximitor modules |
Product Applications
The 330103-00-12-05-02-05 probe is commonly used in:
-
Turbines and Generators: Provides precise shaft vibration and displacement monitoring for early fault detection.
-
Compressors and Pumps: Detects misalignment, imbalance, and bearing degradation.
-
Industrial Motors and Gearboxes: Monitors rotor dynamics to prevent operational issues.
-
Oil & Gas Equipment: 支持s API 670 compliant protection systems in harsh environments.
-
Process Control and Power Plants: Enables continuous condition monitoring to reduce downtime and maintenance costs.
Product Advantages
-
High Measurement Accuracy: Delivers precise radial displacement and vibration readings.
-
Compact Design: Short 0.5-meter cable allows installation in tight or constrained spaces.
-
Robust Construction: Stainless steel and PEEK insulation provide mechanical and chemical resistance.
-
EMI Protection: Coaxial shielding ensures accurate signal output in electrically noisy environments.
-
Seamless Integration: Compatible with all 3300 XL Proximitor modules.
-
API 670 Compliance: Meets industry standards for machinery protection.
-
Wide Frequency Response: DC to 10 kHz enables detection / both low- and high-frequency events.
FAQ
-
How does this probe maintain signal integrity over 0.5 meters?
It uses a coaxial, impedance-matched, shielded cable to minimize signal loss and maintain high measurement fidelity. -
What is the linear measurement range / the probe?
The linear range is ±1 mm, providing precise monitoring / shaft displacement. -
Can it measure both static and dynamic shaft movement simultaneously?
Yes, the probe outputs signals for dynamic vibration and static shaft position simultaneously. -
How does the probe resist electromagnetic interference?
The shielded coaxial cable and PEEK insulation reduce EMI, ensuring stable and accurate readings. -
What is the frequency response / this probe?
The probe operates from DC up to 10 kHz, suitable for monitoring high-speed machinery vibrations. -
Is it compatible with all 3300 XL Proximitor modules?
Yes, it integrates seamlessly with 3300 XL modules for continuous condition monitoring. -
How does temperature affect probe performance?
The probe maintains accuracy from -35°C to +177°C due to built-in thermal compensation. -
What is the recommended mounting method?
Mount the probe perpendicular to the shaft using a 3/8”-24 UNF or M10 x 1 threaded fitting for optimal performance. -
Can it detect high-frequency vibration events?
Yes, the 10 kHz frequency response captures rapid vibration changes accurately. -
Does this probe comply with industrial machinery protection standards?
Yes, it meets API 670 standards for rotating machinery protection.
Recommended Related 型号s (Same Series)
| 型号 Number | 描述 |
|---|---|
| 330103-00-00-03-10-02-R0 | 3300 XL 8mm Proximity Probe, 3 m cable |
| 330103-00-02-05-02-05 | 3300 XL 8mm Proximity Probe, 0.5 m cable |
| 330103-00-05-10-02-R0 | 3300 XL 8mm Proximity Probe, 5 m cable |
| 330102-60-90-10-02-05 | 3300 XL 8mm Proximity Probe, 9 m cable |
| 330102-4-12-90-02-05 | 3300 XL 8mm Proximity Probe, 9 m cable |
| 330102-38-82-10-02-05 | 3300 XL 8mm Proximity Probe, 2 m cable |
Popular Bently Nevada 型号s (Same 品牌)
| 型号 Number | 描述 |
|---|---|
| 330130-040-00 | Extension cable for 3300 XL proximity probes |
| 3500/22M | Transducer I/O module for 3500 series monitoring |
| 3500/42M | Proximitor/Seismic monitoring module |
| 3500/32M | Relay module for automated shutdown |
| 3500/93 | Display interface module for 3500 monitoring system |
| 330103-00-05-10-02 | 3300 XL 8mm Proximity Probe, 5 m cable |
