Product Overview

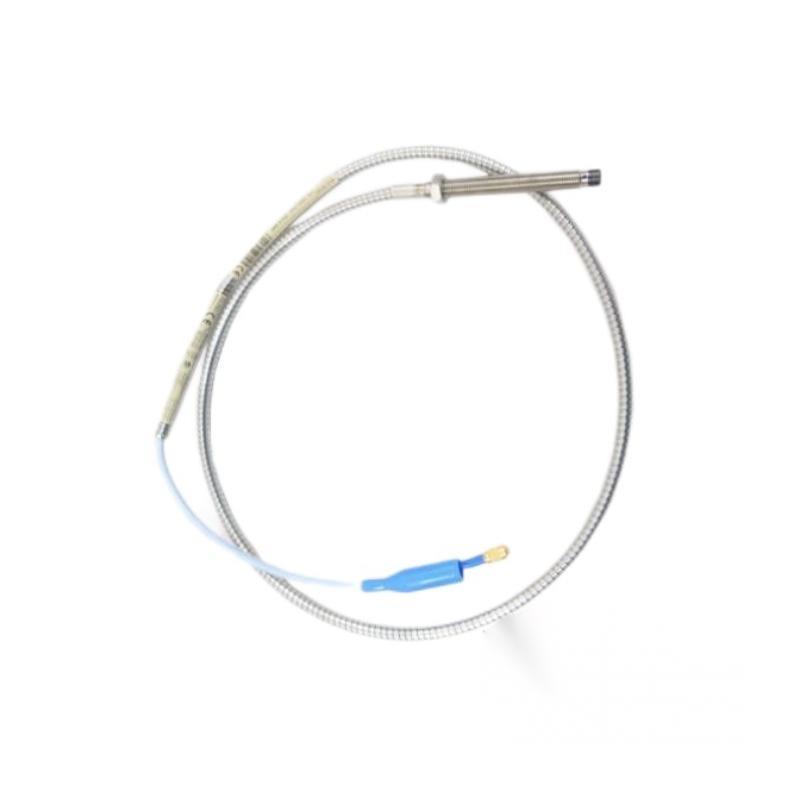

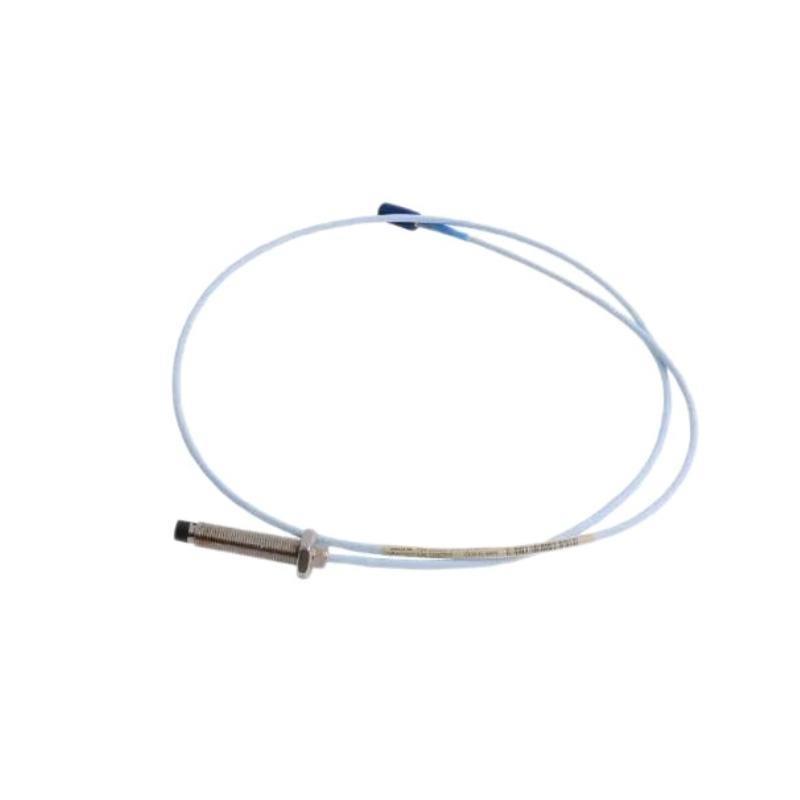

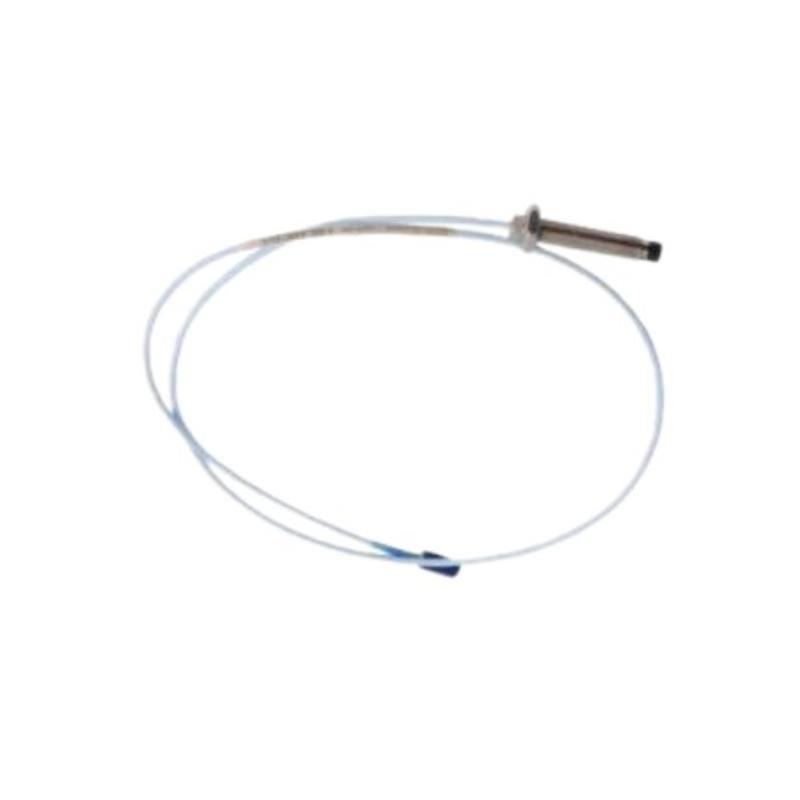

The Bently Nevada 330103-00-05-50-12-00 proximity probe is part / the reliable 3300 XL series, engineered for high-precision, non-contact shaft vibration and displacement monitoring in critical rotating machinery. Designed with an 8 mm probe tip diameter, this model provides excellent measurement stability and long-term durability in industrial environments.
Featuring a 5/8-18 UNF threaded mounting, a 5-meter integral cable, and a 90° angled connector, it is well suited for installations in compact spaces requiring angled cable exits. This probe /fers resistance to oil, dust, moisture, and vibration, meeting the rigorous requirements / API 670 and other industrial standards.
Key Features
-
8 mm probe tip diameter for accurate displacement measurement
-
5/8-18 UNF threaded body for secure and standardized mounting
-
5-meter integral triaxial, low-noise cable
-
90° angled connector for tight installation spaces
-
Stainless steel construction for corrosion resistance
-
IP68 rated when properly installed, ensuring environmental protection
-
Compatible with Bently Nevada 3300 XL extension cables and Proximitor sensors
-
Factory calibrated for plug-and-play operation
-
Suitable for use in harsh industrial and high-temperature conditions
-
Compliant with API 670 and CE standards
Technical Specifications
| Specification | Details |
|---|---|
| 型号 Number | 330103-00-05-50-12-00 |
| Series | 3300 XL 8 mm |
| Probe Tip Diameter | 8 mm |
| Mounting Thread Size | 5/8-18 UNF-2A |
| Sensing Range | 2 mm (80 mils) |
| Linear Range | 0.25 mm to 2.0 mm (10 to 80 mils) |
| Connector Orientation | 90° angled connector |
| Cable Length | 5 meters (integral) |
| Cable Type | Triaxial coaxial, low noise |
| Probe Body Material | AISI 304 Stainless Steel |
| Operating Temperature Range | -35°C to +177°C (-31°F to +351°F) |
| Storage Temperature Range | -51°C to +177°C (-60°F to +351°F) |
| Environmental Protection | IP68 (when properly installed) |
| Vibration Resistance | 50 g peak, 10 to 2000 Hz |
| Shock Resistance | 5000 g, 1 ms half-sine pulse |
| Insulation Resistance | >10⁹ ohms at 500 VDC |
| Typical Accuracy | ±0.07 mm (±2.8 mils) |
| Compliance | API 670, CE |
| Dimensions | Total Length : 5.0 meters |
| 重量 | 1.615 kg |
Industry Applications
-
Power generation turbines and generators
-
Oil and gas compressors and pumps
-
Petrochemical mixers and agitators
-
Mining and metal processing machinery
-
Marine propulsion shafts
-
Industrial HVAC fan and blower shafts
-
Pulp and paper rollers and drives
-
Water treatment plant pumps and motors
Product Advantages
-
Durable stainless steel construction suitable for harsh environments
-
Non-contact measurement reduces wear and maintenance
-
Reliable performance in oily, dusty, or submerged conditions
-
Angled connector simplifies cable routing in constrained spaces
-
Compatible with the extensive Bently Nevada monitoring system ecosystem
-
Factory calibrated to ensure immediate accuracy
-
Meets stringent industrial safety and performance standards
-
Resistant to vibration and shock common in rotating machinery
-
支持s long cable runs with low noise signal transmission
-
Globally recognized quality and support network
常见问题 (FAQ)
-
What mounting thread does this probe use?
It uses a 5/8-18 UNF-2A threaded mounting. -
What is the connector type?
This model has a 90° angled coaxial connector. -
Is this probe compatible with Bently Nevada extension cables?
Yes, it supports all standard 3300 XL extension cables. -
What environments can this probe operate in?
It is IP68 rated, suitable for wet, oily, dusty, and harsh industrial environments. -
How long is the cable?
The integral cable length is 5 meters. -
Does the probe require calibration?
It comes factory calibrated and generally does not require on-site calibration. -
What industries use this probe?
Power generation, oil & gas, petrochemical, mining, marine, pulp & paper, and more. -
What is the operating temperature range?
From -35°C to +177°C (-31°F to +351°F). -
How resistant is it to vibration and shock?
It withstands vibration up to 50 g and shock up to 5000 g. -
Can the connector orientation be changed?
No, this specific model has a fixed 90° connector.
Related 型号s
| 型号 Number | 描述 |
|---|---|
| 330103-00-05-50-01-00 | 5 m cable, 5/8-18 thread, straight connector |
| 330103-00-06-50-12-00 | 6 m cable, 5/8-18 thread, 90° angled connector |
| 330103-00-08-50-12-00 | 8 m cable, 5/8-18 thread, 90° angled connector |
| 330104-00-10-10-02 | 10 m extension cable, straight connector |
| 330130-045-01-00 | Standard 4.5 m extension cable |
| 330180-91-05 | 8 mm proximitor sensor, 5 m cable |
Popular Bently Nevada 型号s
| 型号 Number | 描述 |
|---|---|
| 3500/22M-01-01-00 | Transient Data Interface Module |
| 3500/42M-01-00 | Vibration Monitor Module |
| 330104-00-05-10-02 | 5 m extension cable |
| 330130-045-01-00 | 4.5 m standard extension cable |
| 330180-91-05 | Proximitor sensor compatible with 8 mm probes |
| 1900/65A-00-01-01 | Compact machine monitor for vibration and speed |
