产品介绍

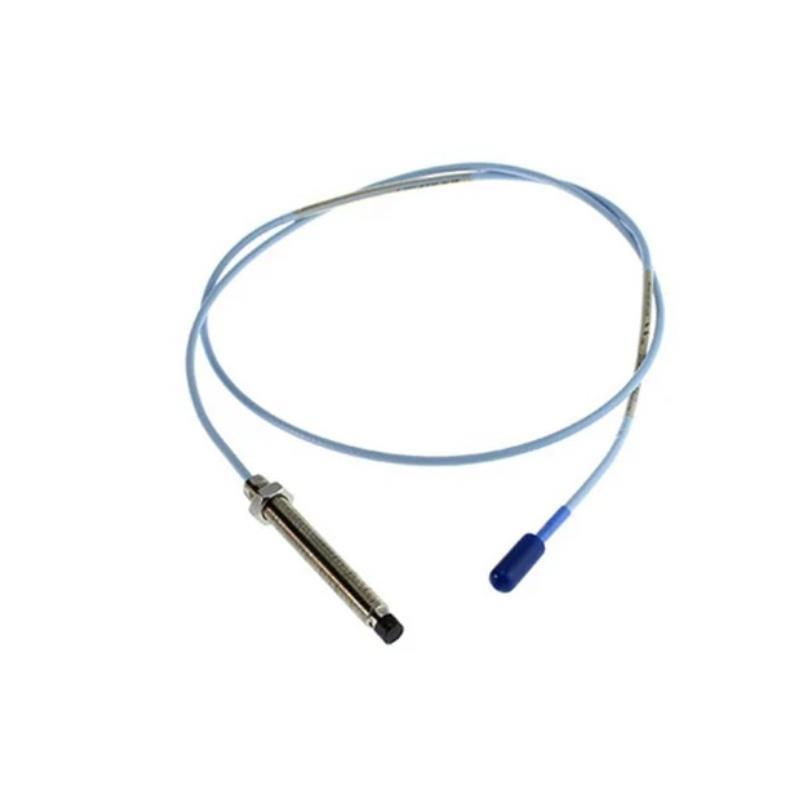

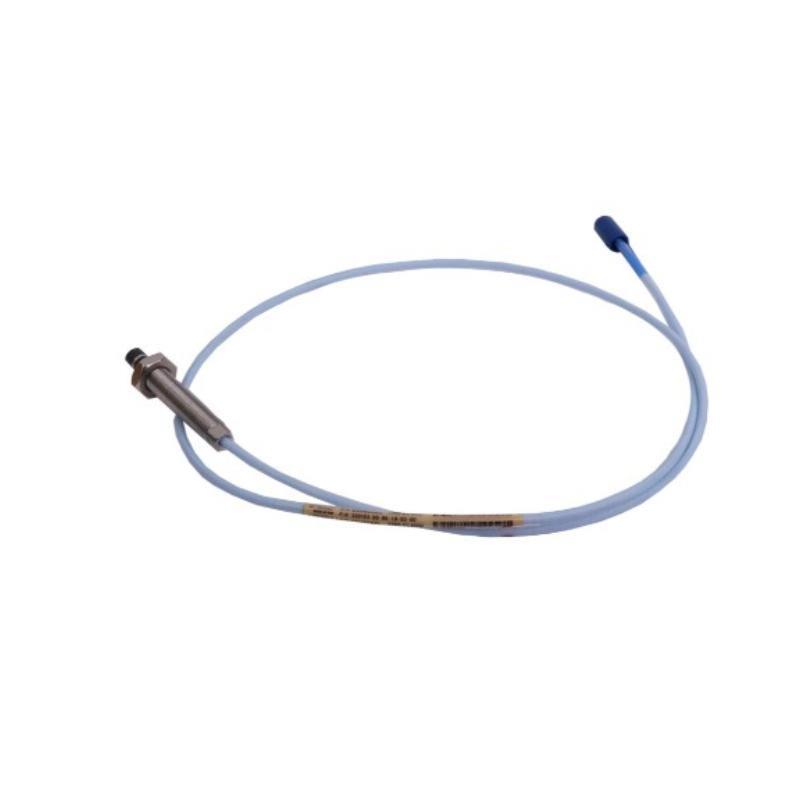

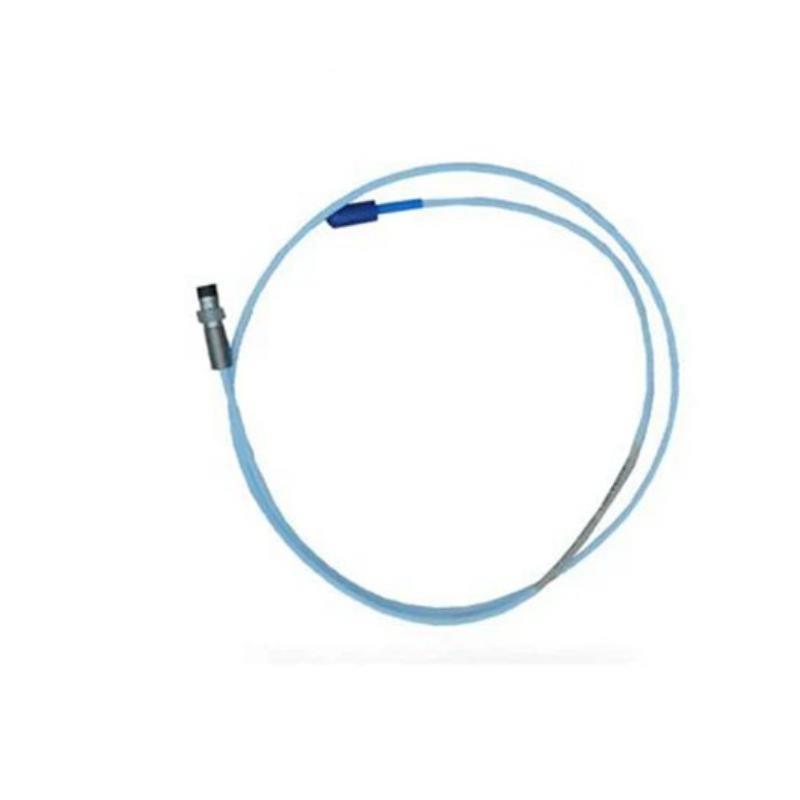

The Bently Nevada 330103-00-05-10-02-CN belongs to the well-established 3300 XL 8mm Proximity Transducer System, which is widely used for machinery protection and condition monitoring. This model features an 8mm probe designed for precise and reliable non-contact measurements / shaft position and vibration in critical rotating machinery such as turbines, compressors, motors, and pumps.
The 3300 XL system, including this probe, is engineered to deliver enhanced performance in harsh industrial environments. It is fully compatible with API 670 standard requirements and /fers field-proven stability, ruggedness, and long-term reliability. The “CN” suffix signifies that this model is configured for China and meets the regional compliance specifications.
产品规格
| Parameter | Value |
|---|---|
| 型号 | 330103-00-05-10-02-CN |
| Series | Bently Nevada 3300 XL 8mm |
| Probe Tip Diameter | 8 mm |
| Total Length | 1.0 meter |
| Connector Type | Miniature coaxial (MIL-style) |
| System Type | Non-contact eddy current proximity probe |
| Target Material | AISI 4140 steel (or similar ferromagnetic materials) |
| Sensing Range | -2 mm to +2 mm linear range |
| Output Voltage | -200 mV/μm nominal (typical system sensitivity) |
| Temperature Range (Operating) | -35°C to +177°C |
| Shock Limit | 500 g, 1 ms half-sine |
| Vibration Limit | 10 g pk, 10–2,000 Hz |
| Housing Material | Stainless steel |
| Mounting Thread | 1/4-28 UNF |
| 重量 | 0.323 kg |
| Probe Cable Type | Teflon jacketed, triaxial shielded |
| Compatibility | Works with 3300 XL extension cables and Proximitor sensors |
| Compliance | Conforms to API 670 and CE-marked for industrial use |
Product Applications
The 330103-00-05-10-02-CN proximity probe is deployed extensively across a range / industries where machinery health is mission-critical. Typical applications include:
-
Steam and Gas Turbines: Monitoring shaft axial position and radial vibration.
-
Centrifugal and Axial Compressors: Ensuring early fault detection via vibration and clearance measurement.
-
Electric Motors and Generators: Shaft alignment and thermal growth monitoring.
-
Industrial Pumps: Detecting cavitation and bearing wear.
-
Gearboxes: Identifying misalignment and gear mesh faults.
-
Fans and Blowers: Vibration trend analysis and mechanical diagnostics.
This probe integrates seamlessly with Bently Nevada’s monitoring systems, providing real-time, high-fidelity data that helps reduce unplanned downtime.
Key Advantages
-
Field-Proven Reliability: Decades / operation in high-vibration, high-temperature environments.
-
API 670 Compliance: Designed to meet or exceed the standards set for vibration monitoring systems.
-
Modular Design: Easily integrates with extension cables and Proximitor sensors for system flexibility.
-
Exceptional Durability: Built with corrosion-resistant materials for long life.
-
Global Compliance: The “CN” variant ensures compatibility with China-specific industrial regulations.
-
High Accuracy and Repeatability: Enables precise shaft vibration and position readings critical to predictive maintenance.
-
Ease / Installation and Maintenance: Threaded design and standardized connectors facilitate installation and replacement.
-
Electromagnetic Compatibility (EMC): Shielded design minimizes signal interference.
-
Broad Temperature Range: 支持s applications in both cryogenic and high-heat environments.
-
Trusted 品牌: Backed by Bently Nevada’s long-standing reputation in industrial monitoring.
常见问题 (FAQ)
-
Q: What is the primary function / the 330103-00-05-10-02-CN probe?
A: It is used to measure shaft vibration and displacement in rotating machinery without physical contact. -
Q: Is this model suitable for high-temperature environments?
A: Yes, it operates reliably up to 177°C. -
Q: What kind / targets can the probe measure?
A: It is optimized for conductive materials like AISI 4140 steel and similar alloys. -
Q: How does this probe connect to the rest / the monitoring system?
A: It connects via extension cables to a Proximitor sensor, forming a complete transducer system. -
Q: Is the probe compliant with international standards?
A: Yes, including API 670 and CE marking. -
Q: Can the cable length be customized?
A: Yes, different lengths are available to suit various installations. -
Q: What happens if the probe is exposed to strong vibrations?
A: It is rated for 10 g pk and will continue to function accurately within its operating specs. -
Q: How is the sensitivity / the probe calibrated?
A: Sensitivity is nominally -200 mV/μm and is factory-calibrated. -
Q: Is the model backward compatible with older Bently Nevada systems?
A: Yes, it’s compatible with the 3300 series systems and probes. -
Q: What is the difference between the “CN” variant and the standard model?
A: The “CN” version meets specific Chinese compliance and labeling requirements.
Related 型号s from the Same Series
| 型号 Number | 描述 | Probe Tip Size | Cable Length |
|---|---|---|---|
| 330103-00-10-10-02-CN | 3300 XL 8mm Proximity Probe, 1.0 m cable | 8 mm | 1.0 m |
| 330103-00-15-10-02-CN | 3300 XL 8mm Proximity Probe, 1.5 m cable | 8 mm | 1.5 m |
| 330103-00-20-10-02-CN | 3300 XL 8mm Proximity Probe, 2.0 m cable | 8 mm | 2.0 m |
| 330104-00-05-10-02-CN | 3300 XL 5mm Proximity Probe, 0.5 m cable | 5 mm | 0.5 m |
| 330104-00-10-10-02-CN | 3300 XL 5mm Proximity Probe, 1.0 m cable | 5 mm | 1.0 m |
| 330130-040-00-00 | 3300 XL Extension Cable for Proximity Probes | — | 4.0 m |
Popular Bently Nevada 型号s
| 型号 Number | 描述 | Application | Form Factor |
|---|---|---|---|
| 3500/22M | Keyphasor Module | Phase measurement | Rack-mounted |
| 3500/42M | Proximitor Monitor Module | Vibration, axial position | Rack-mounted |
| 3300/16-13-01-01-00-00 | Dual Vibration Monitor | Shaft vibration | Panel-mounted |
| 330105-02-12-10-02-00 | Proximitor Sensor | Signal conditioning | Field-installable |
| 330180-91-00 | Proximity Probe Extension Cable | Cabling between probe and sensor | Cable assembly |
| 7200-50-01-01-00 | Proximity Transducer System | General purpose | Modular |
