Product Overview

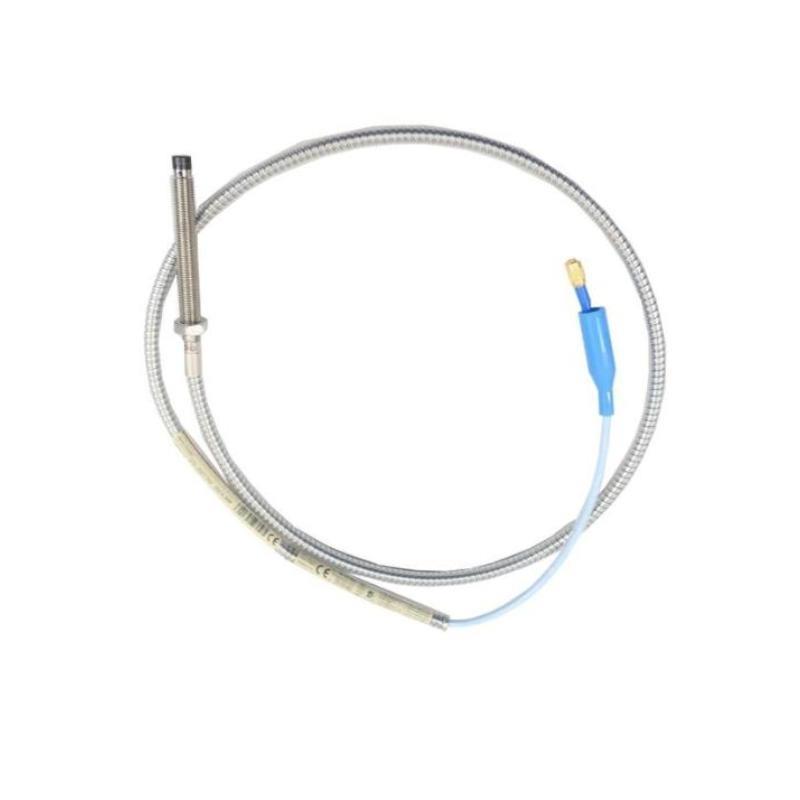

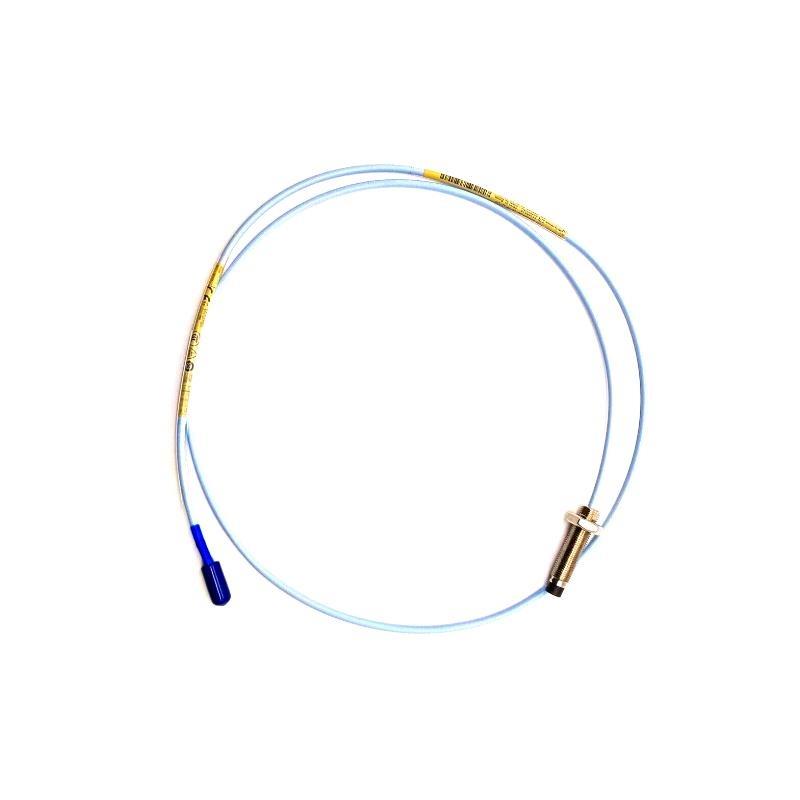

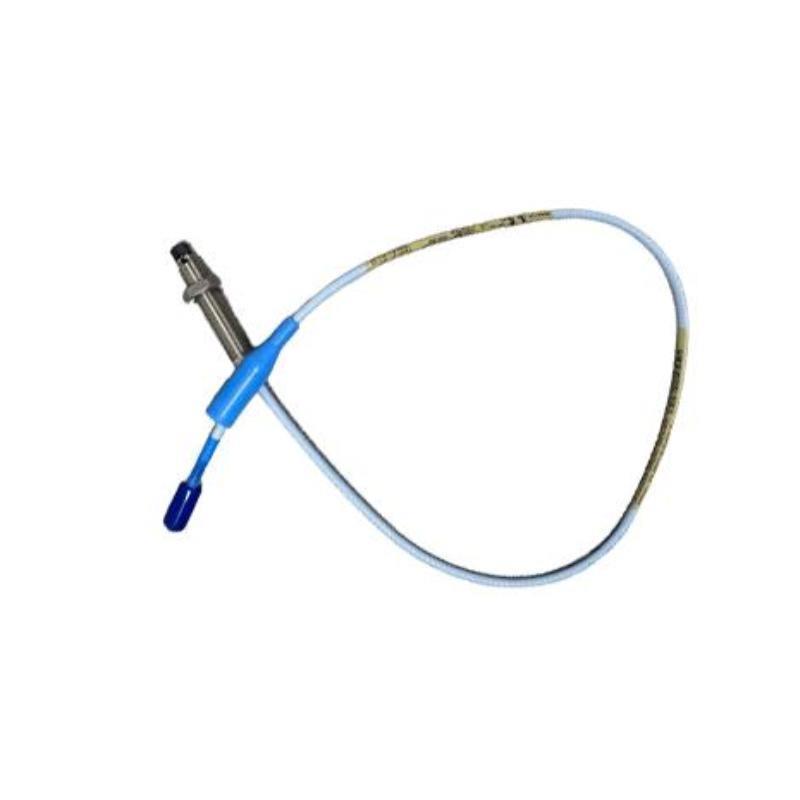

The Bently Nevada 330103-00-05-10-02-05 is a precision 8 mm Proximity Probe designed as part / the 3300 XL series for reliable machinery condition monitoring. This probe accurately measures shaft displacement and vibration, which is critical for early fault detection, machinery protection, and predictive maintenance.
Featuring a rugged stainless steel tip and shielded coaxial cable, it is built to withstand harsh industrial environments, including exposure to extreme temperatures, mechanical shocks, and vibrations. The probe integrates seamlessly with the Bently Nevada 3300 XL system, providing consistent and precise real-time monitoring / rotating equipment.
Key Features
-
8 mm diameter probe tip optimized for precise proximity sensing
-
Fully compatible with Bently Nevada 3300 XL series monitoring systems
-
Eddy current sensing technology /fering high sensitivity and wide frequency response
-
Rugged stainless steel construction with shielded coaxial cable
-
Designed to operate reliably in extreme temperature and harsh industrial environments
-
Shock resistant up to 100 g
-
支持s continuous real-time shaft position and vibration monitoring
-
Industry-standard connectors and flexible mounting options
Technical Specifications
| Specification | Details |
|---|---|
| 型号 Number | 330103-00-05-10-02-05 |
| Product Line | 3300 XL |
| Probe Diameter | 8 mm |
| Sensing Method | Eddy current proximity sensing |
| Measurement Range | 0 to 127 mils (0 to 3.2 mm) typical |
| Frequency Response | DC to 20 kHz |
| Operating Temperature | -40°C to +121°C |
| Cable Length | Standard and custom lengths available |
| Connector Type | MIL-C-5015 or equivalent industrial connector |
| Cable Type | Shielded coaxial cable |
| Probe Material | Stainless steel probe tip with ruggedized cable |
| Vibration Resistance | Up to 30 g (10–2000 Hz) |
| Shock Resistance | 100 g, 11 ms half sine pulse |
| 重量 | 0.323 kg |
| Dimensions | Total Length : 1.0 meter |
| Mounting Options | Threaded or welded mounting |
Industry Applications
This probe is widely used in:
-
Power Generation – Monitoring turbine and generator shafts
-
Oil & Gas – 状态 monitoring / compressors and pumps
-
Mining & Metals – Vibration sensing in heavy machinery
-
Chemical Processing – Reactor and agitator shaft position monitoring
-
Pulp & Paper – Rotating machinery condition monitoring
-
Marine and Offshore – Propulsion shaft and auxiliary equipment monitoring
Product Advantages
-
High precision shaft displacement and vibration measurement
-
Rugged design for reliable operation in harsh environments
-
Enables early fault detection, reducing downtime and maintenance costs
-
Fully compatible with Bently Nevada 3300 XL monitoring systems
-
支持s continuous real-time condition monitoring
-
Easy installation with standard connectors and flexible mounting
-
Resistant to mechanical shock and vibration in demanding industrial settings
常见问题 (FAQ)
1. What output signal does the probe provide?
The probe outputs an analog voltage proportional to shaft displacement.
2. Is this probe compatible with other Bently Nevada systems?
It is specifically designed for the 3300 XL series monitoring platform.
3. Can custom cable lengths be supplied?
Yes, both standard and custom cable lengths are available.
4. What is the operating temperature range?
-40°C to +121°C (-40°F to +250°F).
5. How is the probe mounted?
支持s threaded and welded mounting options.
6. Is it suitable for harsh industrial conditions?
Yes, constructed with stainless steel and ruggedized cables.
7. Can it measure shaft speed?
Indirect measurement via vibration frequency is possible.
8. What is the probe tip diameter?
8 mm diameter.
9. What vibration and shock levels can it tolerate?
Up to 30 g vibration and 100 g shock.
10. What is the expected operational lifespan?
Designed for long-term reliable industrial use.
