Product Overview

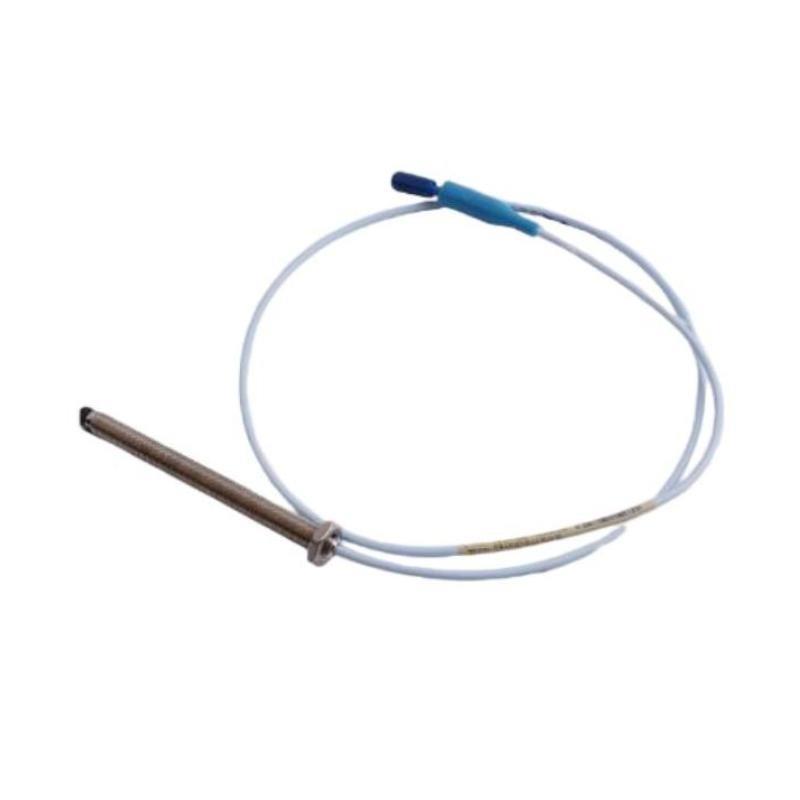

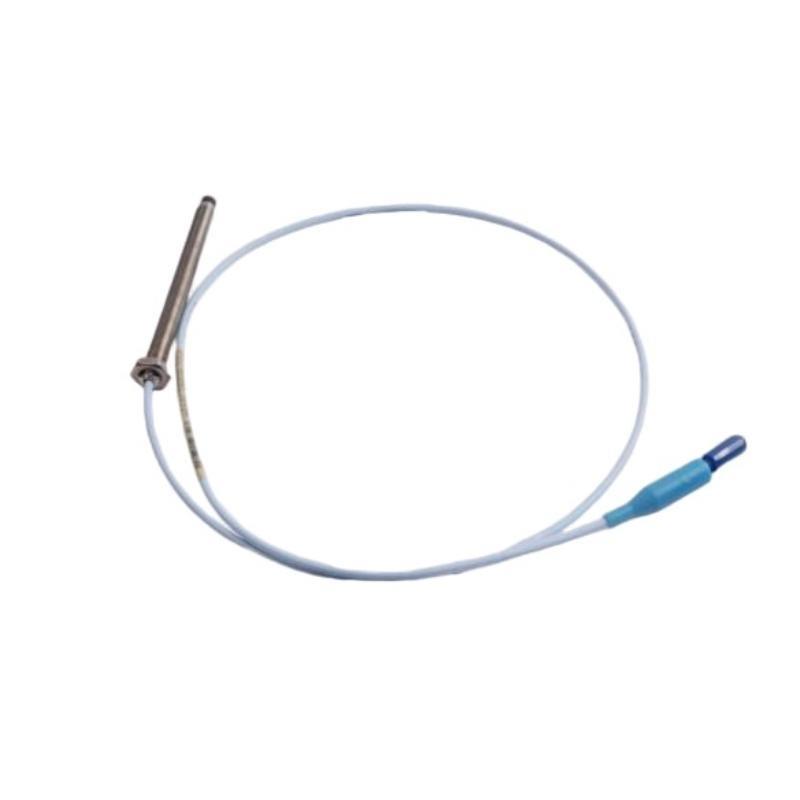

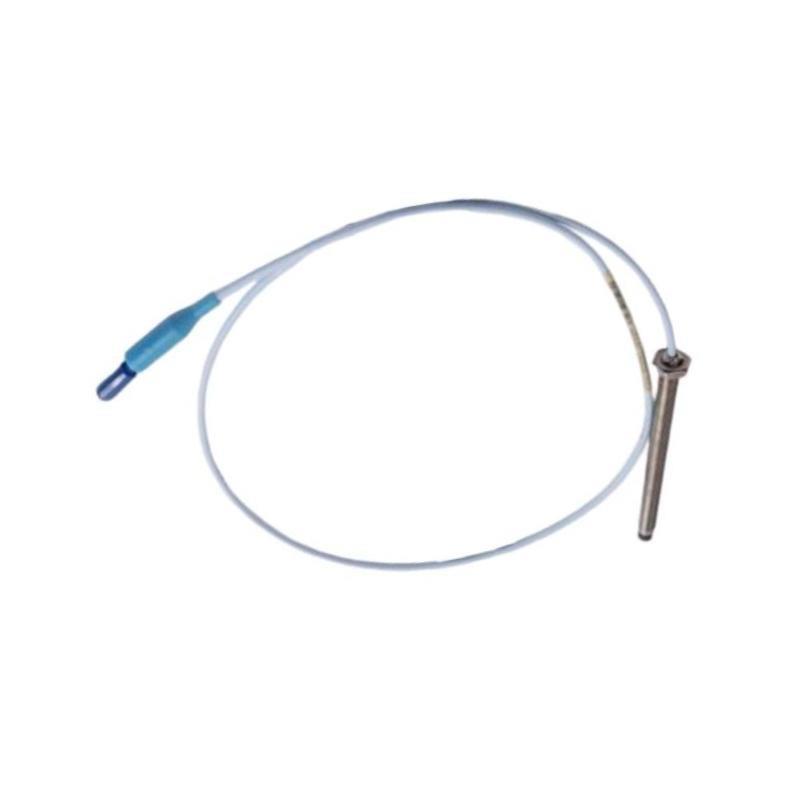

The Bently Nevada 330103-00-03-15-01-05 3300 XL 8 mm Proximity Probe is a precision eddy-current sensor designed for monitoring vibration and shaft position in critical rotating machinery. Part / the 3300 XL 8 mm Proximity Transducer System, it works with a 3300 XL Proximitor® Sensor and extension cable to provide accurate, real-time measurements.
Key Features
-
8 mm probe tip for high-precision vibration and position measurement
-
Compatible with 3300 XL extension cables and Proximitor® Sensors
-
Interchangeable with non-XL 3300 series 5 mm and 8 mm probes
-
Gold-plated ClickLoc connectors for secure, corrosion-resistant installation
-
Superior EMI/RFI imm件y for CE-compliant installations
-
TipLoc and CableLoc technology ensures mechanical stability
-
Suitable for both dynamic (vibration) and static (position) measurements
Technical Specifications
| Item | Specification |
|---|---|
| 型号 Number | 330103-00-03-15-01-05 |
| Probe Tip Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| System Compatibility | 3300 XL Proximitor® Sensor and extension cable |
| Measurement Range | Typically ±2 mm (80 mils), system dependent |
| Operating Temperature | -35 °C to +177 °C |
| Humidity | 100% condensing, hermetically sealed |
| Cable Type | 75 Ω triaxial coaxial |
| Connector Type | Gold-plated ClickLoc |
| Dimensions | Total Length : 1.5 meter |
| 重量 | 0.484 kg |
| Mounting | Threaded installation into probe housing |
| Indicators | Requires Proximitor® sensor for signal processing |
Industry Applications
-
Oil & Gas – Monitoring turbines, compressors, and pumps
-
Power Generation – Shaft position and vibration monitoring / steam and gas turbines
-
Chemical & Petrochemical – 状态 monitoring in process environments
-
Water & Wastewater – Protection for large pumps and motors
-
Heavy Industry – Machinery condition monitoring for critical rotating equipment
Advantages
-
Accurate and repeatable vibration and shaft position measurements
-
Robust design allows long-term use in harsh industrial environments
-
Modular system simplifies maintenance and reduces downtime
-
Tool-free ClickLoc connectors make installation faster and more reliable
-
Enhanced EMI/RFI imm件y ensures stable signal quality
常见问题 (FAQ)
Q1: What is the primary function / the 330103-00-03-15-01-05 probe?
It measures vibration and shaft position in rotating machinery.
Q2: What is the probe tip size?
The probe has an 8 mm tip diameter.
Q3: What additional components are required for operation?
A 3300 XL Proximitor® Sensor and a compatible extension cable.
Q4: Is it compatible with older 3300 series probes?
Yes, it is compatible with non-XL 3300 5 mm and 8 mm probes.
Q5: How is it installed?
It is mounted using a threaded probe housing and ClickLoc connectors.
Q6: What is the operating temperature range?
-35 °C to +177 °C.
Q7: Can it operate in high humidity environments?
Yes, it is rated for 100% condensing humidity.
Q8: What material is the probe body made /?
Stainless steel for durability and corrosion resistance.
Q9: What are the probe dimensions?
Total Length : 1.5 meter.
Q10: What is the weight / the probe?
Approximately 0.484 kg.
