Product 描述

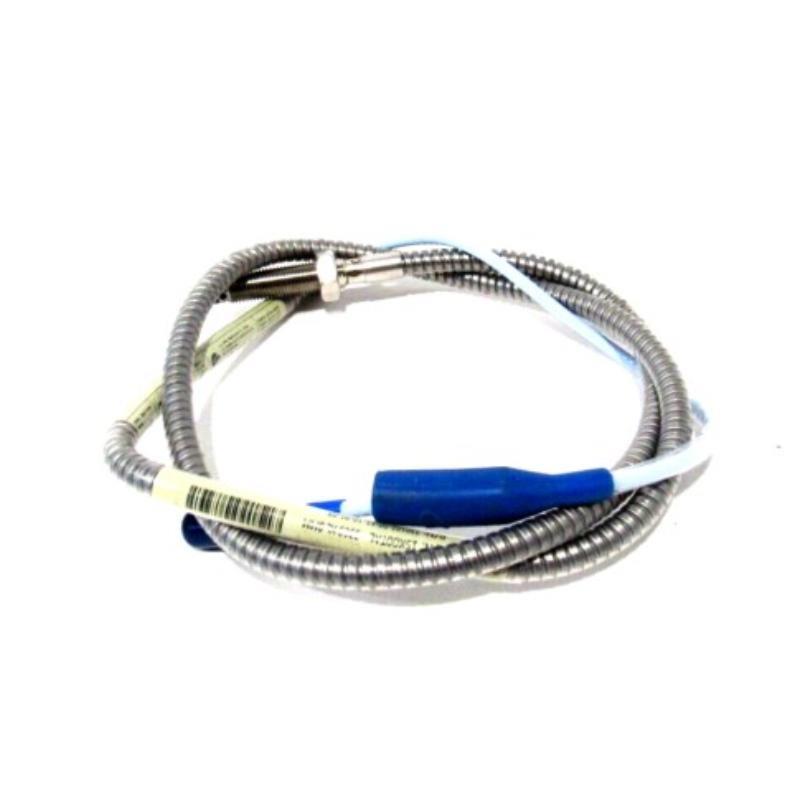

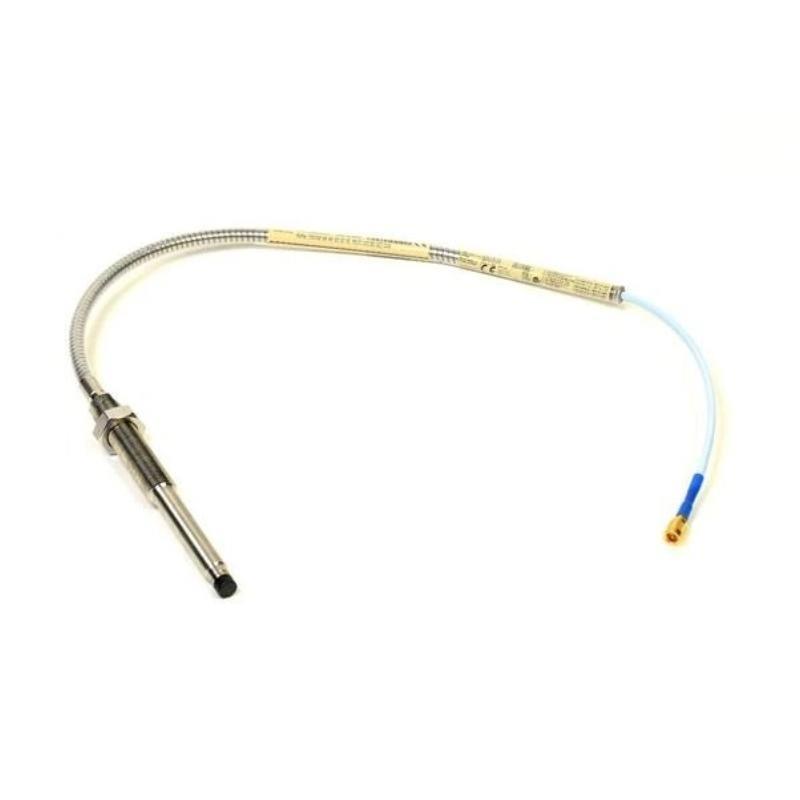

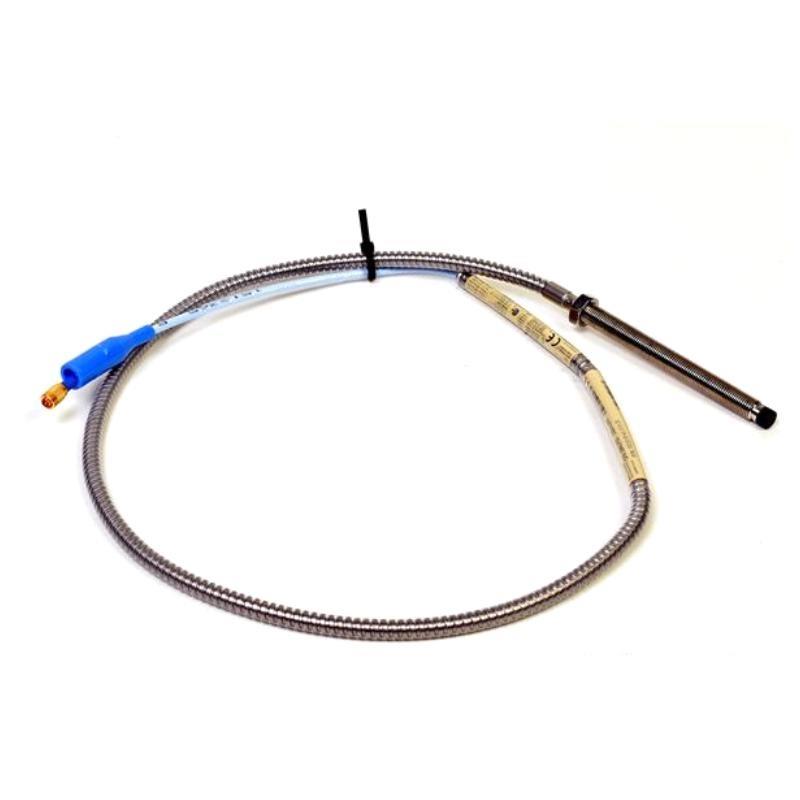

The Bently Nevada 330102-22-58-10-02-00 is a high-precision 3300 XL 8 mm proximity probe designed for accurate shaft displacement and vibration measurements in critical rotating machinery. It /fers excellent stability, rugged construction, and reliable performance even in harsh environments.
Technical Specifications
| Parameter | Value |
|---|---|
| 型号 | 330102-22-58-10-02-00 |
| Type | 3300 XL 8 mm Proximity Probe |
| Tip Diameter | 8 mm |
| Total Length | 1.0 meter |
| 重量 | 0.323 kg |
| Thread Size | 3/8-24 UNF |
| Connector Type | Miniature coaxial, MIL-C-5015 |
| Temperature Range | -35°C to +177°C (-30°F to +350°F) |
| Material | Stainless steel |
| Frequency Response | Up to 10 kHz |
Applications
-
Turbine shaft vibration monitoring
-
Generator displacement measurement
-
Compressor bearing health assessment
-
Pumps and fan shaft position monitoring
-
Critical machinery protection systems
Advantages
-
High accuracy and repeatability
-
Wide operating temperature range
-
Robust stainless steel construction
-
Compatible with 3300 XL monitoring systems
-
Easy installation and field replacement
常见问题 (FAQ)
Q1: What is the tip diameter / this probe?
A1: The tip diameter is 8 mm.
Q2: Can it operate in high-temperature environments?
A2: Yes, it operates up to +177°C (+350°F).
Q3: What is the typical application / this probe?
A3: It is used for shaft displacement and vibration monitoring.
Q4: What is the total length / the cable?
A4: The probe comes with a 1.0 meter cable.
Q5: Is it compatible with 3300 XL systems?
A5: Yes, it is fully compatible.
Q6: How much does the probe weigh?
A6: It weighs approximately 0.323 kg.
Q7: What thread type does it have?
A7: The thread size is 3/8-24 UNF.
Q8: Does it resist harsh environments?
A8: Yes, the stainless steel build ensures durability in harsh conditions.
Q9: What is the frequency response range?
A9: Up to 10 kHz.
Q10: Can it be field-replaced easily?
A10: Yes, it is designed for easy field replacement.
Recommended Related 型号s
| 型号 | Tip Diameter | Length | 重量 |
|---|---|---|---|
| 330102-00-08-10-02-00 | 8 mm | 2.0 m | 0.350 kg |
| 330102-00-10-10-02-00 | 8 mm | 3.0 m | 0.400 kg |
| 330102-00-12-10-02-00 | 8 mm | 5.0 m | 0.450 kg |
| 330103-00-05-10-02-00 | 5 mm | 1.0 m | 0.250 kg |
| 330104-00-06-10-11-00 | 8 mm | 1.0 m | 0.320 kg |
| 330104-00-06-50-01-00 | 8 mm | 1.0 m | 0.320 kg |
Popular Bently Nevada 型号s
| 型号 | 描述 | Length | 重量 |
|---|---|---|---|
| 330500 | Velomitor Piezo Velocity | N/A | 0.200 kg |
| 330400 | High Temperature Accelerometer | N/A | 0.150 kg |
| 7200-50 | Proximity Probe | 1.0 m | 0.300 kg |
| 3500/42M | Proximitor Seismic Monitor | N/A | 0.400 kg |
| 3500/44M | Aeroderivative GT Monitor | N/A | 0.420 kg |
| 3500/22M | Transient Data Interface | N/A | 0.500 kg |
