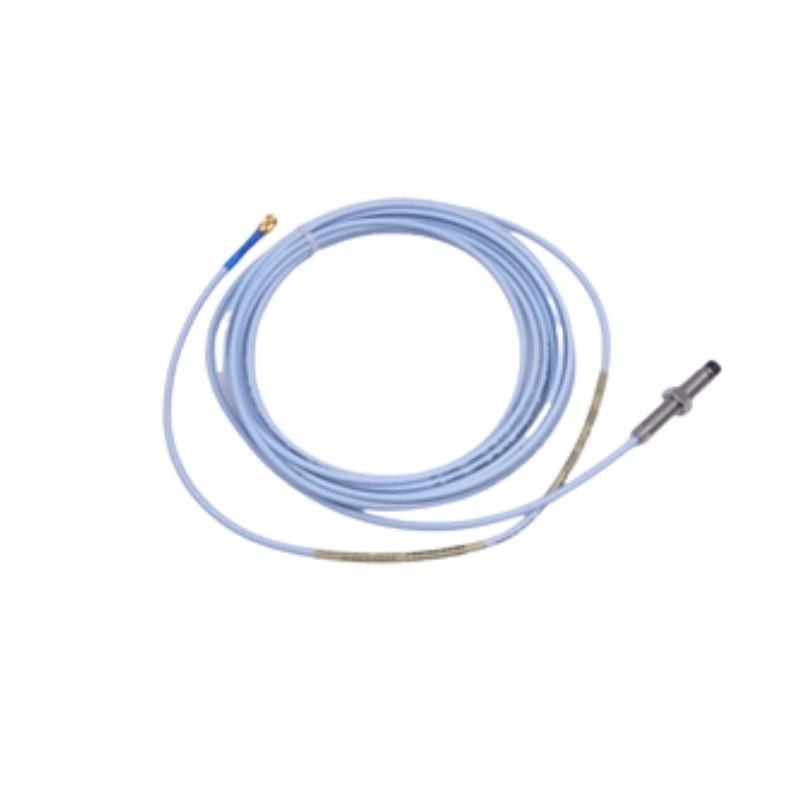

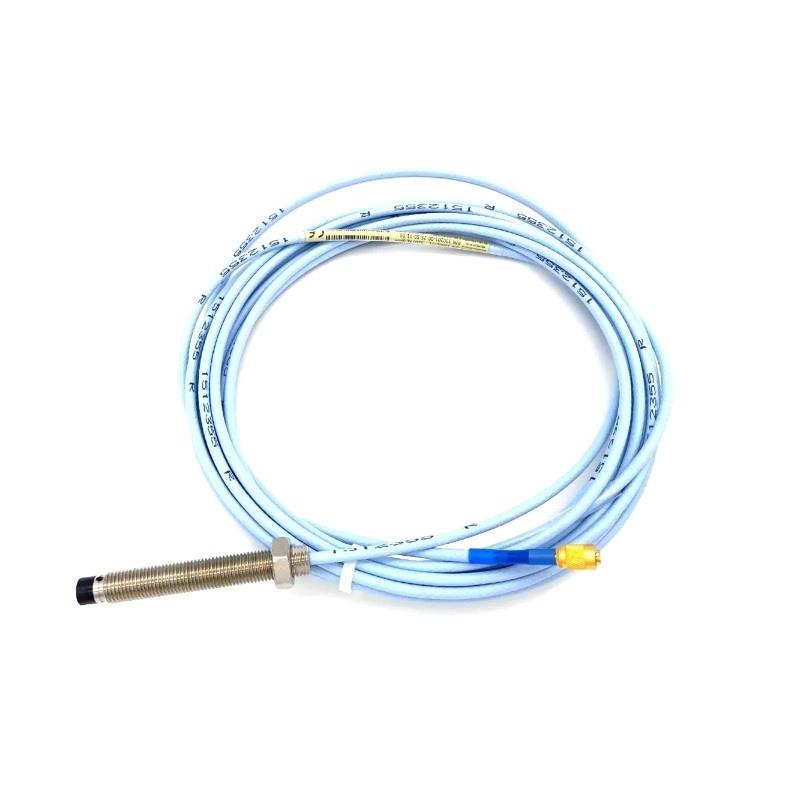

The Bently Nevada 330102-04-24-50-02-00 3300 XL 8 mm Proximity Probe is a precision sensor designed for monitoring shaft displacement and vibration in critical rotating machinery. Part / the 3300 XL series, it provides accurate, reliable, and repeatable measurements under extreme industrial conditions. This probe is widely used in turbines, compressors, pumps, and other high-speed rotating equipment to enhance operational safety and reduce unplanned downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | 330102-04-24-50-02-00 |
| Series | 3300 XL |
| Probe Type | 8 mm Proximity Probe |
| Measurement Range | ±0.05 to ±0.25 in (1.27 to 6.35 mm) |
| Tip Material | Non-ferrous alloy |
| Housing Material | Stainless steel |
| Output Impedance | 100 Ω |
| Cable Length | 10 ft standard, customizable |
| Operating Temperature | -40°C to 120°C (-40°F to 248°F) |
| Frequency Response | DC to 10 kHz |
| Total Length | 5 m |
| 重量 | 1.615 kg |
| Mounting Type | Threaded |
Applications
-
Shaft vibration monitoring in turbines, compressors, and pumps
-
Detection / shaft displacement and rotor position in generators
-
状态 monitoring in critical machinery for predictive maintenance
-
Industrial plants, including power generation, petrochemical, and manufacturing
-
Integration with Bently Nevada 3300 XL monitoring systems for continuous machine health assessment
Advantages
-
High Accuracy: Provides precise displacement measurements under extreme conditions.
-
Robust Design: Stainless steel housing and high-quality tip materials ensure durability.
-
Wide Operating Range: Can function across a broad temperature and vibration spectrum.
-
Compatibility: Fully compatible with 3300 XL monitoring systems and retr/its.
-
Shock and Vibration Resistant: Withstands harsh industrial environments without performance loss.
-
Reliable Data: Offers repeatable and consistent output, reducing false alarms and maintenance errors.
FAQ
Q1: What is the frequency response / the 330102-04-24-50-02-00 probe?
A1: The frequency response is DC to 10 kHz, suitable for high-speed shaft vibration monitoring.
Q2: Can this probe operate in extreme temperatures?
A2: Yes, it operates from -40°C to 120°C (-40°F to 248°F).
Q3: What type / output does the probe provide?
A3: It provides a variable voltage output through a coaxial cable, compatible with 3300 XL monitoring systems.
Q4: Is the probe resistant to mechanical shock?
A4: Yes, it can withstand shocks up to 1000 g for 1 ms.
Q5: What is the tip material, and why is it important?
A5: The tip is made / non-ferrous alloy to prevent magnetic interference and ensure accurate readings.
Q6: Can the cable length be customized?
A6: Yes, while the standard cable length is 10 ft, custom lengths are available on request.
Q7: Is the probe compatible with other Bently Nevada 3300 XL series modules?
A7: Yes, it is fully compatible with all 3300 XL monitoring modules.
Q8: How does the probe handle high vibration environments?
A8: It has a vibration resistance / 20 g over 10–2000 Hz, ensuring stable measurements.
Q9: What is the mounting method for this probe?
A9: It is threaded for secure installation into standard probe holders.
Q10: Can it be used for continuous monitoring in power plants?
A10: Yes, it is designed for continuous, real-time monitoring in industrial environments.
Related 型号s
| 型号 Number | Probe Type | Cable Length | Frequency Response |
|---|---|---|---|
| 330102-05-25-10-01-05 | 8 mm | 10 ft | DC to 10 kHz |
| 330102-03-25-10-02-05 | 8 mm | 10 ft | DC to 10 kHz |
| 330102-00-16-90-02-05 | 8 mm | 10 ft | DC to 10 kHz |
| 330102-00-79-10-02-05 | 8 mm | 10 ft | DC to 10 kHz |
| 330102-00-80-10-01-00 | 8 mm | 10 ft | DC to 10 kHz |
| 330102-00-88-10-02-05 | 8 mm | 10 ft | DC to 10 kHz |
Popular 型号s
| 型号 Number | Probe Type | Measurement Range | Frequency Response |
|---|---|---|---|
| 330101-00-01-10-05-05 | 5 mm | ±0.05 to ±0.2 in | DC to 10 kHz |
| 330101-00-02-10-05-05 | 5 mm | ±0.05 to ±0.25 in | DC to 10 kHz |
| 330102-00-16-90-02-05 | 8 mm | ±0.05 to ±0.25 in | DC to 10 kHz |
| 330102-00-79-10-02-05 | 8 mm | ±0.05 to ±0.25 in | DC to 10 kHz |
| 330102-05-25-10-01-05 | 8 mm | ±0.05 to ±0.25 in | DC to 10 kHz |
| 330102-04-24-50-02-00 | 8 mm | ±0.05 to ±0.25 in | DC to 10 kHz |
