Product 描述

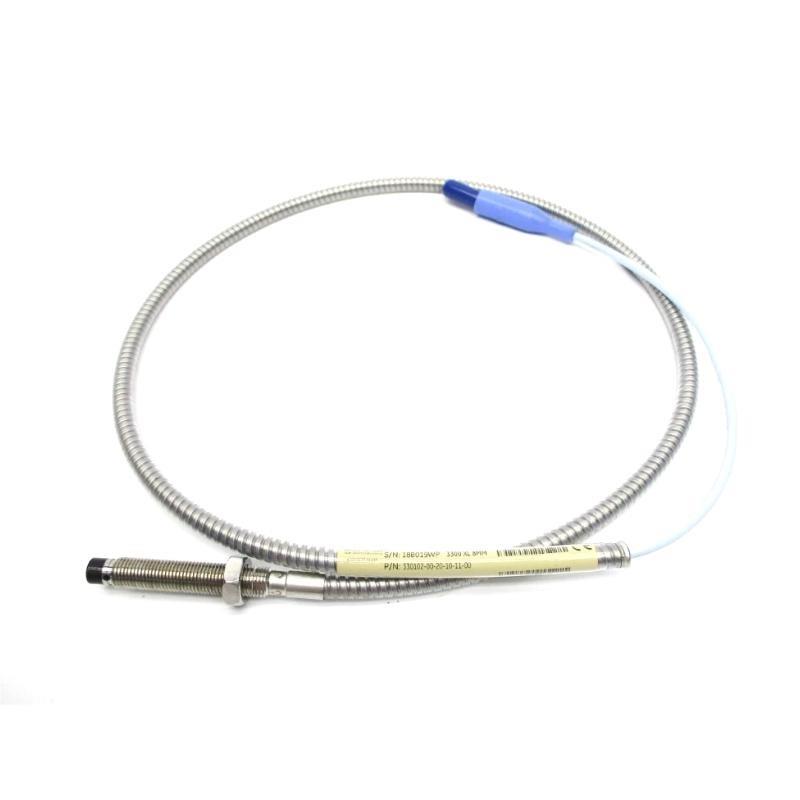

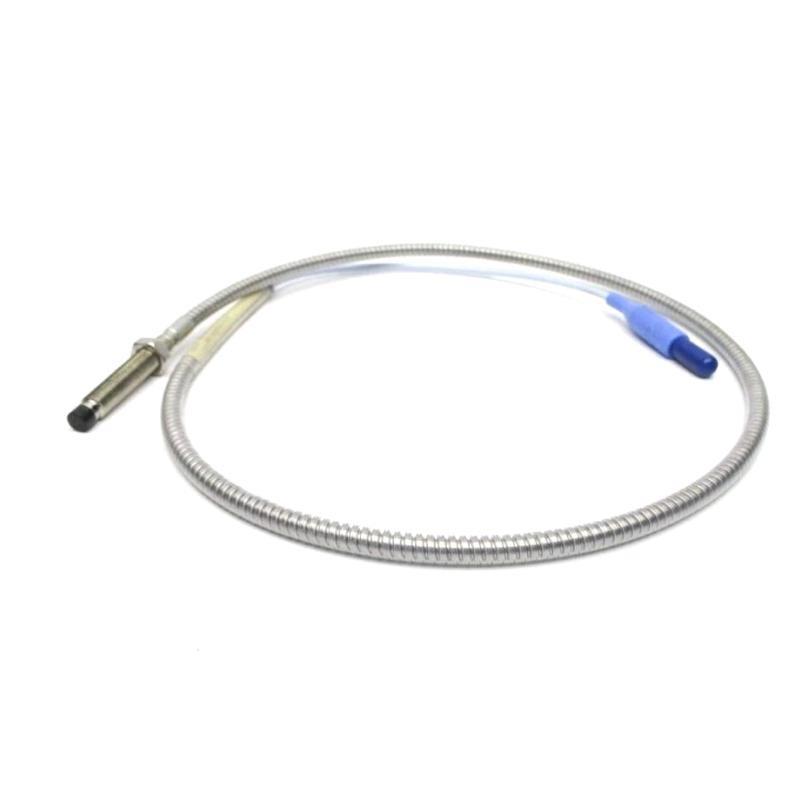

The Bently Nevada 330102-04-16-10-02-00 is part / the 3300 XL 8 mm proximity transducer system, designed for precise vibration and position measurements in rotating machinery. It provides an output voltage proportional to the distance from the probe tip to a conductive target. The probe features armored construction for enhanced durability in harsh environments and complies with API 670 standards.
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | Stainless Steel 303/304 |
| Cable Type | Armored, FEP insulated |
| Total Length | 1.0 meter (3.3 feet) |
| 重量 | 0.323 kg |
| Linear Range | 2 mm (80 mils) |
| Operating Temp. Range | -52°C to +177°C |
| Frequency Response | 0 – 10 kHz |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Minimum Target Size | 15.2 mm diameter |
| Compliance | API 670, CE, FCC, RoHS |
Applications
-
Vibration and position monitoring on fluid-film bearing machines
-
Keyphasor speed and phase reference measurements
-
状态 monitoring in turbines, compressors, and motors
-
High-density installations in panel or DIN-rail configurations
Advantages
-
Fully compliant with API 670 standards
-
Backward compatible with non-XL 3300 systems
-
Robust armored cable with superior tensile strength
-
ClickLoc gold-plated connectors for secure, tool-free installation
-
优秀 imm件y to EMI/RFI, no need for shielded housings
-
Interchangeable components, reducing spare parts inventory
常见问题
Q1: What is the linear measurement range / this probe?
A1: It provides a linear range / approximately 2 mm (80 mils).
Q2: Is it backward compatible with older 3300 systems?
A2: Yes, it is fully backward compatible with 3300 non-XL 5 mm and 8 mm components.
Q3: What is the recommended gap setting?
A3: Approximately 1.27 mm (50 mils), corresponding to -9 Vdc output.
Q4: Can this probe be used in high-temperature environments?
A4: Yes, it can operate up to +177°C with the standard probe. Extended temperature versions are also available.
Q5: What type / connector is used?
A5: It uses gold-plated ClickLoc connectors requiring no special tools.
Q6: Is the probe suitable for use in hazardous areas?
A6: Yes, with proper barriers or isolators, it meets ATEX, IECEx, and CSA approvals for hazardous areas.
Q7: How does the armored cable improve durability?
A7: The stainless steel armor provides mechanical protection and resists environmental damage.
Q8: Is special calibration required for different materials?
A8: By default, it is calibrated for AISI 4140 steel; other materials require specific calibration.
Q9: Can the components be mixed with non-armored cables?
A9: Yes, though system performance may depend on the weakest component.
Q10: What is the minimum shaft diameter for radial measurements?
A10: Recommended minimum shaft diameter is 76.2 mm (3 inches) to maintain accuracy.
Recommended Related 型号s
| 型号 Number | 描述 | Length | 重量 |
|---|---|---|---|
| 330101-00-16-10-02-00 | 8mm Probe, non-armored, 1m | 1m | 0.250 kg |
| 330103-00-16-10-02-00 | Metric Thread, non-armored, 1m | 1m | 0.250 kg |
| 330104-00-16-10-02-00 | Metric Thread, armored, 1m | 1m | 0.323 kg |
| 330105-02-12-10-02-00 | Reverse Mount, UNF thread, armored | 1m | 0.330 kg |
| 330191-00-16-10-02-00 | Extended Temp, non-armored | 1m | 0.270 kg |
| 330192-00-16-10-02-00 | Extended Temp, armored | 1m | 0.340 kg |
Popular Bently Nevada 型号s
| 型号 Number | 描述 | Length | 重量 |
|---|---|---|---|
| 330104-00-06-10-02-00 | Metric, armored, 0.6m | 0.6m | 0.250 kg |
| 330130-030-00-00 | Extension Cable, 3m | 3m | 0.102 kg |
| 330180-10-00 | Proximitor Sensor, panel mount, 1m | 1m system | 0.246 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | — | 1.2 kg |
| 3500/22M-01-00 | Transient Data Interface Module | — | 1.5 kg |
| 3500/33-01-00 | Temperature Monitor | — | 1.4 kg |
