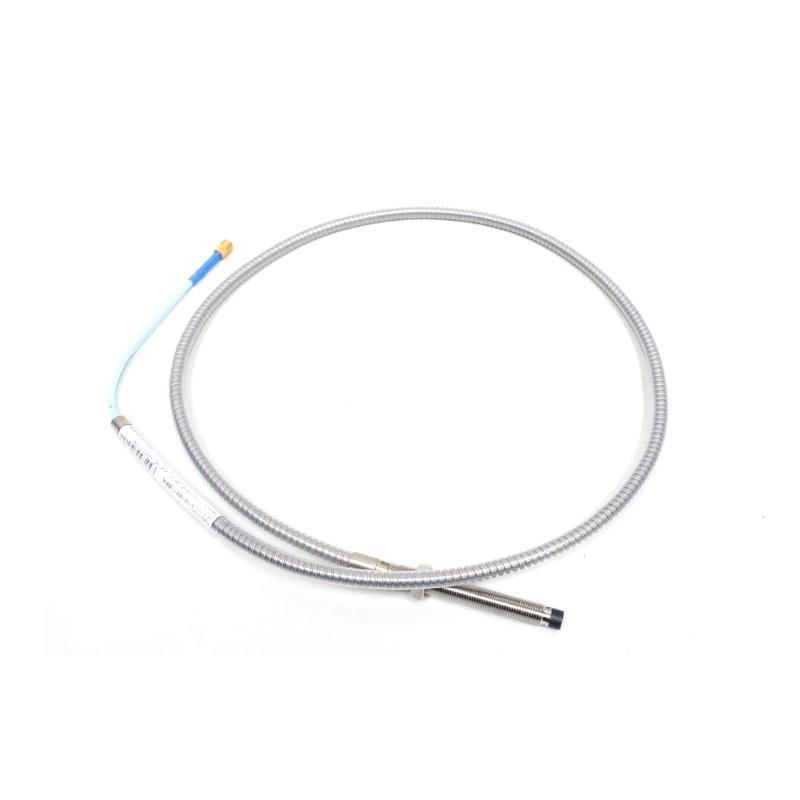

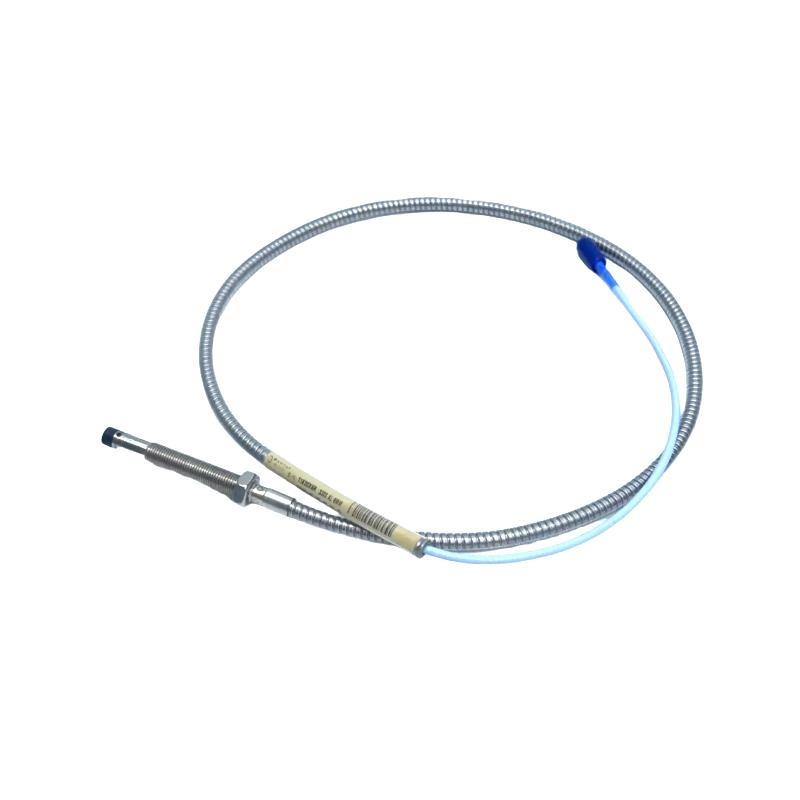

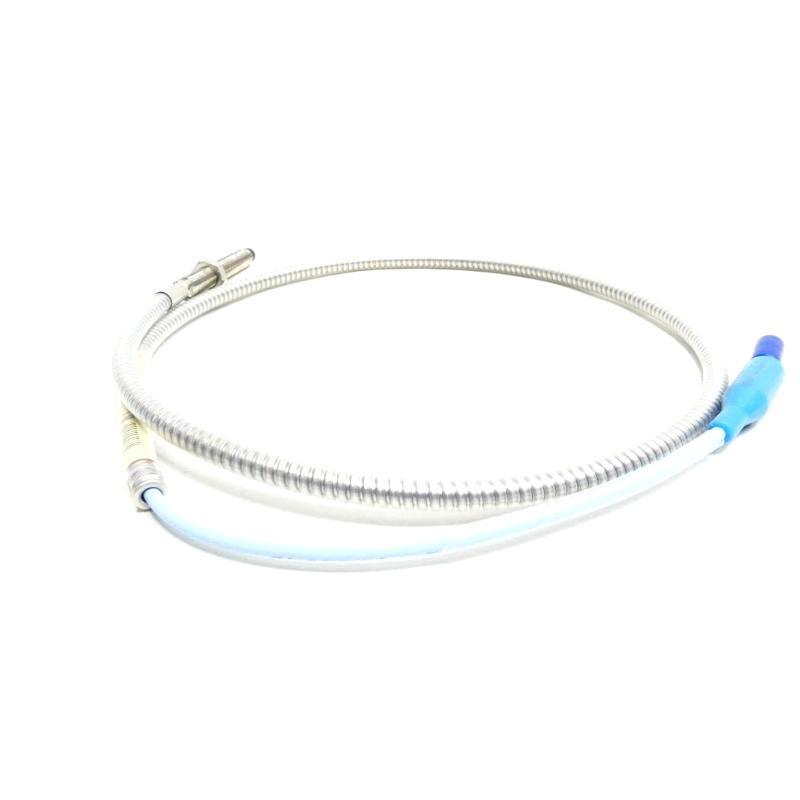

The Bently Nevada 330102-00-96-10-01-00 is part / the 3300 XL 8 mm Proximity Transducer System. It consists / a rugged 8 mm proximity probe with stainless steel armored cable, designed for vibration and position measurement in fluid-film bearing machines. The probe outputs a voltage proportional to the distance to the monitored surface and complies with API 670 mechanical and performance standards. Its armored design enhances mechanical robustness and environmental resistance.
Applications
-
Vibration and displacement monitoring / rotating machinery
-
Shaft position and runout measurement
-
Keyphasor speed and phase reference
-
Suitable for turbines, compressors, and pumps in petrochemical and power industries
Advantages
-
Fully interchangeable components (probes, cables, sensors)
-
API 670 compliance
-
Rugged design with armored cable for harsh environments
-
High imm件y to electromagnetic interference (RFI/EMI)
-
Optional extended temperature versions available
-
Fast installation with ClickLoc connectors
Technical Specifications
| Parameter | Value |
|---|---|
| System Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Thread | 3/8-24 UNF |
| Total Length | 1.0 meter |
| 重量 | 0.323 kg |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | Armored, FEP insulated |
| Operating Temperature Range | -52°C to +177°C (-62°F to +350°F) |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | ~1.27 mm (50 mils) |
| Output Sensitivity | 200 mV/mil ±5% |
| Frequency Response | 0 to 10 kHz, +0/-3 dB |
| Compliance | API 670, CE, RoHS, SIL 2/3 certified |
FAQ
Q1: What is the main use / the 330102-00-96-10-01-00?
A1: It is used for vibration and position measurement on rotating machinery.
Q2: Does it comply with API 670 standards?
A2: Yes, it meets API 670 requirements for mechanical design and accuracy.
Q3: Can I use it in high-temperature environments?
A3: Yes, standard version supports up to +177°C, and extended versions up to +218°C (probe tip).
Q4: Is the probe interchangeable with other 3300 XL components?
A4: Yes, probes, extension cables, and sensors are fully interchangeable.
Q5: What are the advantages / the armored cable?
A5: The armor provides extra mechanical protection against abrasion and harsh conditions.
Q6: Is special calibration needed for different target materials?
A6: Yes, factory calibration is standard for AISI 4140 steel; other materials require custom calibration.
Q7: How is the electrical connection secured?
A7: With gold-plated ClickLoc connectors that click in place without tools.
Q8: Can I use it for overspeed protection?
A8: Yes, but consult specific application notes for limitations and setup.
Q9: What is the recommended shaft diameter?
A9: Minimum shaft diameter is 50.8 mm, recommended is ≥76.2 mm.
Q10: Is the probe suitable for marine environments?
A10: Yes, it has maritime certifications and is resistant to corrosive environments.
Recommended Related 型号s (Same Series or Function)
| 型号 Number | 描述 | Length | 重量 |
|---|---|---|---|
| 330101-00-08-10-02-00 | 3300 XL 8 mm Probe, unarmored | 1.0 m | 0.290 kg |
| 330104-00-06-10-02-00 | 3300 XL 8 mm Probe, M10 thread, armored | 1.0 m | 0.323 kg |
| 330105-02-12-10-02-00 | 3300 XL 8 mm Reverse Mount, armored | 1.0 m | 0.323 kg |
| 330140-00-06-10-02-00 | 3300 XL 8 mm Smooth Case, unarmored | 1.0 m | 0.290 kg |
| 330191-00-06-10-02-00 | 3300 XL 8 mm ETR Probe, unarmored | 1.0 m | 0.290 kg |
| 330192-00-06-10-02-00 | 3300 XL 8 mm ETR Probe, armored | 1.0 m | 0.323 kg |
