产品介绍

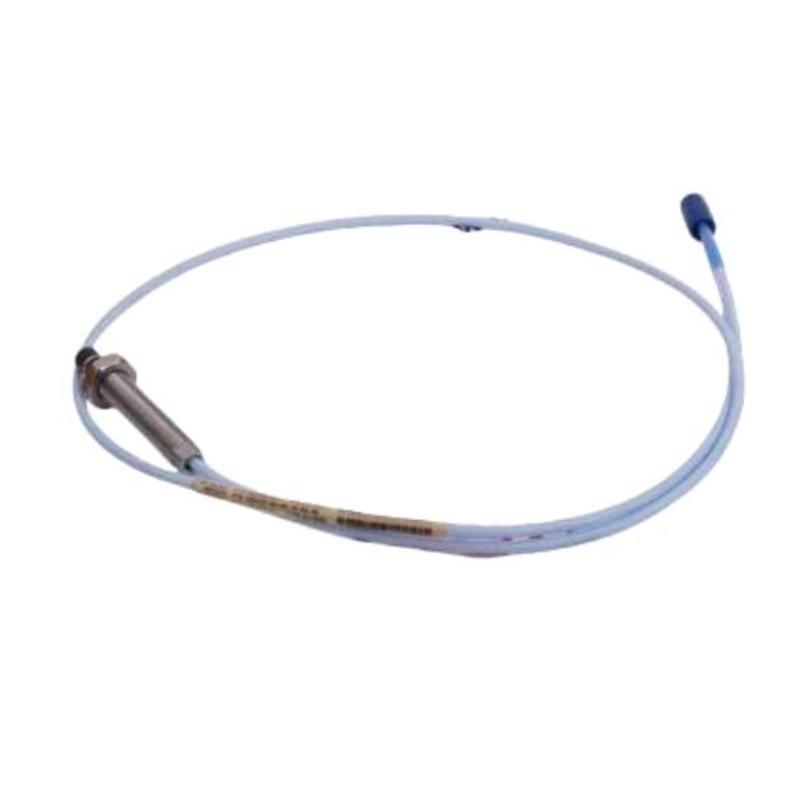

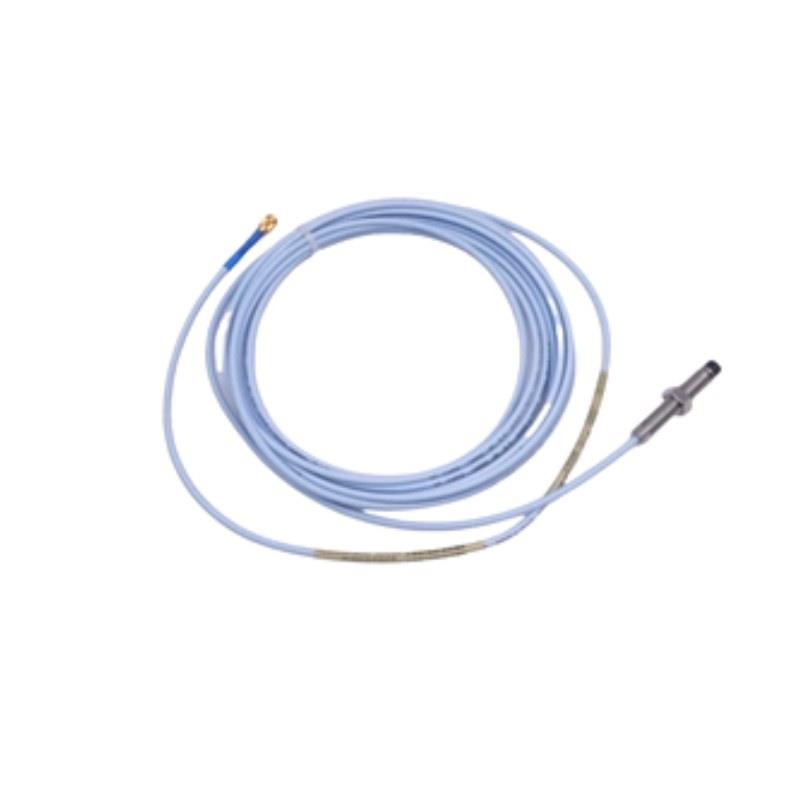

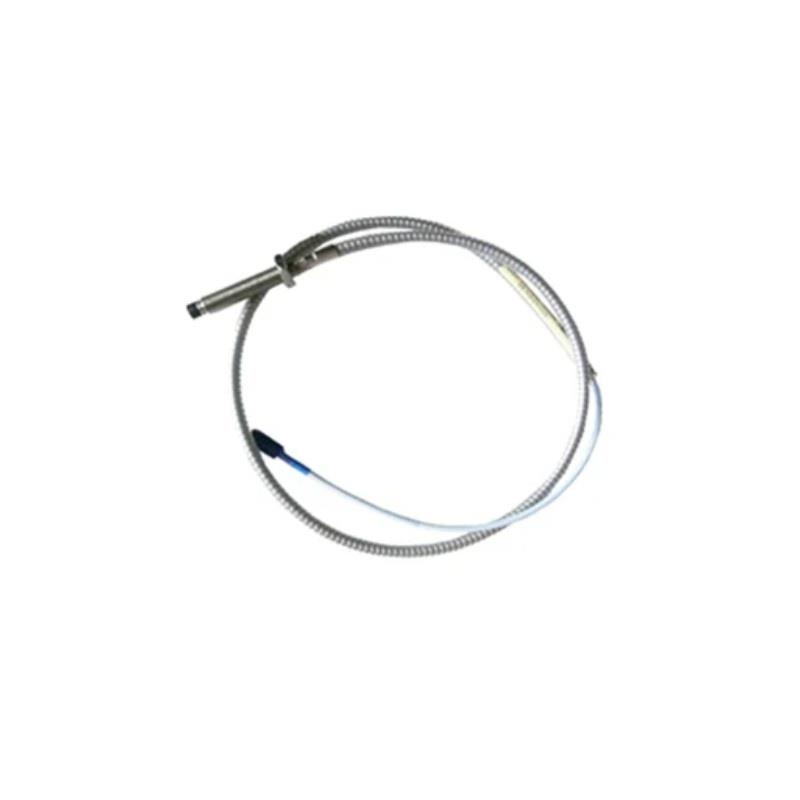

The Bently Nevada 330102-00-48-05-02-RU 3300 XL 8 mm Proximity Probe is a high-performance vibration and displacement measurement sensor designed for industrial machinery monitoring applications. This probe belongs to the widely used 3300 XL series, which has become a benchmark in machinery protection and condition monitoring systems.
It provides precise and reliable non-contact measurement / shaft displacement and vibration by using eddy-current technology. When integrated with proximity sensor drivers and monitors, it enables early detection / potential machine faults such as unbalance, misalignment, bearing wear, or shaft instability.
This model is optimized for heavy-duty environments, ensuring accurate measurements even under extreme temperature variations, high electromagnetic interference, and demanding mechanical conditions. Its durability and proven performance make it one / the most trusted components in turbomachinery and critical rotating equipment protection systems.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 Number | 330102-00-48-05-02-RU |
| Series | 3300 XL 8 mm Proximity Probe |
| Measurement Range | Up to 2 mm (80 mils) displacement |
| Linear Range | 0.25 mm to 2.0 mm (10 to 80 mils) |
| Sensitivity | 200 mV/mil (7.87 mV/µm) |
| Probe Tip Diameter | 8 mm |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | -35 °C to +180 °C (probe tip) |
| Pressure Rating | Suitable for vacuum to 350 kPa |
| Insulation Resistance | > 10 MΩ at 500 VDC |
| Housing Material | Stainless Steel |
| Total Length | 1 m |
| 重量 | 0.323 kg |
| Compliance | API 670, CE, and ATEX certified |
Product Applications
The 330102-00-48-05-02-RU probe is widely applied in rotating machinery condition monitoring across industries. Its primary uses include:
-
Turbomachinery Monitoring: Steam turbines, gas turbines, compressors, and expanders.
-
Pumps and Motors: Critical process pumps, high-voltage motors, and large fans.
-
Gearboxes: Monitoring / shaft displacement and dynamic behavior.
-
Bearings: Detection / shaft movement relative to bearing clearance.
-
Critical Process Industries: Power generation, oil and gas, petrochemical plants, steel mills, and paper manufacturing.
-
Machine Protection Systems: Integration with Bently Nevada monitoring systems for API 670 compliant machinery protection.
Product Advantages
-
High Measurement Accuracy: Provides precise displacement and vibration measurements, reducing false alarms.
-
Extended Reliability: Designed to withstand high temperatures, vibration, and harsh environmental conditions.
-
Global Standard Compliance: Meets API 670 and other industrial standards, ensuring compatibility with critical protection systems.
-
Interchangeable Components: Fully compatible with 3300 XL Proximitor sensors and extension cables.
-
Noise Imm件y: Enhanced shielding against electromagnetic interference, ensuring signal integrity.
-
Long Service Life: Built from durable stainless steel materials and tested for extended operational performance.
-
Ease / Installation: Flexible cabling options and rugged connectors for simplified mounting in confined industrial environments.
-
Proven Field Record: Backed by Bently Nevada’s decades / leadership in machinery condition monitoring.
FAQ
Q1: What is the linear measurement range / the 330102-00-48-05-02-RU probe?
A1: The linear range is from 0.25 mm to 2.0 mm (10–80 mils), with a sensitivity / 200 mV/mil.
Q2: Can this probe operate in high-temperature environments?
A2: Yes, the probe is rated for operating temperatures from -35 °C to +180 °C at the probe tip.
Q3: Which proximitor sensor is this probe typically used with?
A3: It is designed to be used with the 3300 XL Proximitor Sensor (e.g., 3300 XL 3300 series) for full system configuration.
Q4: What is the maximum extension cable length supported by this probe?
A4: Standard configurations allow extension cables up to 9 meters, depending on system design.
Q5: Is the probe resistant to electromagnetic interference?
A5: Yes, it features enhanced shielding for excellent imm件y to EMI and RFI interference.
Q6: How is the sensitivity calibrated in this probe?
A6: Sensitivity is factory calibrated to 200 mV/mil (7.87 mV/µm) for consistent accuracy.
Q7: Does this probe comply with API 670 standards?
A7: Yes, it is designed to meet API 670 machinery protection system requirements.
Q8: Can the probe be used in hazardous areas?
A8: Yes, it has ATEX and CE certifications, making it suitable for hazardous and explosive environments.
Q9: What frequency range can this probe measure?
A9: The probe can handle signals from DC to 10 kHz, suitable for most vibration and displacement applications.
Q10: How does this probe ensure long-term measurement stability?
A10: It uses stainless steel housing, advanced insulation, and precise calibration, ensuring reliable operation over long service periods.
