产品介绍

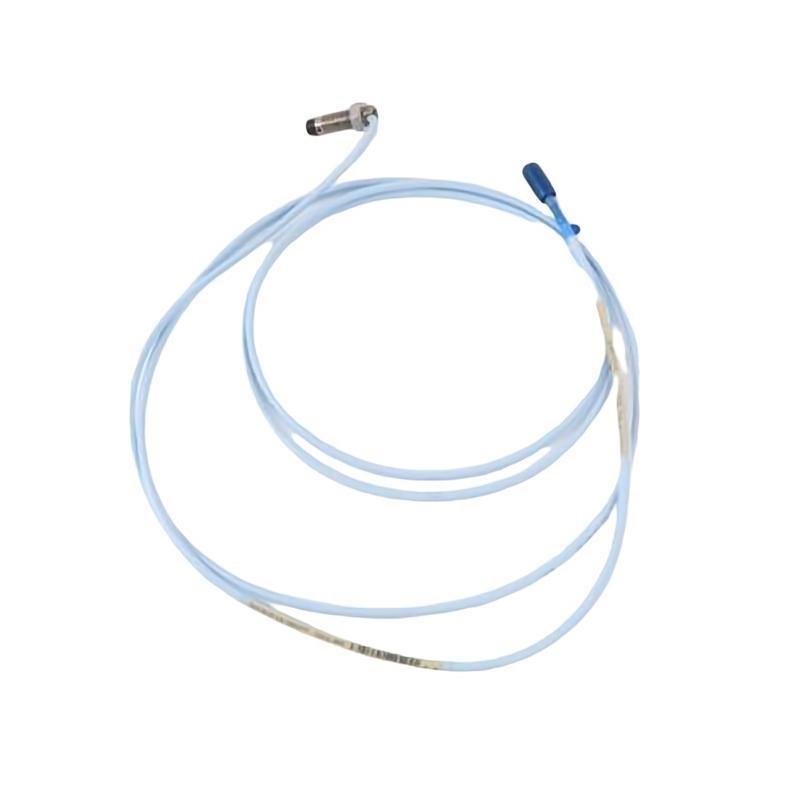

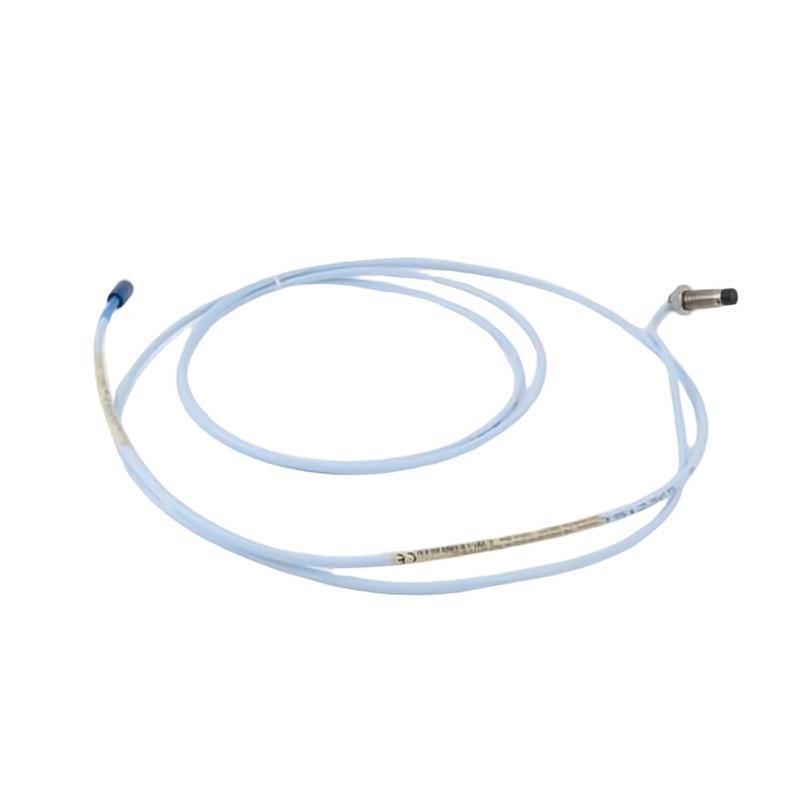

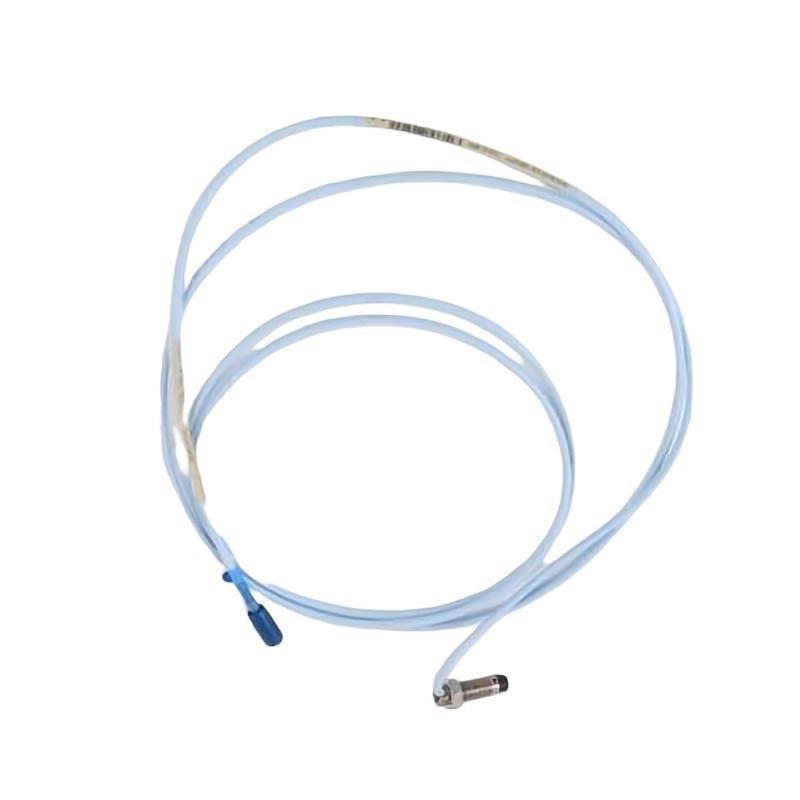

The Bently Nevada 330101-XX-XX-20-02-CN 147773-00-12 is a high-precision 8mm proximity probe from the 3300 XL series, designed for critical machinery condition monitoring. This probe is used to measure rotor displacement and vibration in rotating equipment, providing early detection / imbalance, misalignment, and bearing issues.
With a total cable length / 2.0 meters and a weight / 0.646 kg, this probe is ideal for installations requiring moderate cable reach while maintaining compactness. It features a durable stainless steel housing and a ceramic sensor core, ensuring high reliability and accuracy in industrial environments. The probe integrates seamlessly with Bently Nevada 3300 XL monitoring systems, providing continuous and precise data for predictive maintenance programs.
产品规格
| Parameter | Details |
|---|---|
| 型号 | 330101-XX-XX-20-02-CN 147773-00-12 |
| Series | 3300 XL |
| Probe Type | Proximity Probe / Eddy Current Sensor |
| Tip Diameter | 8 mm |
| Total Cable Length | 2.0 meters |
| 重量 | 0.646 kg |
| Operating Temperature Range | -40 °C to +120 °C |
| Vibration Frequency Range | DC to 20 kHz |
| Probe Material | Stainless steel housing, ceramic sensor core |
| Cable Material | Shielded, flexible, durable insulation |
| Mounting Method | Threaded or fixed probe holder |
| Gap Range (Nominal) | 0.25 mm to 2.0 mm (depending on calibration) |
| Sensitivity | 50 mV/mil (typical, depending on system setup) |
| Output Signal | AC voltage proportional to probe gap |
| Connection | Coaxial cable with BNC or terminal connection to 3300 XL monitoring system |
| Certifications | CE, CSA, ISO 9001 |
| Environmental Protection | IP65 when installed in proper housing |
Product Applications
The 330101-XX-XX-20-02-CN 147773-00-12 3300 XL 8mm Proximity Probe is commonly used in industries requiring precise rotor monitoring:
-
Power Generation – Turbine and generator monitoring for misalignment, vibration, and imbalance.
-
Oil & Gas – Compressor and pump rotor condition monitoring to prevent unscheduled downtime.
-
Petrochemical Plants – Monitoring / high-speed rotating machinery in harsh environments.
-
Industrial Manufacturing – Vibration and position monitoring / motors, fans, and pumps.
-
Marine & Offshore Equipment – Shaft monitoring for turbines, pumps, and propulsion systems.
-
Pulp & Paper Industry – High-speed rotor monitoring in paper machines and industrial rollers.
Product Advantages
-
High Accuracy Measurement – Provides reliable displacement and vibration data for early fault detection.
-
Moderate Cable Length – 2.0 meters provides flexibility for installations requiring slightly longer reach.
-
Durable Construction – Stainless steel housing and shielded cable ensure long-term reliability.
-
Seamless Integration – Compatible with 3300 XL monitoring systems for continuous condition monitoring.
-
Wide Gap Range – Suitable for various shaft sizes and operational clearances.
-
Predictive Maintenance 支持 – Helps detect misalignment, imbalance, and bearing wear early.
-
Reduced Downtime – Reliable performance minimizes maintenance interruptions.
-
Flexible Installation – Can be used for new installations or retr/its in constrained spaces.
FAQ
-
What is the tip diameter / this probe?
The probe tip diameter is 8 mm, providing accurate rotor-to-probe gap measurements. -
What is the total cable length / this probe?
The total cable length is 2.0 meters, suitable for medium-distance installations within machinery cabinets. -
What is the nominal gap range supported?
The nominal gap range is 0.25 mm to 2.0 mm, adjustable through system calibration. -
Which monitoring systems is this probe compatible with?
It is designed for use with Bently Nevada 3300 XL monitoring systems for accurate data collection. -
What is the operating temperature range?
The probe operates reliably between -40 °C and +120 °C, suitable for most industrial machinery environments. -
What type / output signal does the probe provide?
It outputs an AC voltage proportional to the gap, which is processed by the 3300 XL system to determine rotor displacement and vibration. -
What frequency range can the probe measure?
The probe can measure DC up to 20 kHz, capturing both slow and high-frequency rotor movements. -
What materials are used in the probe construction?
Stainless steel housing, ceramic sensor core, and shielded flexible cable provide durability and reliable signal integrity. -
Is this probe suitable for outdoor or harsh environments?
Yes, it provides IP65 protection when installed properly, ensuring resistance to dust and water ingress. -
Can this probe detect both static and dynamic rotor displacements?
Yes, it measures both steady-state and dynamic rotor movements for predictive maintenance purposes.
Recommended Related 型号s (Same Series or Function)
| 型号 | 描述 |
|---|---|
| 330101-32-70-10-12-05 | 3300 XL 8mm Proximity Probe with 1.0-meter cable |
| 330101-31-39-10-02-05 | 3300 XL 8mm Probe with 1.0-meter cable |
| 330101-30-60-90-90-02-RU | 3300 XL 8mm Probe with long cable |
| 330101-30-60-90-80-02-RU | 3300 XL 8mm Probe, shorter cable version |
| 330101-30-60-100-90-02-RU | 3300 XL 8mm Probe with extended gap range |
| 330101-30-60-90-90-03-RU | 3300 XL 8mm Probe with high-temperature rating |
Popular Bently Nevada 型号s
| 型号 | 描述 |
|---|---|
| 330101-00-60-90-90-01-RU | 3300 XL 8mm Standard Proximity Probe |
| 330100-00-60-90-90-01-RU | 3300 XL 5mm Proximity Probe |
| 330103-30-60-90-90-02-RU | 3300 XL 12mm Proximity Probe |
| 330101-30-60-90-90-02-RU | 3300 XL 8mm Probe with long cable |
| 330107-30-60-90-90-02-RU | 3300 XL Proximity Probe with specialized connector |
| 330101-31-39-10-02-05 | 3300 XL 8mm Probe with 1-meter cable |
