Product 描述

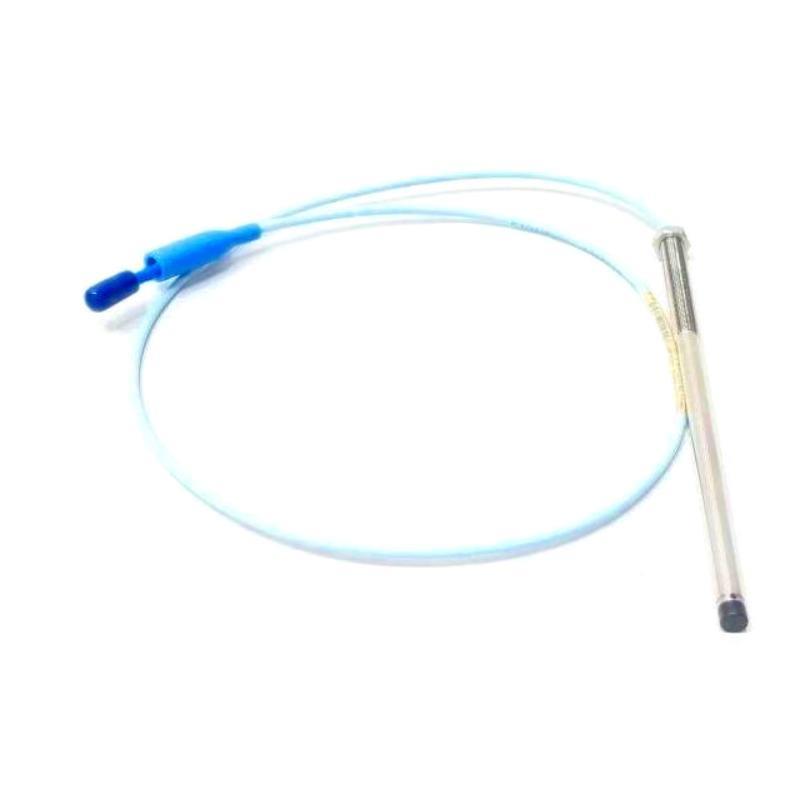

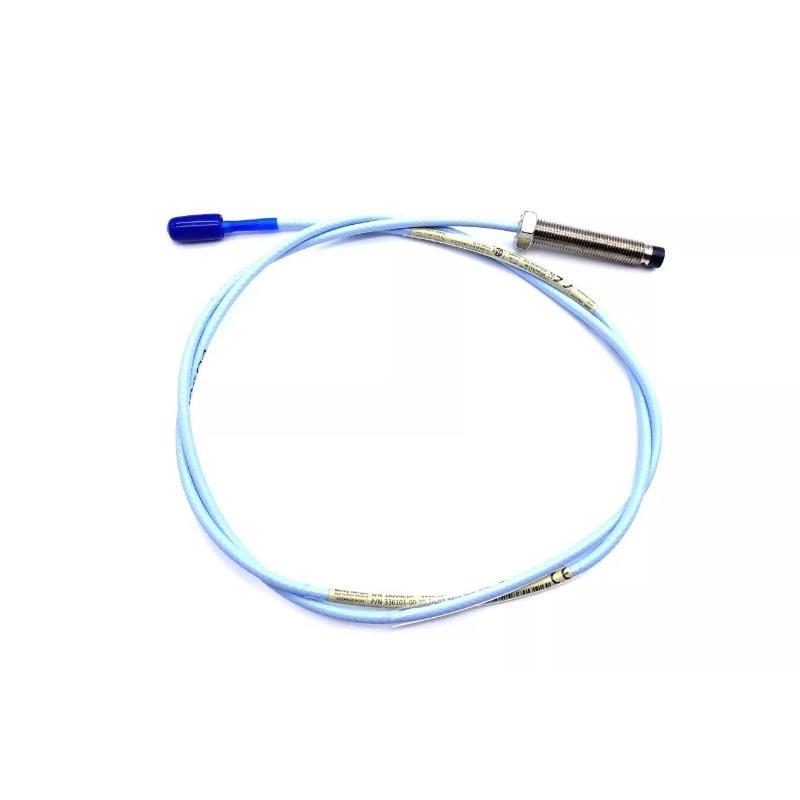

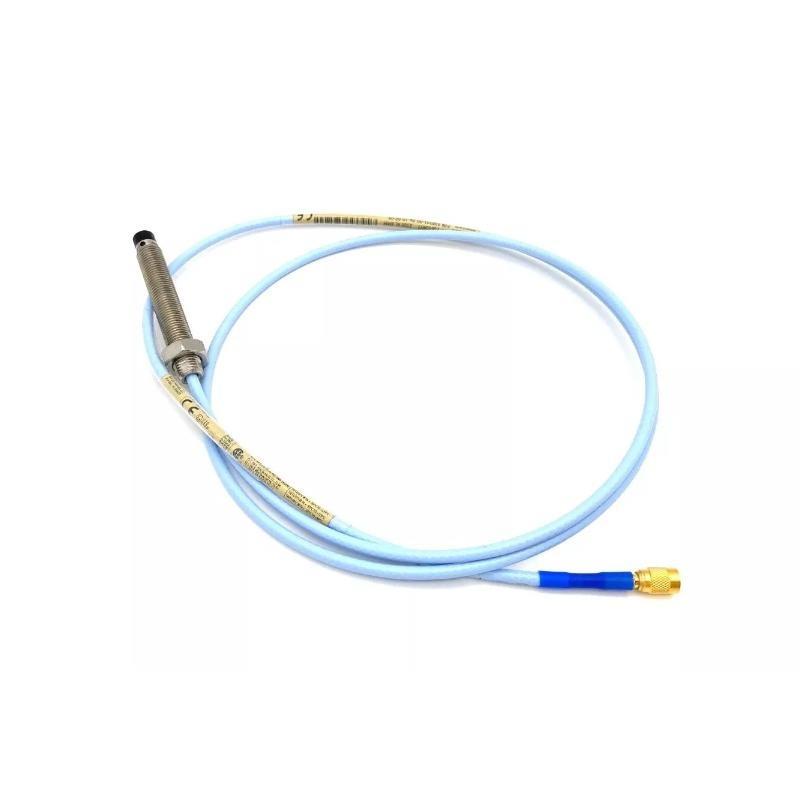

The Bently Nevada 3300 XL 8 mm Proximity Probe is part / a transducer system designed for precise vibration and position monitoring on fluid-film bearing machinery. It outputs a voltage proportional to the distance between the probe tip and a conductive surface. This model complies with API 670 standards and ensures full interchangeability / probes, cables, and sensors.
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless Steel 303/304 |
| Operating Temperature | -52°C to +177°C |
| Extended Temp Range Probe | Up to +218°C |
| Pressure Sealing | Viton® O-ring sealed |
| Frequency Response | 0 to 10 kHz |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Shaft Diameter Minimum | 50.8 mm |
| Total Length | 2.0 meters |
| 重量 | 0.646 kg |
Applications
-
Vibration monitoring / rotating machinery
-
Shaft position measurement
-
Keyphasor and speed measurements
-
状态 monitoring in harsh industrial environments
-
API 670 compliant installations
Advantages
-
Fully API 670 compliant
-
High resistance to RFI/EMI
-
Rugged construction with patented TipLoc and CableLoc designs
-
Flexible installation: DIN rail or panel mount
-
Backward compatible with older 3300-series systems
-
Easy and tool-free ClickLoc connectors
FAQ
Q1: What is the primary use / the 330101-XX-XX proximity probe?
A1: It is used for vibration and position monitoring on fluid-film bearing machinery.
Q2: Is this probe compliant with API 670?
A2: Yes, it meets API 670 standards for configuration, accuracy, and stability.
Q3: Can the probe operate in high temperatures?
A3: Yes, with the extended temperature range option, it operates up to 218°C.
Q4: What is the recommended gap setting?
A4: Approximately 1.27 mm (50 mils) from the target.
Q5: Are the components interchangeable with older 3300-series parts?
A5: Yes, it is backward compatible and interchangeable with 5 mm and 8 mm systems.
Q6: How is the probe tip protected against mechanical damage?
A6: The patented TipLoc and rugged encapsulation ensure durability.
Q7: Can this probe be used for Keyphasor measurements?
A7: Yes, it supports Keyphasor reference and speed measurements.
Q8: What is the minimum shaft diameter for reliable operation?
A8: At least 50.8 mm is recommended.
Q9: Does the probe require special tools for connector installation?
A9: No, ClickLoc connectors can be installed and removed by hand.
Q10: Is the probe suitable for humid environments?
A10: Yes, it shows less than 3% ASF change even at 93% humidity.
Related 型号s (Same Series)
| 型号 | Length | 重量 |
|---|---|---|
| 330101-XX-XX-05 | 0.5 m | 0.25 kg |
| 330101-XX-XX-10 | 1.0 m | 0.35 kg |
| 330101-XX-XX-15 | 1.5 m | 0.45 kg |
| 330101-XX-XX-30 | 3.0 m | 0.75 kg |
| 330101-XX-XX-50 | 5.0 m | 0.95 kg |
| 330101-XX-XX-90 | 9.0 m | 1.50 kg |
Popular 型号s from Bently Nevada
| 型号 | 描述 | 重量 |
|---|---|---|
| 330104 | 8 mm Probe with M10x1 thread | 0.65 kg |

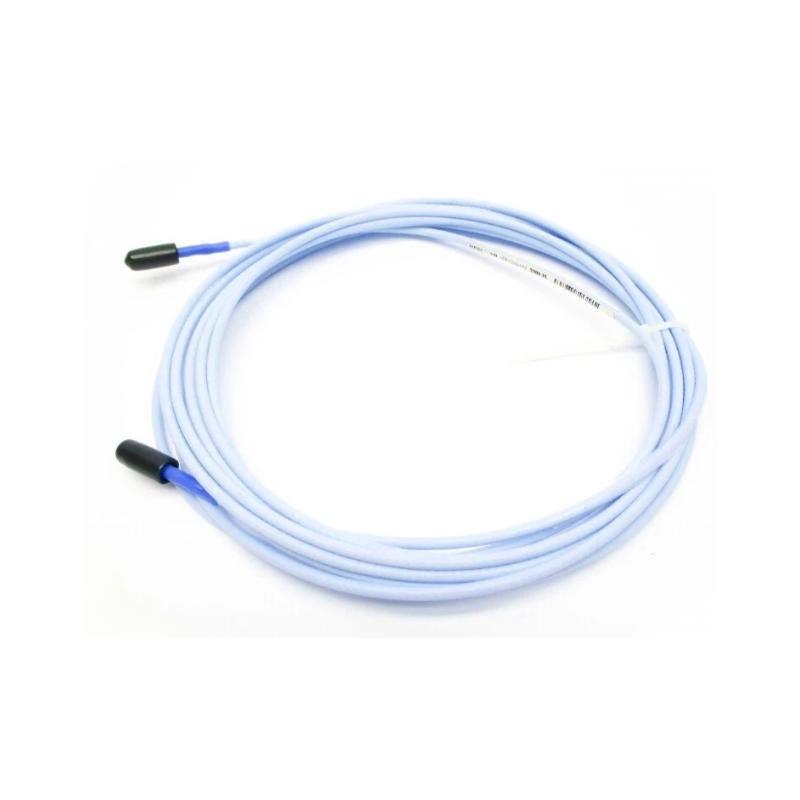

| 330130 | 8 mm Extension Cable (standard) | 0.20 kg |
| 330180 | Proximitor Sensor | 0.25 kg |
| 330105 | 8 mm Reverse Mount Probe | 0.65 kg |
| 330191 | Extended Temp Range 8 mm Probe | 0.70 kg |
| 330140 | Smooth Case 8 mm Probe | 0.60 kg |
