Product 描述

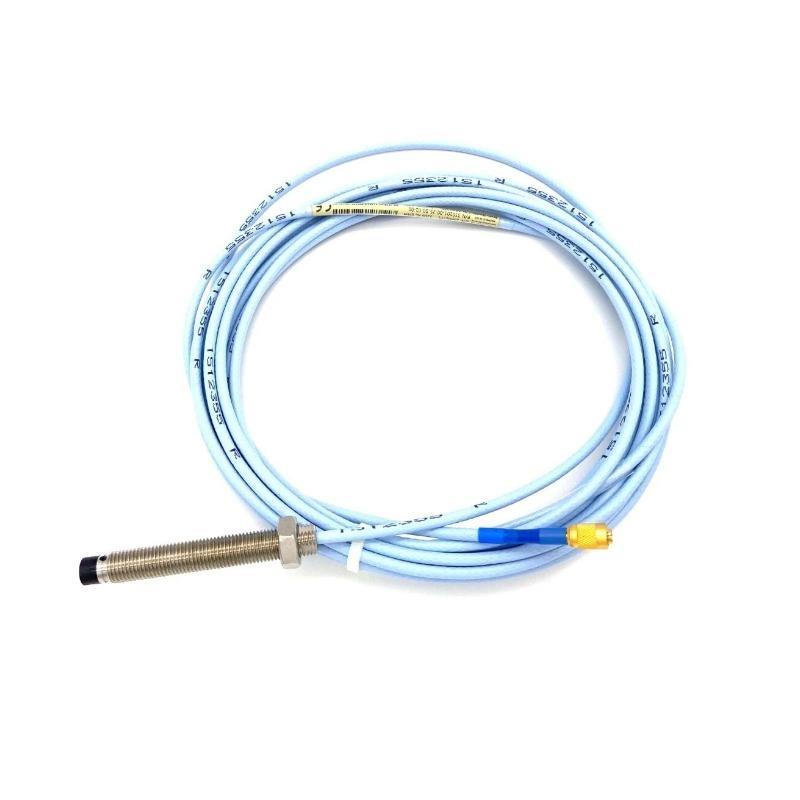

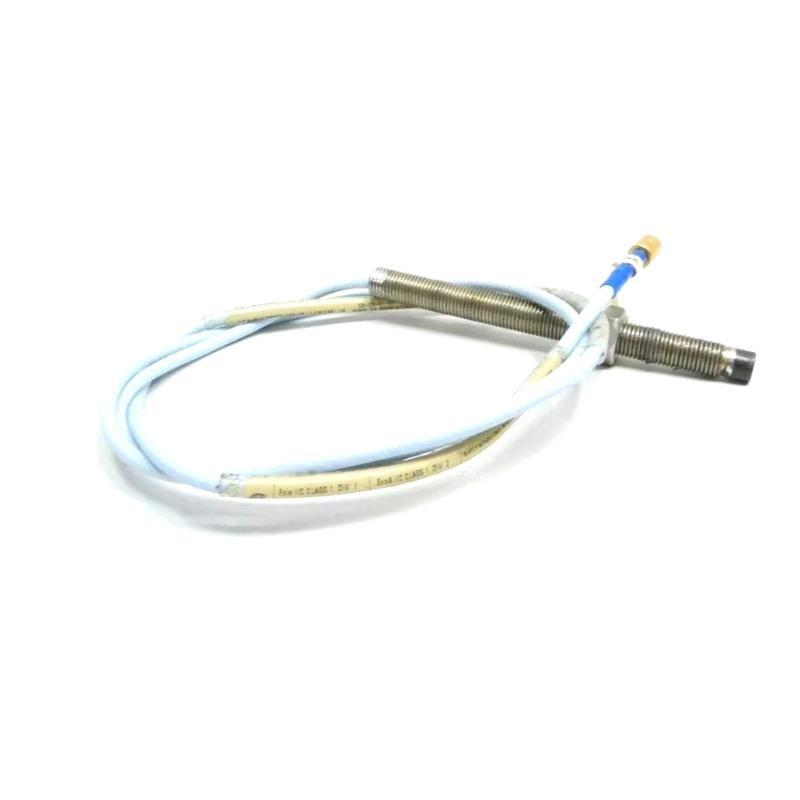

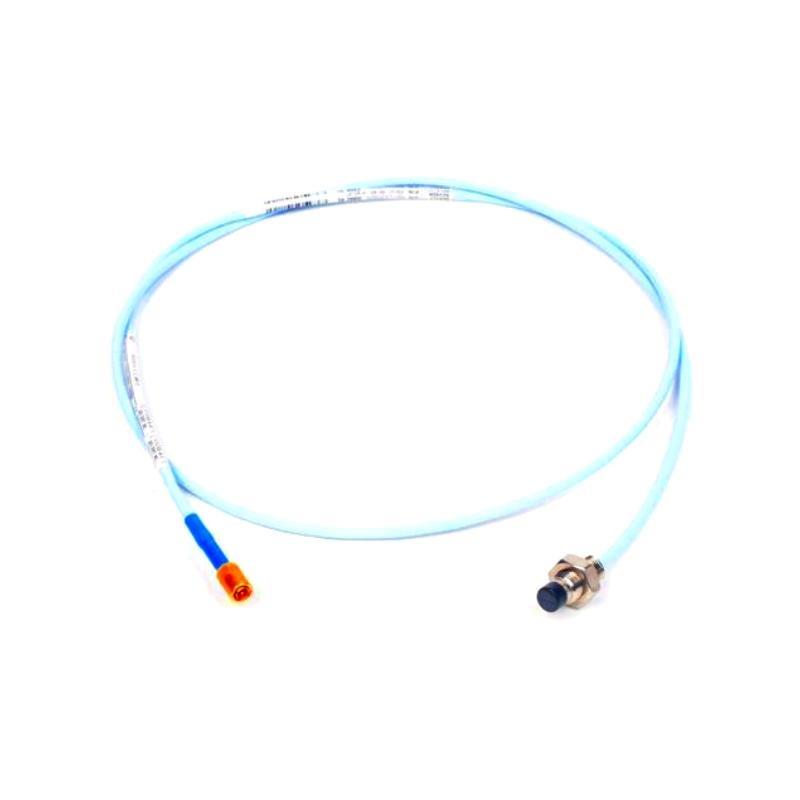

The Bently Nevada 330101-01-39-10-01-05 is a high-precision 8 mm proximity probe designed for non-contact measurement / shaft vibration and position in rotating machinery. It is part / the 3300 XL system and is factory-calibrated for use with AISI 4140 steel targets. With a total length / 1.0 meter, it ensures accurate monitoring in demanding industrial environments.
Product Features
-
Non-contact vibration and position measurement
-
Fully compliant with API 670 standards
-
Probe, cable, and sensor are fully interchangeable
-
Robust PPS tip with TipLoc bonding
-
Enhanced oil sealing with FluidLoc option
-
EMI/RFI-resistant ClickLoc connectors
-
Operating range up to 177°C
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 | 330101-01-39-10-01-05 |
| Measurement Range | 0.25 mm to 2.3 mm (10–90 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Tip Material | PPS (Polyphenylene Sulfide) |
| Case Material | AISI 303/304 Stainless Steel |
| Cable Length | 1.0 meter |
| Total System 重量 | 0.323 kg |
| Operating Temp (Probe) | -52°C to +177°C |
| Mounting Thread | 3/8-24 UNF |
| Connector Type | ClickLoc Miniature Coaxial |
| Pressure Seal | Viton® O-ring |
| Environmental Certification | ATEX, IECEx, CSA, CE, RoHS, SIL2/SIL3 |
Applications
-
Steam and gas turbines
-
Compressors
-
Large industrial motors
-
Centrifugal pumps
-
Generators
-
Gearboxes
-
Machinery requiring continuous shaft monitoring
Product Advantages
-
High reliability under extreme environmental conditions
-
Meets global safety and performance standards
-
Fast installation with tool-free ClickLoc connectors
-
Backward compatibility with non-XL 3300 series
-
Enhanced probe sealing for fluid environments
-
Minimal output fluctuation under voltage variation
-
Optional armored and FluidLoc variants for durability
常见问题 (FAQ)
Q1: What is the cable length / this proximity probe?
A1: It is 1.0 meter in total length.
Q2: Can this model operate in high temperatures?
A2: Yes, it operates up to 177°C and has optional ETR versions for up to 218°C.
Q3: Is this probe compatible with older 3300 systems?
A3: Yes, it’s backward-compatible with non-XL 3300 5 mm and 8 mm systems.
Q4: What kind / target material is it calibrated for?
A4: It is factory-calibrated for AISI 4140 steel. 其他 materials require custom calibration.
Q5: Does it require separate calibration?
A5: No, it is pre-calibrated and components are fully interchangeable.
Q6: What kind / connector does it use?
A6: It uses a gold-plated miniature coaxial ClickLoc connector.
Q7: Can it be used in hazardous areas?
A7: Yes, it is certified for use in hazardous zones (ATEX, CSA, IECEx).
Q8: What is the main function / this probe?
A8: It measures both static (position) and dynamic (vibration) displacement.
Q9: What is the recommended shaft size?
A9: Recommended shaft diameter is ≥76.2 mm (3 in), with a minimum / 50.8 mm (2 in).
Q10: Is this probe resistant to electromagnetic interference?
A10: Yes, it has high imm件y to RFI/EMI, compliant with CE standards.
Related 型号s in the Same Series
| 型号 Number | Probe Length | Cable Type | Temp Range | 重量 |
|---|---|---|---|---|
| 330101-00-08-10-02-00 | 1.0 m | Standard | -52°C to +177°C | 0.323 kg |
| 330102-00-20-10-02-00 | 2.0 m | Armored | -52°C to +177°C | 0.450 kg |
| 330191-00-20-10-02-00 | 2.0 m | Standard (ETR) | -52°C to +218°C | 0.360 kg |
| 330105-02-12-10-02-05 | 1.0 m | FluidLoc | -52°C to +177°C | 0.330 kg |
| 330140-00-20-10-02-00 | 2.0 m | Smooth Case | -52°C to +177°C | 0.340 kg |
| 330103-00-04-10-02-00 | 1.0 m | Metric Thread | -52°C to +177°C | 0.323 kg |
Popular 型号s from Bently Nevada
| 型号 Number | 描述 | Application | 重量 |
|---|---|---|---|
| 3300 XL 5 mm | Compact Proximity Probe | Tight space areas | 0.310 kg |
| 330104-01-05-50-02-00 | Metric Thread with Armor | Industrial environments | 0.400 kg |
| 330180-50-05 | 5 m Proximitor Sensor | Signal conversion | 0.246 kg |
| 330130-030-00-00 | 3.0 m Extension Cable | Standard installations | 0.102 kg |
| 3500/42M-01-00 | Seismic Monitor Module | Vibration monitoring | 0.620 kg |
| 3500/22M-01-01 | Transient Data Interface Module | Data collection | 0.780 kg |
