Product Overview

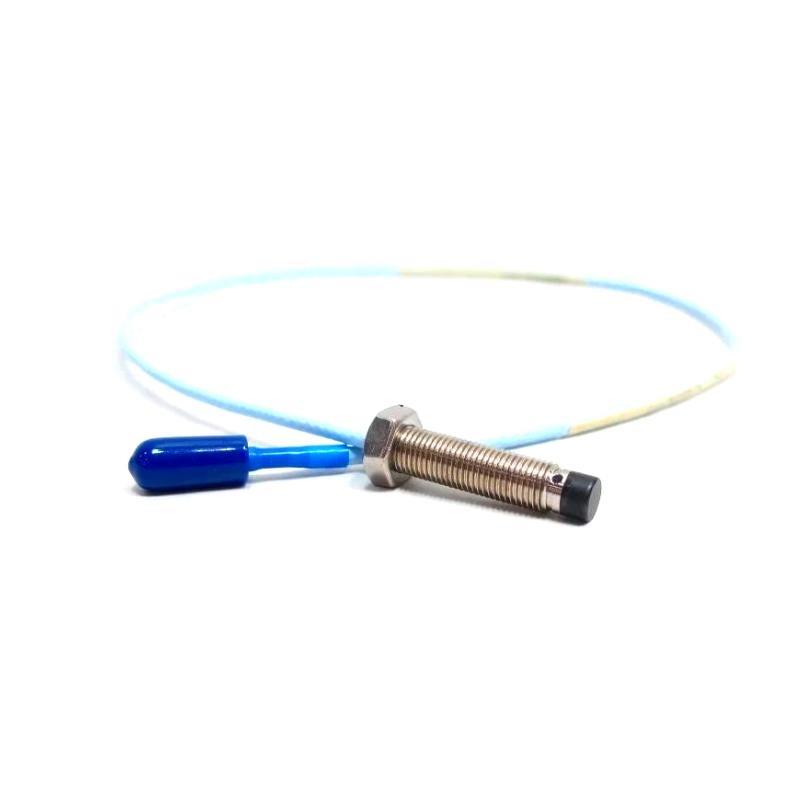

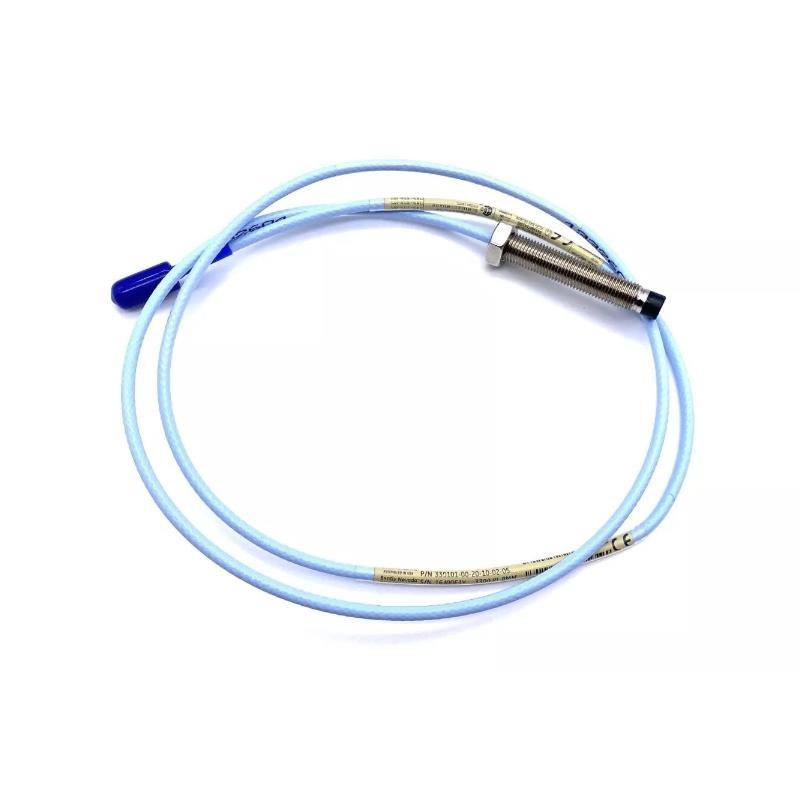

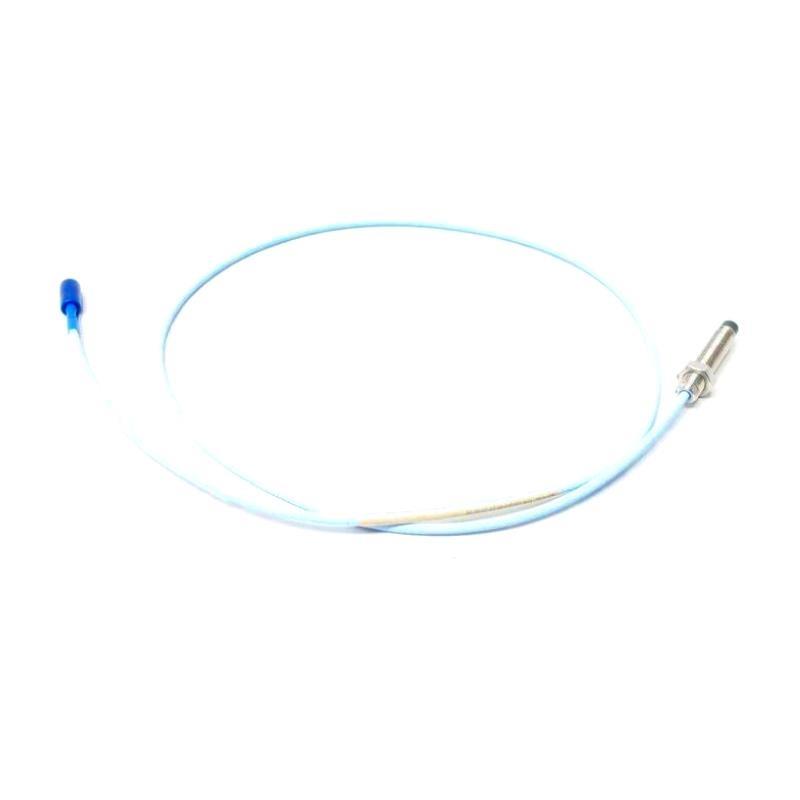

The Bently Nevada 330101-00-76-10-02-05 is a 3300 XL 8 mm Proximity Probe, a core component / the 3300 XL Proximity Transducer System. It provides accurate, non-contact measurements / shaft position and vibration in critical rotating machinery. The system includes the probe, extension cable, and Proximitor Sensor. This model is highly reliable and meets API 670 standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 | 330101-00-76-10-02-05 |
| Probe Tip Diameter | 8.0 mm |
| Cable Type | FEP-insulated triaxial coaxial cable |
| Connector Type | Miniature coaxial ClickLoc |
| Probe Thread | 3/8-24 UNF |
| Total Length | 1.0 meter |
| 重量 | 0.323 kg |
| Operating Temp (Standard Probe) | -52°C to +177°C |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Recommended Gap | 1.27 mm (50 mils) |
| Housing Material | Stainless Steel |
| Humidity Resistance | <3% change in ASF in 93% RH up to 56 days |
Applications
-
Shaft vibration and position monitoring
-
Keyphasor and speed reference measurements
-
Turbomachinery with fluid-film bearings
-
Large industrial fans, compressors, and pumps
-
API 670 compliant machinery diagnostics
-
Hazardous environment monitoring
Key Advantages
-
Fully compliant with API 670 standards
-
High imm件y to RFI/EMI for stable operation
-
Durable PPS molded tip and stainless steel housing
-
Backward compatibility with 3300 and XL systems
-
Interchangeable components simplify inventory
-
No field calibration required
-
Optional FluidLoc cable prevents fluid ingress
常见问题 (FAQ)
Q1: What is the primary use / the 330101-00-76-10-02-05 probe?
A1: It’s used for monitoring shaft vibration and position in rotating machinery.
Q2: Is the probe compliant with API 670?
A2: Yes, the 3300 XL system fully complies with API 670 requirements.
Q3: What material is used for the probe tip?
A3: The tip is made / molded PPS plastic for durability.
Q4: Can this probe be used in high-temperature environments?
A4: Yes, up to +177°C for standard versions. ETR versions go up to +218°C.
Q5: What type / connector does this probe use?
A5: It uses a miniature coaxial ClickLoc connector with or without protector.
Q6: What is the linear range / this proximity probe?
A6: 2 mm (80 mils), starting at about 0.25 mm from the target surface.
Q7: Is field calibration required?
A7: 序号 The system components are pre-calibrated and interchangeable.
Q8: Can this probe operate in corrosive environments?
A8: Yes, it’s built with corrosion-resistant materials and sealed design.
Q9: What shaft sizes are recommended for accurate measurement?
A9: Minimum recommended shaft diameter is 76.2 mm (3 in).
Q10: How is the probe mounted?
A10: The probe is mounted using threaded insertion (3/8-24 UNF).
Related 型号s in the Same Series
| 型号 Number | Thread Type | Cable Length | Armor | Temp Rating | 重量 |
|---|---|---|---|---|---|
| 330101-00-76-10-02-00 | 3/8-24 UNF | 1.0 m | No | Standard | 0.323 kg |
| 330102-00-76-10-02-05 | 3/8-24 UNF | 1.0 m | Yes | Standard | 0.400 kg |
| 330101-00-76-15-02-05 | 3/8-24 UNF | 1.5 m | No | Standard | 0.485 kg |
| 330101-00-76-05-02-05 | 3/8-24 UNF | 0.5 m | No | Standard | 0.220 kg |
| 330191-00-76-10-02-05 | 3/8-24 UNF | 1.0 m | No | ETR | 0.323 kg |
| 330140-00-76-10-02-05 | Smooth Case | 1.0 m | No | Standard | 0.323 kg |
Popular Bently Nevada 型号s
| 型号 Number | 描述 | Application | 重量 |
|---|---|---|---|
| 330104-00-05-10-02-00 | 8 mm Metric Probe, M10 thread | Metric installations | 0.323 kg |
| 330105-02-12-10-02-05 | Reverse Mount Probe, 3/8-24 UNF | Reverse mount machinery | 0.350 kg |
| 330130-030-00-00 | 3.0 m Extension Cable | System cable between probe/sensor | 0.150 kg |
| 330180-10-00 | 1.0 m Proximitor Sensor, Panel Mount | Shaft position & vibration | 0.246 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration monitoring | 0.500 kg |
| 3300 NSv | Narrow Side-View Probe System | Limited clearance applications | ~0.200 kg |
