Product Overview

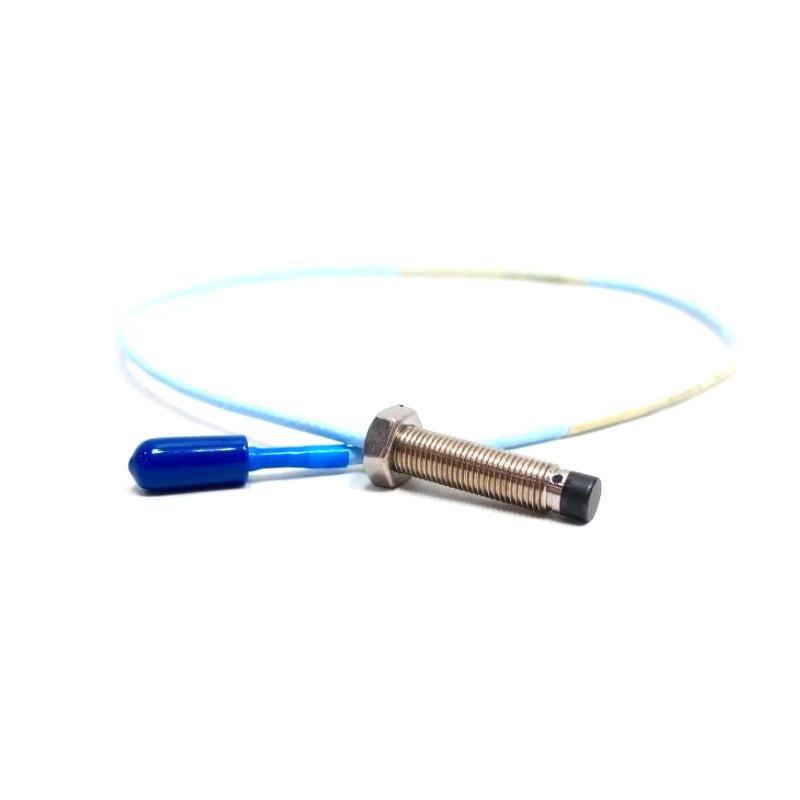

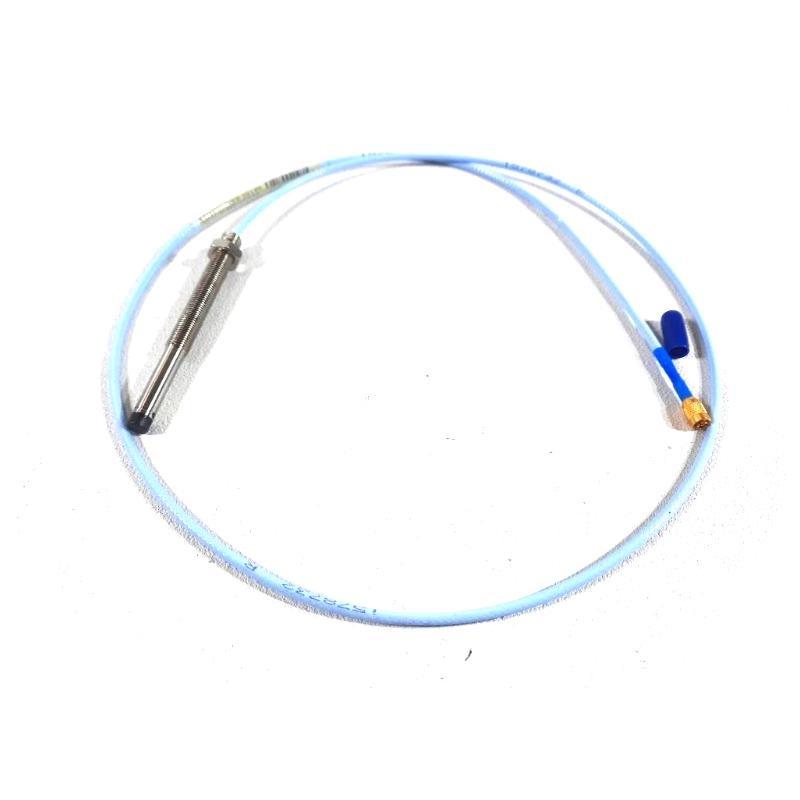

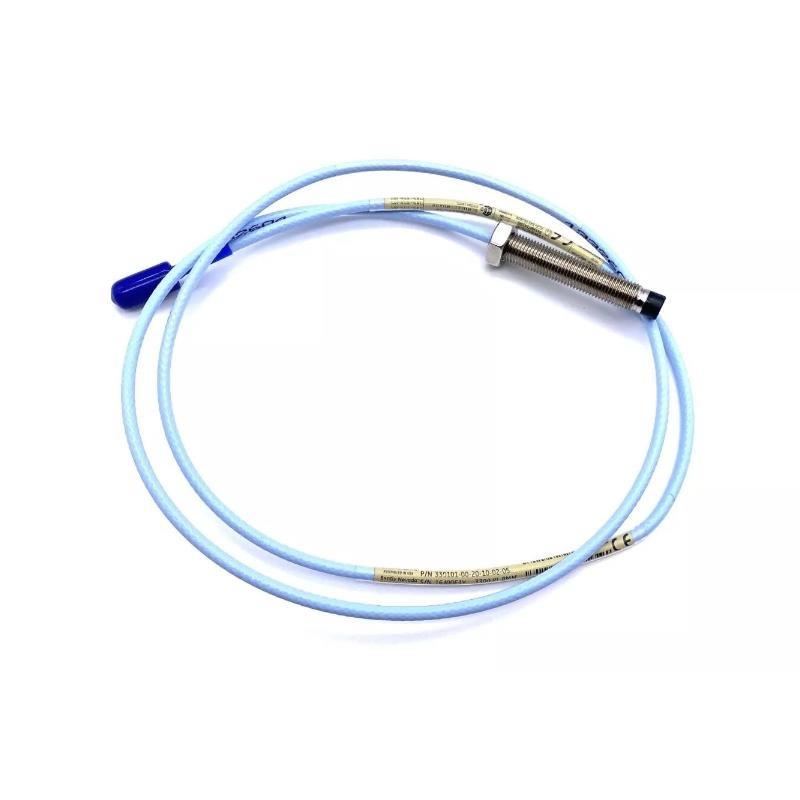

The Bently Nevada 330101-00-45-10-11-05 is part / the 3300 XL 8 mm Proximity Transducer System, engineered to deliver accurate and stable measurements / shaft vibration and position in rotating machinery. It includes a non-contact probe that translates the gap distance to voltage, ideal for fluid-film bearing machines.
Key Applications
-
Shaft vibration monitoring
-
Axial/radial position measurement
-
Overspeed protection systems
-
Keyphasor reference signal generation
-
Industrial turbines, compressors, and motors
Product Advantages
-
API 670 Compliance: Meets all standard criteria for performance and configuration
-
Full Interchangeability: Mix and match with other XL/non-XL 3300 series components
-
Durable Design: Enhanced resistance with TipLoc and CableLoc technologies
-
Extended Temperature 支持: Withstands temperatures up to +218°C
-
EMI/RFI Protection: Safe for use in high-interference zones without special shielding
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | 330101-00-45-10-11-05 |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Thread | 3/8-24 UNF |
| Total Length | 1.0 meter |
| 重量 | 0.323 kg |
| Linear Range | 0.25 to 2.3 mm (10 to 90 mils) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Tip Material | PPS (Polyphenylene sulfide) |
| Case Material | Stainless Steel (AISI 303 or 304) |
| Cable Type | 75Ω Triaxial FEP insulated |
| Cable Connector | ClickLoc, Miniature coaxial with protector |
| Operating Temp (Standard) | -52°C to +177°C |
| Operating Temp (ETR) | -52°C to +218°C (probe tip), up to +260°C (cable) |
| Minimum Target Size | 15.2 mm diameter |
| Recommended Shaft Diameter | ≥76.2 mm |
FAQ – 常见问题
Q1: What does the part number 330101-00-45-10-11-05 represent?
A1: It specifies the 3300 XL 8 mm probe with thread, unthreaded/case length options, 1.0 m length, FluidLoc cable, connector protector, and certified approvals.
Q2: Can this probe be used for both vibration and position monitoring?
A2: Yes, it is suitable for both static (position) and dynamic (vibration) measurements.
Q3: Does it meet API 670 standards?
A3: Yes, it fully complies with API 670 in terms / accuracy, linear range, and configuration.
Q4: What is the linear operating range / this probe?
A4: The linear range is 2 mm, from 0.25 mm to 2.3 mm.
Q5: Can this probe be installed in hazardous areas?
A5: Yes, it supports CSA, ATEX, and IECEx certifications for hazardous environments.
Q6: Is the cable resistant to oil ingress?
A6: Yes, it uses FluidLoc technology to prevent oil leakage through the cable.
Q7: What is the durability / the connector system?
A7: It uses corrosion-resistant ClickLoc connectors that lock securely and require no tools.
Q8: Can it be mounted in tight spaces?
A8: For limited spaces, a 5 mm variant is available; this 8 mm probe is more robust.
Q9: What happens if the probe is exposed to high humidity?
A9: It remains within ±3% ASF variation even in 93% humidity for up to 56 days.
Q10: Is the sensor compatible with older 3300 systems?
A10: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm components.
Related 型号s in the Same Series
| 型号 Number | 描述 | Probe Length | 重量 |
|---|---|---|---|
| 330101-00-45-10-11-00 | 3300 XL Probe, standard cable | 1.0 m | 0.323 kg |
| 330102-00-45-10-11-05 | 3300 XL Probe with armor | 1.0 m | 0.35 kg |
| 330103-00-45-10-11-05 | Metric Thread M10 x 1 version | 1.0 m | 0.323 kg |
| 330104-00-45-10-11-05 | Metric Thread with Armor | 1.0 m | 0.35 kg |
| 330105-02-12-10-02-05 | Reverse mount probe, standard cable | 1.0 m | 0.323 kg |
| 330106-05-30-10-02-05 | Reverse mount, metric thread, armored | 1.0 m | 0.35 kg |
Popular 型号s from Bently Nevada
| 型号 Number | 描述 | Application Type | 重量 |
|---|---|---|---|
| 330104-00-06-10-02-00 | 3300 XL 8 mm Probe (M10 x 1, armored) | General vibration | 0.35 kg |
| 330180-91-05 | 3300 XL Proximitor Sensor, 9 m DIN mount | Proximitor connection | 0.246 kg |
| 330130-060-03-05 | Extension cable, armored, 6.0 m | Cabling for probes | 0.34 kg |
| 3500/42M-01-00-00 | Proximitor Seismic Monitor | Seismic monitoring | 0.6 kg |
| 3500/22M-01-01-00 | Transient Data Interface Module | Data acquisition | 0.4 kg |
| 190501-00-04 | Velomitor Piezo-velocity Sensor | Velocity measurement | 0.28 kg |
