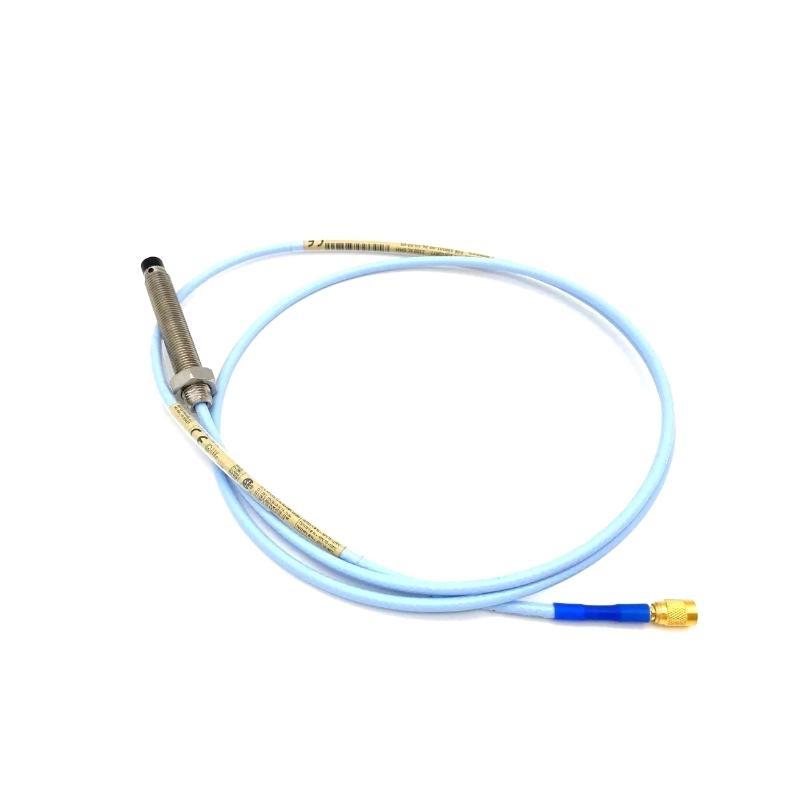

The Bently Nevada 330101-00-34-15-02-05 is part / the 3300 XL 8mm Proximity Probe System, designed and manufactured by Bently Nevada, a renowned name in the field / condition monitoring and vibration analysis. This specific model is a non-contact proximity sensor that accurately measures the distance between the probe tip and a conductive target, typically a rotating shaft.
Engineered to provide precision vibration and position measurements in demanding industrial environments, this probe system meets the American Petroleum Institute (API) 670 standard, which ensures reliability in critical turbomachinery applications. Its robust construction, excellent temperature stability, and industry-standard 5 mm linear range make it an ideal choice for a wide variety / machine monitoring setups.
产品规格
| Parameter | Specification |
|---|---|
| 零件号 | 330101-00-34-15-02-05 |
| Product Name | Bently Nevada 3300 XL 8mm Proximity Probe |
| Tip Diameter | 8 mm |
| System Type | Proximity Probe |
| Thread Size | 3/8-24 UNF |
| Connector Type | Miniature coaxial connector |
| Cable Type | Armored, Extension Cable (length defined by part number) |
| Linear Range | 0.5 mm (50 mils) |
| Output Voltage | 200 mV/mil (7.87 mV/μm) |
| Frequency Response | DC to 10 kHz |
| Temperature Range | -35°C to +177°C (-31°F to +350°F) |
| 重量 | 0.485 kg |
| Total Length | 1.5 meters |
| Compliance | API 670, RoHS compliant |
| Mounting | Threaded or bracket mount |
Applications
The 330101-00-34-15-02-05 proximity probe is widely used in:
-
Turbomachinery Vibration Monitoring
-
Axial Thrust Position Detection
-
Rotating Equipment Bearing Monitoring
-
Radial Vibration Measurement
-
Hydroelectric, Nuclear, and Thermal Power Plants
-
Oil and Gas Refineries
-
Petrochemical Processing Plants
-
Compressor and Pump Monitoring Systems
-
Steam and Gas Turbine Monitoring
Product Advantages
-
Industry-Leading Reliability: Built to meet API 670 standards, ensuring long-term performance in mission-critical environments.
-
Exceptional Accuracy: Linear output with high sensitivity for accurate vibration and displacement readings.
-
Rugged Construction: Designed for extreme conditions with robust shielding against EMI and physical damage.
-
Temperature Stability: Maintains consistent output even under wide thermal variations.
-
Simple Integration: Seamlessly integrates with Bently Nevada’s 3300 XL systems, supporting a plug-and-play approach.
-
Versatility: Suitable for multiple machinery types and configurations, making it ideal for comprehensive condition monitoring.
-
Long Cable Options: Allows for remote mounting and convenient system integration.
-
Minimal Drift: Long-term stability helps reduce recalibration and maintenance costs.
-
High Compatibility: Interoperable with CON011/CON021 extension cables and matching proximitor sensors.
-
Trusted 品牌: Backed by GE Bently Nevada’s reputation in industrial asset protection systems.
常见问题 (FAQ)
-
What does the part number 330101-00-34-15-02-05 specify?
It defines the proximity probe series, length, cable type, connector orientation, and thread type. -
Is this probe compatible with older Bently Nevada systems?
Yes, it is compatible with most 3300 XL proximitor sensors and extension cables, making it suitable for upgrades or replacements. -
What is the operating temperature range?
The probe operates effectively between -35°C to +177°C, covering most industrial environments. -
Can this probe be used in hazardous areas?
While the probe itself is robust, its use in hazardous areas depends on system certification and proper enclosure selection. -
How is the probe mounted?
It is typically mounted via threaded insertion or brackets depending on shaft and equipment design. -
What is the maximum cable length supported?
The system supports a total length / up to 30 meters (including extension and probe cable) when paired correctly. -
Does it need recalibration over time?
It features long-term stability with minimal drift, but recalibration intervals depend on system requirements and standards compliance. -
What is the primary output signal?
It outputs a voltage signal proportional to the target’s distance: typically 200 mV/mil. -
Is this probe suitable for steam turbines?
Yes, it is ideal for steam turbines and other high-speed rotating equipment. -
What differentiates the 3300 XL 8mm from 5mm systems?
The 8mm version /fers a larger sensing tip, providing improved robustness and deeper linear range for heavy-duty machinery.
