Product Overview

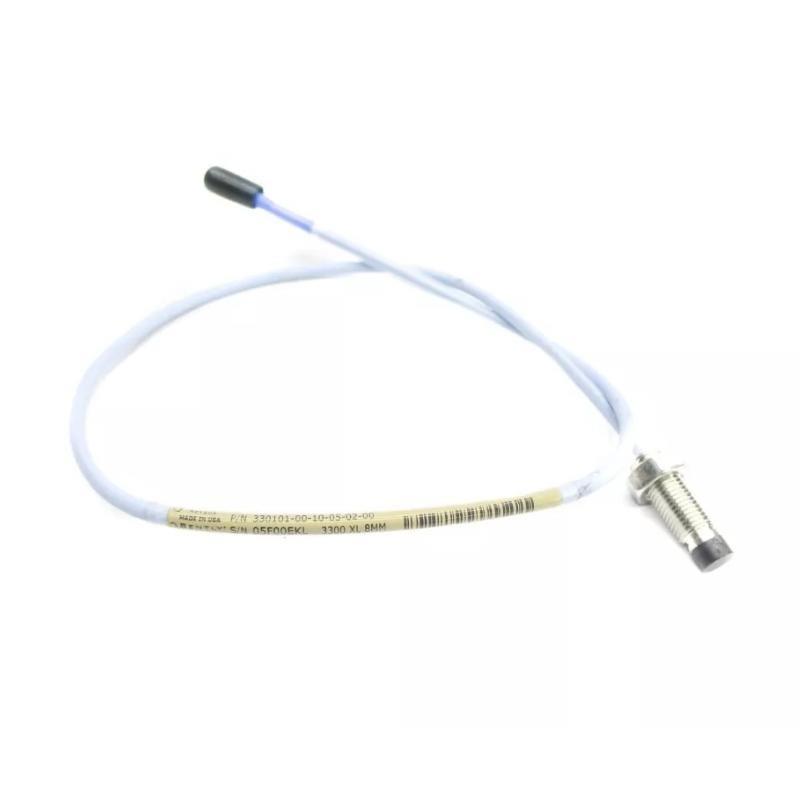

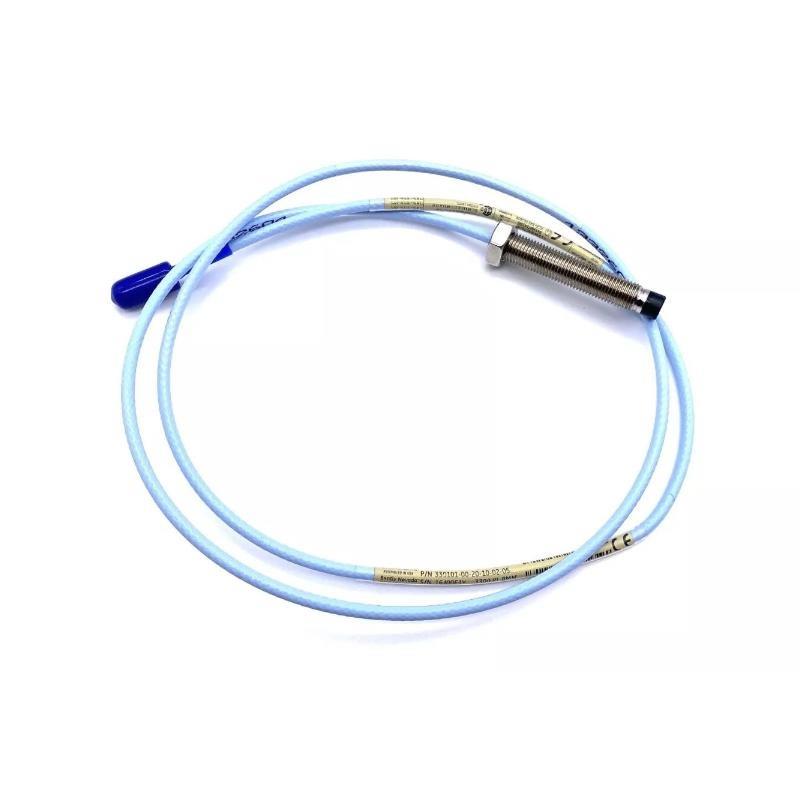

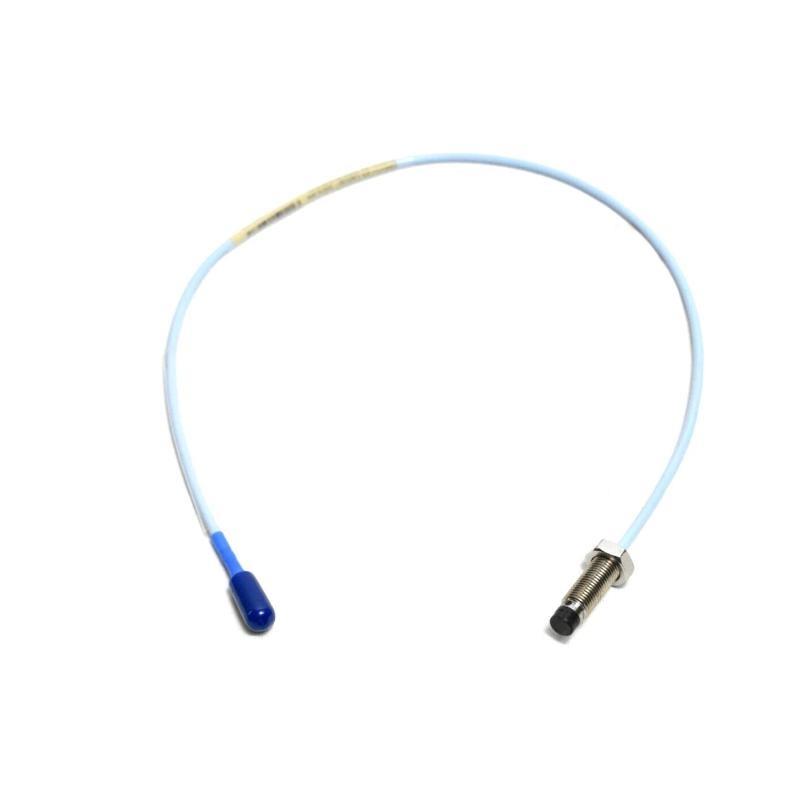

The Bently Nevada 330101-00-25-05-02 is a rugged 8 mm eddy-current proximity probe, part / the 3300 XL series. Designed for precise rotor position monitoring, it delivers high reliability under harsh industrial environments. The probe features an 8 mm PPS tip, miniature ClickLoc coaxial connector, and is fully interchangeable across probes, extension cables, and Proximitor sensors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Total Length | 0.5 meter |
| 重量 | 0.162 kg |
| Thread | 3/8-24 UNF or M10 option |
| Connector | Miniature ClickLoc coaxial |
| Material | PPS tip, stainless steel housing |
| Electrical Supply | –17.5 Vdc to –26 Vdc, max 12 mA |
| Resistance (Probe) | 7.5 Ω–9.9 Ω (depending on length) |
| Resistance (Cable) | 0.66 Ω–1.87 Ω (depending on length) |
| Approvals | CSA, ATEX, IECEx |
| Operating Temperature | –40 °C to +120 °C |
| Interchangeability | High across probes and sensors |
Applications
-
Continuous rotor position and vibration monitoring in turbines, compressors, and generators.
-
Compliance with API 670 vibration monitoring standards.
-
Suitable for hazardous and high-temperature environments due to CSA/ATEX/IECEx certification.
-
Used in predictive maintenance programs to prevent machinery failure.
Advantages
-
High durability with PPS tip and stainless steel housing.
-
Fully interchangeable components reduce maintenance complexity.
-
Stable and linear output across operating temperature and voltage range.
-
Compact 8 mm design allows flexible mounting in tight spaces.
-
Reliable miniature ClickLoc connector ensures secure connections.
-
Meets stringent industrial and safety standards.
常见问题 (FAQ)
1. What is the maximum cable length supported?
The probe supports extension cables up to 9 meters without impacting measurement accuracy.
2. Can this probe operate in high-temperature environments?
Yes, it operates reliably from –40 °C to +120 °C.
3. Is calibration required when replacing the probe?
No, the 3300 XL series is fully interchangeable; no bench calibration is required.
4. What electrical supply is needed?
The probe requires –17.5 Vdc to –26 Vdc with a maximum current / 12 mA.
5. Is the probe compatible with standard 3300 XL Proximitor sensors?
Yes, it is fully compatible and interchangeable across sensors and cables.
6. What certifications does this probe hold?
CSA, ATEX, and IECEx approvals for hazardous locations.
7. Can it be used in oil and gas applications?
Yes, its rugged construction and certified approvals make it suitable for oil and gas installations.
8. What is the mechanical thread size?
可用 in 3/8-24 UNF or M10 threading options.
9. What is the diameter / the probe tip?
The probe tip diameter is 8 mm (0.31 in).
10. How does it improve maintenance programs?
By providing accurate rotor position and vibration data, it enables predictive maintenance and reduces unplanned downtime.
Related 3300 XL Series 型号s
| 型号 | Probe Tip | Total Length | Connector | 重量 |
|---|---|---|---|---|
| 330101-00-25-10-02-05 | 8 mm | 1 m | Miniature ClickLoc | 0.32 kg |
| 330101-05-25-10-02-00 | 8 mm | 0.5 m | Miniature ClickLoc | 0.162 kg |
| 330101-14-32-10-02-05 | 8 mm | 1 m | Miniature ClickLoc | 0.32 kg |
| 330104-00-06-10-11-00 | 8 mm | 0.25 m | Miniature ClickLoc | 0.12 kg |
| 330104-00-06-50-01-00 | 8 mm | 0.5 m | Miniature ClickLoc | 0.162 kg |
| 330180-91-CN | 8 mm | 0.5 m | Miniature ClickLoc | 0.165 kg |
Popular Bently Nevada 型号s
| 型号 | 描述 | Probe Tip | Total Length | 重量 |
|---|---|---|---|---|
| 3300 XL Proximitor Sensor | Vibration sensor | 8 mm | 0.5 m | 0.16 kg |
| 3300 XL 5 mm Probe | Compact probe | 5 mm | 0.25 m | 0.12 kg |
| 3300 XL Monitor | Signal conditioner | N/A | N/A | 2.0 kg |
| 3300 XL 8 mm Probe Housing | Protective housing | 8 mm | 0.5 m | 0.15 kg |
| 3300 XL BNC Adapter | Connector adapter | N/A | N/A | 0.05 kg |
| 3300 XL Dual Proximity Probe | Dual sensor setup | 8 mm | 0.5 m | 0.32 kg |
