产品介绍

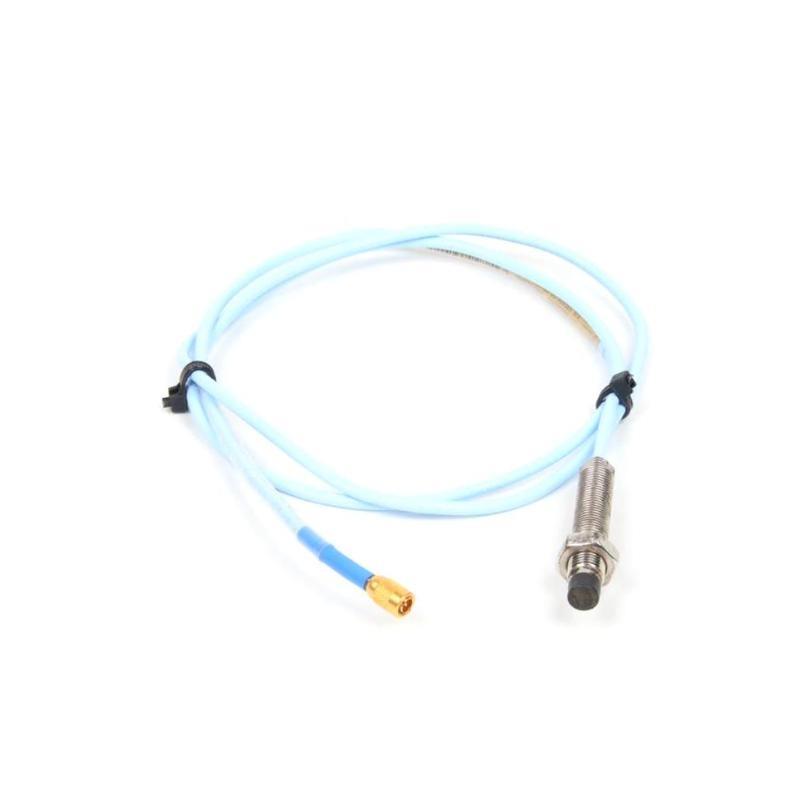

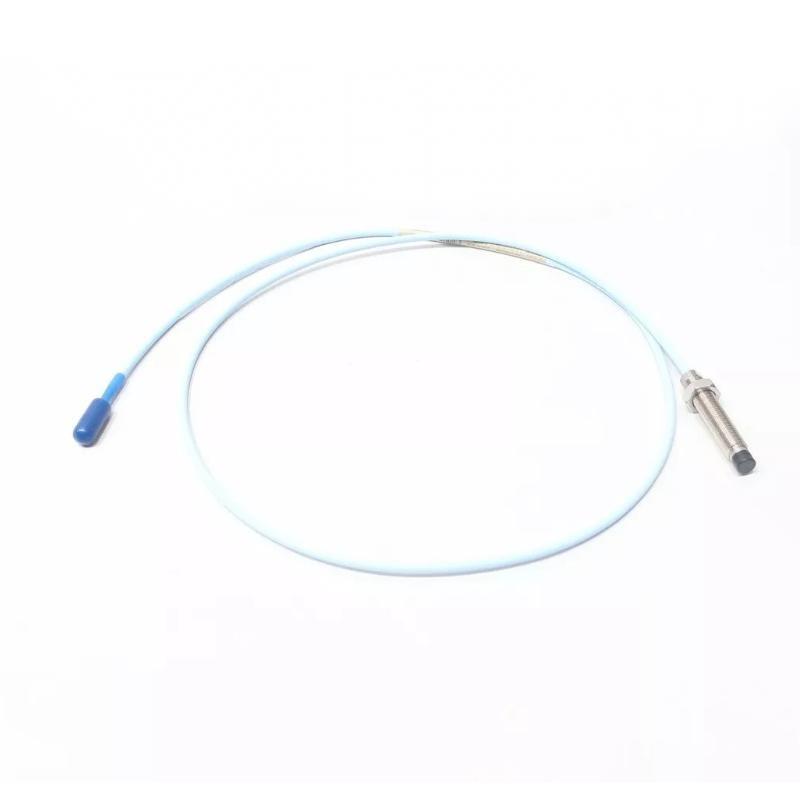

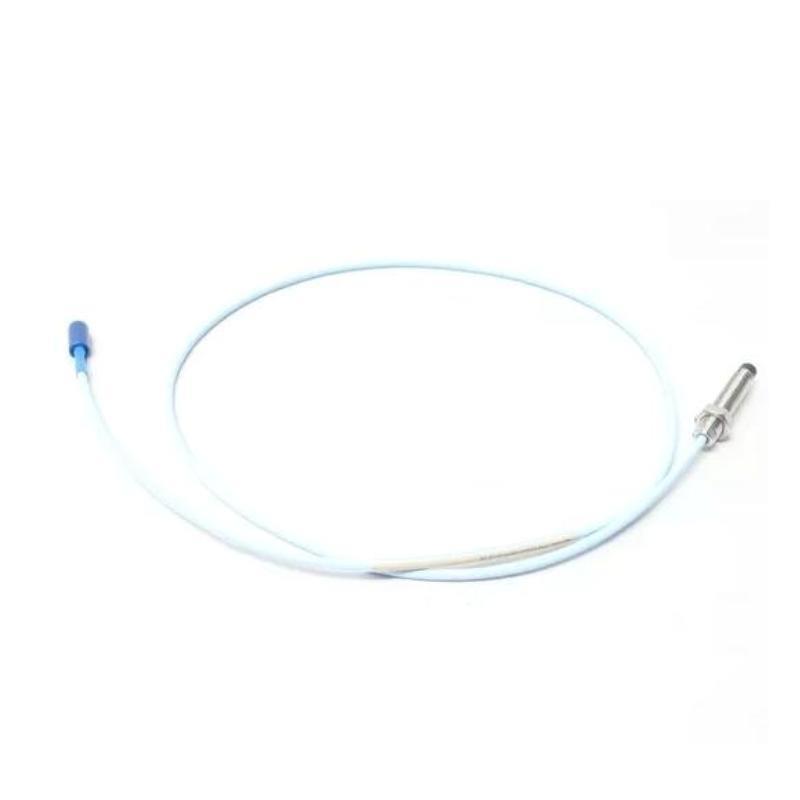

The Bently Nevada 330101-00-20-10-02-00 is a robust, non-contact proximity probe designed as part / the 3300 XL 8mm Proximity Transducer System, which has become the industry standard for shaft vibration and position monitoring in critical rotating machinery.
This particular model is built with a 20-foot unarmored coaxial cable, a metric M10x1 mounting thread, and a straight connector (02 type). The probe is factory calibrated to AISI 4140 steel, ensuring high accuracy and repeatability in industrial environments. It /fers API 670-compliant vibration monitoring performance and integrates seamlessly with 3300 XL extension cables and Proximitor® sensors.
With its 8 mm tip, rugged construction, and precise output, this probe is ideally suited for compressors, turbines, pumps, and other high-speed rotating equipment where continuous monitoring is vital for predictive maintenance and operational safety.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 Number | 330101-00-20-10-02-00 |
| Series | 3300 XL 8mm |
| Sensor Type | Eddy Current Proximity Probe (non-contact) |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Mounting Thread | M10x1 Metric |
| Connector Type | ClickLoc™ Coaxial Connector, Straight (02) |
| Body Style | Unarmored (non-armored cable configuration) |
| Target Material | AISI 4140 Steel (Factory Calibrated) |
| Measurement Range | Up to 2 mm (80 mils) |
| Sensitivity | -200 mV/mil (≈ -7.87 mV/μm) |
| Linearity | ±0.25% / full-scale over calibrated range |
| Operating Temp Range | -35°C to +177°C (-31°F to +350°F) |
| Minimum Cable Bend Radius | 25 mm (1 in) |
| Environmental Rating | IP65 (with proper sealing installation) |
| Compliance Standards | API 670, RoHS, CE |
| Total Length | 1 m |
| 重量 | 0.323 kg |
Applications
The 330101-00-20-10-02-00 proximity probe is specifically designed for continuous machinery protection and condition monitoring in heavy-duty rotating equipment. Common applications include:
-
Steam and Gas Turbines
Provides real-time vibration feedback for bearing and rotor condition. -
Centrifugal and Reciprocating Compressors
Detects shaft displacement and vibration to prevent catastrophic failures. -
Large Industrial Pumps
Monitors axial and radial movement, reducing bearing and seal wear. -
Electric Motors and Generators
Ensures alignment and balance, critical for high-speed rotating components. -
Gearboxes and Speed Reducers
Identifies misalignment, gear tooth damage, and lubrication issues. -
Thrust Position Monitoring
Accurately tracks axial shaft displacement to warn / thrust bearing degradation.
Product Advantages
-
High Accuracy and Sensitivity
Output / -200 mV/mil delivers precise measurement over wide ranges. -
Wide Operating Temperature
Reliable performance in extreme industrial environments up to 177°C. -
Modular Compatibility
Fully compatible with all 3300 XL extension cables and Proximitor sensors. -
Metric Mounting Flexibility
M10x1 thread facilitates easy integration in European and global systems. -
ClickLoc™ Connector System
Secures probe-to-cable connection under vibration and thermal cycling. -
Meets API 670 Standards
Trusted by OEMs and end-users in oil & gas, power generation, and refining. -
Maintenance Friendly
Easily replaceable and re-routable in the field without special tools.
常见问题 (FAQ)
1. What is the cable length / this model?
It has a 1.0 meter unarmored coaxial cable.
2. Is the probe calibrated to a specific material?
Yes, it is factory calibrated to AISI 4140 steel, commonly used for shafts.
3. Can this probe be used in high-temperature environments?
Absolutely. It is rated for continuous operation up to 177°C (350°F).
4. Is it compatible with older Proximitor sensors?
No, this probe is optimized for use with 3300 XL Proximitor sensors only.
5. What is the thread type and size?
The probe features an M10x1 metric mounting thread.
6. Can I use this probe for axial thrust measurement?
Yes, it’s suitable for both radial and axial shaft measurements.
7. Does it require frequent recalibration?
Typically no. Recalibration is not required unless environmental conditions change drastically.
8. How is the electrical connection made?
Via a ClickLoc™ straight coaxial connector for secure, tool-free installation.
9. What output does this sensor provide?
A voltage output / approximately -200 mV per mil / shaft movement.
10. What is the recommended mounting torque?
Mounting torque should follow Bently Nevada specifications—typically 5.6 N·m (50 in-lb) for M10 threads.
Related 型号s – 3300 XL or Functionally Similar
| 型号 Number | 描述 | Tip Size | Cable Length | Thread Type |
|---|---|---|---|---|
| 330101-00-15-10-02-00 | 3300 XL 8mm Probe, 15 ft, M10x1 thread, straight | 8 mm | 15 ft | M10x1 |
| 330101-00-10-10-02-00 | 3300 XL 8mm Probe, 10 ft, M10x1 thread | 8 mm | 10 ft | M10x1 |
| 330105-02-20-10-02-00 | Reverse Mount Probe, 20 ft, M10x1 | 8 mm | 20 ft | M10x1 |
| 330103-00-20-10-02-00 | 5mm Compact Probe, 20 ft | 5 mm | 20 ft | M8x1 |
| 330104-00-20-10-02-00 | High Temp 8mm Probe, 20 ft, M10x1 | 8 mm | 20 ft | M10x1 |
| 3300 XL NSv Probe | Small Bore Applications, variable configuration | 5 mm | Custom | N/A |
Popular Bently Nevada 型号s
| 型号 Number | Function | Series | Application | Mounting Type |
|---|---|---|---|---|
| 3500/22M | Transient Data Interface Module | 3500 Series | Machinery Protection & Monitoring | Rack-Mounted |
| 330180-90-00 | 3300 XL Proximitor Sensor | 3300 XL | Processes probe signal | Panel/DIN Rail |
| 330130-040-00 | 10 ft Extension Cable | 3300 XL | Probe-to-Proximitor connection | Inline |
| 330500-02-00 | Velocity Seismic Sensor | Seismic Series | Base vibration monitoring | Surface/Base-Mounted |
| 190501-00-00 | Accelerometer | Seismic Series | General-purpose machine monitoring | Stud or Adhesive Mount |
| 3500/42M | Dual Vibration Monitor | 3500 Series | Shaft & Bearing Monitoring | Rack-Mounted |
