产品介绍

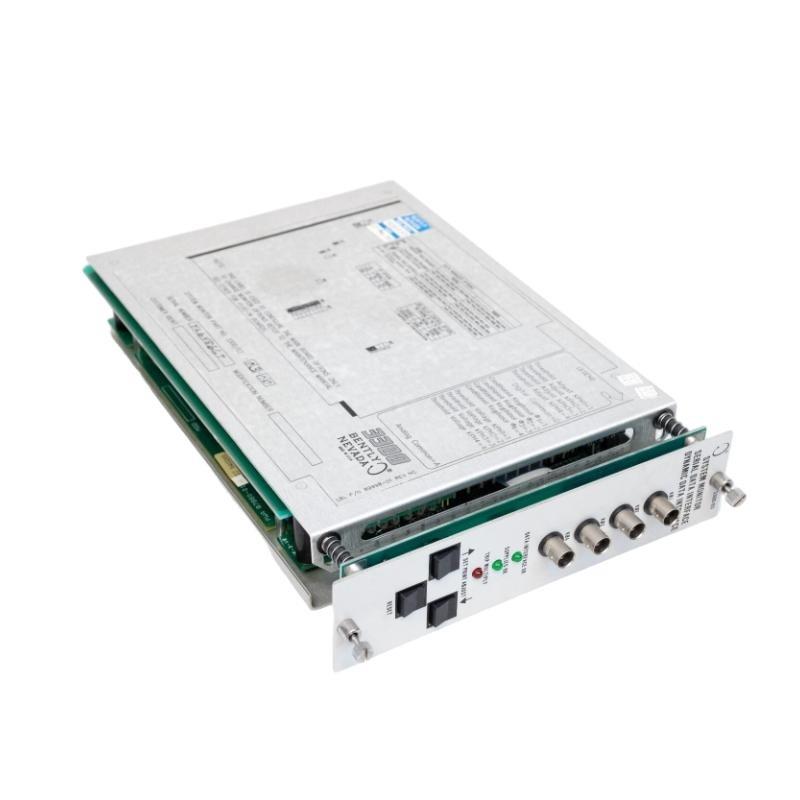

The Bently Nevada 3300/53-03-01-00-01 Overspeed Protection System is a high-performance overspeed detection and shutdown device designed for critical rotating machinery. It ensures safe and reliable operation by continuously monitoring shaft speed and initiating protective action when overspeed conditions are detected. Engineered for demanding environments such as power generation, oil and gas, and process industries, this system integrates advanced speed-sensing technology with redundant channels to meet stringent safety requirements. Its robust design and proven reliability make it a cornerstone for turbine, compressor, and motor protection applications.
产品规格
| Parameter | Details |
|---|---|
| 型号 | 3300/53-03-01-00-01 |
| Product Type | Overspeed Protection System |
| Input Channels | Triple redundant speed channels |
| Input Signal Type | From Keyphasor® or proximity probes |
| Speed Measurement Range | 0 to 20,000 RPM |
| Response Time | < 40 ms after overspeed detection |
| Trip Relays | Triple voting, fail-safe |
| Power Supply | 24 VDC or 110/220 VAC (depending on configuration) |
| Operating Temperature | -25°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Protection Class | IP65 (enclosure rated for harsh conditions) |
| Interface | Bently Nevada 3500 System compatible |
| Dimensions | 250 x 50 x 200 mm |
| 重量 | 1.8 kg |
| Certifications | CE, API 670 compliance, ISO 9001 |
Applications
-
Steam and Gas Turbines – Provides critical overspeed protection for turbine-driven systems.
-
Compressors – Ensures safe operation by preventing catastrophic overspeed failure.
-
Generators and Motors – Monitors and controls rotational speed during load variations.
-
Power Plants – Enhances safety in high-speed rotating machinery in power generation facilities.
-
Oil & Gas Processing – Essential for compressors and pumps in refineries and /fshore platforms.
-
Industrial Machinery – Used in critical manufacturing and process equipment for speed regulation.
Product Advantages
-
High Reliability: Triple-channel redundancy for fault tolerance.
-
Fast Response: Rapid trip action within milliseconds / overspeed detection.
-
Fail-Safe Design: Automatically defaults to a safe state on system failure.
-
Seamless Integration: Fully compatible with Bently Nevada 3500 monitoring systems.
-
Wide Operating Range: Suitable for a broad range / machinery speeds.
-
Regulatory Compliance: Meets API 670 standards for overspeed protection systems.
FAQ
1. How does the 3300/53 system detect overspeed conditions?
It uses input from Keyphasor® probes or proximity sensors to calculate shaft speed in real-time and compare it to preset trip thresholds.
2. What is the reaction time after detecting overspeed?
The system responds in less than 40 milliseconds to initiate a trip command.
3. How many input channels does the system support for redundancy?
It supports three independent speed measurement channels with 2-out-/-3 voting logic.
4. Can it integrate with the Bently Nevada 3500 Series system?
Yes, it is fully compatible with the 3500 monitoring and protection platform.
5. How does the trip logic work in the event / a single channel failure?
The system uses 2-out-/-3 voting logic, so a single channel failure will not cause a false trip.
6. What power supply options are available?
It can operate on either 24 VDC or 110/220 VAC depending on the configuration.
7. Does the system provide diagnostic information?
Yes, it includes built-in self-test and diagnostics for channel integrity and system health monitoring.
8. What type / speed input signals does it accept?
It accepts signals from Keyphasor® proximity probes or magnetic speed sensors.
9. Is the system compliant with API standards?
Yes, it meets API 670 standards for overspeed protection systems.
10. How is the overspeed setpoint configured?
Setpoints are programmed using the system interface or through the connected 3500 rack.
Related 型号s from the Same Series
| 型号 | 描述 | Key Feature |
|---|---|---|
| 3300/53-03-01-00-02 | Overspeed protection with extended diagnostics | Advanced self-test functions |
| 3300/53-03-02-00-01 | Dual-channel configuration | Lower redundancy for cost efficiency |
| 3300/53-03-03-00-01 | High-speed overspeed system | Up to 50,000 RPM support |
| 3300/53-03-01-01-01 | Enhanced communication version | Ethernet integration |
| 3300/53-03-01-00-03 | Overspeed system with hazardous approval | Zone 2/Div 2 certified |
| 3300/53-03-01-00-04 | Marine grade overspeed protection | For shipboard turbines |
Popular Bently Nevada 型号s
| 型号 | 描述 | Application |
|---|---|---|
| 3500/42M | Vibration and position monitoring module | Critical machinery protection |
| 3500/32M | Dynamic data collector for machinery monitoring | Advanced condition monitoring |
| 330130-040-00 | Proximity probe with 4 m cable | Shaft vibration and position monitoring |
| 330180-91-05 | Proximitor sensor module | Converts probe signals to voltage output |
| 3500/25 | Keyphasor module for phase reference | Speed and phase monitoring |
| 330400 | Industrial accelerometer for vibration analysis | High-speed machinery diagnostics |
