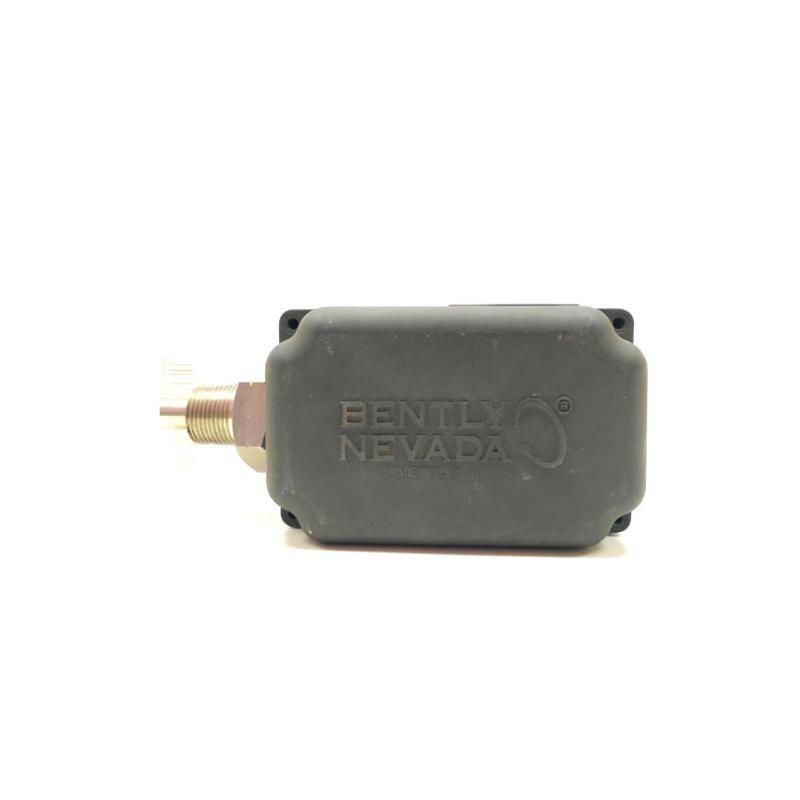

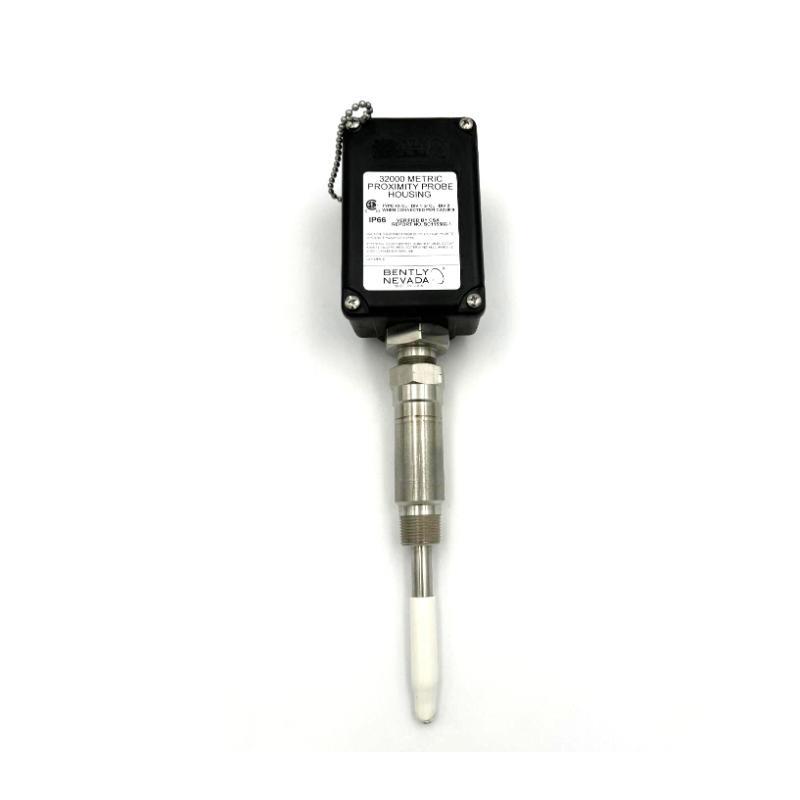

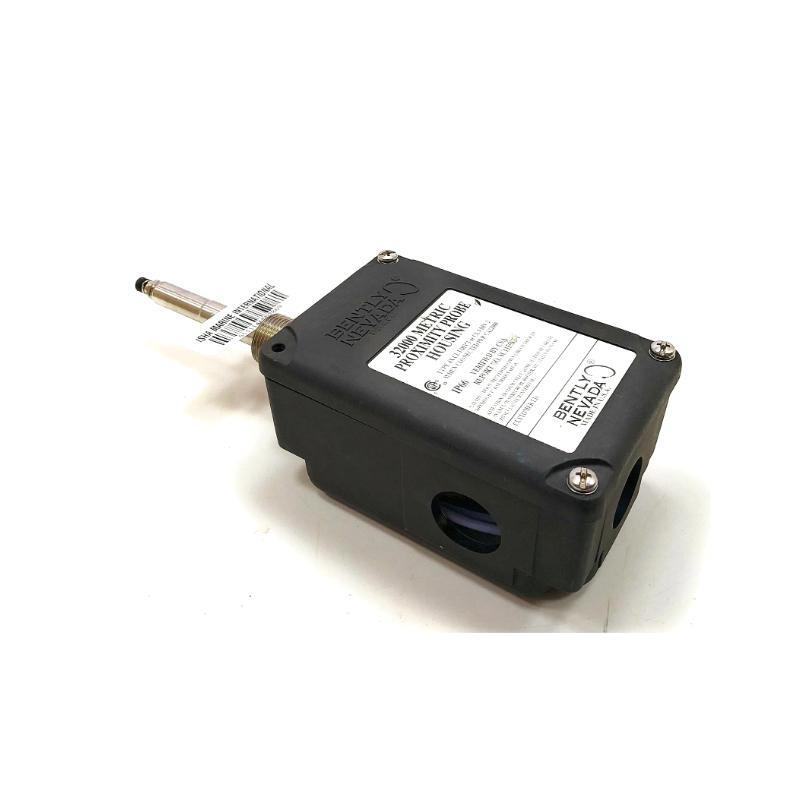

The Bently Nevada 32000-28-05-04-085-03-02 Proximity Probe Housing is a precision-engineered assembly designed to protect and mount the 3300 XL 8 mm proximity probes in demanding industrial environments. It ensures reliable shaft vibration and position measurements while maintaining environmental and mechanical protection standards. The housing is compliant with API 670 and /fers convenient probe access for maintenance without requiring machine disassembly.
Technical Specifications
| Parameter | Specification |
|---|---|
| Compatible Probe | 3300 XL 8 mm proximity probe with connector |
| Probe Cable Length | 0.5 m (20 in) |
| Stand/f Adapter | 40 mm |
| Probe Penetration | 85 mm |
| Fittings | 2 plugs, 1 × M20 fitting, cable seal grip with grommets |
| Mounting Thread | ¾-14 NPT |
| Housing Material | Glass-reinforced Polyphenylene Sulfide (PPS) with conductive fibers |
| Metal Components | AISI 304 stainless steel (sleeve & chain), AISI 303 stainless steel (screws) |
| O-Ring Material | Neoprene® |
| Impact Resistance | 4 J impact at −39 °C and +115 °C; 7 J impact at room temperature |
| Temperature Range | −51 °C to +105 °C (−60 °F to +221 °F) |
| Protection Rating | Type 4X (CSA), IP66, EN50014 electrostatic dissipation |
| Compliance | API 670, suitable for hazardous areas with approved barriers |
| Dimensions | Cable length 0.5 m, penetration 85 mm, stand/f 40 mm |
| 重量 | 1.2 kg |
Product Applications
This probe housing is widely applied in:
-
Steam turbines, gas turbines, and compressors
-
Pumps, motors, and rotating machinery in petrochemical plants
-
Critical process equipment requiring API 670 compliance
-
Environments requiring IP66 and Type 4X protection against dust, water, and corrosion
-
Hazardous area installations with intrinsically safe certified systems
Product Advantages
-
External Probe Access – Enables gap adjustment and probe replacement without opening the machine.
-
High Environmental Protection – IP66 and Type 4X ensure resistance to dust, water, and corrosion.
-
Impact & Temperature Durability – Certified resistance to harsh industrial impacts and temperatures.
-
API 670 Compliance – Meets global standards for machine protection systems.
-
Hazardous Area Compatibility – Designed for use in intrinsically safe systems.
-
Robust Construction – PPS housing with stainless steel components ensures long-term reliability.
FAQ
Q1: What type / probe is supported by this housing?
A1: It is designed for use with the 3300 XL 8 mm proximity probe.
Q2: Can the probe be adjusted without disassembling the machine?
A2: Yes, external access allows adjustment and replacement without disturbing machinery.
Q3: What is the probe penetration length?
A3: The penetration dimension is 85 mm.
Q4: Is this housing compliant with API 670 standards?
A4: Yes, it fully meets API 670 requirements for externally mounted probe housings.
Q5: What environmental protection does it provide?
A5: It is rated IP66 and Type 4X, ensuring resistance to dust, water jets, and corrosion.
Q6: Can it be used in hazardous areas?
A6: Yes, when installed with approved intrinsic safety barriers and certified systems.
Q7: What is the operating temperature range?
A7: −51 °C to +105 °C (−60 °F to +221 °F).
Q8: What materials are used in construction?
A8: Housing is PPS with conductive fibers; fittings and sleeves are stainless steel; O-ring is Neoprene®.
Q9: What mounting thread is available?
A9: The mounting thread is ¾-14 NPT.
Q10: What is the weight / the assembly?
A10: The total weight is approximately 1.2 kg.
Related 型号s in the Same Series
| 型号 Number | Probe Cable Length | Penetration | Stand/f | Thread Type | 重量 |
|---|---|---|---|---|---|
| 32000-28-05-04-085-03-02 (this model) | 0.5 m | 85 mm | 40 mm | ¾-14 NPT | 1.2 kg |
| 32000-28-05-05-110-03-02 | 0.5 m | 110 mm | 50 mm | ¾-14 NPT | 1.3 kg |
| 32000-16-05-00-080-03-02 | 0.5 m | 80 mm | No | ¾-14 NPT | 1.1 kg |
| 32000-25-05-03-100-03-02 | 0.5 m | 100 mm | 30 mm | ¾-14 NPT | 1.25 kg |
| 32000-26-05-02-090-03-02 | 0.5 m | 90 mm | 20 mm | ¾-14 NPT | 1.2 kg |
| 32000-27-05-06-120-03-02 | 0.5 m | 120 mm | 60 mm | ¾-14 NPT | 1.35 kg |
Popular Bently Nevada 型号s
| 型号 Number | Product Type | Key Features | 重量 |
|---|---|---|---|
| 330104-00-06-10-11-00 | 3300 XL 8 mm Proximity Probe | 6 m cable, robust design | 0.25 kg |
| 330104-00-06-50-01-00 | 3300 XL 8 mm Proximity Probe | 6 m cable, API 670 compliance | 0.25 kg |
| 330180-91-CN | 3300 XL Proximitor Sensor | China-certified version, hazardous use | 0.45 kg |
| 330106-05-30-10-02-00 | 3300 XL Extension Cable | 5 m length, high EMI resistance | 0.30 kg |
| 330850-90-05 | Seismic Velocity Sensor | Rugged housing, wide frequency response | 0.50 kg |
| 3500/22M | Transient Data Interface Module | Data acquisition for 3500 system | 0.75 kg |
