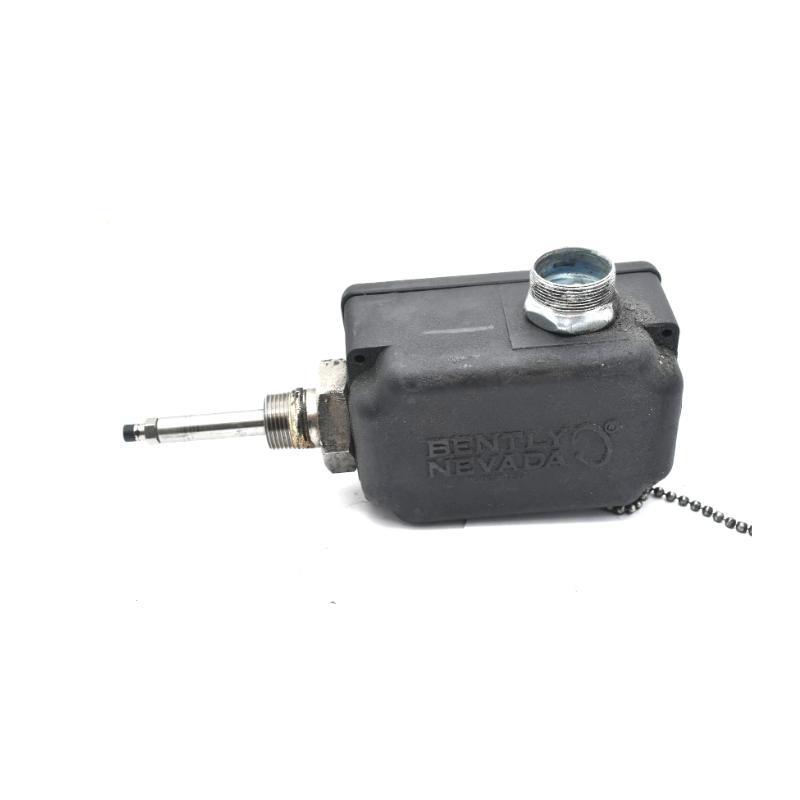

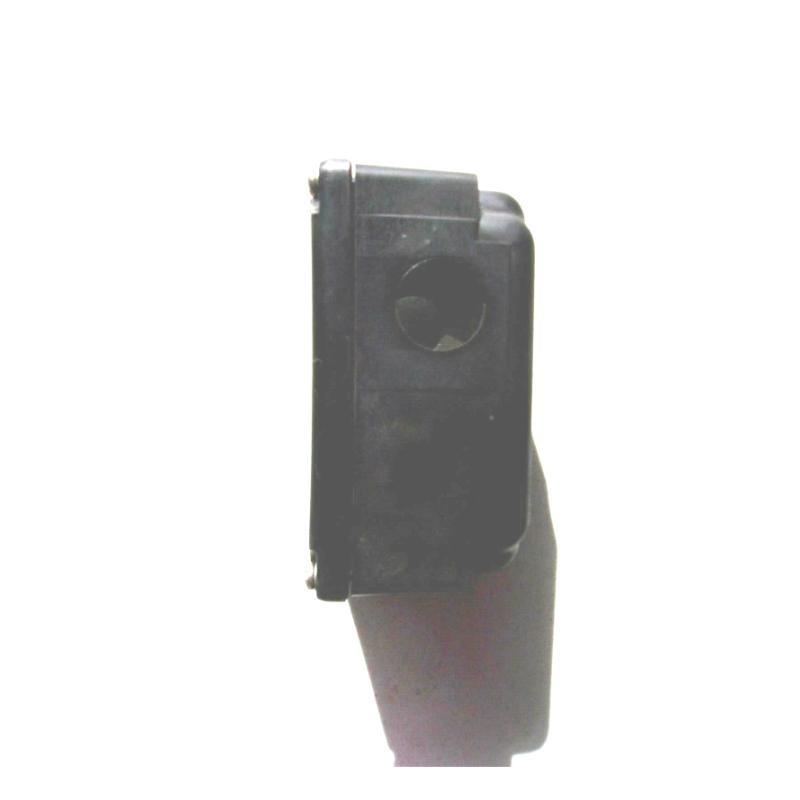

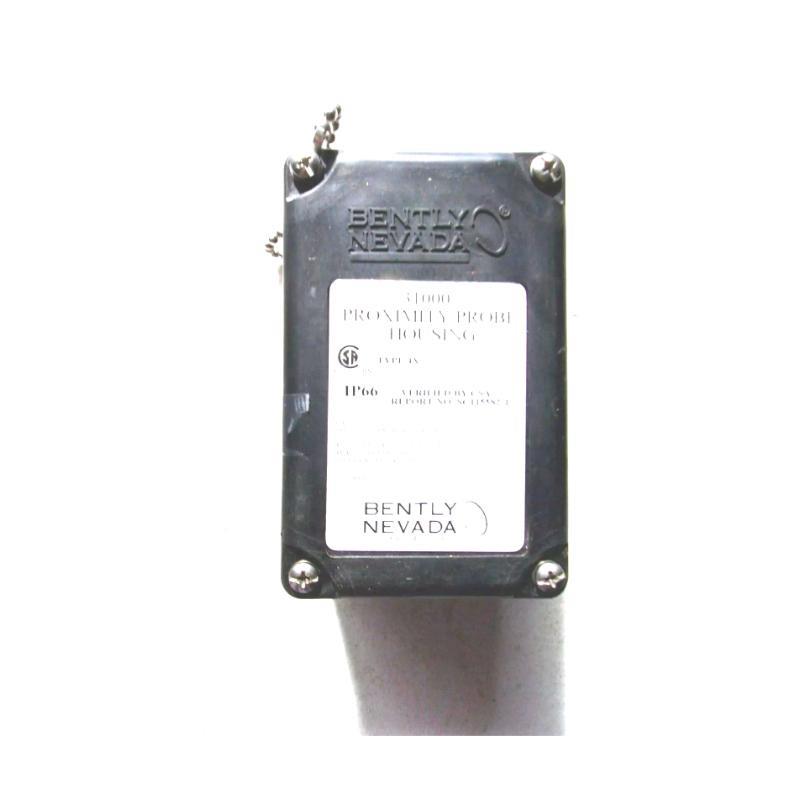

The Bently Nevada 31000-29-05-00-090-01-02 Proximity Probe Housing is designed for radially mounted proximity probes used in vibration and Keyphasor measurements. It /fers robust mechanical and environmental protection for the probe system and enables easy gap adjustment and replacement without removing the machine casing. This model includes a 3300 XL 8 mm probe, 0.5-meter cable, and PPS housing compliant with API 670.
Product Applications
-
Radial vibration monitoring on rotating machinery
-
Shaft position detection in turbines and compressors
-
Keyphasor signal detection for phase referencing
-
Use in hazardous and industrial environments
-
Suitable for external probe mounting in confined machine installations
Product Advantages
-
External probe access allows quick maintenance
-
PPS thermoplastic housing /fers excellent corrosion resistance
-
Compliant with API 670 standards
-
IP66 and NEMA 4X rated for environmental protection
-
Certified impact resistance for rugged conditions
-
Simplifies probe replacement and gap adjustment
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm with connector protector |
| Probe Cable Length | 0.5 meter |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Storage Temperature | -51°C to +177°C (-60°F to +351°F) |
| Housing Material | Glass-reinforced PPS with conductive fibers |
| Sleeve/Chain Material | AISI 304 Stainless Steel |
| External Screws Material | AISI 303 Stainless Steel |
| O-Ring Material | Neoprene & Viton |
| Enclosure Rating | IP66, Type 4X |
| Impact Strength | 7 Joules (CSA Certified) |
| Pressure Rating | NEMA 4X and IP66 (external sealing only) |
| Compliance | API 670 |
| Dimensions (approx.) | C+D Option: 394 mm max (0.5 m cable) |
| 重量 | 1.2 kg (2.6 lbs) |
常见问题 (FAQ)
Q1: What is the main function / the 31000-29-05-00-090-01-02 housing?
A1: It protects the proximity probe and allows external access for gap adjustment and probe replacement.
Q2: Is this housing compliant with industrial standards?
A2: Yes, it meets API 670 and is rated IP66/NEMA 4X for environmental protection.
Q3: Can this housing be used in hazardous areas?
A3: Yes, when paired with an approved transducer system and I.S. barriers.
Q4: What material is used in the construction?
A4: The housing is made from glass-reinforced polyphenylene sulfide (PPS), with stainless steel components.
Q5: What is the temperature range?
A5: -51°C to +177°C for both operation and storage.
Q6: Does it support Keyphasor measurements?
A6: Yes, it is suitable for Keyphasor and radial vibration transducers.
Q7: What kind / probe does this model include?
A7: A 3300 XL 8 mm proximity probe with connector protector.
Q8: How long is the probe cable in this configuration?
A8: 0.5 meters (20 inches).
Q9: What type / environmental sealing does it provide?
A9: It is sealed against hose-directed water and /fers IP66 protection.
Q10: Is it explosion-pro/?
A10: No, for explosion-pro/ needs, use models like CA21000 or CA24701.
Related 型号s in the Same Series
| 型号 Number | Probe Type | Cable Length | 重量 | Notes |
|---|---|---|---|---|
| 31000-28-05-00-060-01-02 | 3300 XL 8 mm | 0.5 m | 1.2 kg | With multiple approvals |
| 31000-29-10-00-120-01-02 | 3300 XL 8 mm | 1.0 m | 1.3 kg | With connector protector |
| 31000-30-10-00-120-01-02 | 3300 XL 8 mm | 1.0 m | 1.3 kg | With multiple approvals + CP |
| 31000-26-05-00-060-01-02 | 3300 XL NSv | 0.5 m | 1.2 kg | For small targets |
| 31000-33-05-00-100-01-02 | 3300 XL 11 mm | 0.5 m | 1.2 kg | Larger tip for long gaps |
| 31000-36-10-00-150-01-02 | 3300 XL 11 mm | 1.0 m | 1.3 kg | Multiple approvals + CP |
Popular Bently Nevada 型号s
| 型号 Number | 描述 | Application | 重量 |
|---|---|---|---|
| 3300 XL 8 mm Probe | Proximity probe for radial vibration | General machinery monitoring | 0.1 kg |
| 3500/42M | Proximitor Seismic Monitor | Vibration monitoring in turbines | 1.5 kg |
| 3500/22M | Transient Data Interface Module | High-speed data acquisition | 1.4 kg |
| 3500/15 | Power Supply Module | Powers the 3500 system | 0.8 kg |
| 330104-00-06-10-11-00 | 8 mm Proximity Probe | Shaft vibration and position | 0.2 kg |
| 330130-085-00-00 | Extension Cable | Probe-to-monitor connectivity | 0.3 kg |
