The Bently Nevada 24765-01-01 is a precision case expansion transducer assembly designed for industrial machinery monitoring. It converts mechanical displacement due to thermal expansion / machinery casings into an electrical signal suitable for vibration and condition monitoring systems. This transducer is ideal for use with turbines, compressors, pumps, and other rotating equipment where accurate measurement / casing expansion is critical for predictive maintenance and performance optimization.

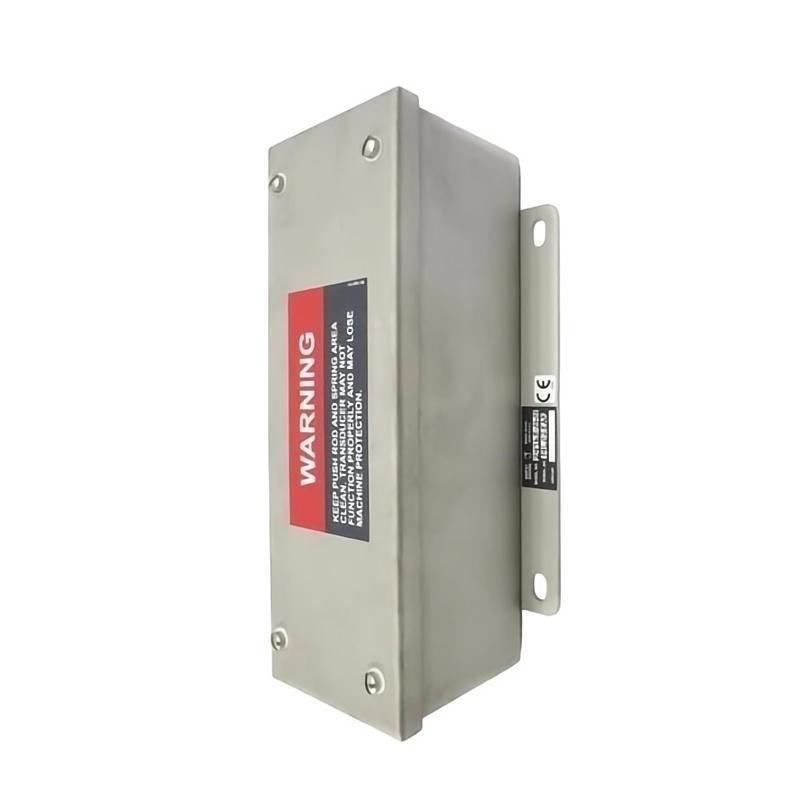

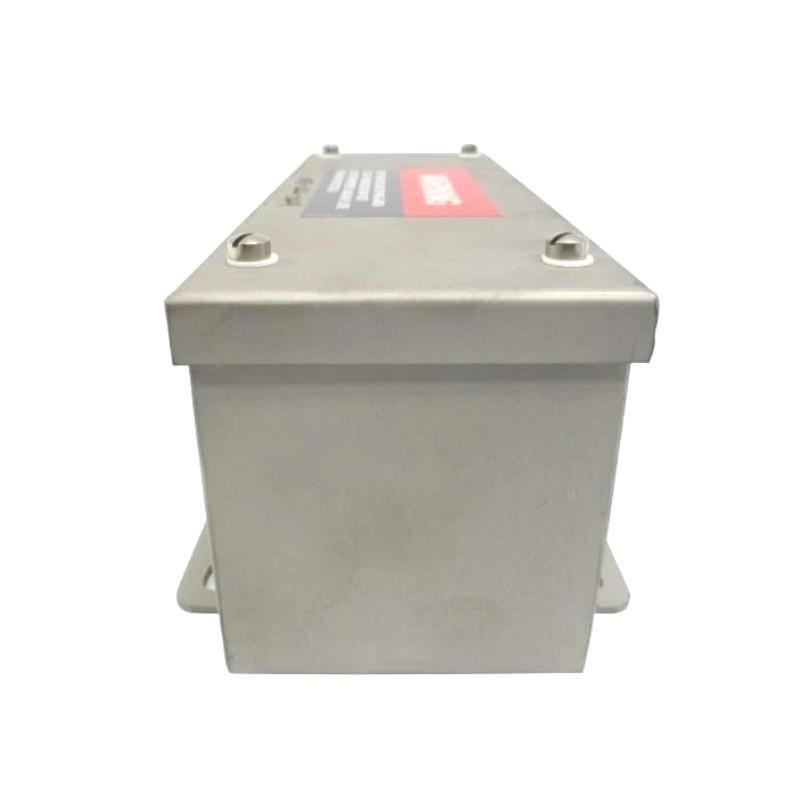

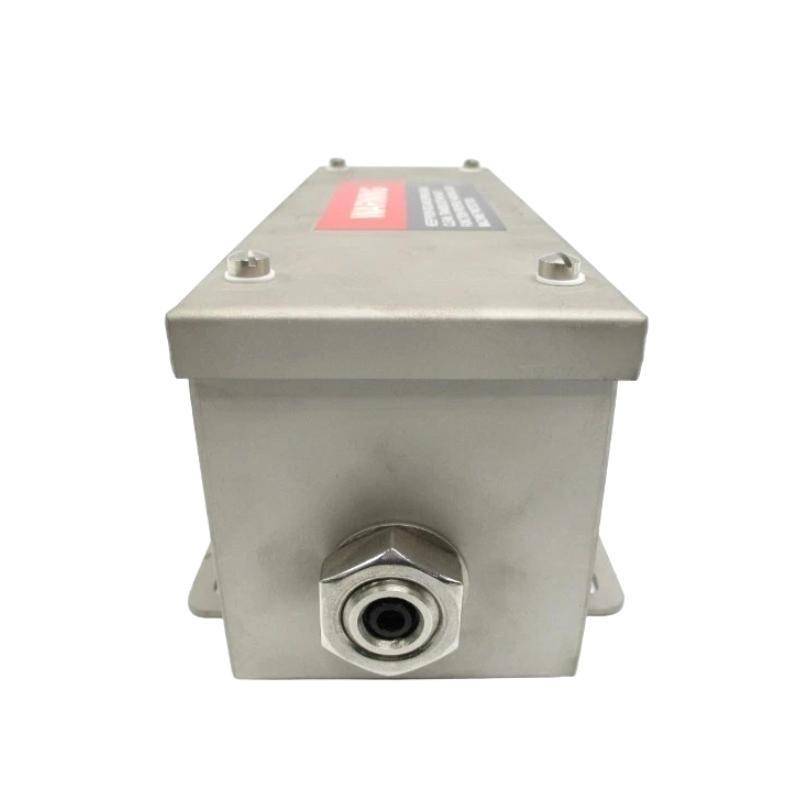

The 24765-01-01 features robust construction with a stainless steel housing and high-precision internal sensing elements. It is engineered to provide stable and repeatable output under varying operational conditions, including temperature changes and vibration. The device integrates seamlessly with Bently Nevada monitoring systems, helping operators detect misalignment, thermal growth, and potential mechanical issues before they result in costly failures.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | 24765-01-01 |
| Type | Case Expansion Transducer Assembly |
| Measurement Principle | Linear Variable Differential Transformer (LVDT) |
| Dimensions | 88.9 x 117 x 241 mm |
| Output Signal | 4–20 mA DC |
| Electrical Scale Factor | 0.346 V/mm (8.79 V/in) |
| Operating Temperature | -18°C to +71°C |
| Input Voltage | 24 VDC nominal |
| Protection Rating | IP65/IP66 |
| Mounting Type | Flange or stud mounting |
| Housing Material | Stainless steel |
| 重量 | 2.3 kg |
| Response Frequency | Up to 5 kHz |
| Certifications | CE, RoHS |
Product Applications
-
Turbomachinery: Monitor casing expansion to detect misalignment and thermal growth.
-
Compressors and Pumps: Detect early signs / mechanical stress or expansion-related issues.
-
Industrial Rotating Equipment: Real-time measurement for predictive maintenance.
-
Power Generation: Track thermal expansion in turbines and generator housings.
-
Process Plants: Integration with machinery monitoring systems for continuous condition assessment.
-
Research and Testing: Measure thermal behavior and mechanical displacement in test setups.
Product Advantages
-
High precision measurement ensures reliable detection / minor expansions.
-
Robust stainless steel housing protects against environmental stresses.
-
Compatible with Bently Nevada monitoring systems for easy integration.
-
Wide operating temperature range ensures consistent performance under industrial conditions.
-
IP65/IP66 rated for dust and moisture protection.
-
支持s predictive maintenance, minimizing unplanned downtime.
FAQ
-
What is the main function / the 24765-01-01 transducer?
It measures casing expansion and converts it into an electrical signal for condition monitoring systems. -
Which types / equipment can use this transducer?
Turbines, compressors, pumps, and other rotating machinery. -
What type / output does it provide?
4–20 mA DC signal compatible with monitoring systems. -
What is the linear measurement range?
25.4 mm (1.00 in), suitable for typical industrial casing expansions. -
What is the operating temperature range?
-18°C to +71°C for reliable performance under industrial conditions. -
How fast can the transducer respond to changes?
Up to 5 kHz, enabling real-time monitoring / rapid mechanical changes. -
How is it mounted?
Flange or stud mounting depending on the machinery interface. -
How does it support predictive maintenance?
It provides real-time expansion data, helping detect early signs / misalignment or thermal growth. -
What level / environmental protection does it have?
IP65/IP66, protecting against dust and water. -
Can it integrate with other monitoring systems?
Yes, the 4–20 mA output can be used with other compatible analog monitoring systems.
Related 型号s (Same Series or Similar Function)
| 型号 | 描述 |
|---|---|
| 24765-01-00 | Standard Case Expansion Transducer Assembly |
| 24765-02-00 | High-sensitivity Case Expansion Transducer |
| 24765-03-00 | Dual-channel Case Expansion Transducer |
| 24765-04-00 | High-temperature Case Expansion Transducer |
| 24765-05-00 | Compact Case Expansion Transducer |
| 24765-06-00 | Explosion-pro/ Case Expansion Transducer |
