产品介绍

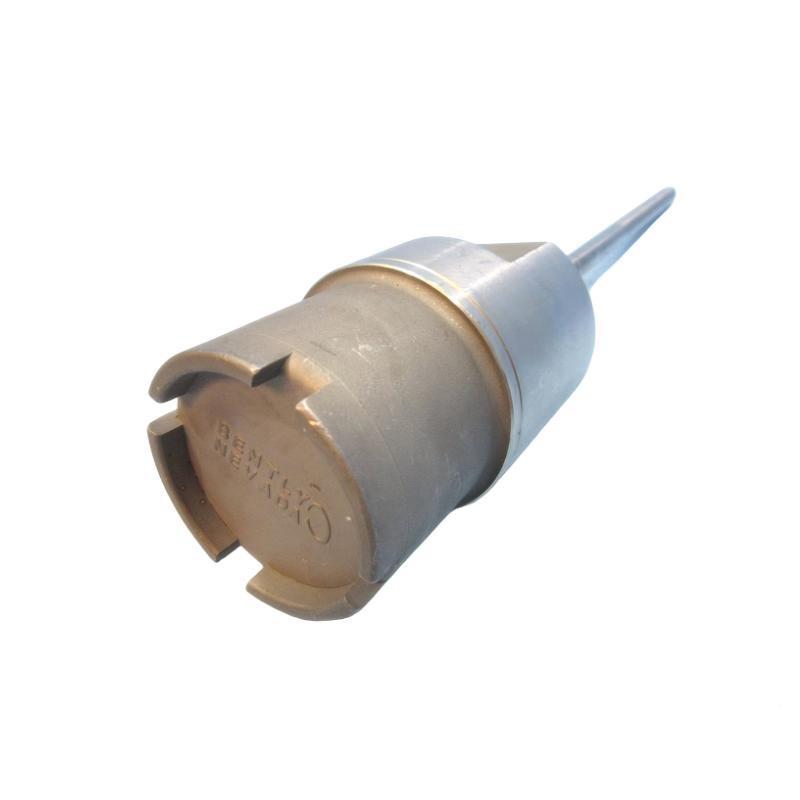

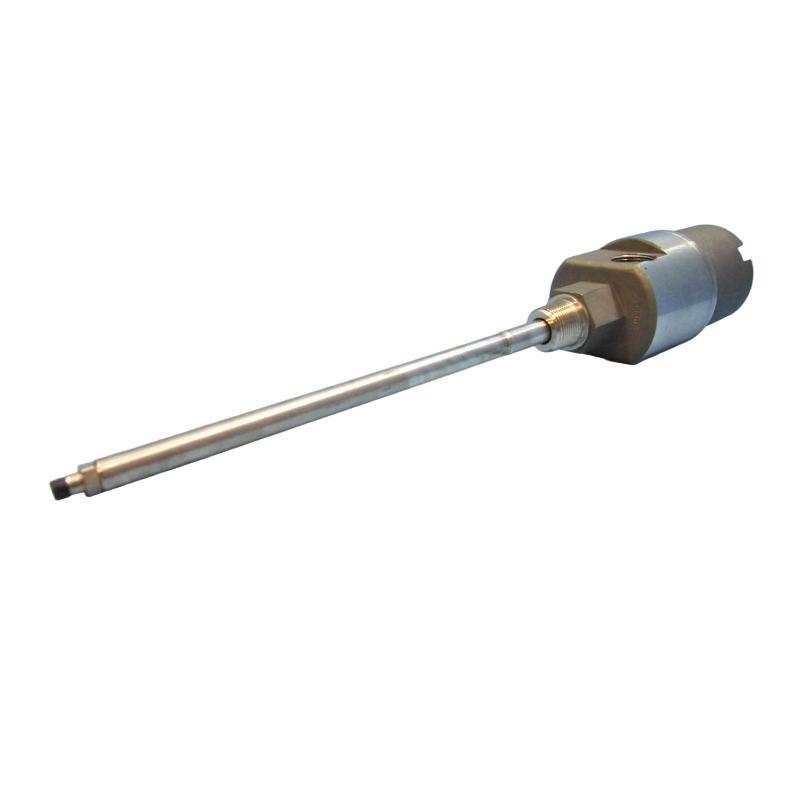

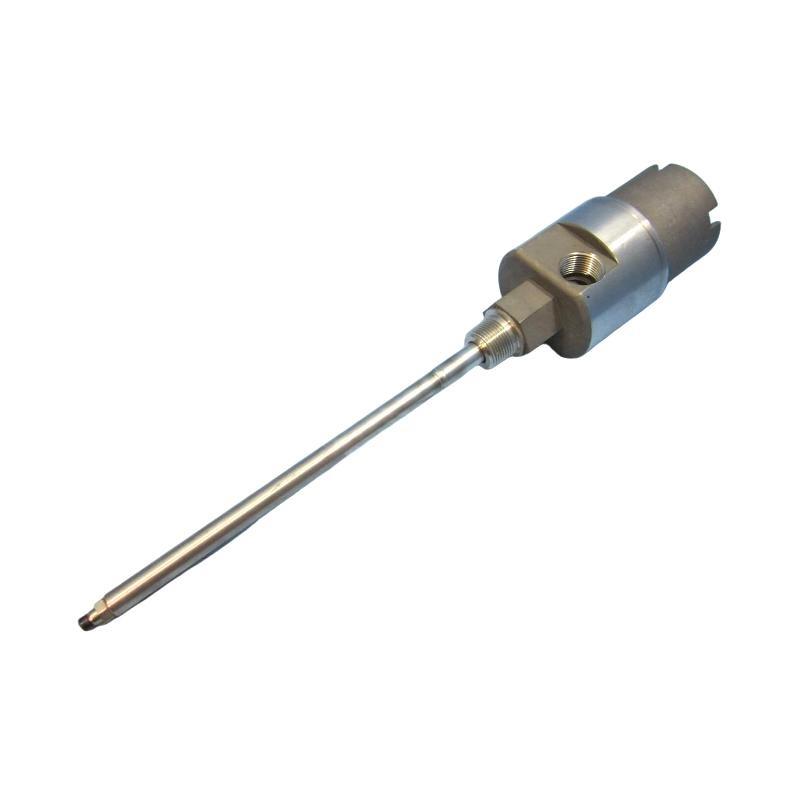

The Bently Nevada 24701-16-10-00-090-00-01 Proximity Probe Housing Assembly is a robust and precision-engineered enclosure designed for protecting proximity probes used in machinery condition monitoring systems. This housing assembly ensures accurate vibration and shaft position measurements by providing a controlled and stable environment for probes, shielding them from dust, moisture, oils, and mechanical impacts. It is engineered for use in demanding industrial settings such as power plants, turbines, compressors, and pumps, where reliability and measurement accuracy are critical. The design supports easy installation, secure mounting, and maintenance accessibility, enabling uninterrupted monitoring / critical rotating equipment.
产品规格
| Parameter | Value |
|---|---|
| 型号 | 24701-16-10-00-090-00-01 |
| Product Type | Proximity Probe Housing Assembly |
| Material | Corrosion-resistant stainless steel |
| Environmental Protection | IP65 |
| Operating Temperature Range | -40°C to +100°C |
| Mounting Style | Flange mount with secure locking |
| Cable Entry | Sealed for armored and flexible cables |
| Shock Resistance | Up to 50 g |
| Vibration Resistance | Up to 20 g peak |
| Housing Body Diameter | 78.2 mm |
| 重量 | 1.8 kg |
Applications
The 24701-16-10-00-090-00-01 housing assembly is widely used in:
-
Steam and Gas Turbines: Protecting probes that monitor shaft vibration and position.
-
Compressors and Pumps: Ensuring probe stability in heavy-duty rotating machinery.
-
Power Plants: Maintaining accurate measurement / critical machinery in thermal, hydro, and nuclear plants.
-
Oil & Gas Industry: Suitable for harsh /fshore and onshore environments.
-
Industrial Manufacturing: Applied in motors, fans, and gearboxes requiring continuous monitoring.
Advantages
-
Superior Probe Protection: Provides robust shielding against dust, moisture, and mechanical impact.
-
High Durability: Stainless steel construction ensures resistance to corrosion and harsh environmental conditions.
-
Measurement Accuracy: Maintains precise probe alignment for reliable vibration and position readings.
-
Flexible Installation: Compatible with multiple cable types and mounting configurations.
-
Shock and Vibration Resistant: Designed to withstand up to 50 g shock and 20 g vibration.
-
Reduced Maintenance: Long-lasting design minimizes the need for frequent maintenance.
-
Enhanced System Reliability: Helps prevent false readings and potential unplanned downtime.
FAQ
-
What types / probes are compatible with this housing?
It supports Bently Nevada 8 mm and 11 mm proximity probes. -
Does the housing affect the signal integrity / the probe?
No, the design ensures accurate measurements without interference. -
What is the environmental protection rating?
The housing provides IP65 protection, ensuring it is dust-tight and water-resistant. -
Can this housing be used in hazardous areas?
Yes, with certified configurations, it can be used in hazardous industrial environments. -
What is the operating temperature range?
The housing operates from -40°C to +100°C. -
How much vibration can the housing withstand?
It is designed to resist up to 20 g peak vibration. -
What is the shock resistance capability?
The housing can handle shocks / up to 50 g. -
Does the housing support flexible cable routing?
Yes, it accommodates both armored and flexible cables with sealed entry points. -
How does the housing maintain probe alignment?
Precision-machined mounting points ensure proper probe positioning. -
Is maintenance required for this housing?
Minimal maintenance is needed, usually limited to periodic inspection / seals and cable entry integrity.
Related 型号s from the Same Series
| 型号 Number | 描述 |
|---|---|
| 24701-16-10-00-037-00-01 | Standard proximity probe housing assembly |
| 24701-16-10-00-083-00-01 | Heavy-duty housing assembly |
| 24701-12-09-00-040-00-01 | Compact housing for restricted installations |
| 24702-18-11-00-045-00-02 | Extreme environment housing assembly |
| 24703-20-12-00-050-00-01 | Dual-probe housing assembly |
| 24700-15-08-00-035-00-01 | General-purpose housing assembly |
Popular 型号s from the Same 品牌
| 型号 Number | 描述 |
|---|---|
| 3300 XL 8 mm Probe | High-performance proximity probe for general machinery |
| 3300 XL 11 mm Probe | Extended range proximity probe |
| 3500/22M | Communication module for monitoring systems |
| 3500/42M | Vibration monitoring module |
| 3500/32M | Dynamic pressure and vibration monitoring |
| 7200 Series Probe | Standard proximity probe for legacy systems |
