Product Overview

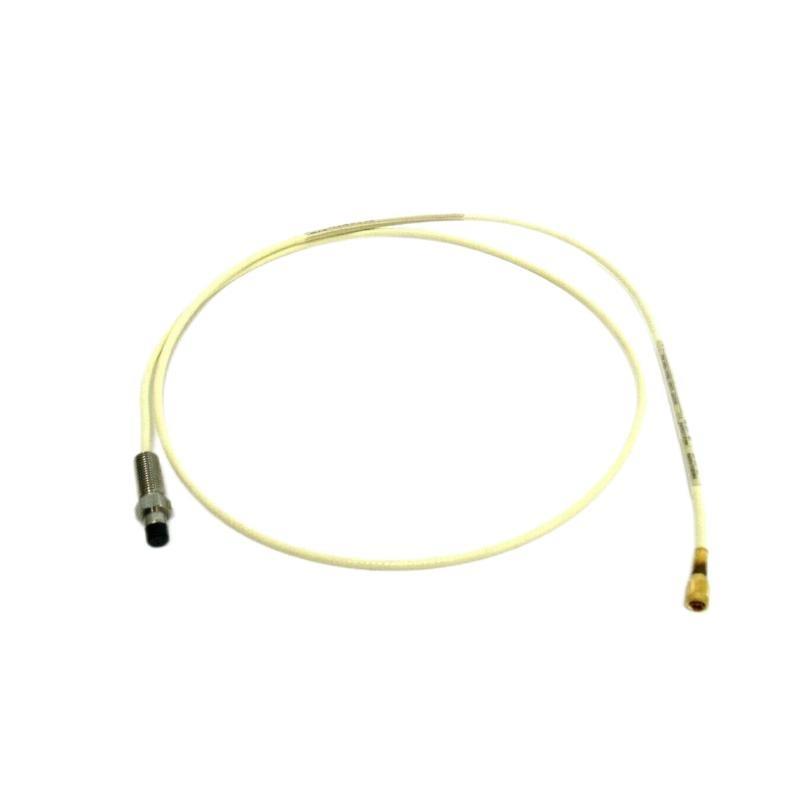

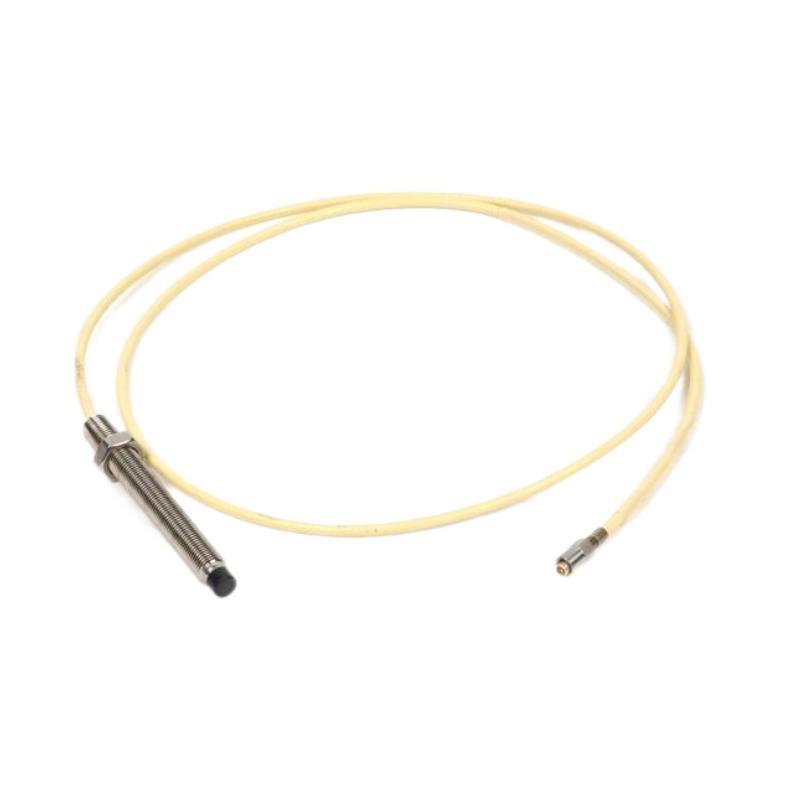

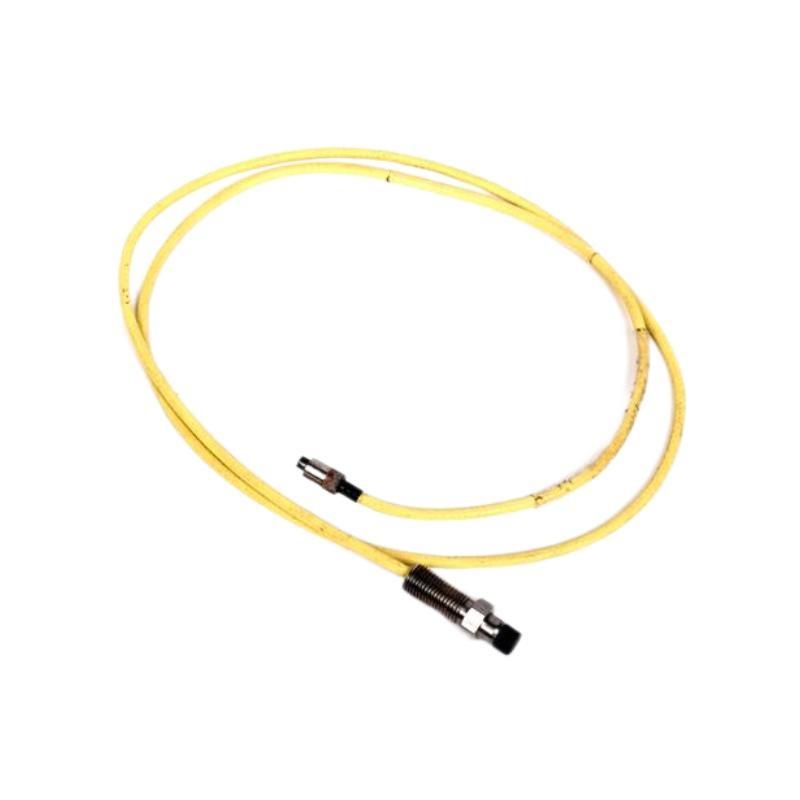

The Bently Nevada 21504-00-12-10-02 is a part / the 7200 series proximity probe systems. This specific model is an 8mm Standard Mount Probe, meticulously engineered for non-contact vibration and displacement measurements in critical rotating machinery. Known for its robustness and precision, it is widely adopted in applications that demand high-reliability monitoring solutions such as turbines, compressors, pumps, and motors in oil & gas, power generation, and industrial sectors.
This probe is designed to meet the stringent API 670 standards, providing exceptional signal stability and durability in harsh environments. The 21504-00-12-10-02 model features a standard thread mount for secure installation and is compatible with both the 7200 series proximitor sensors and extension cables. It delivers accurate measurements over a wide range / operating conditions, making it a preferred choice among maintenance and reliability engineers worldwide.
Technical Specifications
| Parameter | Details |
|---|---|
| 型号 | 21504-00-12-10-02 |
| Series | 7200 Series |
| Type | 8mm Standard Mount Probe |
| Sensing Technology | Eddy Current / Non-contact |
| Probe Tip Diameter | 8 mm |
| Mounting Type | Standard Threaded Mount |
| Thread Size | 3/8-24 UNF-2A |
| Total Length | 1.0 meter |
| Connector Type | Miniature coaxial connector |
| Operating Temperature Range | -35°C to +175°C (-31°F to +347°F) |
| Sensitivity | 200 mV/mil (7.87 mV/μm) |
| Linearity Range | 0.25 to 2.0 mm (10 to 80 mils) |
| System Accuracy | ±5% / full-scale output |
| Frequency Response | 0 to 10 kHz (-3 dB) |
| Material (Probe Housing) | AISI 303 Stainless Steel |
| 重量 | 0.22 kg |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Ingress Protection | IP65 when properly installed |
| Compliant Standards | API 670, CE, RoHS |
Applications
The 21504-00-12-10-02 probe is versatile and finds its utility in several high-value and high-risk machinery monitoring applications, including:
-
Steam and gas turbines (vibration and axial position monitoring)
-
Centrifugal compressors (shaft vibration and thrust position)
-
Electric motors and generators (rotor dynamics observation)
-
Pumps and fans (vibration and dynamic displacement analysis)
-
Gearboxes (shaft monitoring for early fault detection)
-
Industrial process equipment with rotating elements
The non-contact nature / the probe makes it ideal for continuous, long-term monitoring where probe-to-target interaction must be avoided.
Product Advantages
-
Precision Engineering: High-resolution sensing / shaft vibration and displacement with proven eddy current technology.
-
API 670 Compliance: Ensures compatibility with global industry standards for critical machinery protection systems.
-
Wide Compatibility: Integrates seamlessly with 7200 series proximitor sensors and extension cables.
-
Robust Construction: Corrosion-resistant stainless-steel housing and rugged tip for operation in harsh environments.
-
High Sensitivity & Accuracy: Stable 200 mV/mil output with low noise and minimal temperature drift.
-
Reliable in Harsh 状态s: IP65-rated for protection against dust and water ingress.
-
Ease / Installation: Threaded mount for easy field replacement and secure positioning.
-
Long-Term Operation: Engineered for continuous monitoring applications with minimal degradation over time.
-
Customizable Configurations: 可用 in multiple lengths and thread options upon request.
-
Global Field 支持: Backed by Bently Nevada’s strong technical support and diagnostic tools.
常见问题 (FAQ)
-
Q: What is the sensing principle / the 21504-00-12-10-02 probe?
A: It uses eddy current technology for non-contact measurement / shaft position and vibration. -
Q: Can this probe be used in high-temperature environments?
A: Yes, it is rated for continuous operation up to +175°C. -
Q: Is the probe compatible with other series proximitor sensors?
A: It is specifically designed to work with Bently Nevada 7200 series proximitor sensors. -
Q: What is the primary difference between 8mm and 5mm probes?
A: 8mm probes /fer a larger sensing area and are typically used in industrial and heavy-duty applications, whereas 5mm is suited for compact spaces. -
Q: How is the probe typically mounted?
A: It uses a threaded mount (3/8-24 UNF) to ensure secure installation. -
Q: What kind / signal output does it generate?
A: It provides a linear voltage output / 200 mV/mil. -
Q: Does the probe require calibration after installation?
A: While factory-calibrated, system calibration with proximitor and extension cable is recommended for accuracy. -
Q: Is the probe resistant to oil and chemicals?
A: Yes, the stainless steel housing and PPS tip are chemically resistant. -
Q: Can the probe be ordered in different lengths?
A: Yes, customized lengths are available based on system requirements. -
Q: What is the recommended gap between the probe tip and target surface?
A: The typical target-to-probe gap is 1.0 mm (40 mils), adjustable based on proximitor settings.
Related 型号s from the Same Series
| 型号 Number | 描述 | Probe Tip Diameter | Cable Length | Thread Size |
|---|---|---|---|---|
| 21504-00-05-10-02 | 7200 8mm Probe, 5-inch cable | 8 mm | 5 inches | 3/8-24 UNF |
| 21504-00-08-10-02 | 7200 8mm Probe, 8-inch cable | 8 mm | 8 inches | 3/8-24 UNF |
| 21504-00-18-10-02 | 7200 8mm Probe, 18-inch cable | 8 mm | 18 inches | 3/8-24 UNF |
| 21504-00-12-01-02 | 7200 8mm Probe, BNC connector variant | 8 mm | 12 inches | 3/8-24 UNF |
| 21504-00-12-10-01 | 7200 8mm Probe, standard mount, shielded cable | 8 mm | 12 inches | 3/8-24 UNF |
| 330101-00-12-10-02 | 3300 XL 8mm Probe, compatible with newer systems | 8 mm | 12 inches | 3/8-24 UNF |
Popular Bently Nevada 型号s
| 型号 Number | 描述 | Function | Series |
|---|---|---|---|
| 330104-00-05-10-02 | 3300 XL 8mm Probe | Vibration monitoring | 3300 XL Series |
| 330130-040-00 | Extension Cable for 3300 XL | Extension cable | 3300 XL |
| 330180-91-05 | 3300 XL NSv Probe | Small target applications | 3300 XL NSv |
| 330400-01-05 | Proximitor Sensor for 3300 XL series | Signal conditioning | 3300 XL |
| 3500/42M | Proximitor Monitor Module | Vibration monitoring and diagnostics | 3500 Series |
| 3500/22M | Transient Data Interface Module | System communication and diagnostics | 3500 Series |
