产品介绍

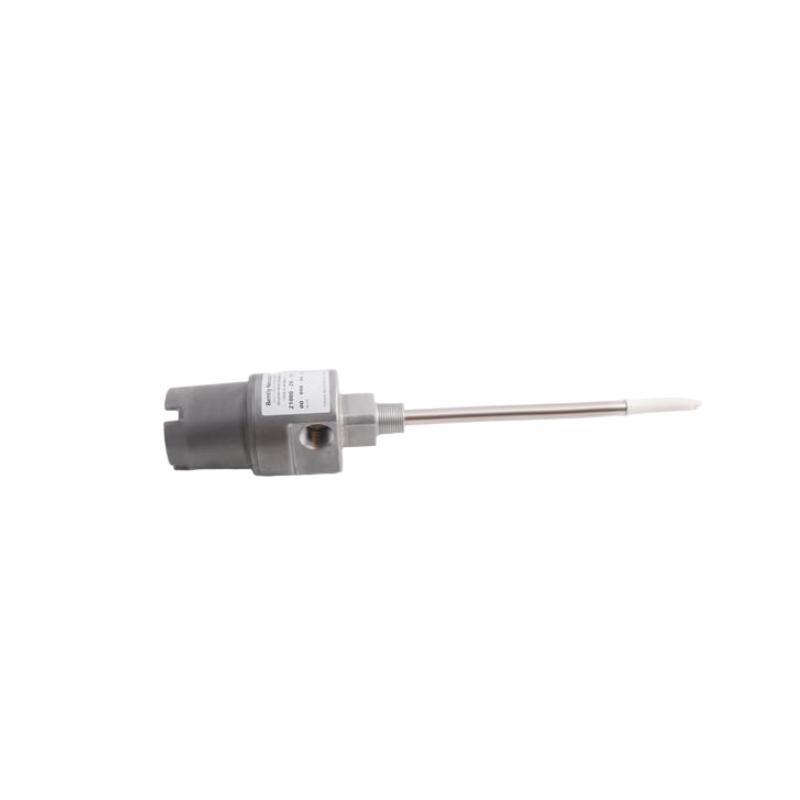

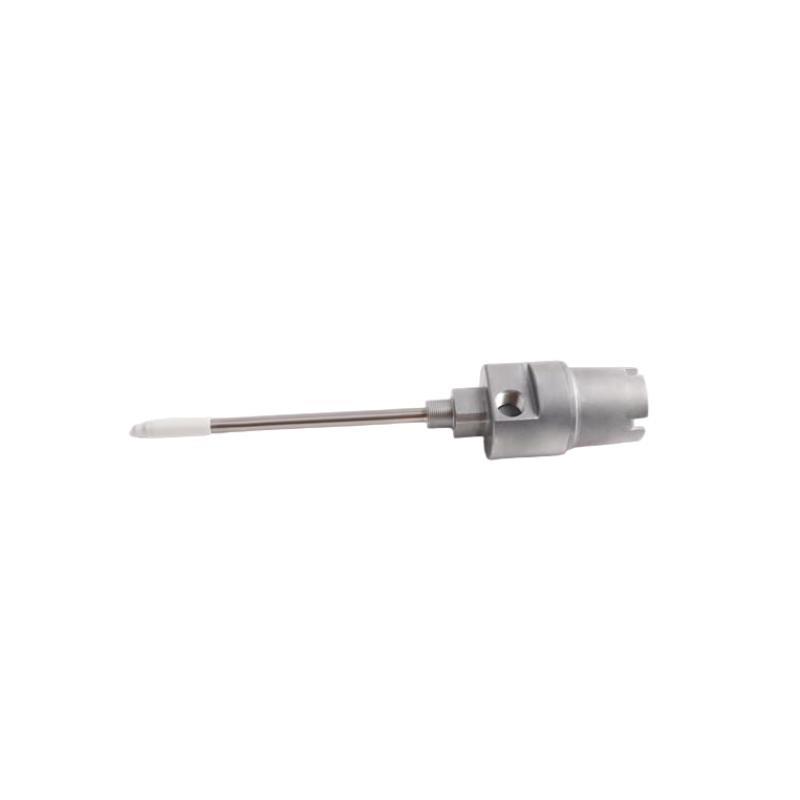

The Bently Nevada 21000-16-10-15-098-03-02 Proximity Probe Housing Assembly is a high-integrity protective enclosure engineered for secure mounting and environmental shielding / eddy-current proximity probes used in critical rotating machinery. As part / the trusted 21000 Series, this housing model /fers robust construction, precision alignment, and environmental resistance designed for industrial applications where reliability and durability are paramount.
This model, with its specific configuration code “-098-03-02”, is tailored for particular installation requirements including body length, thread type, and cable routing, making it well-suited for power generation, petrochemical, and heavy machinery environments. The internal design ensures optimal probe placement, vibration endurance, and simplified field wiring—all while protecting sensitive monitoring components from mechanical and environmental damage.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | 21000-16-10-15-098-03-02 |
| Series | 21000 Series |
| Material | 316L Stainless Steel |
| Mounting Thread | 3/4-16 UNF (Unified National Fine thread) |
| Cable Entry Orientation | Side-entry, conduit sealed |
| Ingress Protection Rating | IP66 / NEMA 4X |
| Operating Temperature Range | -40°C to +177°C (-40°F to +350°F) |
| Vibration Rating | Up to 50 g |
| Housing Body Diameter | 83.3 mm |
| 重量 | 1.1 kg |
| Surface Finish | Electro-polished |
| Seal Type | Dual O-rings with compression fitting |
| Compatible Probe Series | 3300 XL, 7200, 9000 series |
| Field Wiring | Internal terminal block with wiring access |
| Certifications | CE, CSA, ATEX (available upon request) |
| Installation Flexibility | Vertical or horizontal mount |
Product Applications
The 21000-16-10-15-098-03-02 housing assembly is built for a wide spectrum / industrial settings where equipment performance and safety monitoring are critical. Applications include:
-
Steam and Gas Turbines: Houses shaft vibration and thrust probes in turbine monitoring systems.
-
Centrifugal Compressors: Ensures secure installation / proximity probes in high-vibration zones.
-
Oil Refineries and Chemical Plants: Withstands corrosive environments where sealing integrity is vital.
-
Generators and Motors: Facilitates condition monitoring in rotating electrical machinery.
-
Paper and Pulp Industry: Provides sealing protection in humid and dust-prone environments.
-
Mining and Heavy Equipment: Rugged enough to operate in high-impact and dirty conditions.
Product Advantages
-
Mechanical Durability: Precision-machined from 316L stainless steel for excellent mechanical strength and corrosion resistance.
-
Environmental Protection: IP66/NEMA 4X rating ensures reliable operation in dusty, wet, or corrosive environments.
-
Custom-fit Design: Designed to accommodate Bently Nevada’s top proximity probe series, supporting accurate alignment and data integrity.
-
Service-friendly: Modular housing with removable cap and internal terminal block simplifies maintenance and wiring adjustments.
-
Long-Term Reliability: Withstands high vibration (up to 50g) without probe misalignment or seal failure.
-
Global Compliance: 可用 with CSA, ATEX, and CE certifications for use in hazardous industrial zones.
常见问题 (FAQ)
-
What types / probes can be installed in this housing?
It is compatible with Bently Nevada 3300 XL, 7200, and 9000 proximity probes. -
What makes the -098-03-02 configuration unique?
This variant features a longer housing length and specific internal threading suitable for deeper installations. -
Can this housing be used in /fshore or marine environments?
Yes, the stainless steel body and IP66/NEMA 4X protection make it ideal for marine and /fshore applications. -
What is the weight / the housing assembly?
The 件 weighs 1.1 kg, including the cap and cable fitting. -
Does the housing provide explosion-pro/ certification?
Yes, certified versions are available for ATEX and CSA-compliant installations. -
Can it be mounted vertically on turbine casings?
Yes, the design supports both horizontal and vertical installation positions. -
What is the maximum temperature it can withstand?
The housing supports operating temperatures up to 177°C (350°F). -
How is the probe secured inside the housing?
Probes are locked in place with a precision collet and O-ring sealing system. -
Is the internal wiring field-serviceable?
Yes, wiring is accessible via an internal terminal block and removable cap. -
Does the housing resist chemical corrosion?
Yes, its 316L stainless steel construction resists a broad range / industrial chemicals.
Related 型号s (Same Series or Design)
| 型号 Number | 描述 |
|---|---|
| 21000-16-10-15-085-03-02 | Standard housing variant with shorter body |
| 21000-16-10-15-088-03-02 | Mid-length version, similar cable orientation |
| 21000-20-10-15-098-03-02 | Long-body version for deep mounting locations |
| 21000-16-10-15-050-03-02 | Compact model for tight mounting spaces |
| 21000-12-10-10-098-03-02 | Smaller thread variant with same probe compatibility |
| 21000-16-10-15-098-02-01 | Legacy version with alternate terminal and fitting configuration |
Popular Bently Nevada 型号s (Same 品牌)
| 型号 Number | 描述 |
|---|---|
| 3300 XL Proximitor® | Signal conditioner for proximity probes in critical machinery |
| 3500/22M I/O Module | Transient data interface module for 3500 Series monitoring rack |
| 330104-00-05-10-02-00 | Proximitor sensor with 5m cable and 8mm probe |
| 330180-91-05 | Accelerometer for high-frequency vibration monitoring |
| 990-05-70-01-00 | Rugged velocity sensor for industrial applications |
| 190501-00-01 | Seismic vibration transmitter used in plant-wide monitoring |
