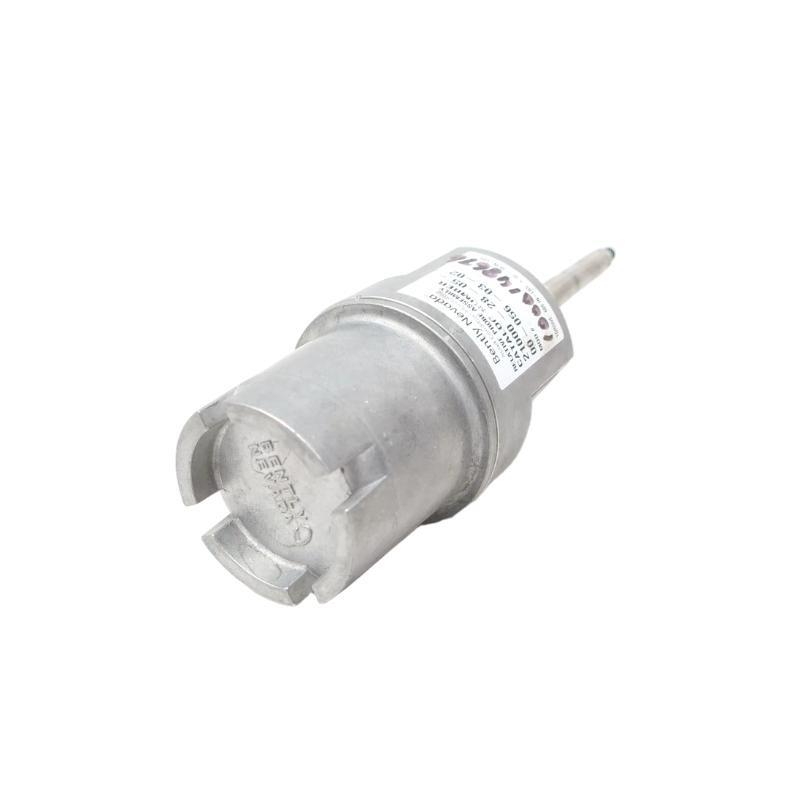

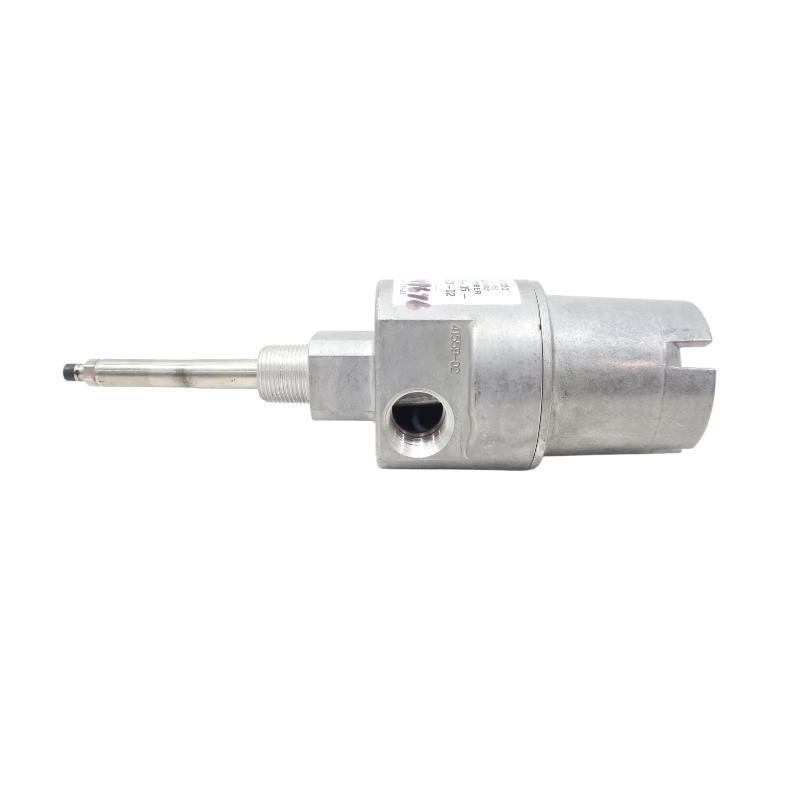

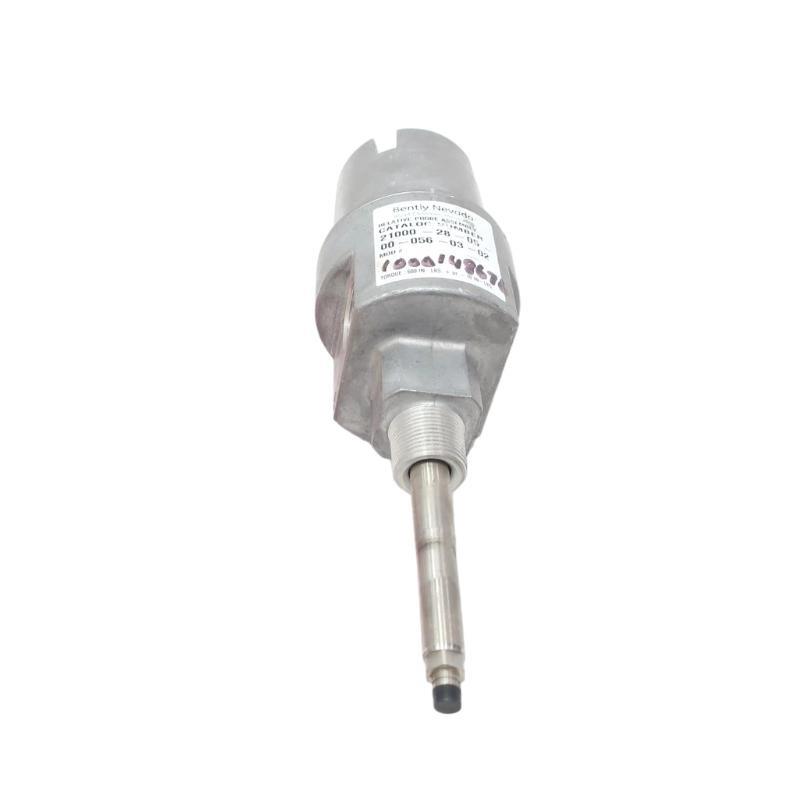

The Bently Nevada 21000-16-05-20-033-00-02 Proximity Probe Housing Assembly is a high-precision enclosure designed to provide stable and secure mounting for proximity probes in industrial machinery monitoring systems. This assembly ensures accurate alignment / the probe tip relative to rotating machinery shafts, enabling precise measurement / vibration, shaft displacement, and rotational position. Constructed with durable, corrosion-resistant materials, the housing assembly is designed for demanding industrial environments where high temperature, vibration, and exposure to dust or moisture are common.
The housing assembly integrates seamlessly with Bently Nevada monitoring systems, including 3300 XL, 3500, and 2300 series. It supports predictive maintenance programs by protecting the probe and maintaining consistent, reliable data for real-time monitoring and diagnostics. Its robust design and flexible mounting options make it suitable for turbines, compressors, pumps, and other high-speed rotating equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | 21000-16-05-20-033-00-02 |
| Product Type | Proximity Probe Housing Assembly |
| Housing Material | Stainless Steel / High-strength Alloy |
| Housing Body Diameter | 83.3 mm |
| Mounting Type | Flanged / Threaded Mount |
| Probe Compatibility | Bently Nevada Proximity Probes |
| Environmental Rating | IP65 |
| Operating Temperature | -20°C to 120°C |
| Storage Temperature | -40°C to 125°C |
| Vibration Resistance | Up to 20 g |
| 重量 | 1.1 kg |
| Connector Type | 2-pin or 4-pin depending on probe |
| Standards Compliance | ISO 9001, IEC 60529 |
| Surface Finish | Polished / Corrosion-resistant coating |
| Cable Entry | Gland or Threaded Entry Compatible |
Applications
-
Provides secure housing for proximity probes in rotating machinery monitoring
-
Measures shaft displacement, vibration, and rotational position for turbines, compressors, and pumps
-
Compatible with Bently Nevada 3300 XL, 3500, and 2300 series monitoring systems
-
Used in power generation, petrochemical, pulp & paper, and other industrial plants
-
支持s predictive maintenance programs through accurate sensor alignment
-
Protects probes from harsh environmental factors such as dust, moisture, and vibration
Advantages
-
High Measurement Accuracy: Maintains precise alignment / the probe for accurate vibration and displacement readings
-
Durable Construction: Stainless steel housing ensures corrosion resistance and long-term reliability in industrial environments
-
Vibration Resistant: Designed to maintain stability under vibrations up to 20 g
-
Wide Temperature Tolerance: Operates effectively in temperatures ranging from -20°C to 120°C
-
Seamless System Integration: Compatible with Bently Nevada 3300 XL, 3500, and 2300 monitoring systems
-
Environmental Protection: IP65 rating shields probes from dust, moisture, and contaminants
-
Flexible Mounting Options: 支持s flanged or threaded installations for versatile placement
-
Lightweight Design: At 1.1 kg, the housing provides durability without adding excessive weight to machinery mounts
FAQ
-
Which proximity probes are compatible with this housing assembly?
It is compatible with standard Bently Nevada proximity probes, allowing precise measurement / shaft displacement and vibration for industrial machinery. -
What material is the housing made /?
The housing is made / high-strength stainless steel, providing mechanical stability, durability, and resistance to corrosion. -
What is the operating temperature range?
The assembly operates reliably from -20°C to 120°C, suitable for high-temperature machinery applications. -
Can the housing withstand vibrations?
Yes, it is designed to resist vibrations up to 20 g, maintaining accurate probe positioning and measurement stability. -
What level / environmental protection does it provide?
The housing has an IP65 rating, protecting the internal probe from dust, moisture, and other contaminants commonly found in industrial environments. -
What is the body diameter / the housing?
The housing body diameter is 83.3 mm, designed to accommodate Bently Nevada proximity probes securely. -
Does the housing support multiple mounting options?
Yes, it can be installed using either flanged or threaded mounting configurations for flexibility in different machine layouts. -
What type / connector does the housing support?
The assembly supports 2-pin or 4-pin connectors depending on the type / proximity probe used. -
Is this housing compatible with Bently Nevada monitoring systems?
Yes, it integrates seamlessly with 3300 XL, 3500, and 2300 series monitoring systems for reliable machinery diagnostics. -
Does the housing protect probes in harsh industrial environments?
Yes, the corrosion-resistant material, robust construction, and IP65 rating provide protection from dust, moisture, vibration, and mechanical stress, ensuring reliable sensor performance.
Related 型号s / Same Series
| 型号 Number | 描述 |
|---|---|
| 21000-16-05-20-033-00-01 | Proximity Probe Housing for smaller probes |
| 21000-16-05-20-033-00-03 | High-temperature probe housing assembly |
| 21000-16-05-20-033-00-04 | Flanged housing for turbine applications |
| 21000-16-05-20-033-00-05 | Threaded mount housing for compressors |
| 21000-16-05-20-033-00-06 | Extended-length housing for deep installations |
| 21000-16-05-20-033-00-07 | Anti-vibration housing for heavy machinery |
