Product Overview

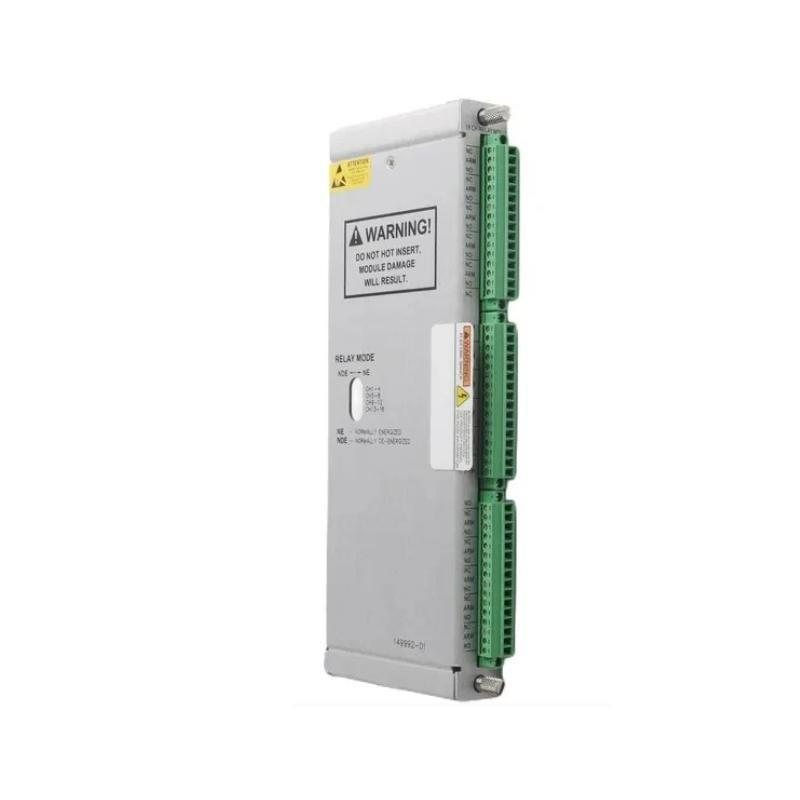

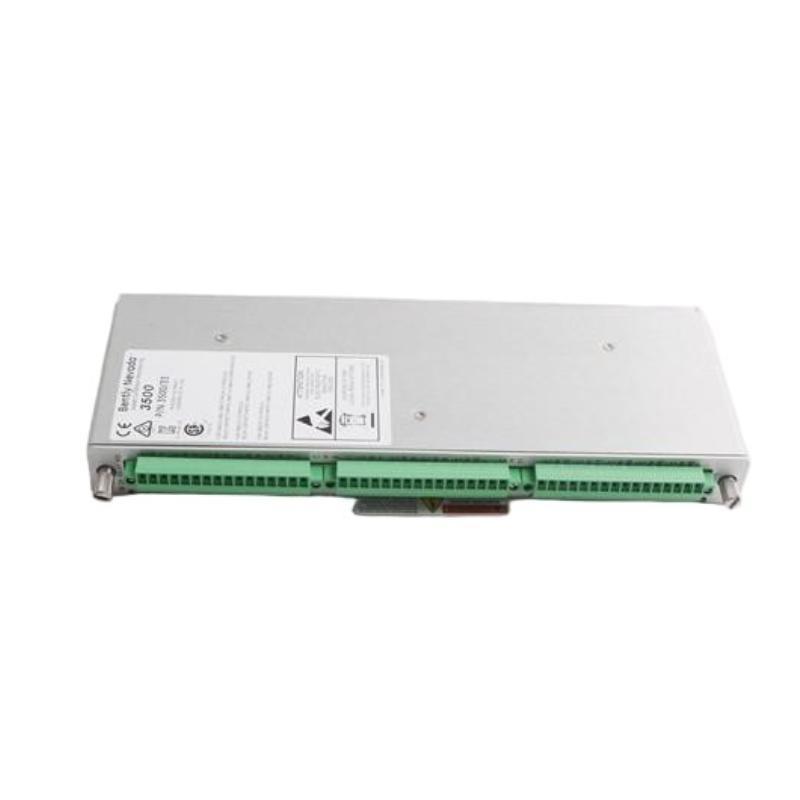

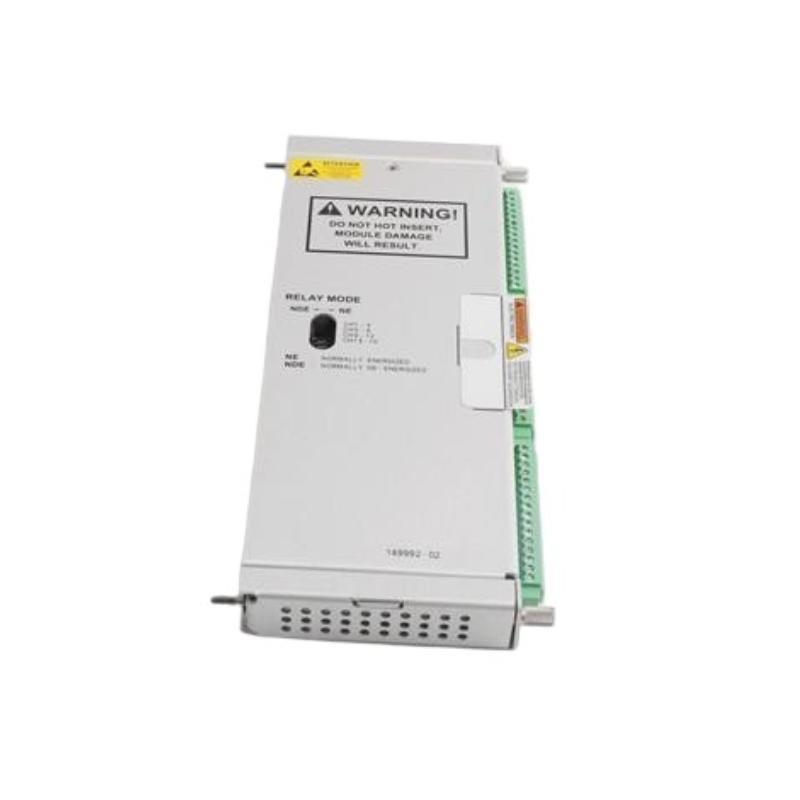

The Bently Nevada 149992-02 16-Channel Relay Module is a robust interface module designed for machine condition monitoring and protection systems. It provides 16 individual relay outputs, enabling alarms, shutdowns, and control actions based on signals from 3300 XL or 3300 NSv proximity and vibration sensors. The module ensures reliable operation in critical industrial environments, facilitating automation and protection strategies for rotating machinery and process equipment.
Key Features
-
Provides 16 independent relay outputs for alarms and control actions
-
Compatible with Bently Nevada 3300 XL and 3300 NSv systems
-
Designed for high reliability in harsh industrial environments
-
Easy integration into machine monitoring and protection systems
Technical Specifications
| Item | Specification |
|---|---|
| 制造商 | Bently Nevada |
| 零件号 | 149992-02 |
| Product Type | 16-Channel Relay Module |
| 支持ed Devices | 3300 XL and 3300 NSv series sensors |
| Number / Relays | 16 channels |
| Relay Type | SPDT (Form C) |
| Relay Rating | 2 A @ 30 VDC / 0.5 A @ 125 VDC |
| Operating Voltage | 24 VDC nominal |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | 241 x 24.4 x 242 mm |
| 重量 | 0.7 kg |
| Applications | Alarm outputs, machine protection, control actions, and automation |
Industry Applications
-
Rotating machinery monitoring and protection
-
Turbines, compressors, and pumps
-
Motors and generators
-
Gearboxes and industrial equipment
-
Oil, gas, and power generation industries
-
状态-based monitoring systems
常见问题 (FAQ)
Q1: What is the primary function / the 149992-02 Relay Module?
It provides 16 independent relay outputs for alarms, shutdowns, and control actions.
Q2: Which monitoring systems is it compatible with?
Bently Nevada 3300 XL and 3300 NSv series sensors.
Q3: What is the type and rating / each relay?
SPDT (Form C), rated 2 A @ 30 VDC or 0.5 A @ 125 VDC.
Q4: What is the operating voltage?
24 VDC nominal.
Q5: Can it operate in harsh industrial environments?
Yes, it is designed for reliable operation in industrial conditions.
Q6: What is the operating temperature range?
0 °C to +60 °C.
Q7: How many relay channels are provided?
16 independent channels.
Q8: What are the module dimensions?
241 x 24.4 x 242 mm.
