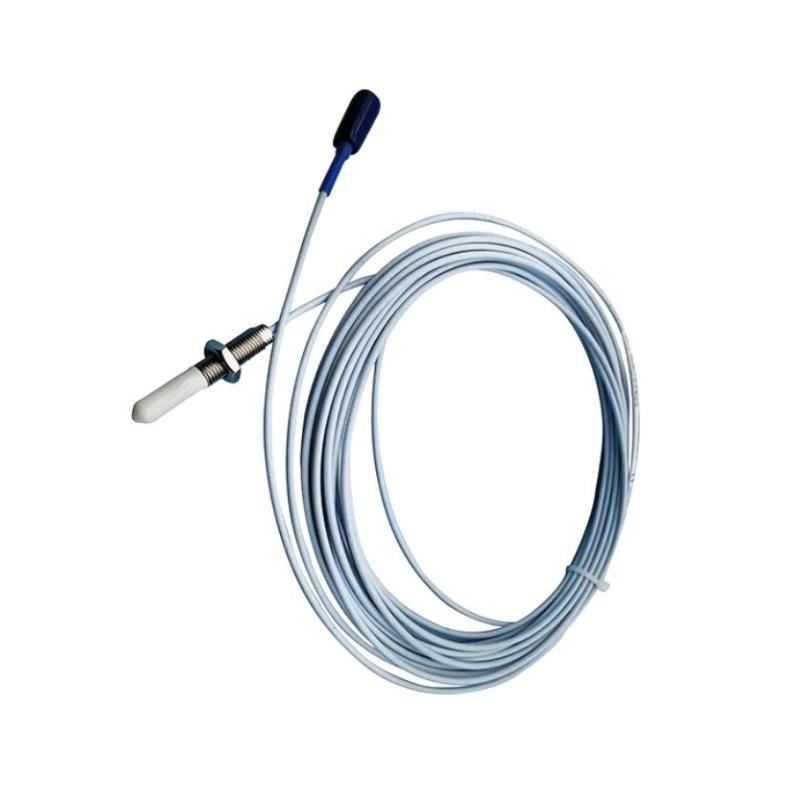

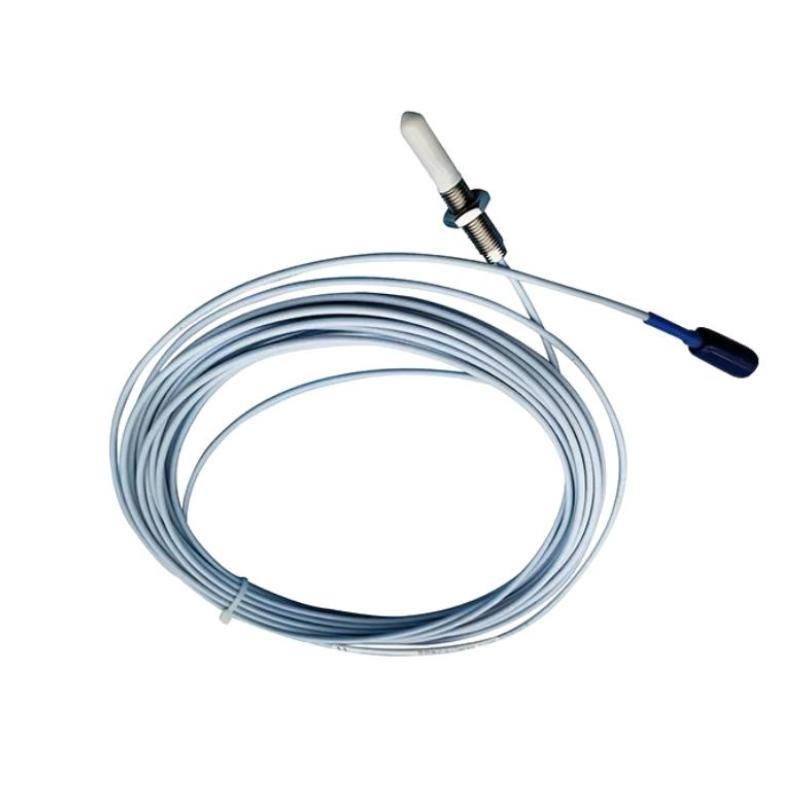

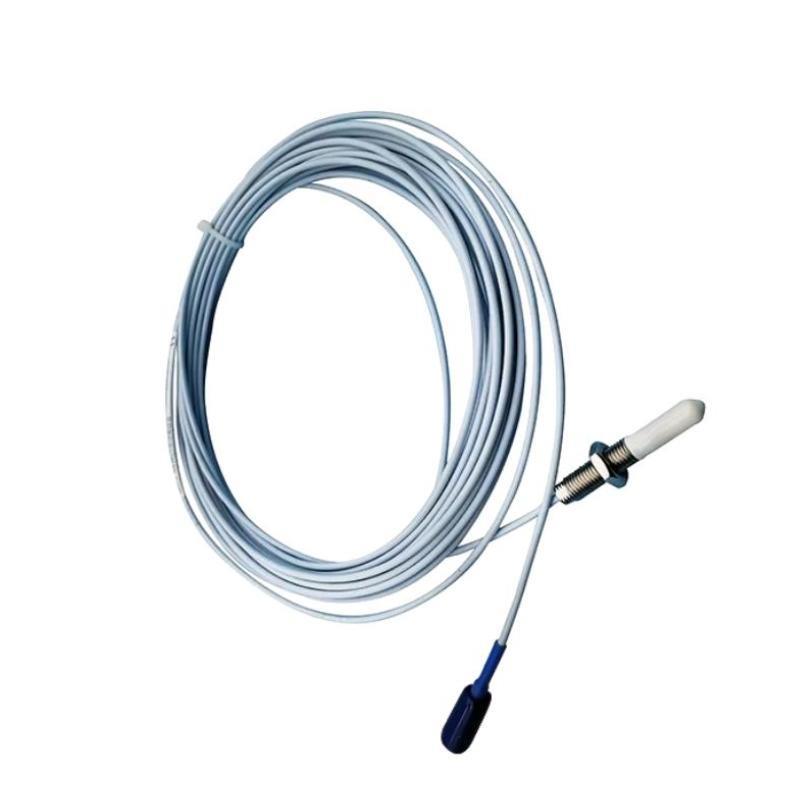

Bently Nevada 137365-01-20-02-05 Proximity Probe

产品介绍

The Bently Nevada 137365-01-20-02-05 Proximity Probe is a high-precision vibration and displacement measurement sensor designed specifically for use in critical industrial applications such as turbines, compressors, pumps, and rotating machinery. Developed under GE’s Bently Nevada 3300 XL Series, this proximity probe provides accurate, real-time monitoring / shaft vibration, axial position, and keyphasor signals.

Built with advanced eddy current sensing technology, the 137365-01-20-02-05 delivers reliable and stable performance even under extreme environmental and operational conditions. It detects minute changes in the distance between the probe tip and the rotating shaft surface, converting them into proportional voltage signals for precise condition monitoring. This sensor is an integral component in predictive maintenance systems, helping operators identify developing faults early to prevent costly equipment failures and unplanned shutdowns.

Product Parameters

Product Applications

The Bently Nevada 137365-01-20-02-05 Proximity Probe is widely used in high-value industrial assets where real-time shaft motion and vibration data are crucial for operational safety and performance optimization. Key application areas include:

• Turbomachinery Monitoring: Used in steam, gas, and hydro turbines for measuring radial vibration and shaft position.

• Compressor Systems: Monitors shaft dynamics and bearing wear in high-speed centrifugal and axial compressors.

• Rotating Pumps: Detects imbalance, cavitation, and mechanical looseness in critical pump systems.

• Generators and Motors: Tracks rotor position and mechanical health in electric generation equipment.

• Gearboxes and Couplings: Provides early warning for misalignment and gear tooth wear.

• Industrial Process Equipment: Integrates into monitoring systems for refineries, chemical plants, and /fshore platforms.

Product Advantages

The Bently Nevada 137365-01-20-02-05 /fers several distinct advantages that make it a trusted choice across industries requiring precise machinery protection and condition monitoring:

• Exceptional Measurement Accuracy: High linearity and sensitivity allow accurate detection / minute shaft displacements.

• Rugged Construction: Stainless-steel probe body and durable insulation ensure long-term operation in harsh environments.

• Wide Temperature Range: Performs reliably from -35°C up to +177°C without calibration drift.

• Enhanced Noise Imm件y: Designed with superior shielding to minimize electrical interference from surrounding equipment.

• System Compatibility: Fully compatible with 3300 XL extension cables and Proximitor sensors, ensuring seamless integration.

• Fast Dynamic Response: Capable / measuring high-speed vibration and transient shaft movement.

• Predictive Maintenance Capability: Enables continuous online monitoring, improving maintenance scheduling and reducing downtime.

• Compliance with API 670: Meets international standards for vibration and displacement measurement systems.

• Flexible Installation Options: 可用 in multiple cable lengths and thread sizes to match different machinery configurations.

• Proven Reliability: Backed by GE’s extensive experience in machinery protection and asset condition monitoring systems.

FAQ

1. What measurement principle does the 137365-01-20-02-05 proximity probe use?
   It operates on the eddy current principle, detecting changes in the magnetic field caused by variations in the distance between the probe tip and the conductive shaft surface.

2. Can this probe be used with any Proximitor module?
   It is designed to work specifically with compatible Bently Nevada 3300 XL Proximitor sensors, ensuring proper calibration and linearity.

3. What is the output sensitivity / this model?
   The standard sensitivity is 7.87 mV/μm (200 mV/mil), which ensures accurate voltage-to-displacement conversion.

4. How does the probe ensure measurement stability in high-temperature environments?
   It uses high-temperature materials and robust insulation to maintain stable output across a wide temperature range / -35°C to +177°C.

5. Is the probe calibration affected by different shaft materials?
   Yes, calibration is performed using a specific target material (typically AISI 4140 steel). 其他 materials may slightly alter sensitivity, requiring system adjustment.

6. Can the probe detect both static and dynamic displacement?
   Yes, the probe measures both static shaft position and dynamic vibration signals within the DC to 10 kHz range.

7. What kind / signal conditioning does the system use?
   The probe sends an unamplified signal to the Proximitor sensor, where linearization, amplification, and signal processing are performed.

8. How does the system handle electrical noise interference?
   It incorporates shielded coaxial cables and internal grounding techniques to minimize induced noise and maintain signal integrity.

9. Is it possible to extend the cable length beyond 5 meters?
   Yes, longer cable configurations (such as 7 m or 9 m) are available upon request, but they must match the factory-calibrated Proximitor system for accurate operation.

10. What standard does this probe meet for machinery protection systems?
    It is fully compliant with API 670, the industry standard for machinery vibration and displacement monitoring equipment.
