产品介绍

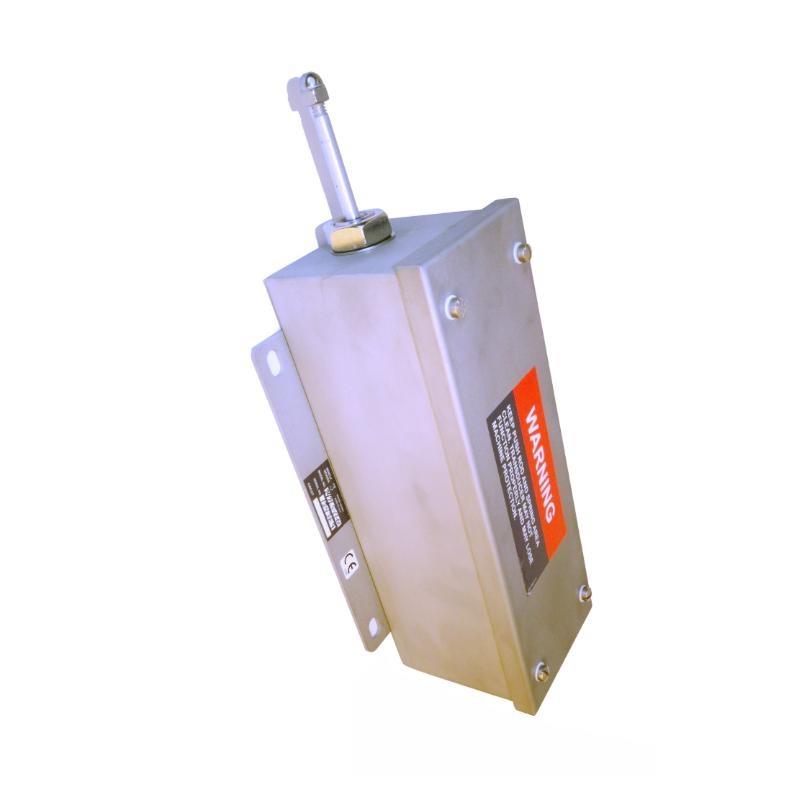

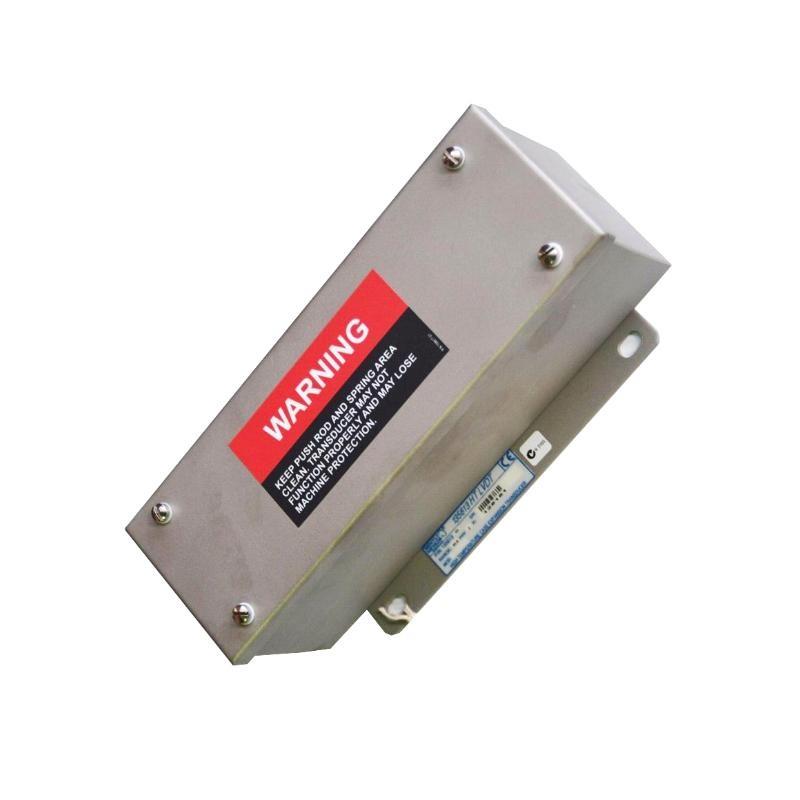

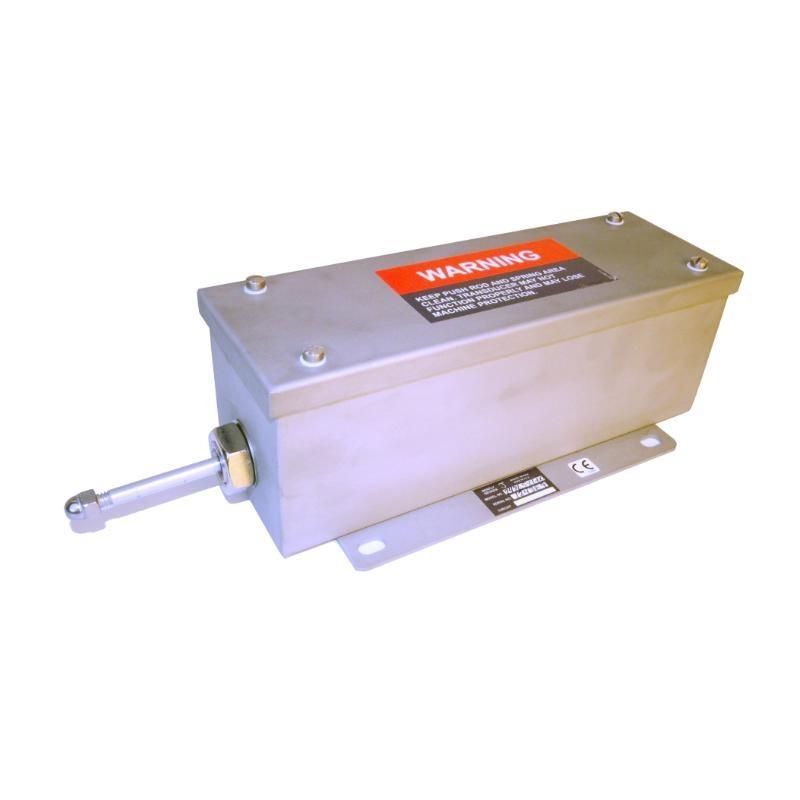

The Bently Nevada 135613-03-00 High Temperature Case Expansion Transducer Assembly is specifically engineered for monitoring high-temperature machinery applications. It accurately measures casing expansion caused by thermal effects in turbines, generators, compressors, and other industrial rotating equipment.
This transducer assembly converts physical displacement into high-fidelity electrical signals, allowing precise condition monitoring in extreme thermal environments. Its robust design ensures consistent performance under elevated temperatures, maintaining reliable measurements even in harsh industrial conditions.
The assembly is an integral part / the Bently Nevada 3500 series monitoring systems, enabling advanced predictive maintenance strategies by providing critical data on machinery thermal behavior and clearance variations.
Product Parameters
| Parameter | Specification |
|---|---|
| Product 型号 | Bently Nevada 135613-03-00 |
| Product Type | High Temperature Case Expansion Transducer Assembly |
| Compatible Systems | 3500 Series Monitoring System |
| Measurement Type | Linear displacement (casing expansion) |
| Output Signal | Differential voltage compatible with 3500 I/O modules |
| Operating Temperature | Up to 260°C (500°F) |
| Mounting Type | Custom bracket for high-temperature cases |
| Materials | High-temperature resistant alloys and ceramics |
| Cable Type | Shielded multi-conductor cable for high-temperature applications |
| Dimensions | 328 x 88.9 x 117 mm |
| 重量 | 2.7 kg |
| Signal Accuracy | ±1% / full-scale measurement |
| Response Time | <1 ms |
| Certifications | CE, UL, RoHS compliant |
Product Applications
-
High-temperature machinery monitoring – Measures casing expansion in turbines, compressors, and generators.
-
Predictive maintenance – Provides real-time data for detecting abnormal thermal growth.
-
Industrial condition monitoring – Integrated with 3500 series systems for vibration and clearance analysis.
-
Power generation plants – Monitors critical equipment in steam and gas turbines.
-
Oil & gas facilities – 支持s safety and reliability in high-temperature environments.
-
Rotating equipment diagnostics – Helps engineers assess mechanical stresses and alignment during operation.
Product Advantages
-
High-temperature resistance – Operates reliably in extreme thermal conditions up to 260°C.
-
Precision measurement – Captures subtle case expansion with high accuracy.
-
Rapid response – Provides real-time displacement signals for monitoring and control.
-
Durable construction – Materials and assembly designed to withstand harsh industrial environments.
-
Easy integration – Compatible with Bently Nevada 3500 series monitoring systems.
-
Reliable signal transmission – Shielded cables minimize noise interference in industrial environments.
-
Predictive maintenance enablement – 支持s advanced diagnostics for machinery longevity.
-
Compact design – Minimal impact on existing installation layouts.
-
High-fidelity output – Differential voltage output ensures precise data acquisition.
-
Versatile application – Suitable for turbines, generators, compressors, and other high-temperature equipment.
FAQ
-
What is the maximum operating temperature?
Up to 260°C (500°F), using high-temperature alloys and ceramics to maintain measurement stability. -
Which monitoring systems are compatible?
Fully compatible with Bently Nevada 3500 Series Monitoring Systems and I/O modules. -
What does the transducer measure?
Linear casing expansion due to thermal effects with ±1% full-scale accuracy. -
What type / output does it provide?
Differential voltage signal suitable for 3500 Series I/O modules, minimizing noise interference. -
How is it mounted?
Using a custom high-temperature bracket aligned to the case surface for accurate displacement measurement. -
Does it include shielded cabling?
Yes, multi-conductor shielded cable protects signals from electromagnetic interference. -
What is the response time?
Less than 1 millisecond, enabling real-time monitoring / thermal expansion events. -
Can it be used on different machinery types?
Yes, suitable for turbines, compressors, and large generators in high-temperature environments. -
How does it handle vibration?
Designed with vibration-resistant components and robust materials to maintain signal stability. -
How does it support predictive maintenance?
Provides real-time expansion data for trending, alarms, and diagnostic analysis to prevent failures.
Recommended Related 型号s (Same Series)
| 型号 | 描述 |
|---|---|
| 135613-01-00 | Standard Temperature Case Expansion Transducer Assembly |
| 135613-02-00 | High Temperature Case Expansion Sensor |
| 135613-04-00 | High Temperature Differential Expansion Transducer |
| 135613-05-00 | Turbo Compressor Case Expansion Sensor |
| 135613-06-00 | Generator Case Expansion Transducer Assembly |
| 135613-07-00 | Steam Turbine Case Expansion Sensor |
Popular Bently Nevada 型号s (其他 Families)
| 型号 | 描述 |
|---|---|
| 3500/25 125800-02 | Isolated Keyphasor I/O Module |
| 3500/42M 125808-02 | Proximitor Seismic External Block Terminal |
| 129716-078-027-05-05 | 3300 XL Proximity Sensor |
| 130118-0010-02 | Host Computer to 3500 Rack Cable |
| 130539-17 | Interconnect Cable 17 ft |
| 130539-99 | Interconnect Cable 99 ft |
